OTS 1356NP 6L

The OTS 1356NP 6L is a desktop network appliance based on the Intel Kaby Lake-R / 8th Generation Intel Core processor platform. It uses the FCBGA1356 platform and supports DDR4 SO-DIMM memory up to 32GB at 2400 MT/s. The front panel provides 6 × Intel I226V 2.5GbE RJ45 LAN ports, 2 × USB-A 3.0 ports, and 1 × RJ45 COM console port. The platform also supports 1 × SATA 6Gb/s, 1 × M.2 Key-M 2280, 2 × mPCIe slots, SIM slot, reserved VGA/HD display, and reserved antenna openings. With a compact desktop chassis, active cooling, and DC 12V input, it is suitable for enterprise security appliances, network management, edge computing nodes, industrial automation control, industrial communication, and lightweight server applications.

Place an order

Core Specifications

Model: OTS 1356NP 6L
Processor Platform: 8th Generation Intel Core processors
Socket: FCBGA1356
Memory: DDR4 SO-DIMM, up to 32GB, up to 2400 MT/s
Storage: 1 × SATA 6Gb/s, 1 × M.2 Key-M 2280 with PCIe signal
Network: 6 × 2.5GbE RJ45, Intel I226V controllers
Expansion: 1 × mPCIe with PCIe signal; 1 × mPCIe with USB2.0 signal, supporting single-sided WiFi module

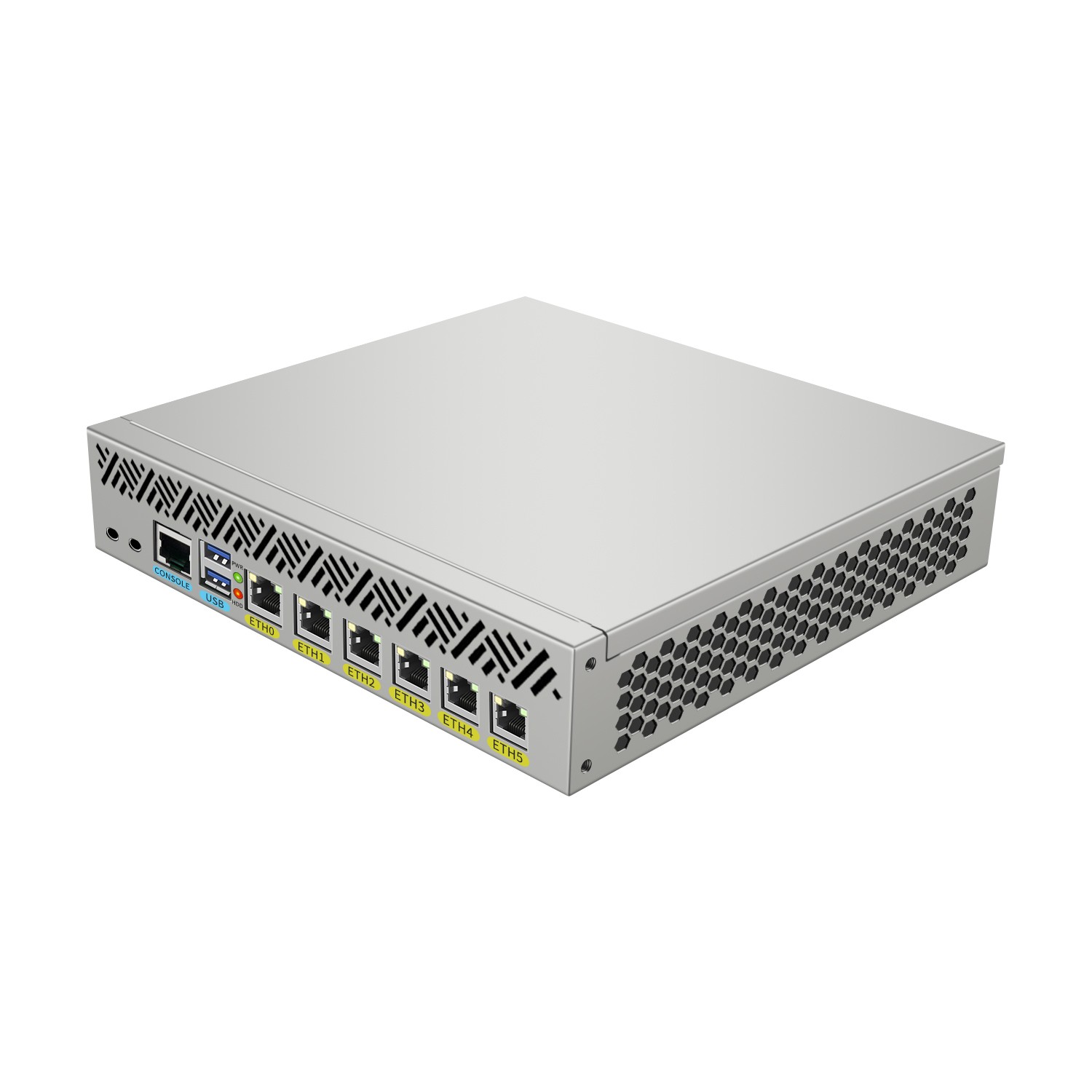

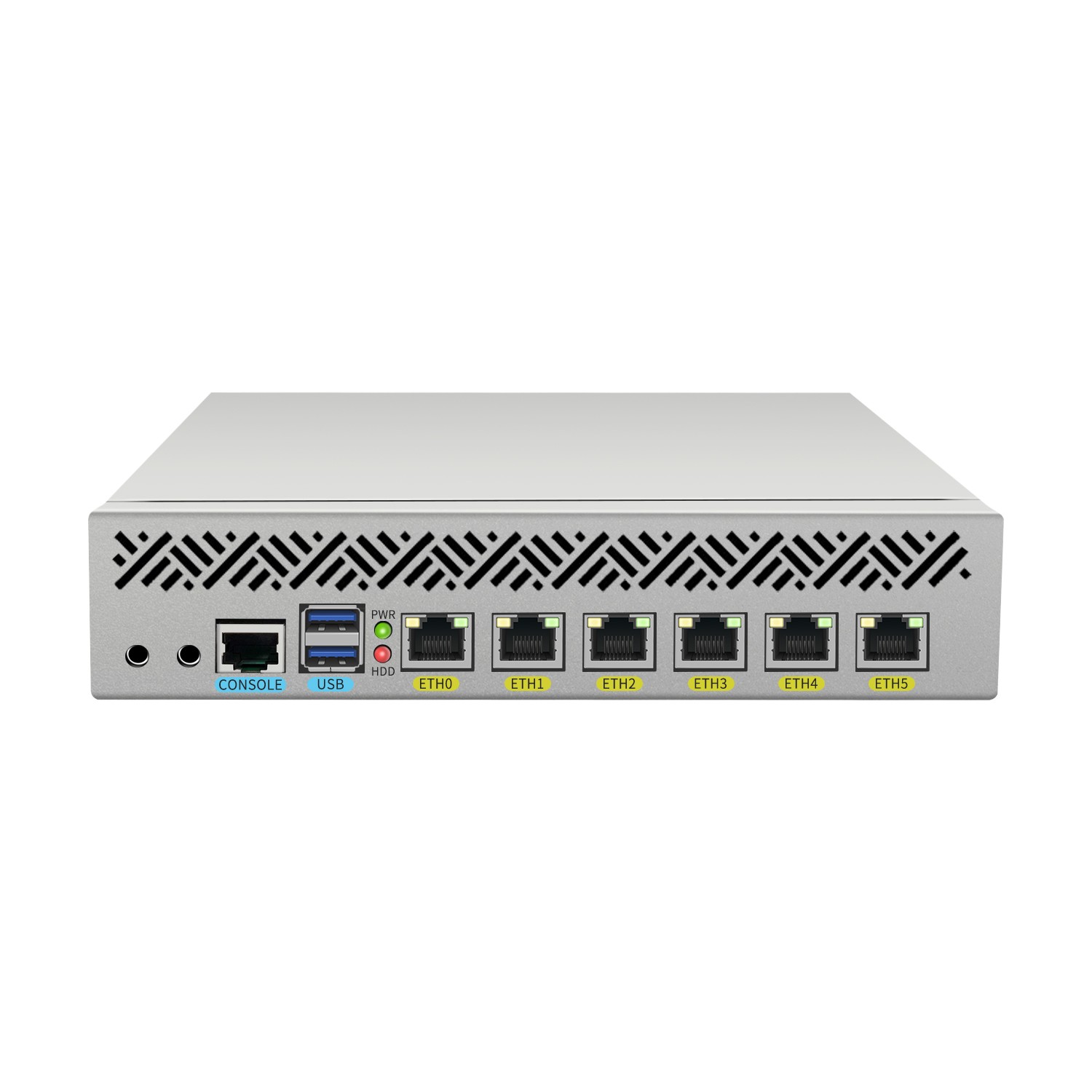

Front Panel: 6 × RJ45 LAN, 2 × USB-A 3.0, 1 × RJ45 COM

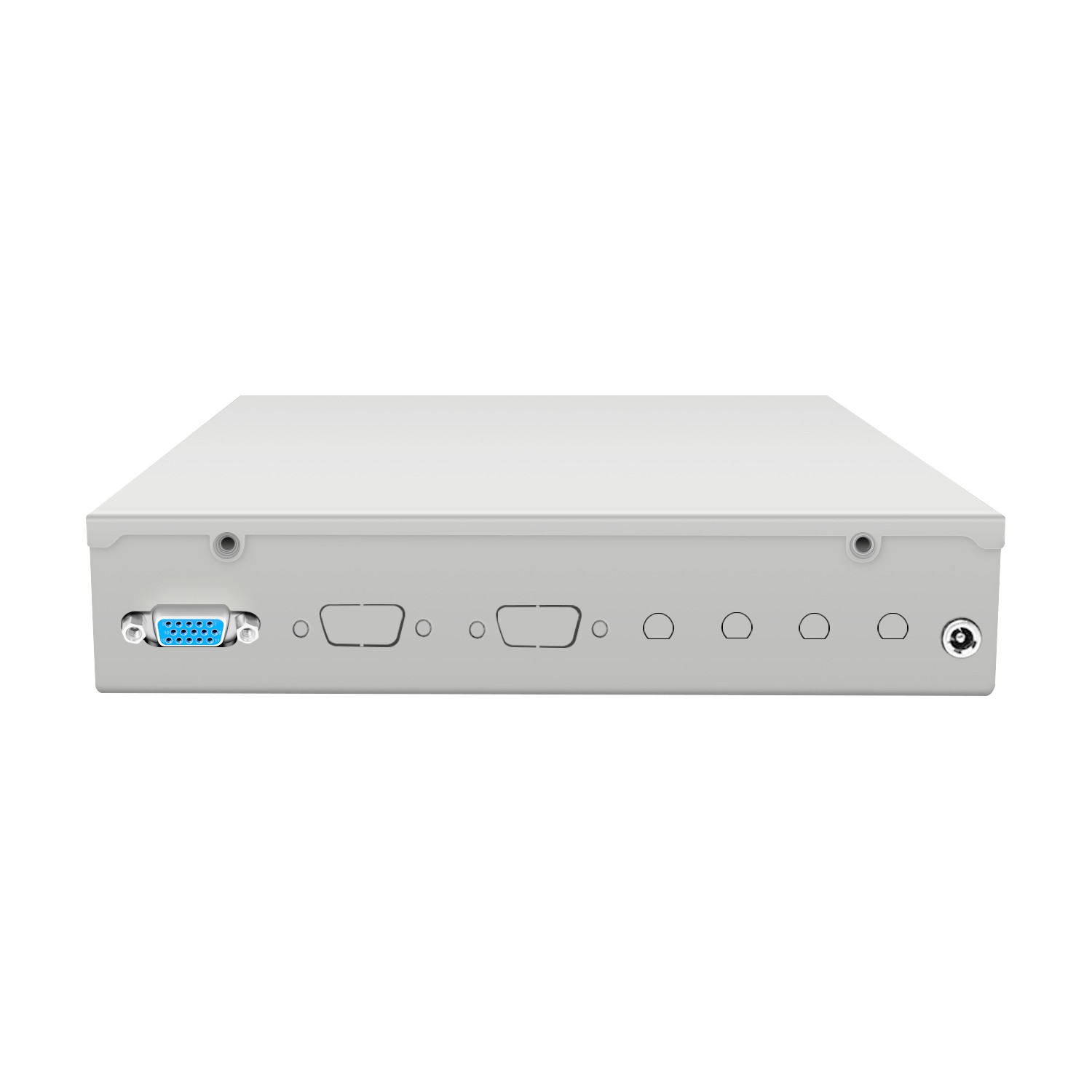

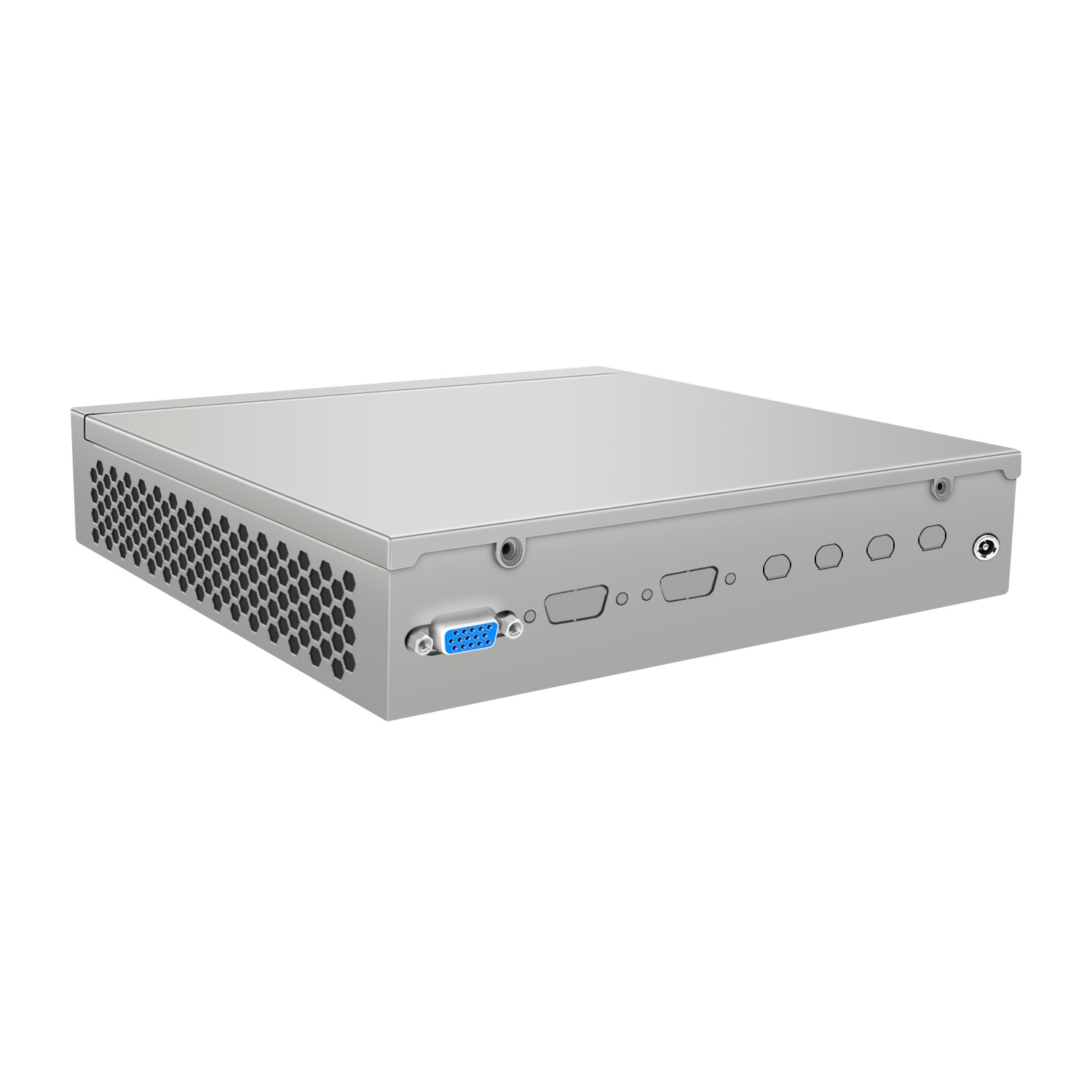

Rear Panel: 1 × VGA, 1 × HD reserved, 2 antenna groups reserved, 1 × DC 5.5/2.5mm
Onboard I/O: 1 × SATA data connector, 1 × SATA power socket, 1 × F_PANEL, 1 × J_COM, 3 × F_USB 2.0, 1 × J_GPIO, 1 × J_VGA, 1 × J_HD, 1 × SIM card slot
Display: Intel UHD Graphics, reserved VGA/HD display
Cooling Method: Active cooling, 1 × CPU fan

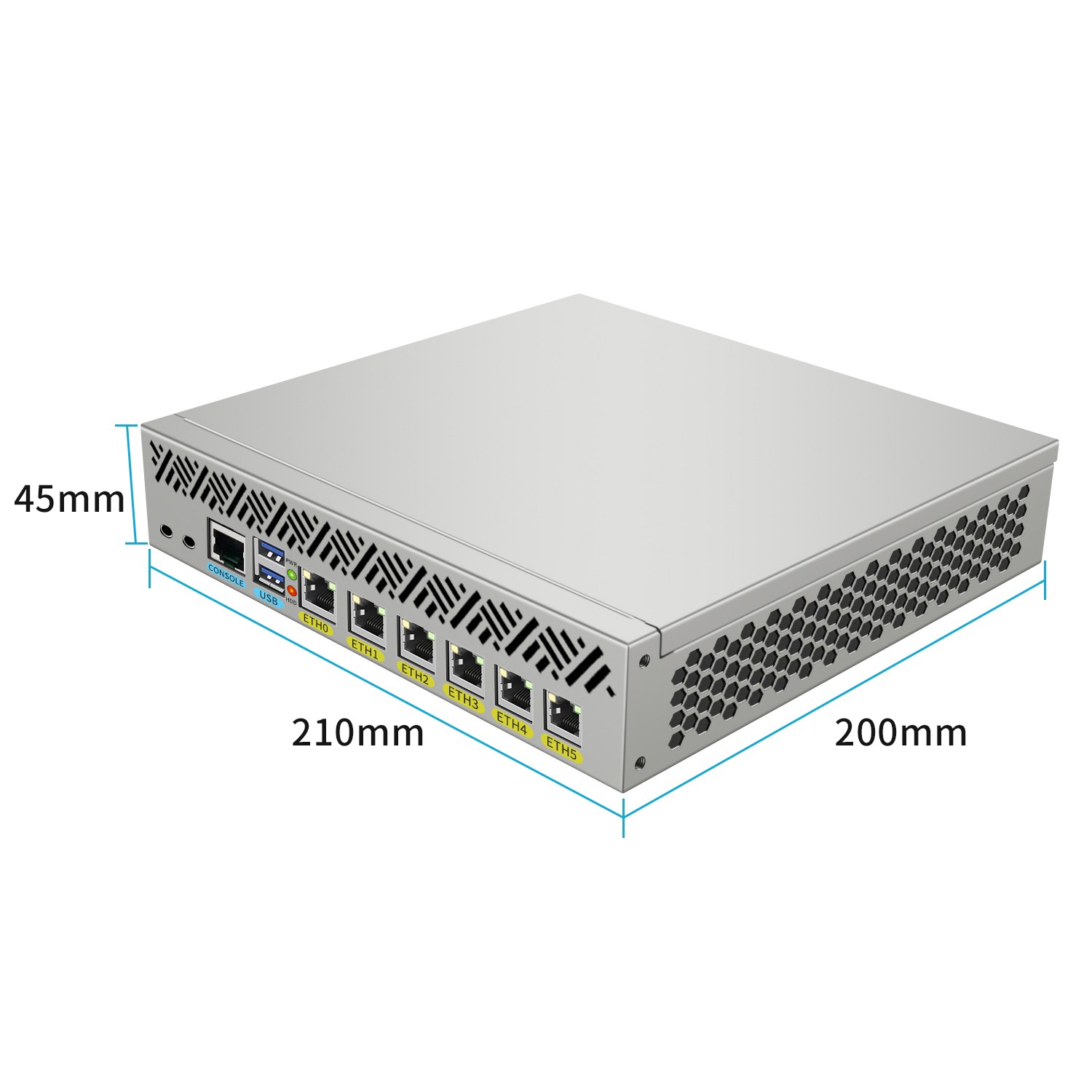

Chassis Size: 210 × 200 × 45 mm
Weight: Equipment weight 1.25KG; package weight 1.65KG including accessories
Power Mode: DC 12V 4A or higher
Operating Temperature: 0°C to 50°C
Operating Humidity: 5% to 90% relative humidity, non-condensing

Product Features

Compact desktop chassis for offices, weak-current cabinets, equipment cabinets, and industrial site deployment.
Based on 8th Generation Intel Core processor platform, delivering reliable multitasking and edge computing performance.
DDR4 SO-DIMM memory support up to 32GB for network services, edge applications, and lightweight server workloads.
Integrated 6 × Intel I226V 2.5GbE LAN ports for multi-segment access, traffic distribution, and network management.
SATA 6Gb/s and M.2 Key-M 2280 storage interfaces support system drives, local data storage, or cache applications.
Dual mPCIe expansion slots and SIM slot support wireless communication modules or project-specific function modules.
J_GPIO, J_COM, F_USB, and reserved VGA/HD interfaces support industrial control and project integration.
Front-access LAN, USB, and RJ45 COM console interfaces simplify installation, debugging, and maintenance.
Active cooling and DC 12V input support stable long-term operation.
