1U 1356NP 6L

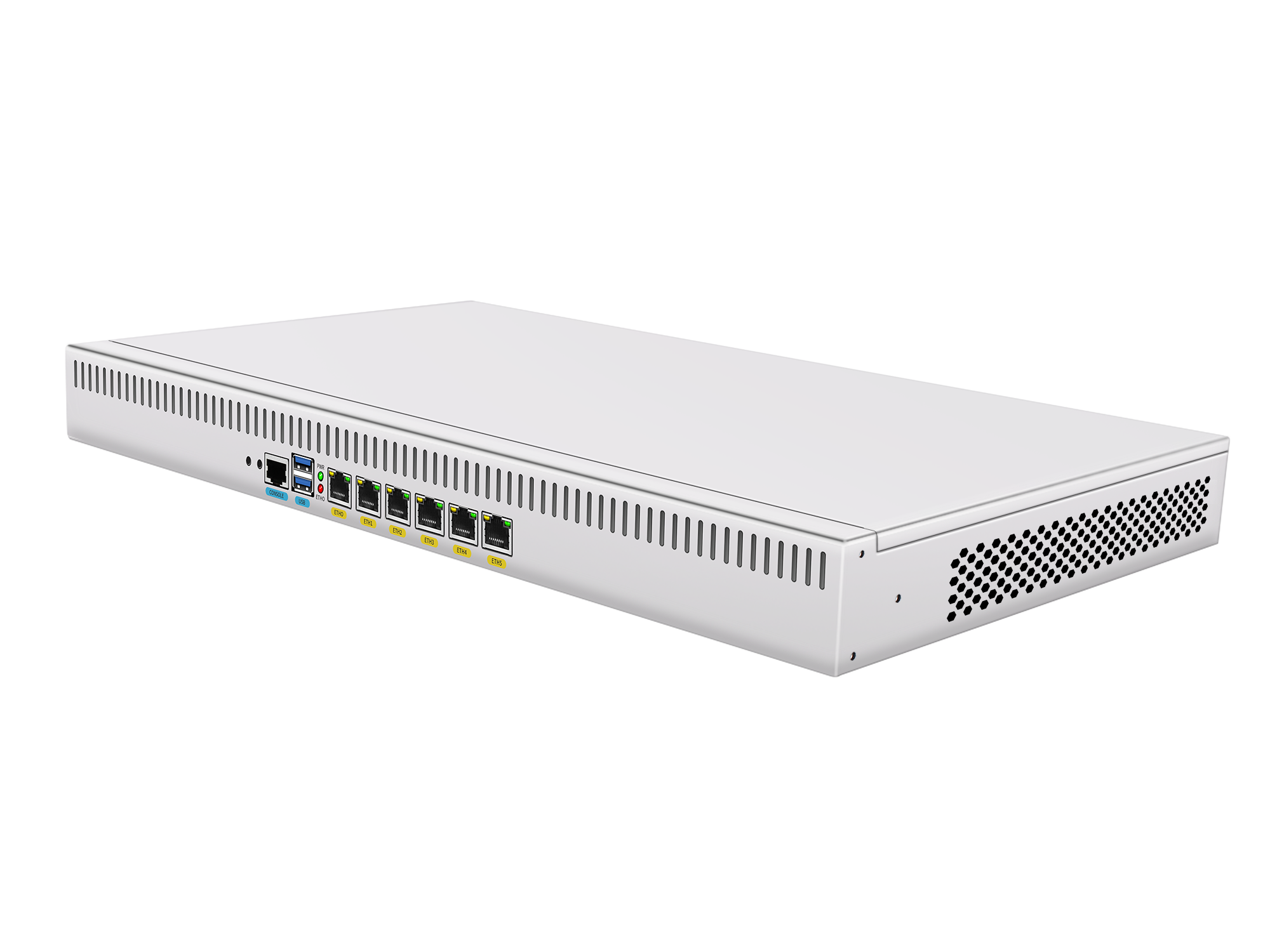

The 1U 1356NP 6L is a 1U rackmount 6-LAN network appliance based on the Intel Kaby Lake-R / 8th Generation Intel Core processor platform. It uses the FCBGA1356 platform and supports DDR4 SO-DIMM memory up to 32GB at 2400 MT/s. The front panel provides 6 × Intel I226V 2.5GbE RJ45 LAN ports, 2 × USB-A 3.0 ports, and 1 × RJ45 COM console port. The platform also supports 1 × SATA 6Gb/s, 1 × M.2 Key-M 2280, 2 × mPCIe slots, SIM slot, reserved VGA/HD display, and reserved antenna openings. With a 1U rackmount chassis, active cooling, and AC wide-voltage input, it is suitable for enterprise security appliances, network management, edge computing nodes, industrial automation control, industrial communication, and lightweight server applications.

Place an order

Core Specifications

Model: 1U 1356NP 6L
Processor Platform: 8th Generation Intel Core processors
Socket: FCBGA1356
Memory: DDR4 SO-DIMM, up to 32GB, up to 2400 MT/s
Storage: 1 × SATA 6Gb/s, 1 × M.2 Key-M 2280 with PCIe signal
Network: 6 × 2.5GbE RJ45, Intel I226V controllers
Expansion: 1 × mPCIe with PCIe signal; 1 × mPCIe with USB2.0 signal, supporting single-sided WiFi module

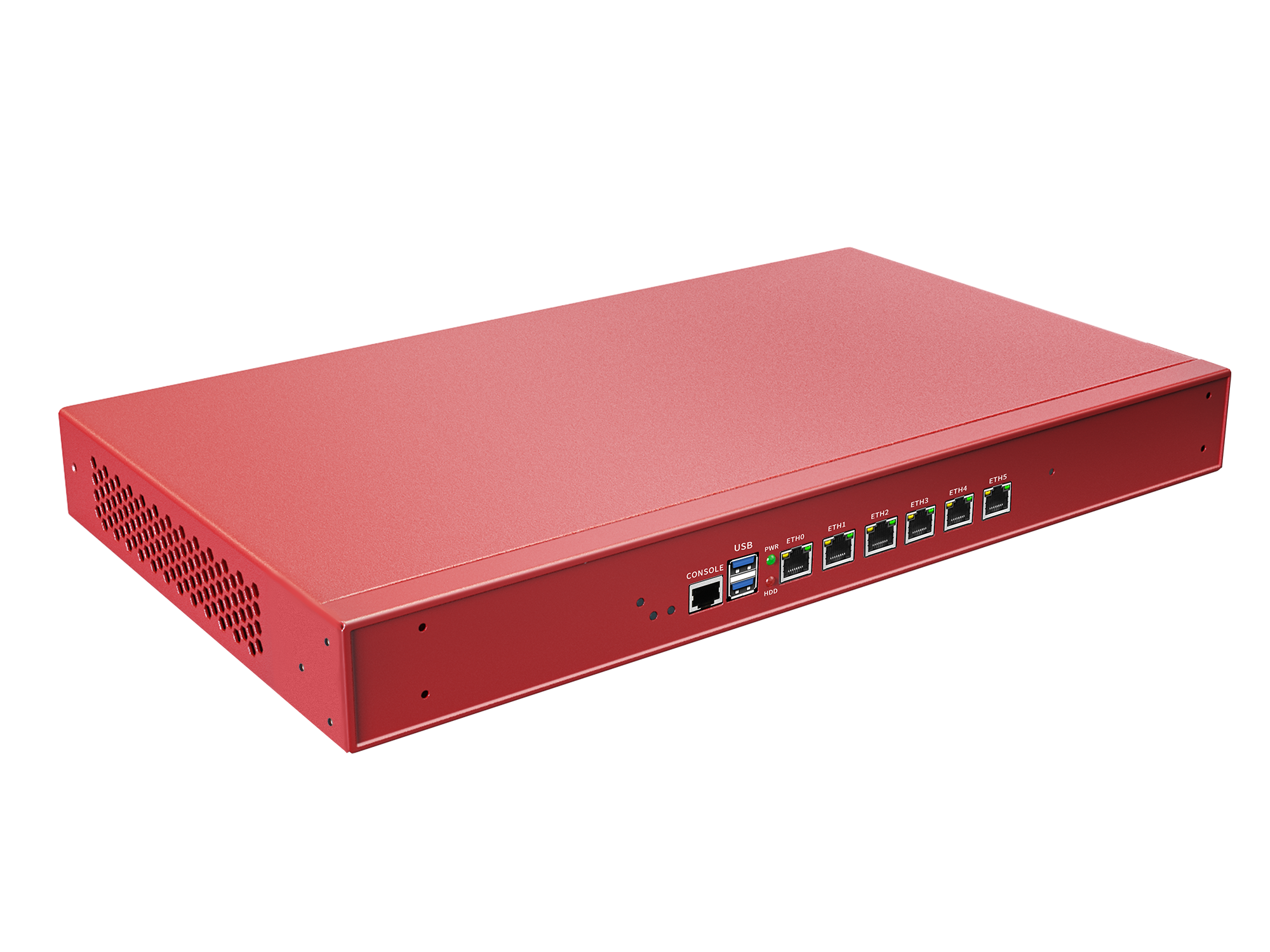

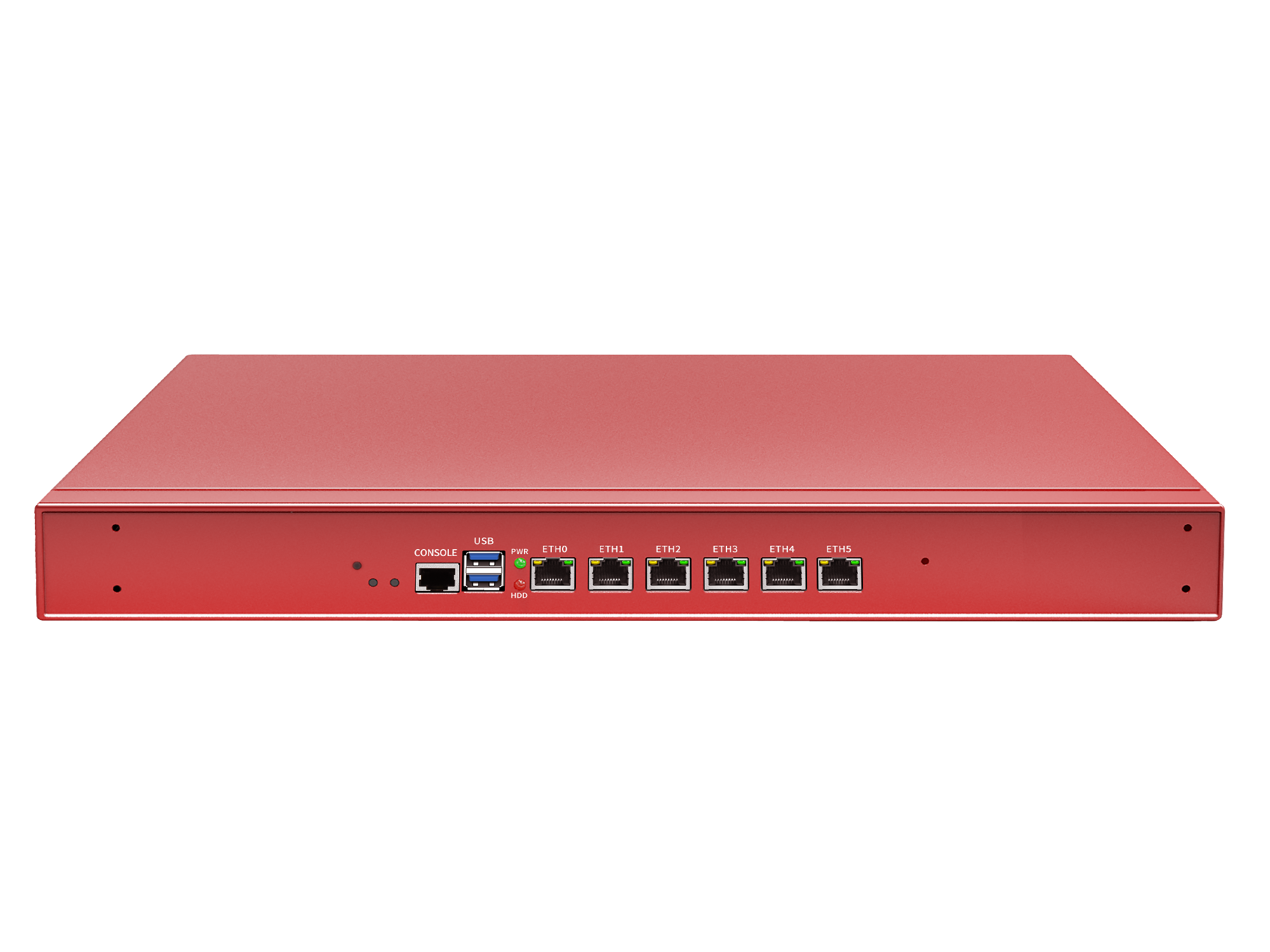

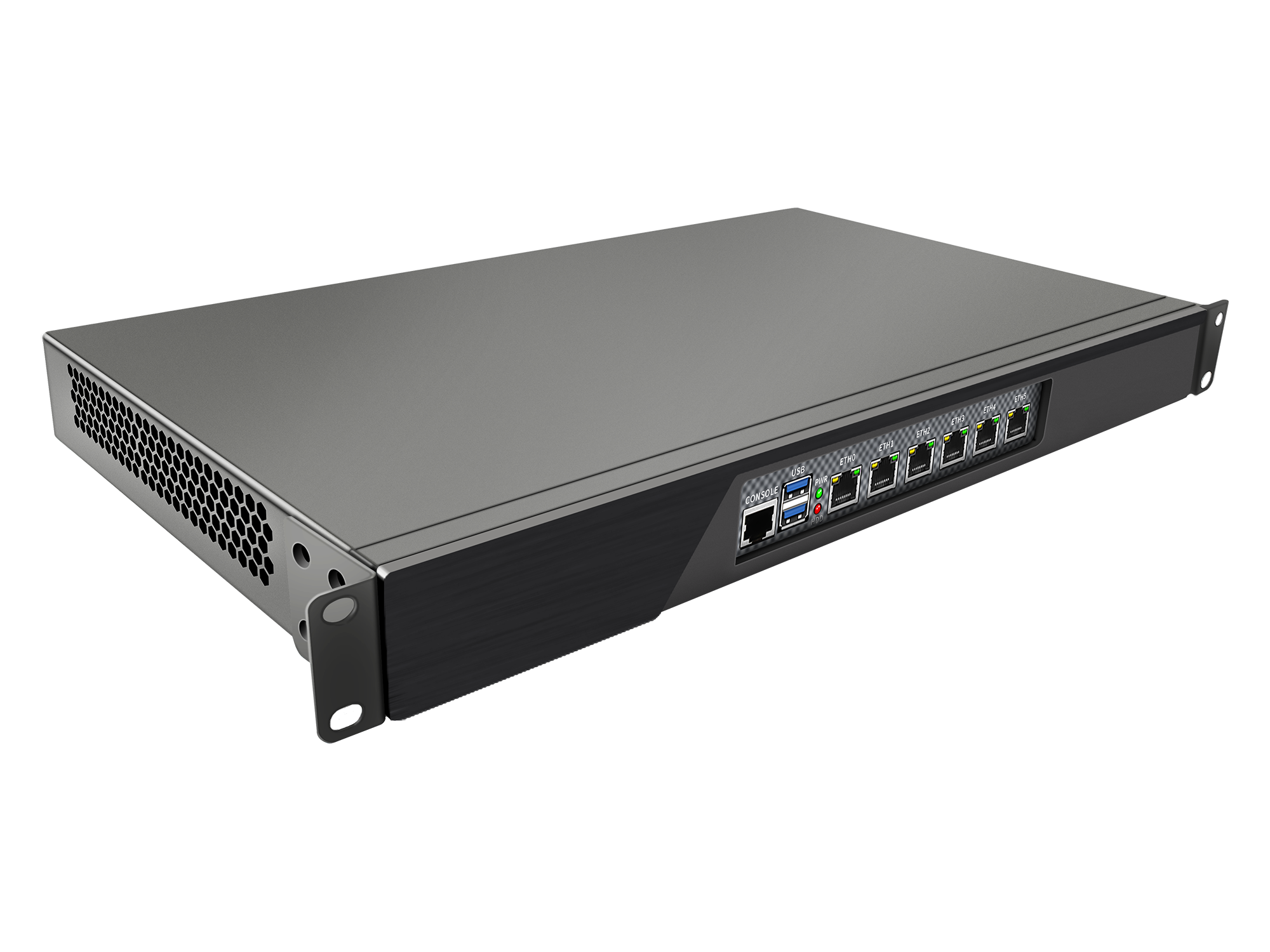

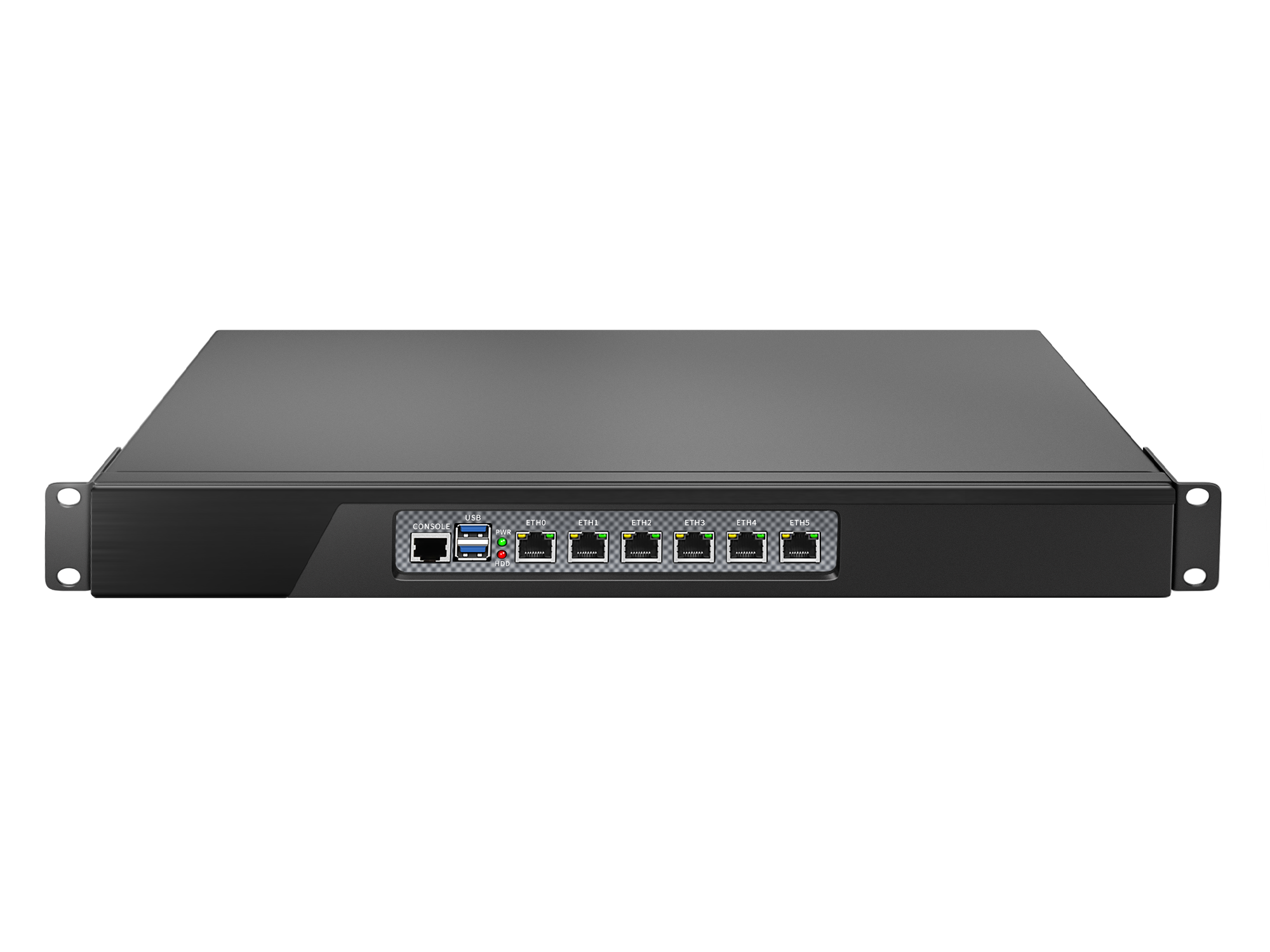

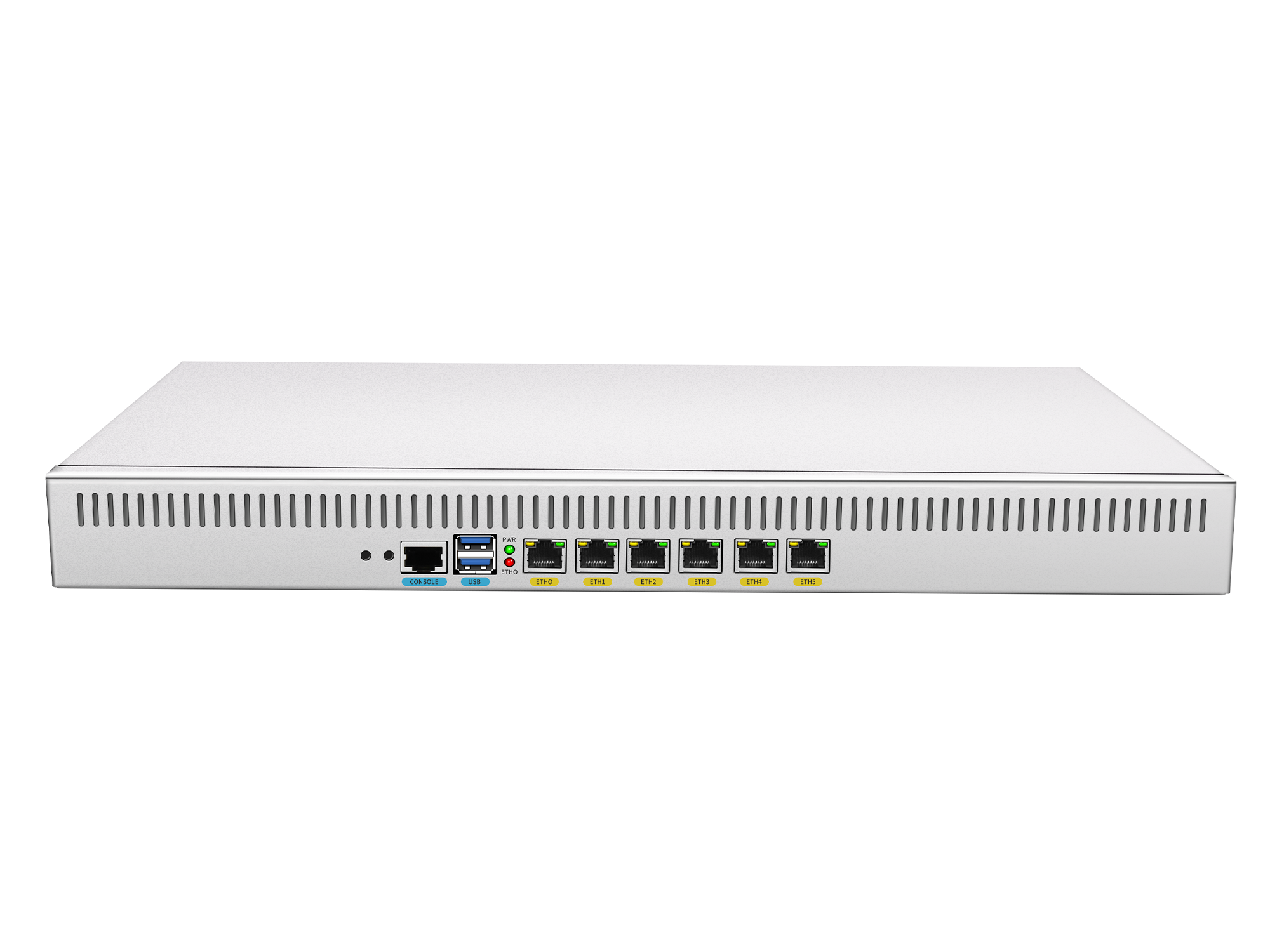

Front Panel: 6 × RJ45 LAN, 2 × USB-A 3.0, 1 × RJ45 COM

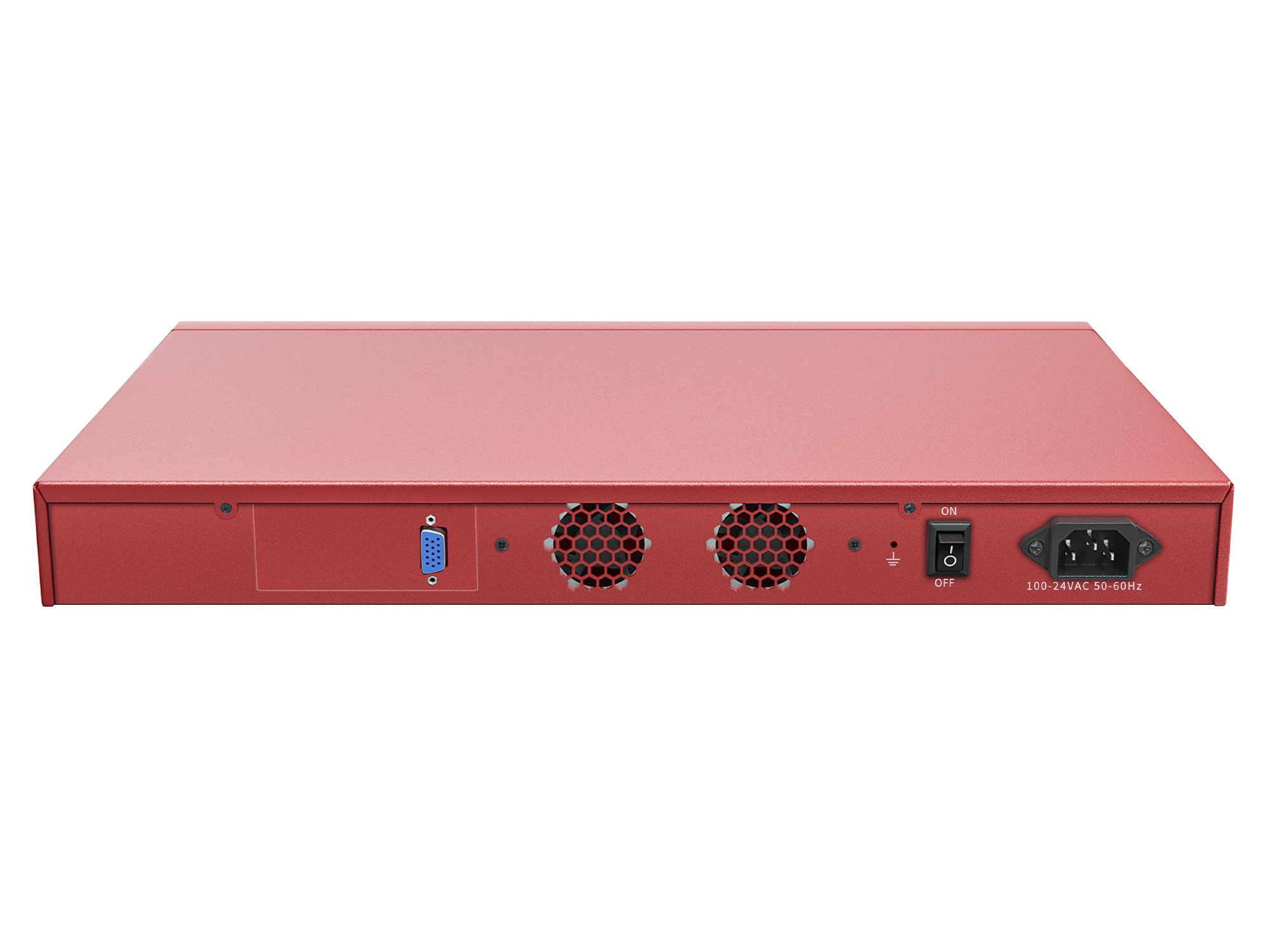

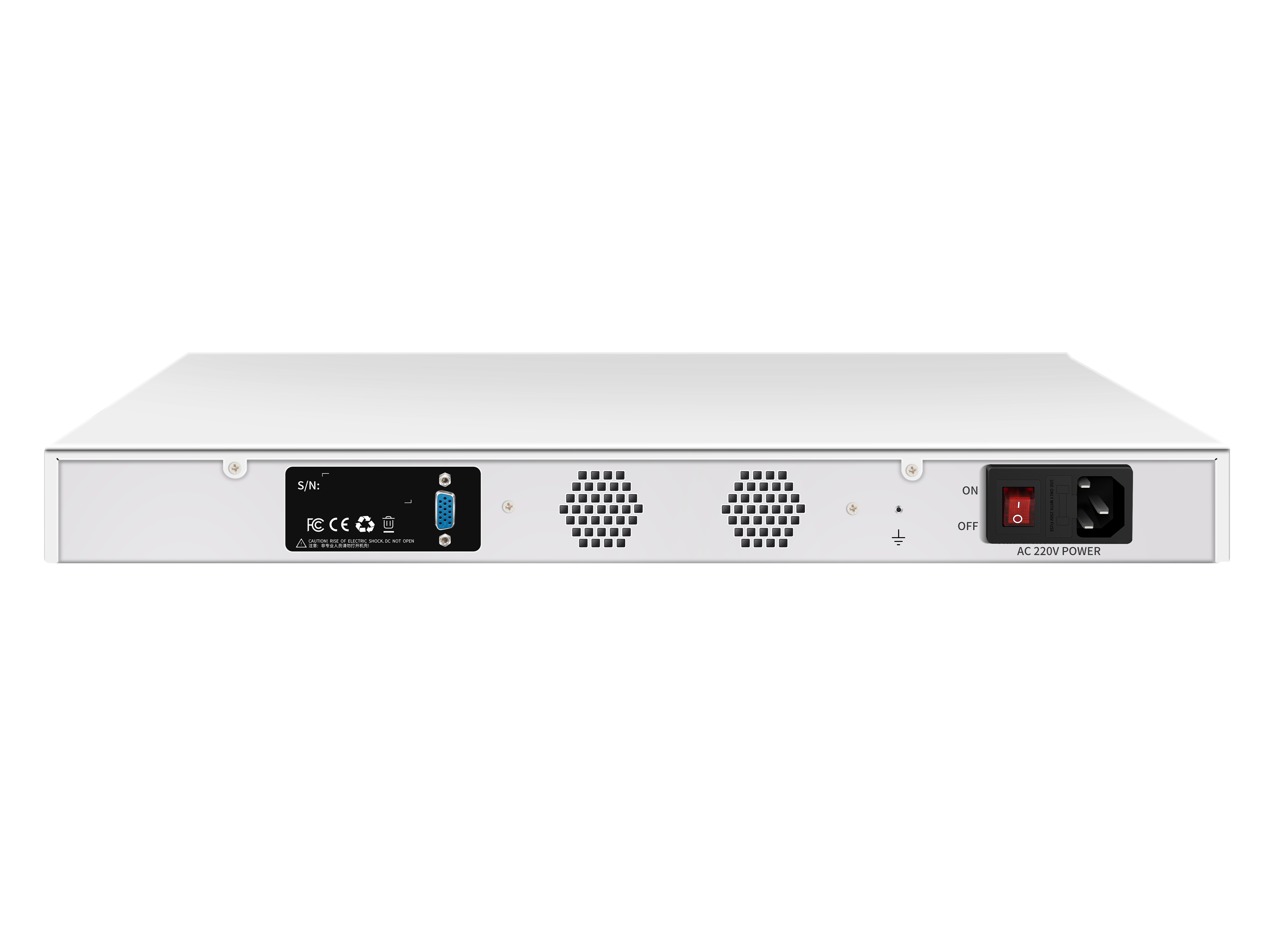

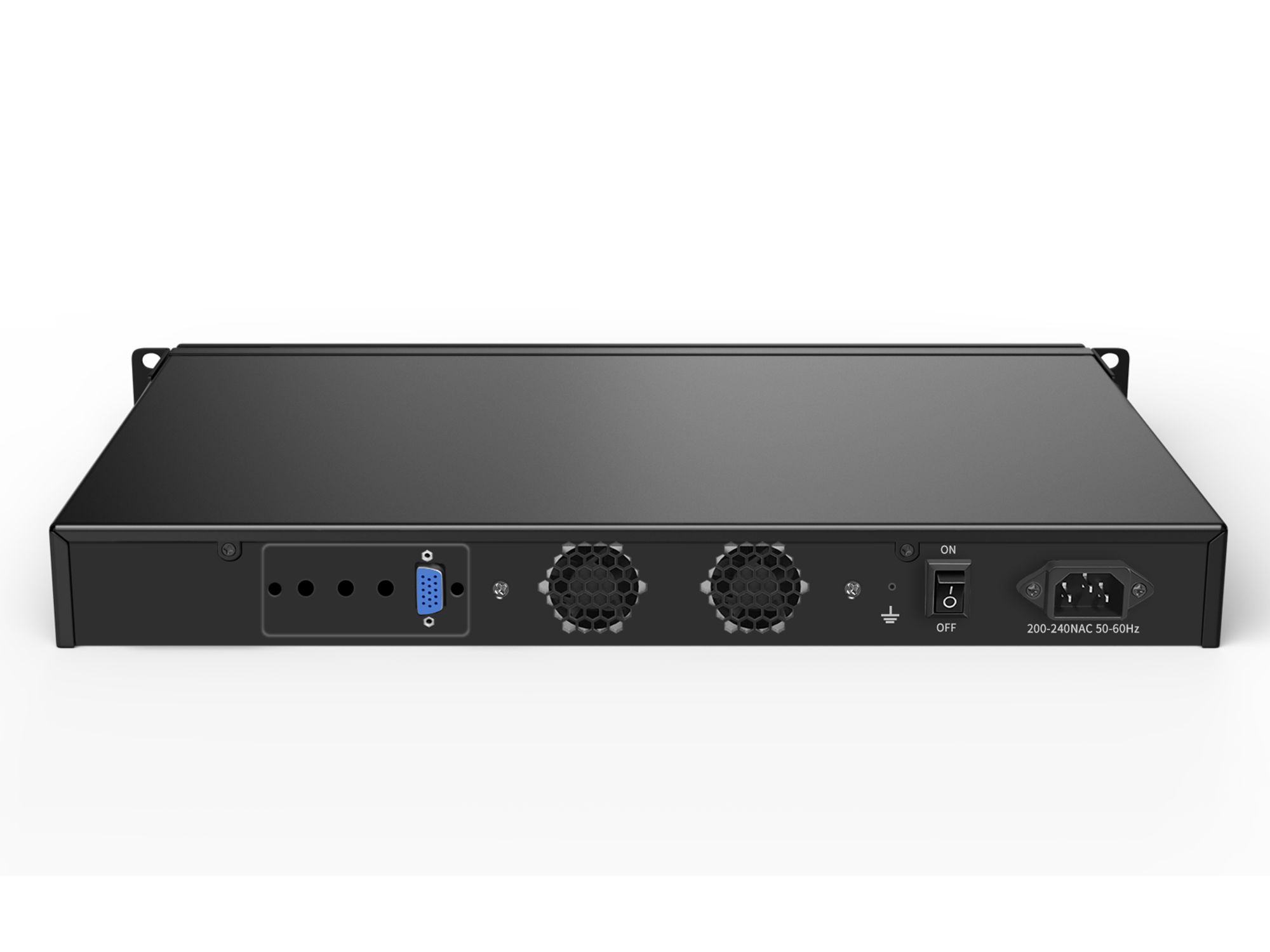

Rear Panel: 1 × VGA, 1 × HD reserved, 2 antenna groups reserved, 1 × AC power socket
Onboard I/O: 1 × SATA data connector, 1 × SATA power socket, 1 × F_PANEL, 1 × J_COM, 3 × F_USB 2.0, 1 × J_GPIO, 1 × J_VGA, 1 × J_HD, 1 × SIM card slot
Display: Intel UHD Graphics, reserved VGA/HD display
Cooling Method: Active cooling, 1 × CPU fan, 2 × chassis fans
Chassis Size: 440 × 255 × 45 mm
Weight: Equipment weight 3.80KG; package weight 4.50KG including accessories
Power Mode: Input: 85V~264V AC 47~63Hz, output: DC 12V 4.2A
Operating Temperature: 0°C to 50°C
Operating Humidity: 5% to 90% relative humidity, non-condensing

Product Features

1U rackmount chassis for centralized deployment in server racks, equipment rooms, weak-current cabinets, and industrial control cabinets.
Based on 8th Generation Intel Core processor platform, delivering reliable multitasking and edge computing performance.
DDR4 SO-DIMM memory support up to 32GB for network services, edge applications, and lightweight server workloads.
Integrated 6 × Intel I226V 2.5GbE LAN ports for multi-segment access, traffic distribution, and network management.
SATA 6Gb/s and M.2 Key-M 2280 storage interfaces support system drives, local data storage, or cache applications.
Dual mPCIe expansion slots and SIM slot support wireless communication modules or project-specific function modules.
J_GPIO, J_COM, F_USB, and reserved VGA/HD interfaces support industrial control and project integration.
Front-access LAN, USB, and RJ45 COM console interfaces simplify installation, debugging, and maintenance.
Active cooling and AC wide-voltage input support stable long-term operation.
