1U 1449NP 6L

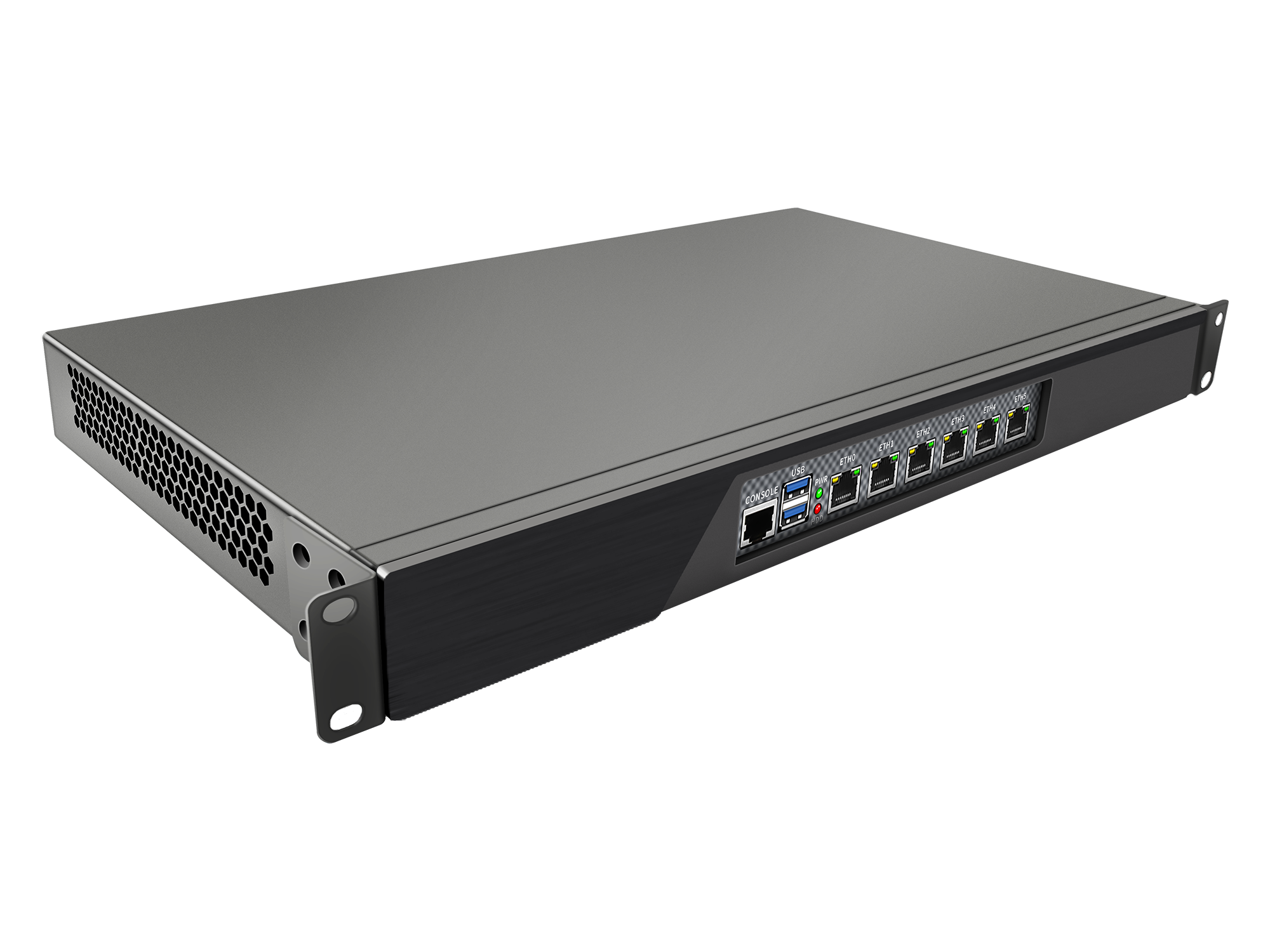

The 1U 1449NP 6L is a 1U rackmount 6-LAN network appliance based on the 11th Gen Intel FCBGA1449 platform. It supports up to 64GB DDR4 SO-DIMM memory at 3200 MT/s and features 6× Intel I226V 2.5GbE LAN, dual USB 3.0, and an RJ45 COM console port. With mSATA, M.2 Key-M, mPCIe, SIM slot, reserved VGA/HD display, antenna openings, active cooling, and wide-voltage AC input, it is ideal for enterprise security, branch networks, edge computing, industrial control, and lightweight server applications.

Place an order

Core Specifications

Model: 1U 1449NP 6L
Processor Platform: 11th Generation Intel Processors
Socket: FCBGA1449
Memory: DDR4 SO-DIMM, up to 64GB, up to 3200 MT/s
Storage: 1 × mSATA, 1 × M.2 Key-M 2280 with PCIe signal
Network: 6 × 2.5GbE RJ45, Intel I226V controllers
Expansion: 1 × mPCIe

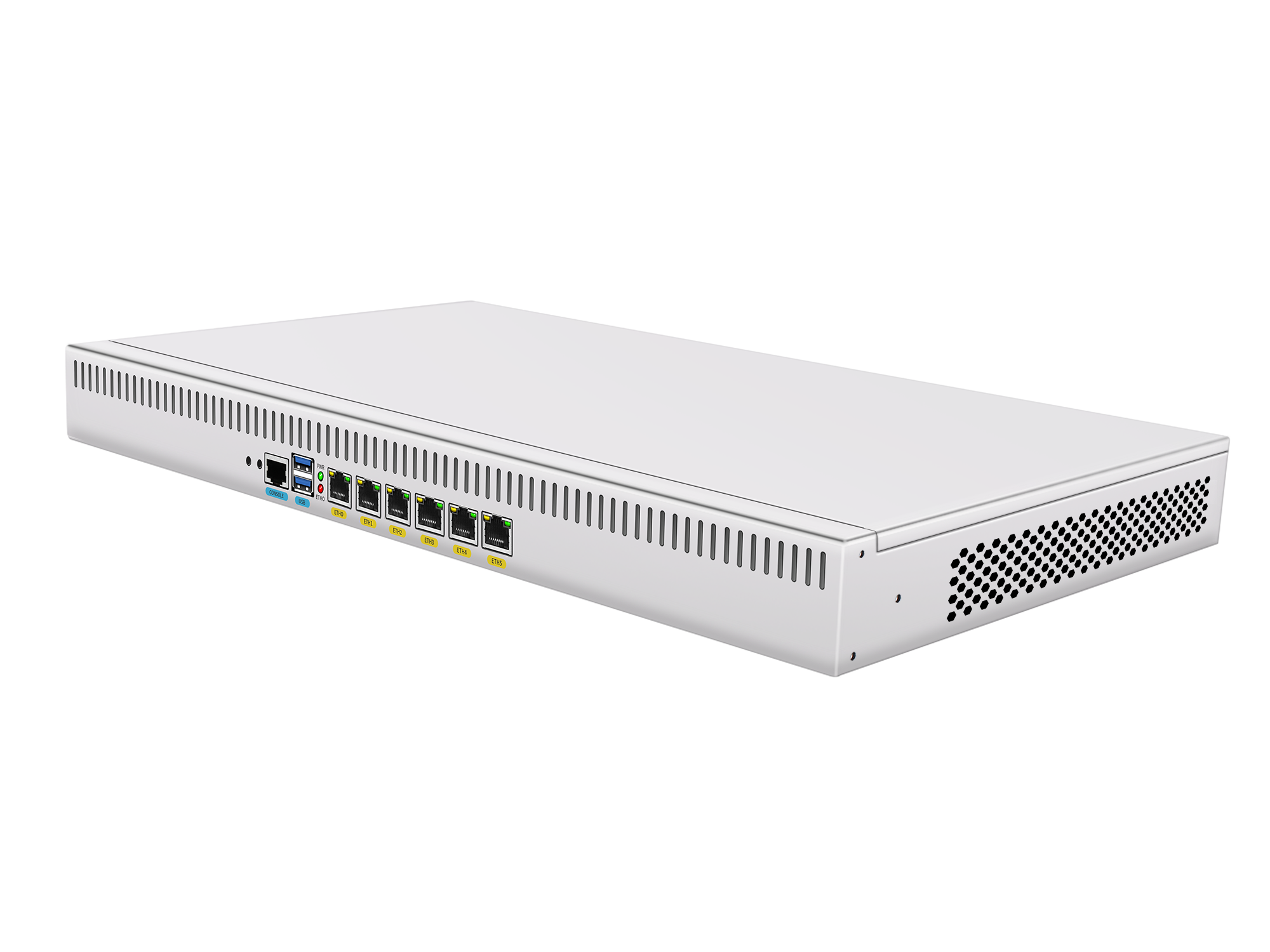

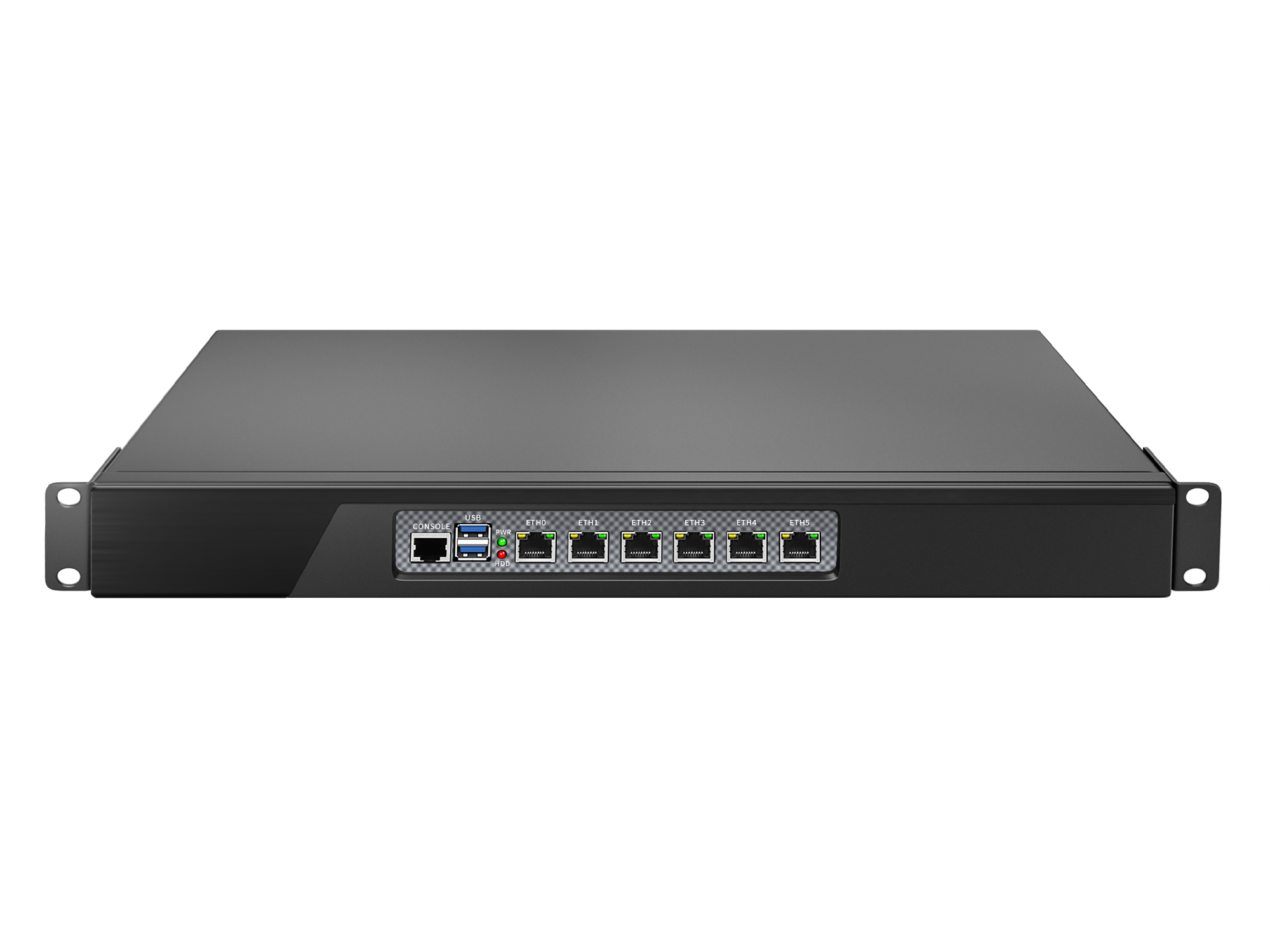

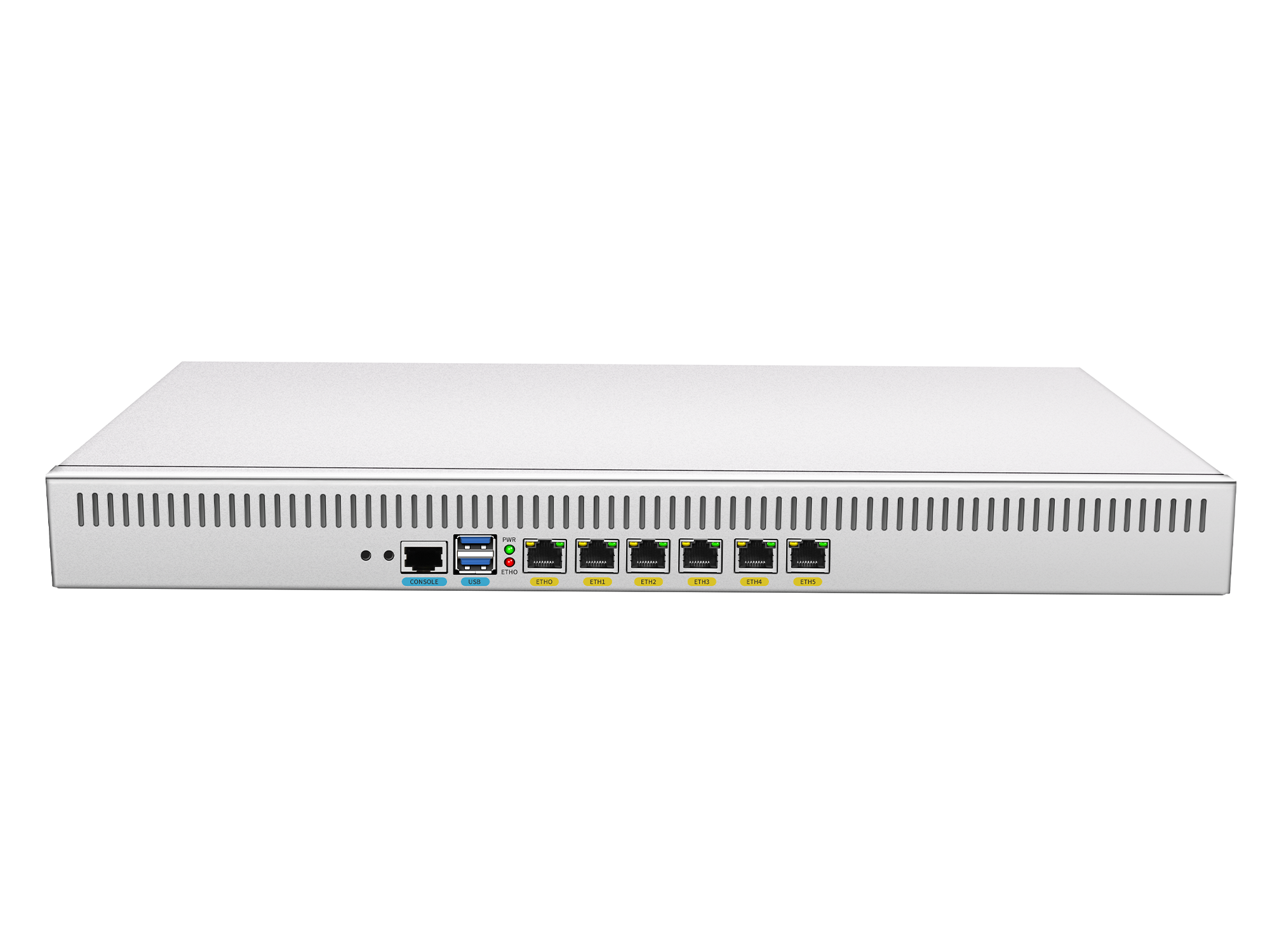

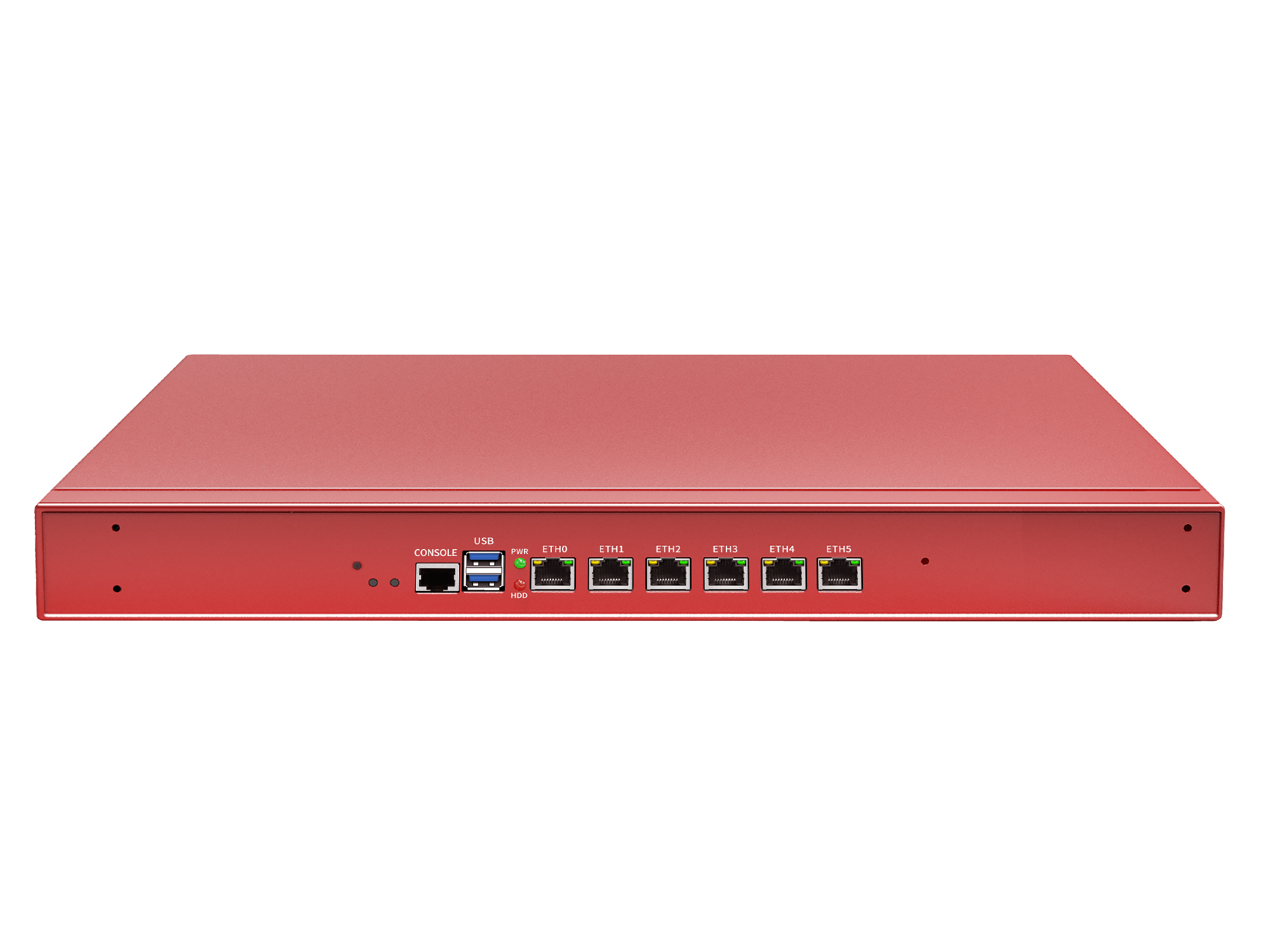

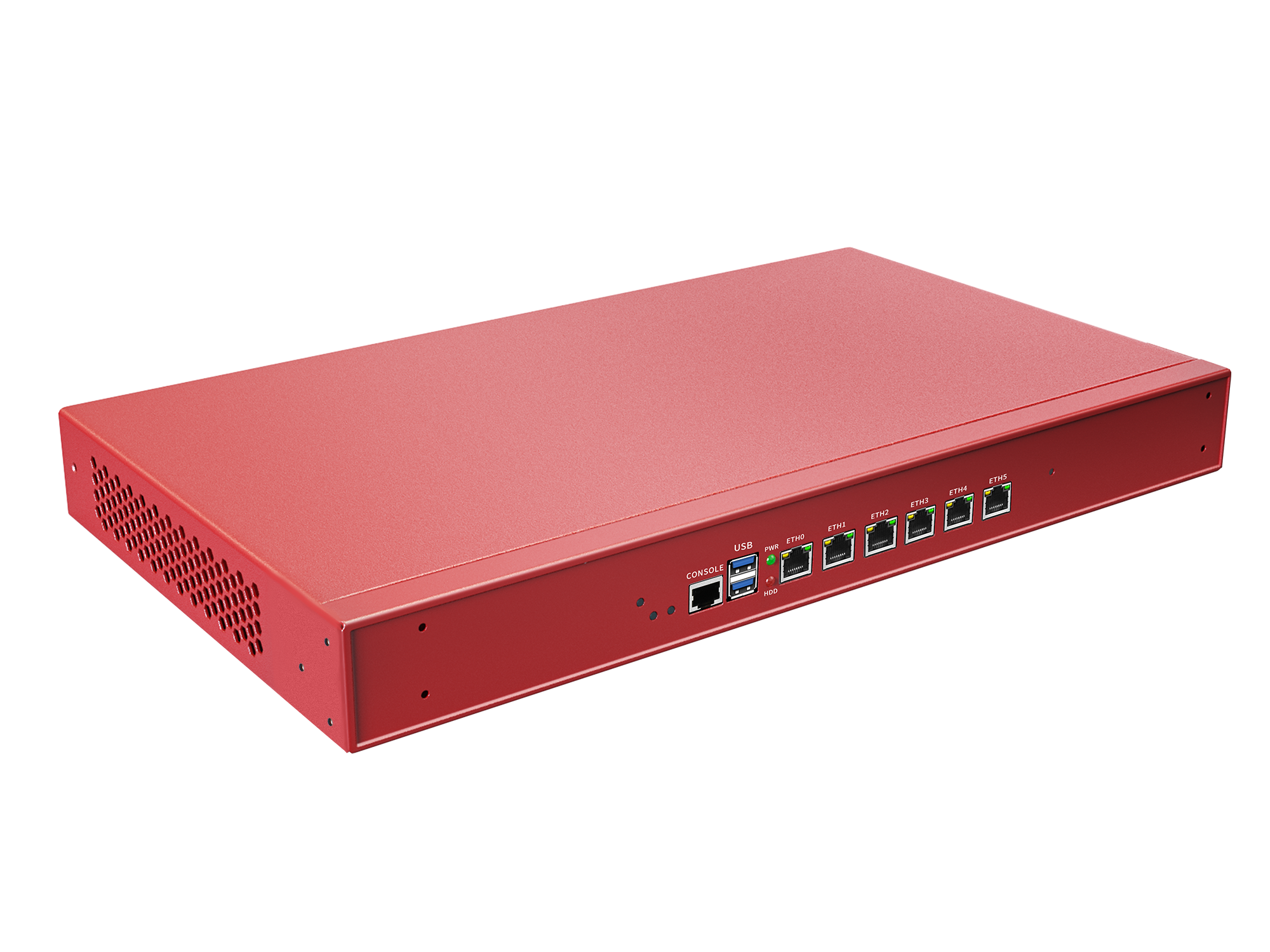

Front Panel: 6 × RJ45 LAN, 2 × USB-A 3.0, 1 × RJ45 COM

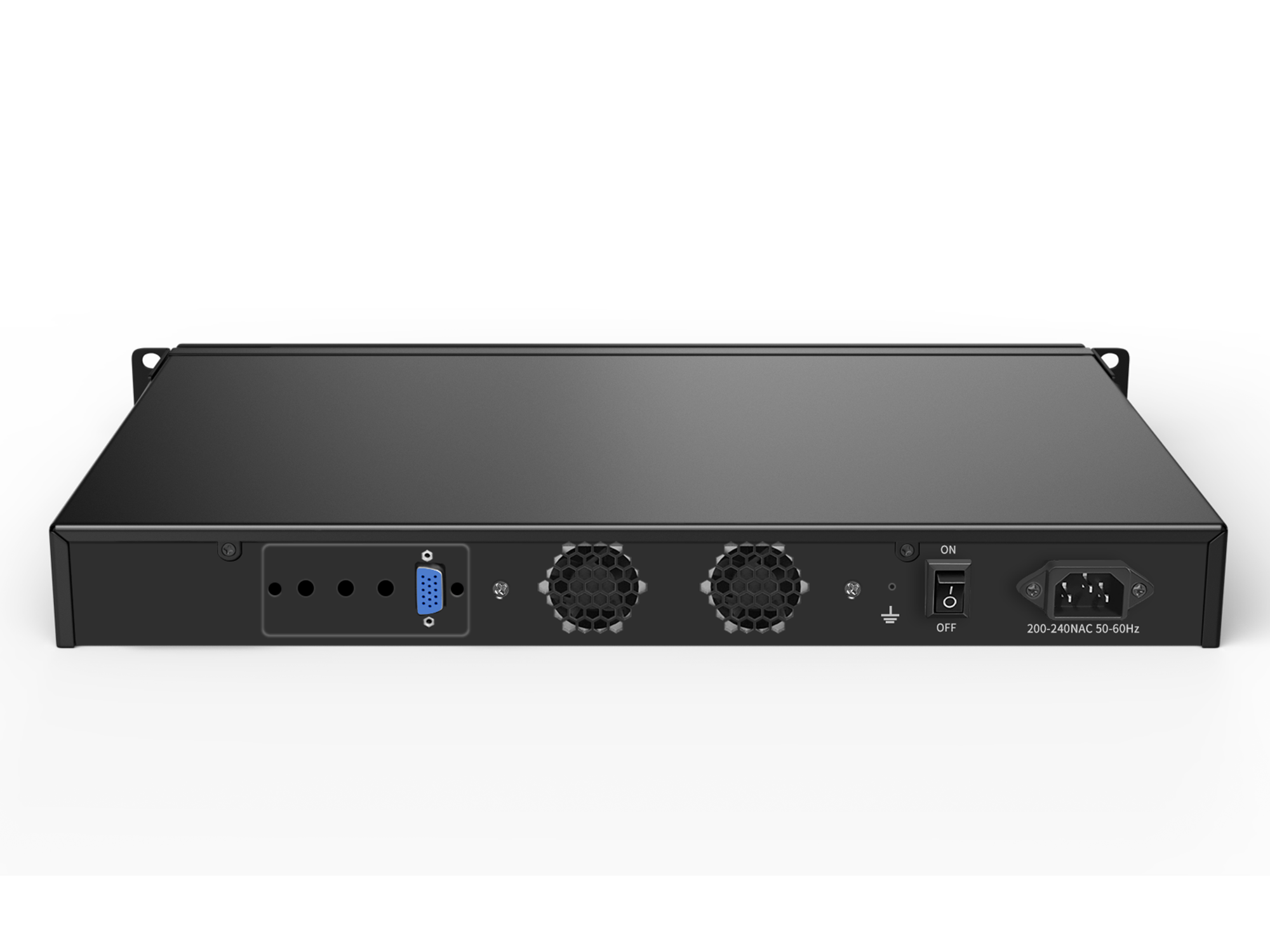

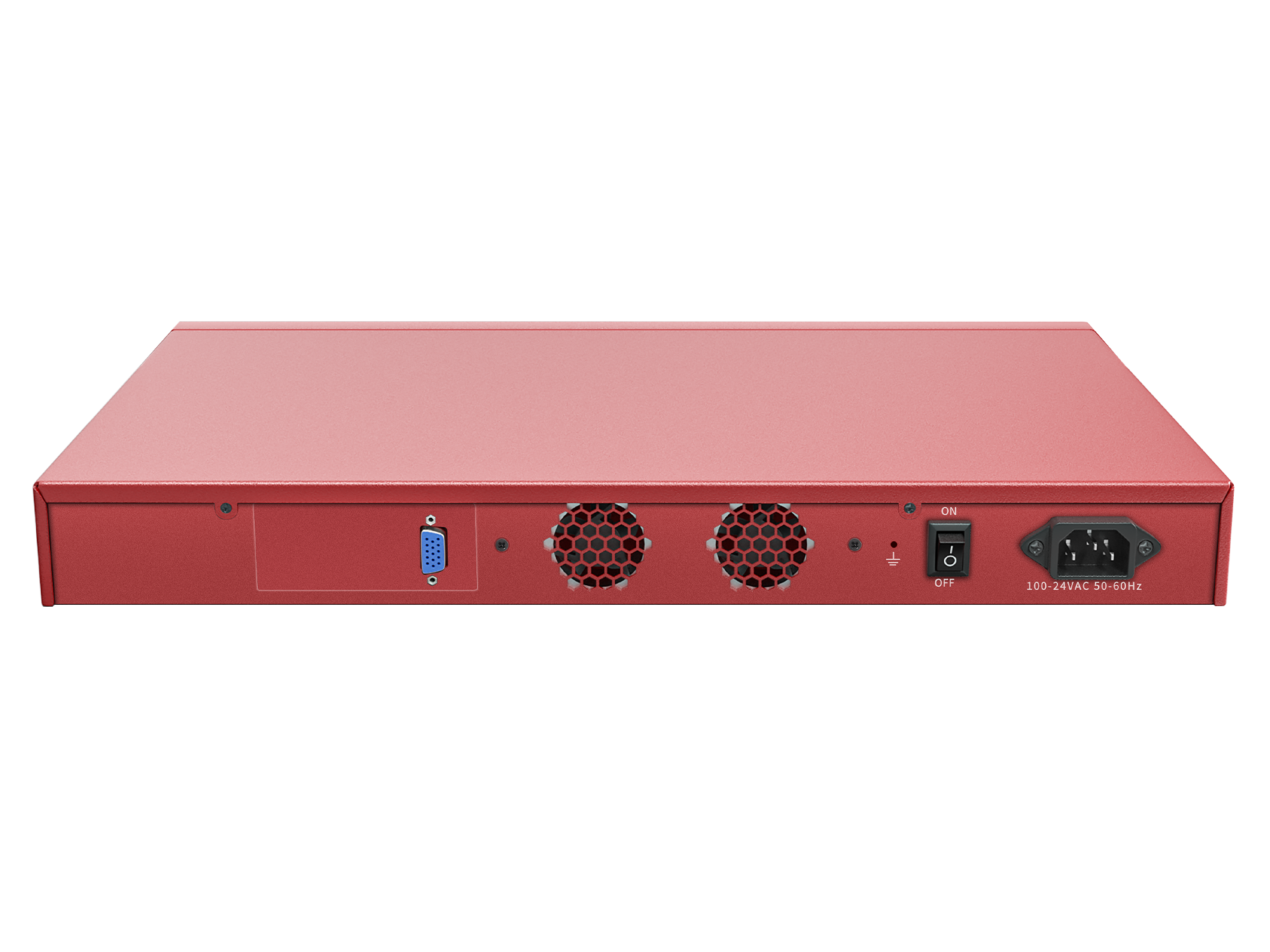

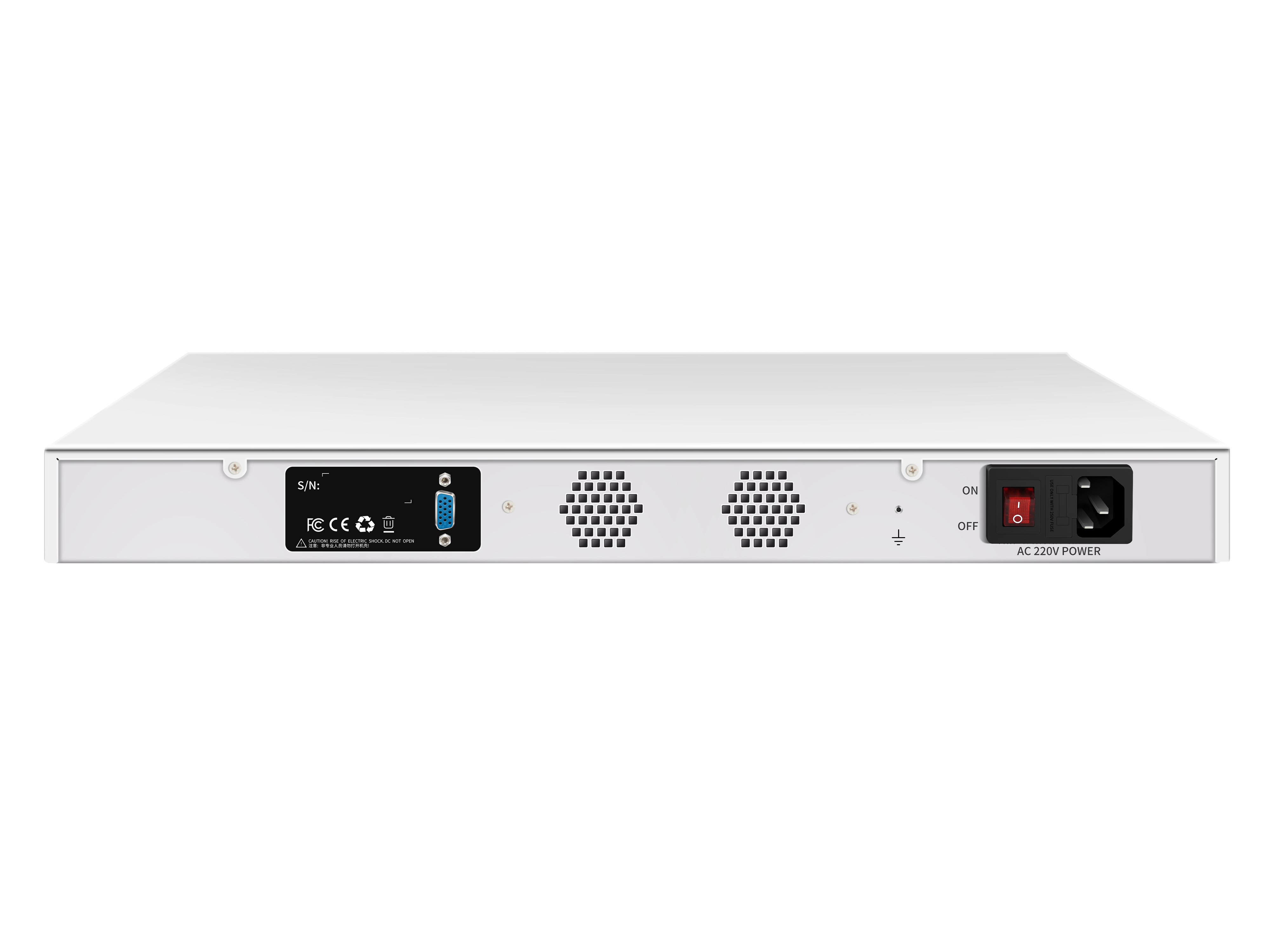

Rear Panel: 1 × VGA, 1 × HD reserved, 2 antenna groups reserved, 1 × AC power socket
Onboard I/O: 1 × F_PANEL, 1 × JCOM, 3 × F_USB 2.0, 1 × P/S 2, 1 × SIM card slot, 1 × SATA data connector, 1 × SATA power socket
Display: Intel UHD Graphics or Intel Iris Xe Graphics, reserved VGA/HD display
Cooling Method: Active cooling, 1 × CPU fan, 2 × chassis fans
Chassis Size: 440 × 255 × 45 mm
Weight: Equipment weight 3.80KG; package weight 4.50KG including accessories
Power Mode: AC wide-voltage input for rackmount deployment
Operating Temperature: 0°C to 50°C
Operating Humidity: 5% to 90% relative humidity, non-condensing

Product Features

1U rackmount chassis for centralized deployment in server racks, equipment rooms, weak-current cabinets, and industrial control cabinets.
Based on 11th Generation Intel processor platform, delivering stronger multitasking and edge computing performance.
DDR4 SO-DIMM memory support up to 64GB for multitasking, network services, and lightweight server workloads.
Integrated 6 × Intel I226V 2.5GbE LAN ports for multi-segment access, traffic distribution, and network management.
mSATA and M.2 Key-M 2280 storage interfaces support system drives, local data storage, or cache applications.
mPCIe expansion interface and SIM slot support wireless communication modules or project-specific function modules.
Front-access LAN, USB, and RJ45 COM console interfaces simplify installation, debugging, and maintenance.
Active cooling and AC wide-voltage input support stable long-term operation.
