OTS 1493NP 6L

The OTS-1493NP-6L is a high-performance, ultra-slim embedded industrial computer powered by an Intel Celeron J-series processor. Within its extremely compact chassis, it integrates 6x 2.5Gb Ethernet ports on the front panel and features an efficient active cooling design. With its exceptional network port density, compact structure, and reliable industrial-grade design, it is an ideal solution for network appliances, industrial control gateways, and edge computing applications in space-constrained environments.

Place an order

Key Features

Processor Platform: Intel Celeron Processor J Series, FCBGA1493
Memory: DDR4 SO-DIMM, up to 2×16GB, 3200 MHz
Networking:

6× RJ45 2.5Gigabit Ethernet ports
Designed for multi-port routing, firewall, and gateway applications

Storage Options:

1× SATA 6Gb/s interface
1× mSATA slot

Expansion Interfaces:

1× M.2 Key-B 3052 slot for 4G/5G or communication modules
1× mPCIe slot for wireless or functional expansion

I/O Interfaces:

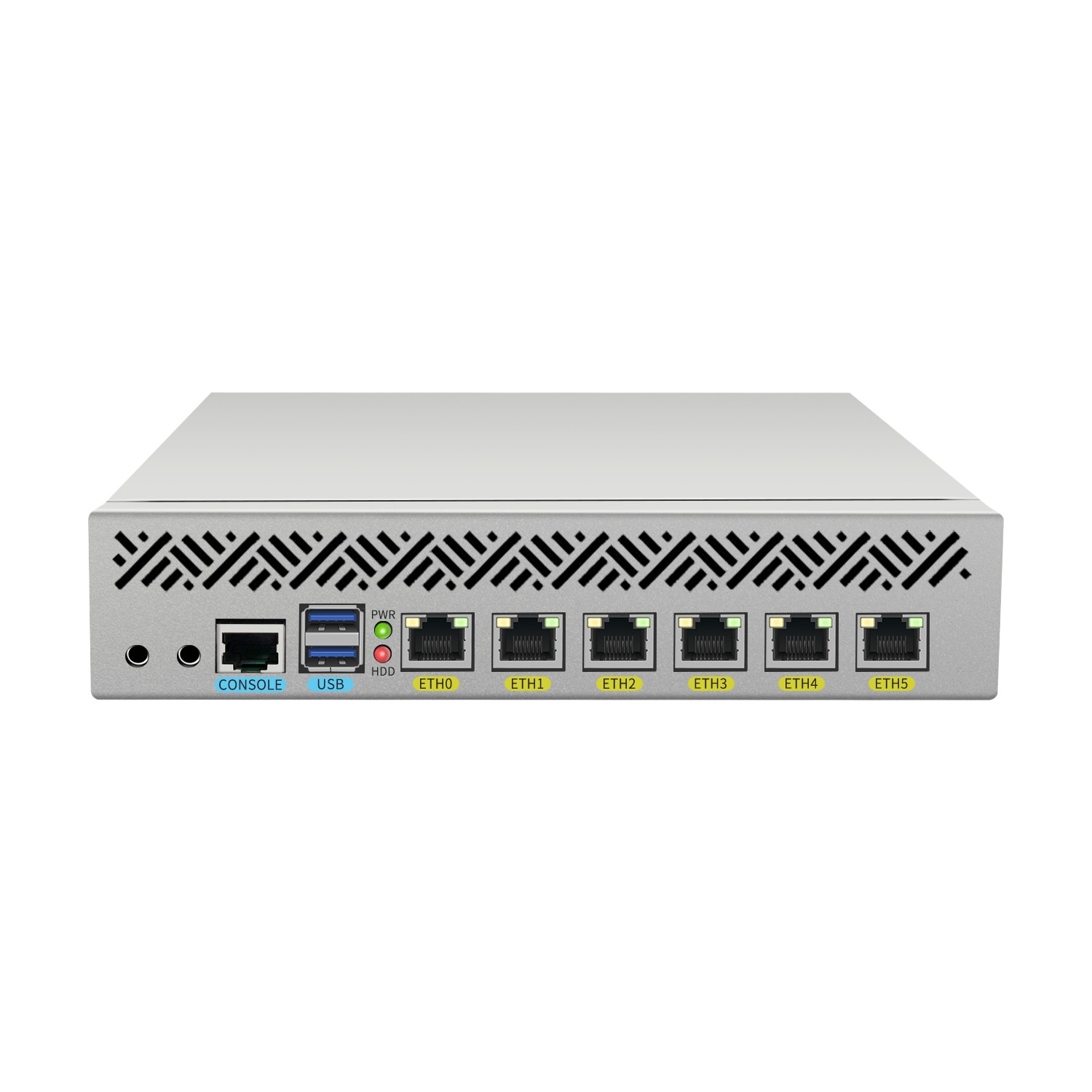

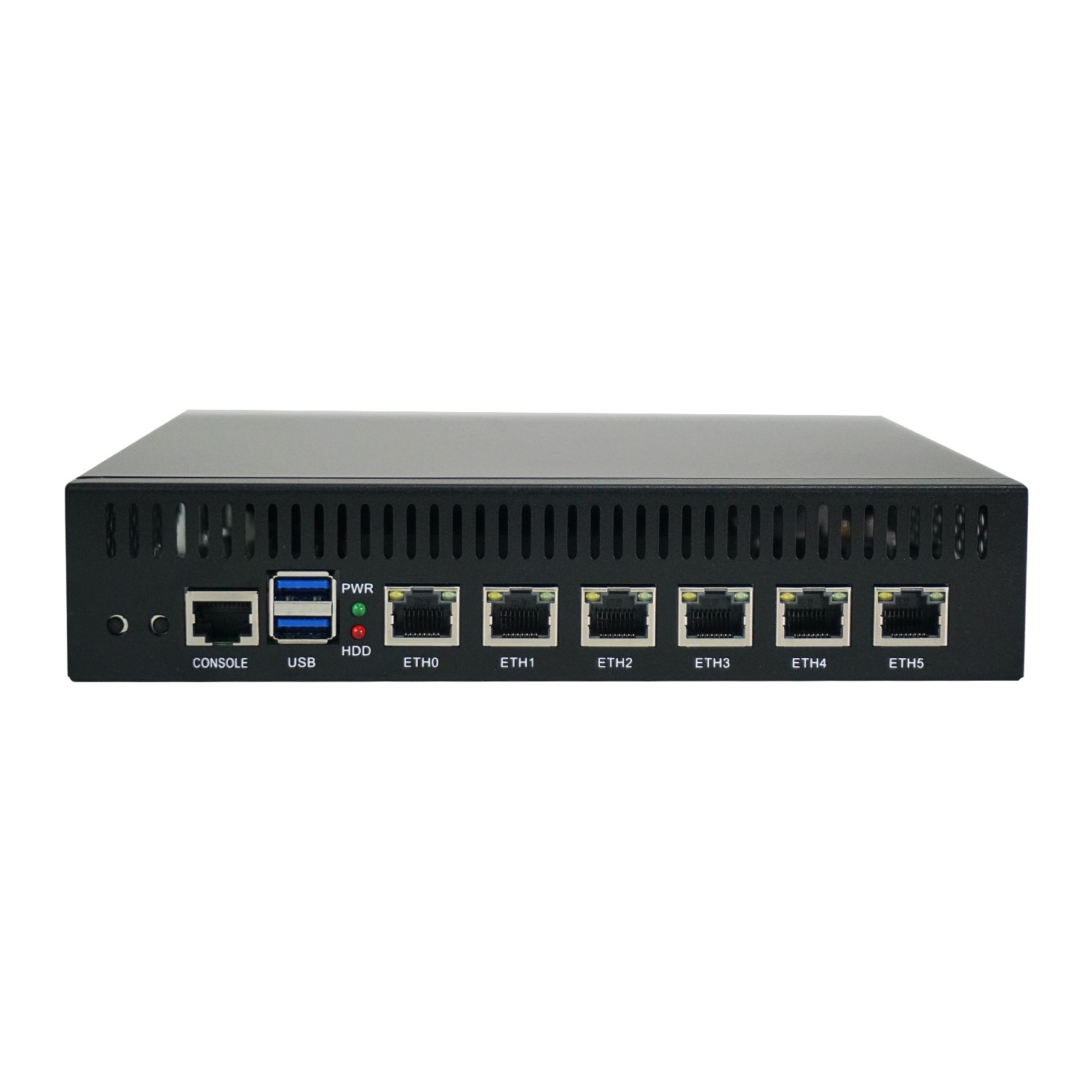

Front panel: 6× 2.5GbE RJ45, 2× USB-A 3.0, 1× RJ45 console port

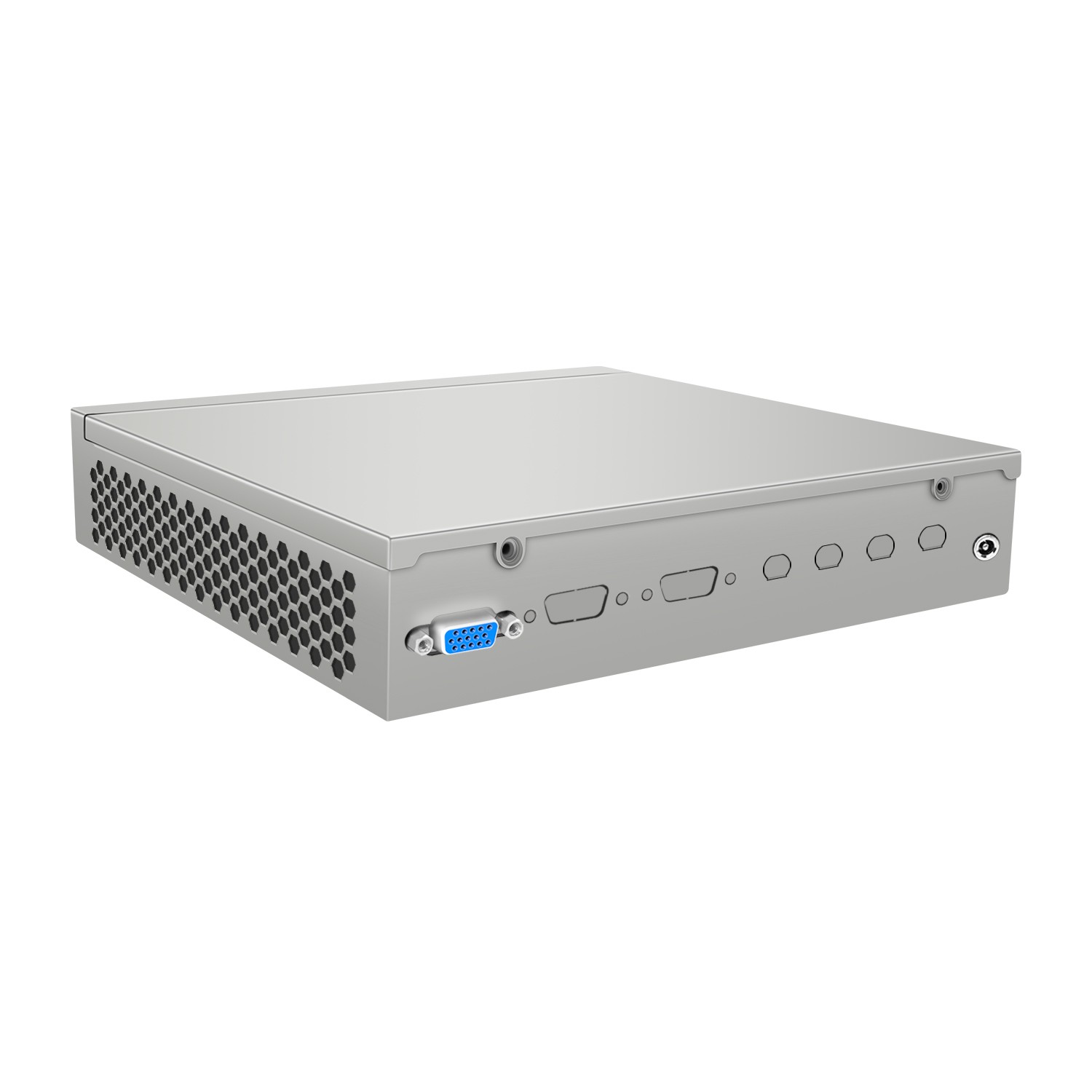

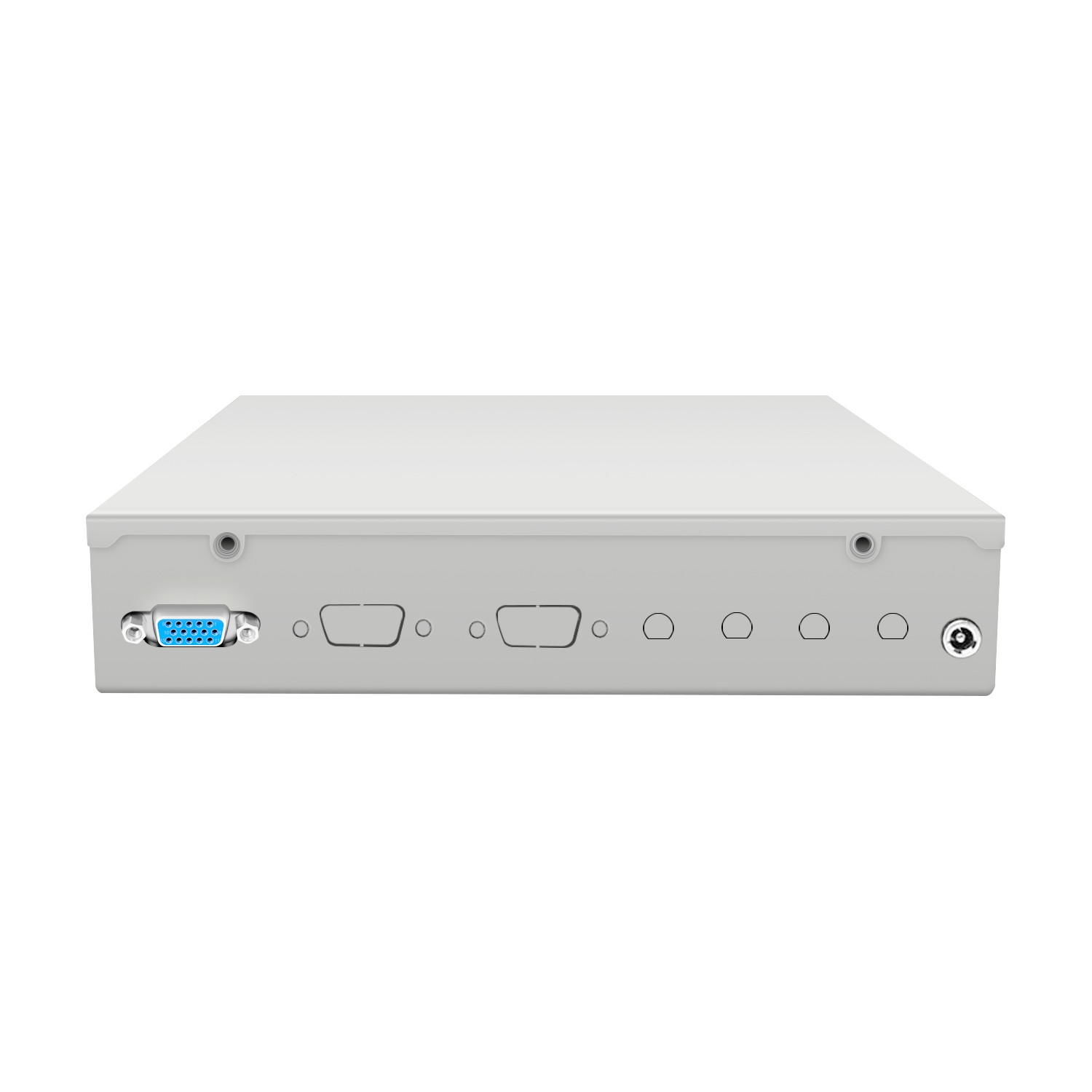

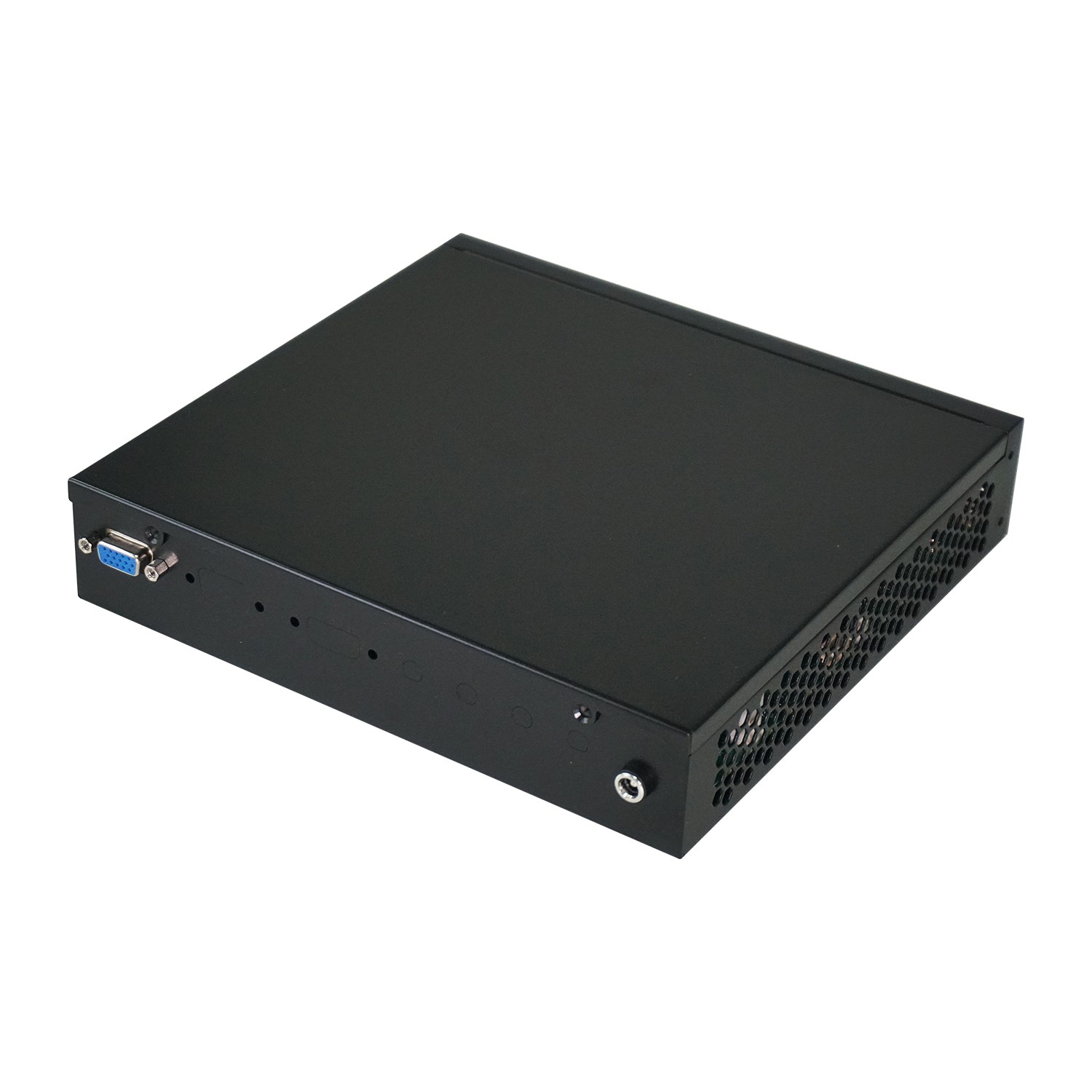

Back panel: VGA / HDMI (reserved), DC power jack

Cooling: Active cooling with dedicated CPU fan
Power Input: DC 12V, 4A or higher

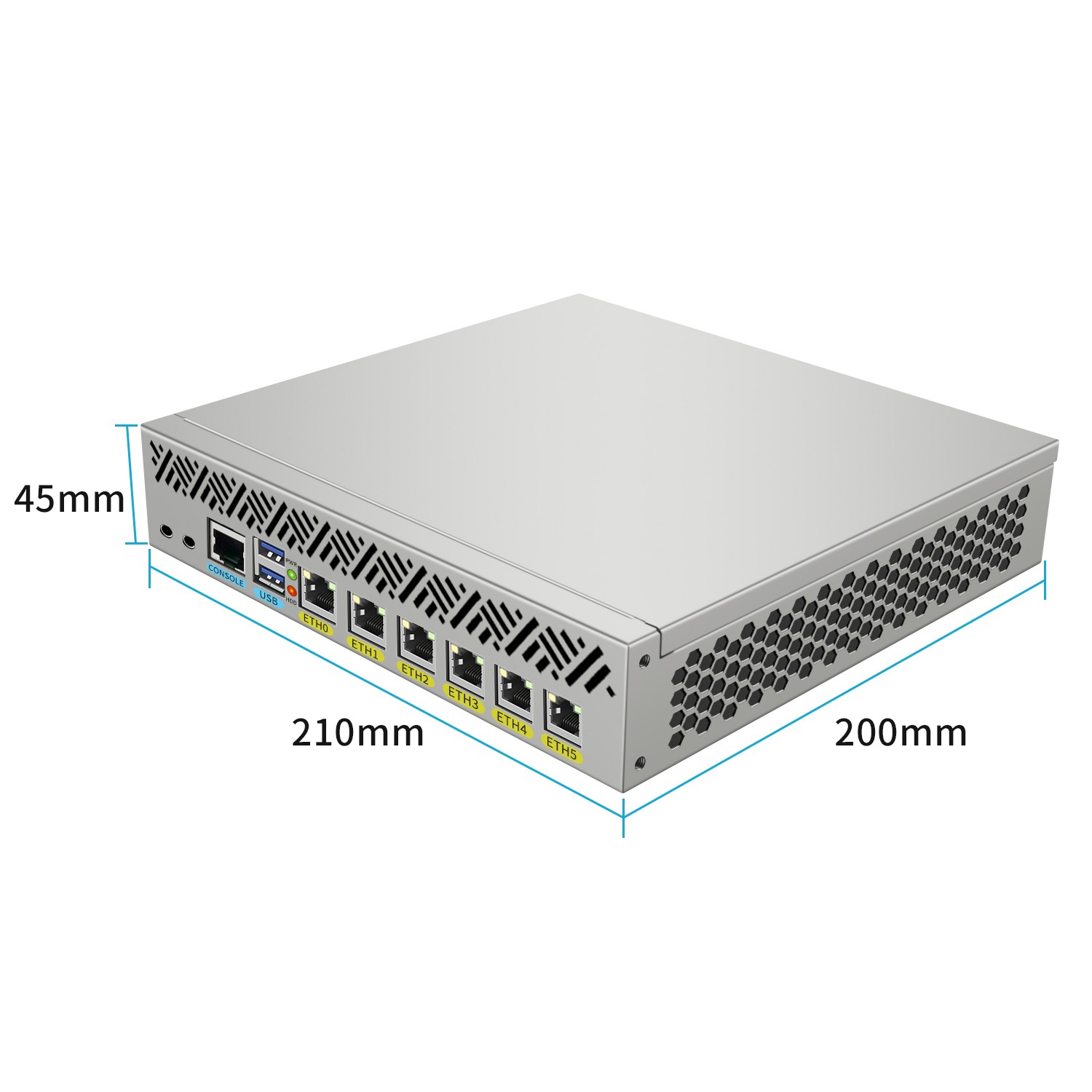

Chassis Size: 210 × 200 × 45 mm
Weight: 1.25 kg (net), 1.65 kg (with accessories)
Operating Environment: 0–50°C, 5–90% RH (non-condensing)

Typical Application Scenarios

Network Firewall & Security Gateway: Ideal for pfSense, OPNsense, and other firewall platforms requiring multiple LAN ports.
Industrial Edge Gateway: Suitable for data aggregation, protocol conversion, and secure edge computing.
SD-WAN & Routing Appliances: Six Ethernet ports enable flexible WAN/LAN segmentation.
IoT & Industrial Communication: Supports wired and wireless connectivity via M.2 and mPCIe expansion.
Compact Network Appliances: Space-efficient design for control cabinets and embedded installations.
