1U J6412 6L

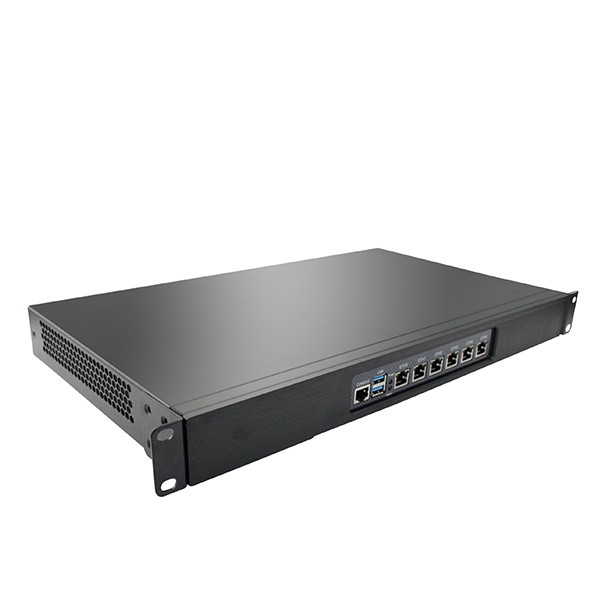

The 1U-1493NP-6L is a rackmount industrial computer designed for modern, network-intensive enterprise applications. Built on the Intel Celeron J-series platform, it integrates 6x 2.5GbE Ethernet ports within a compact 1U chassis, along with dual expansion slots and a three-fan cooling system. Combining high network density, flexible expandability, and reliable thermal performance, it is an ideal solution for data center edge nodes, enterprise network gateways, and lightweight application servers.

Place an order

Key Features

Processor Platform: Intel Celeron Processor J Series, FCBGA1493
Memory: DDR4 SO-DIMM, up to 2×16GB (32GB total), 3200 MHz
Networking:

6× RJ45 2.5Gigabit Ethernet ports
Optimized for multi-LAN firewall, routing, and gateway deployments

Storage Options:

1× SATA 6Gb/s interface
1× mSATA slot for OS or logging storage

Expansion Interfaces:

1× M.2 Key-B 3052 for 4G/5G modules or communication expansion
1× mPCIe for Wi-Fi, Bluetooth, or functional expansion modules

I/O Interfaces:

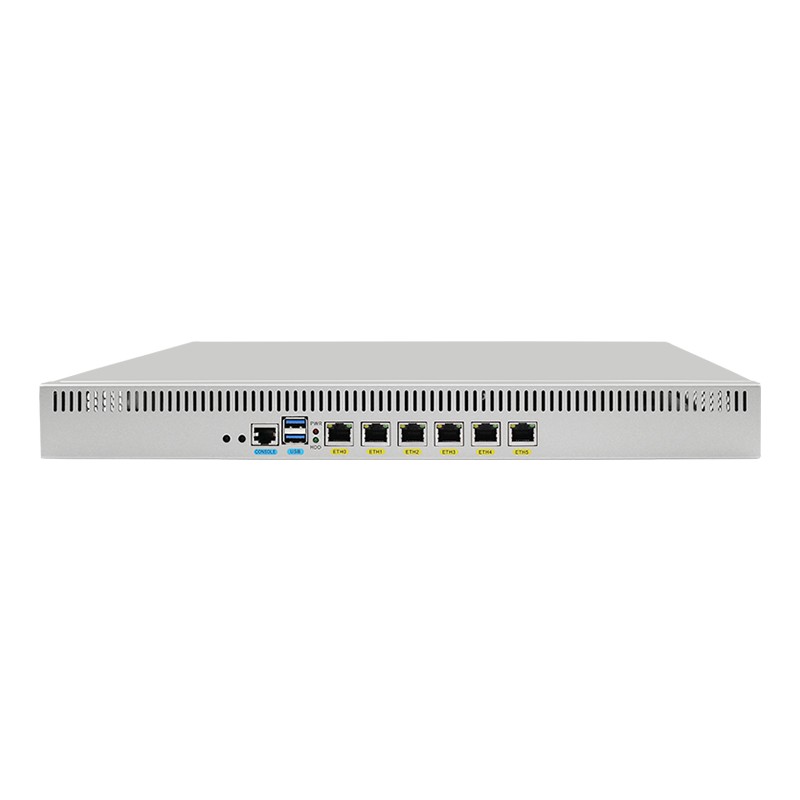

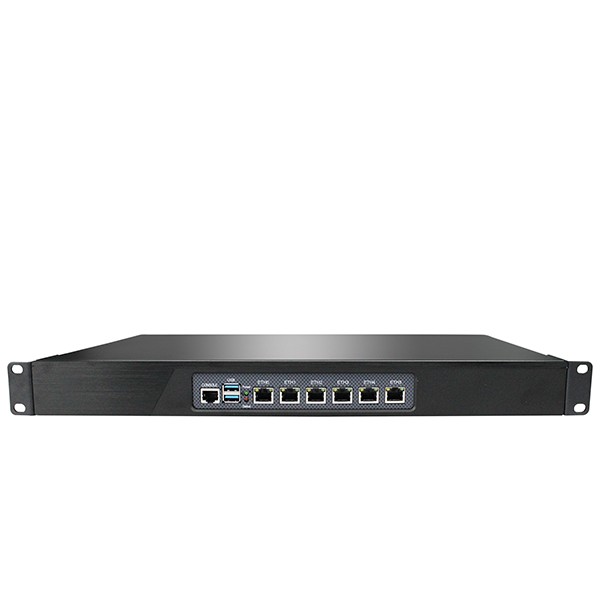

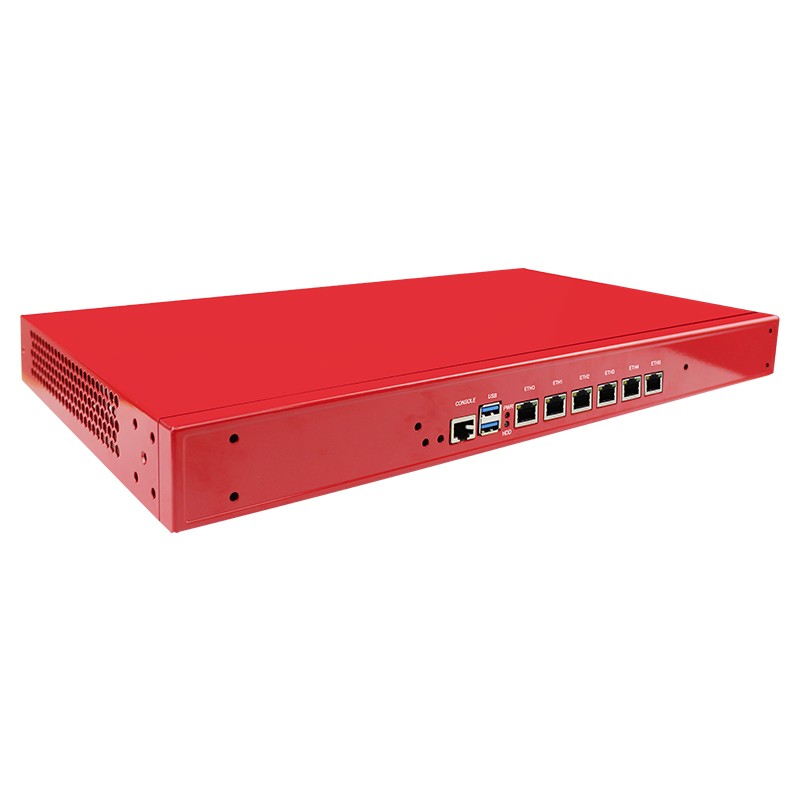

Front: 6× RJ45 LAN, 2× USB-A 3.0, 1× RJ45 console port

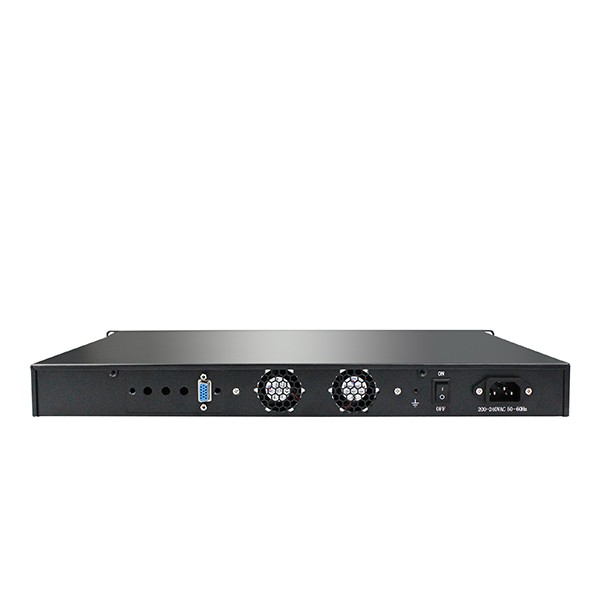

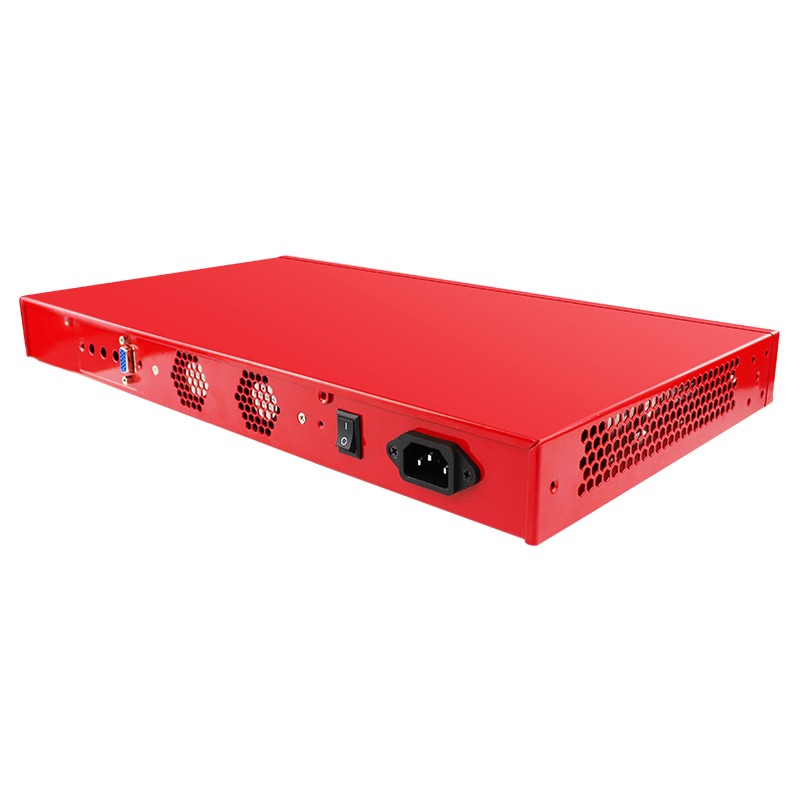

Rear: VGA / HDMI (reserved), AC power socket, antenna holes (reserved)

Cooling: Active cooling with 1× CPU fan + 2× chassis fans
Power: AC input 85V–264V (47–63 Hz), DC output 12V / 6A
Chassis Size: 440 × 255 × 45 mm (1U)
Weight: 3.80 kg (net), 4.50 kg (with accessories)
Operating Environment: 0–50°C, 5–90% RH (non-condensing)

Typical Application Scenarios

Firewall & Security Gateway: Ideal for pfSense, OPNsense, and other security platforms requiring multiple LAN ports.
SD-WAN & Routing Appliance: Supports flexible WAN/LAN segmentation for branch networks and multi-zone routing.
Industrial Edge Gateway: Suitable for edge data processing, secure connectivity, and protocol conversion.
Network Service Platforms: A compact 1U solution for SMEs, telecom sites, and IT closets.
Wireless / Cellular Connectivity: Add Wi-Fi or 4G/5G modules via M.2 Key-B and mPCIe for remote deployments.
