G30S J6412 4L

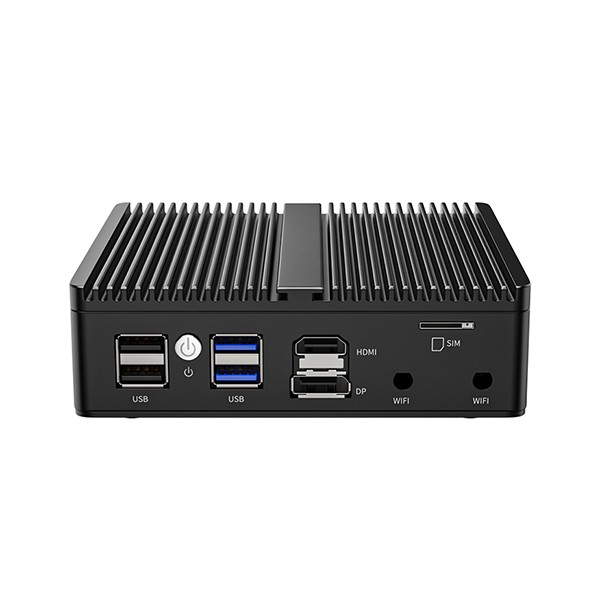

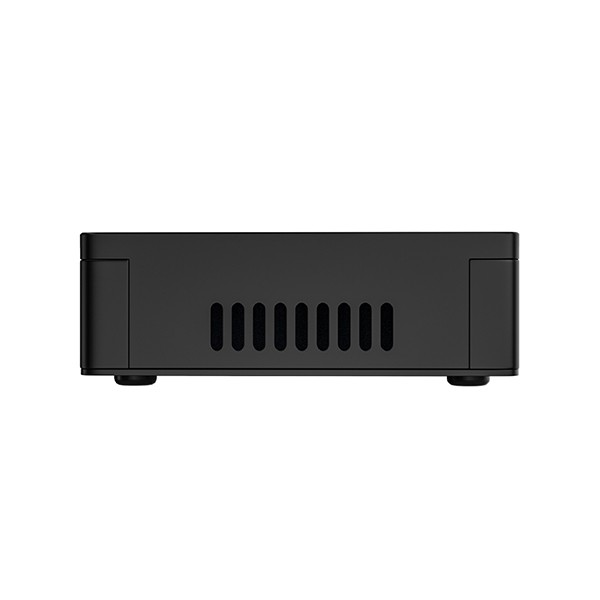

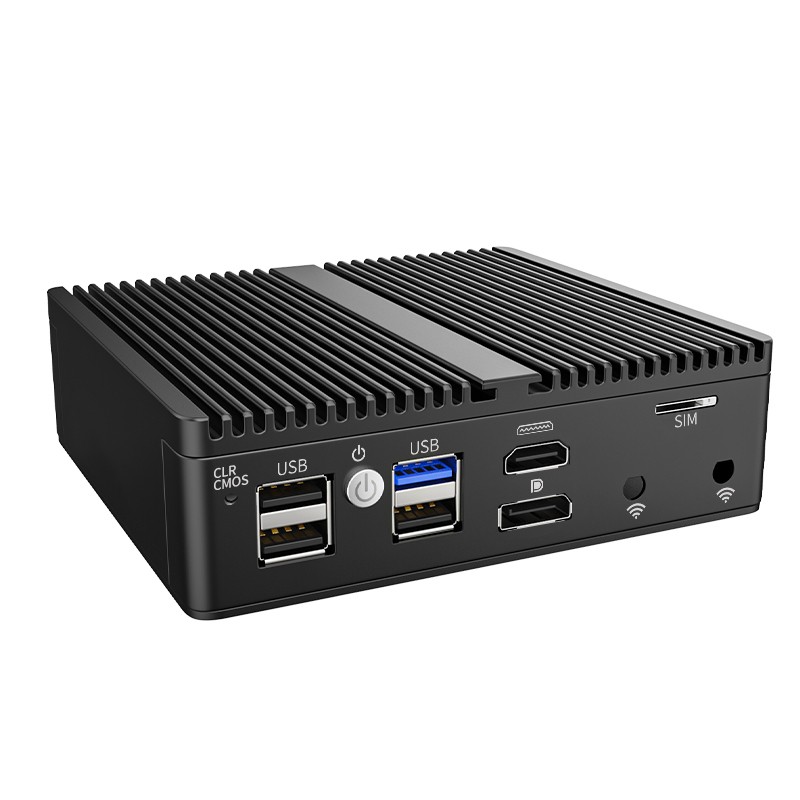

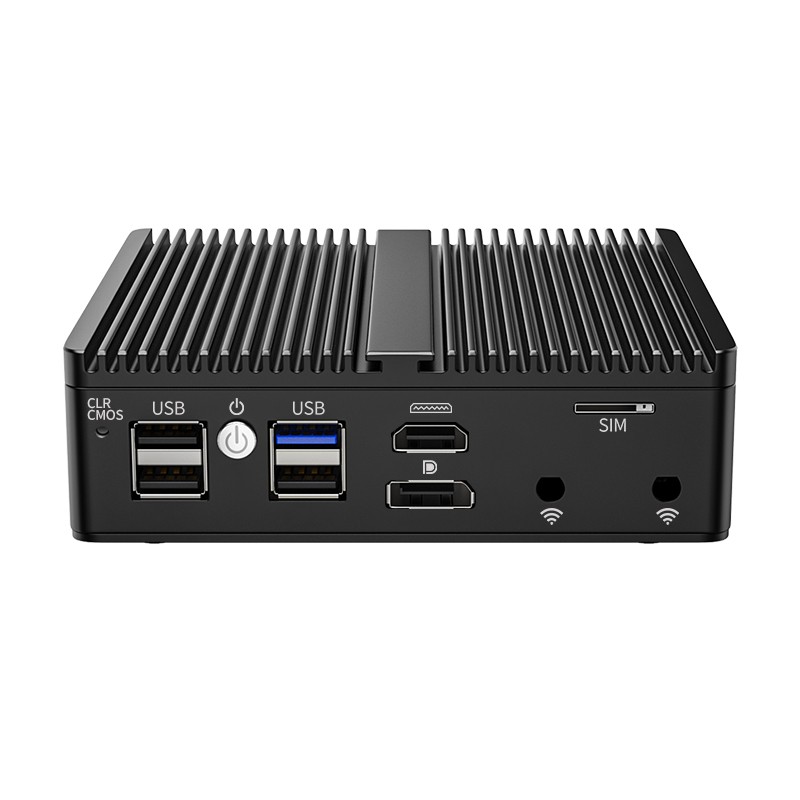

The G30S J6412 4L is a miniature embedded system powered by an Intel Celeron J6412 processor. It features a fanless, passive cooling design, offering excellent energy efficiency and long-term stable operation. Equipped with 4x 2.5GbE network ports, dual DDR4 memory slots, M.2 high-speed storage, and dual M.2 expansion slots, this system is ideal for building space-constrained network devices, industrial control, and edge computing applications.

Place an order

Key Features

Processor: Intel® Celeron J Series SoC (FCBGA1493)
Memory: 2× DDR4 SO-DIMM, up to 32GB, 3200 MT/s
Storage Options: 1× SATA 3.0 (6Gb/s), 1× M.2 Key-M 2280 SSD slot
Networking: 4× RJ45 Gigabit LAN ports
USB Interfaces: 1× USB 3.0, 3× USB 2.0
Display Output: DP + HDMI dual display support
Console Port: 1× RJ45 RS232
Expansion: 1× M.2 Key-B 3052 and 1× M.2 Key-E 2230 (on motherboard back)
Power Input: DC 12V / 4A or higher
Cooling: Fanless passive cooling design (requires airflow)
Dimensions: 136 × 126 × 40 mm
Weight: 0.65 kg (device), 1.25 kg (packaged)
Environment: 0–50°C operating temperature, 5–90% RH non-condensing

Typical Application Scenarios

Firewall and Router Appliance: Ideal for pfSense, OPNsense, and other network security distributions.
Edge Computing Device: Suitable for lightweight workloads, IoT data aggregation, and distributed processing.
Commercial Networking: Stable 24/7 operation for SMB offices, retail stores, and branch networking.
Industrial Automation: Fanless design supports dust-prone or noise-sensitive environments.
Home/SOHO Gateway: Perfect as a home lab firewall, VPN server, or compact microserver.
