G48S J6412 4L

The G48S J6412 4-port Ethernet PC is an ultra-compact, fanless embedded industrial PC powered by an Intel Celeron J6412 processor. Its robust metal casing and completely fanless cooling structure ensure stable operation and truly zero-noise performance. Integrating four 2.5Gb high-speed network ports, it supports dual-channel DDR4 memory, M.2 NVMe high-speed storage, and offers excellent scalability, making it an ideal solution for building network devices, industrial control, and edge computing applications in space-constrained environments.

Place an order

Key Features

Processor: Intel® Celeron J-Series SoC (FCBGA1493)
Memory: 2× DDR4 SO-DIMM, up to 32GB, 3200 MT/s
Storage: 1× SATA 3.0 (6Gb/s), 1× M.2 Key-M 2280 SSD slot

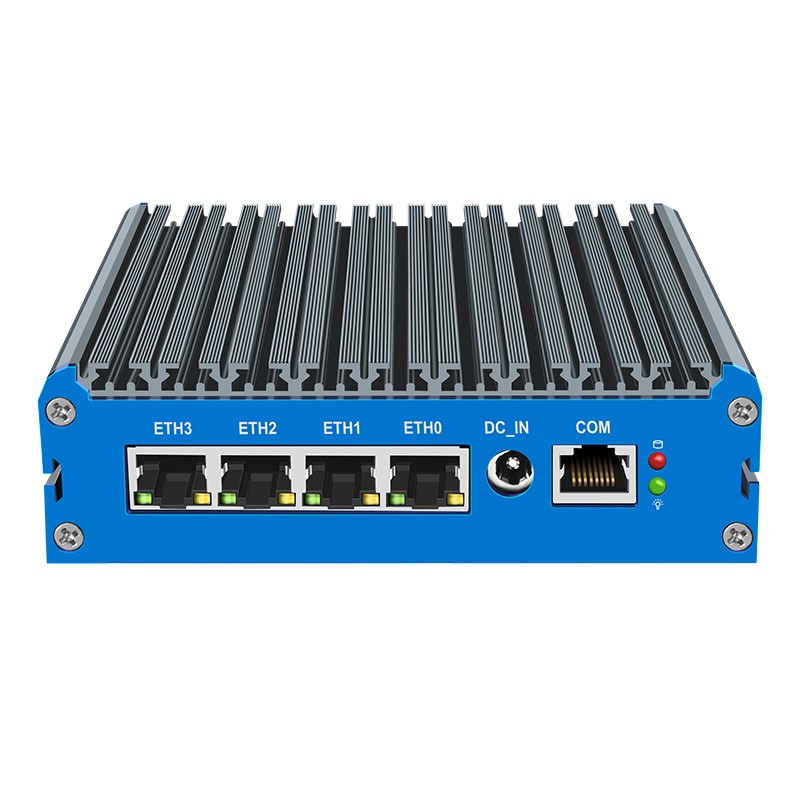

Networking: 4× RJ45 Gigabit Ethernet ports
Console: 1× RJ45 RS232 console port (front)

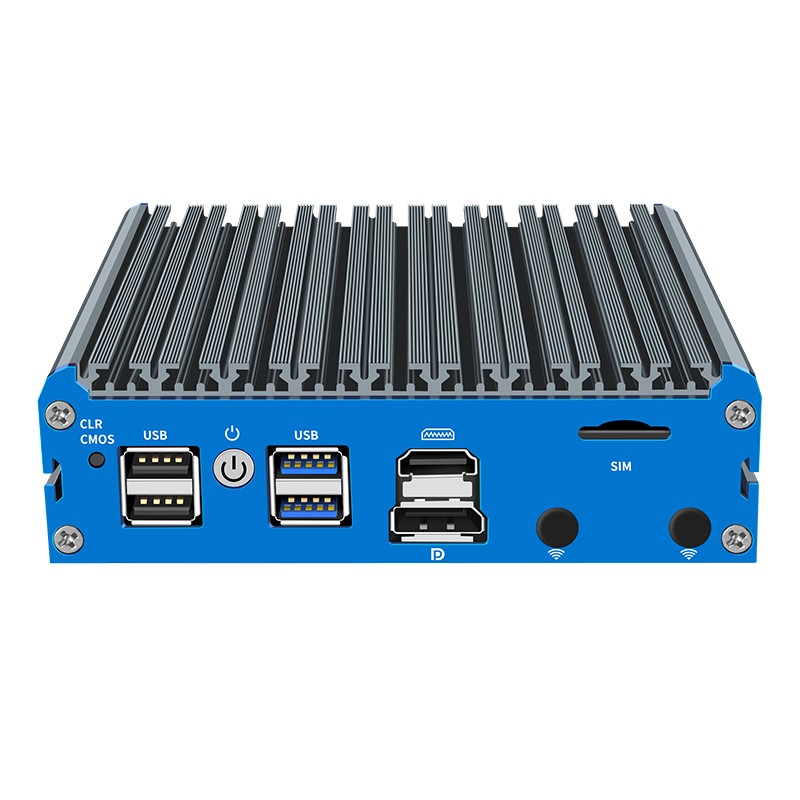

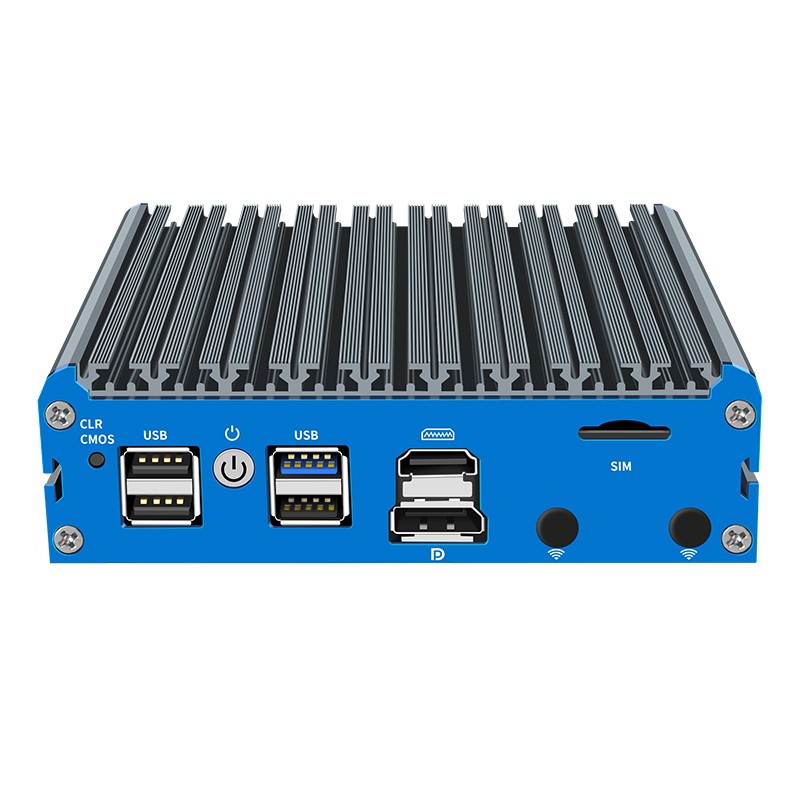

USB: 1× USB 3.0 and 3× USB 2.0 (rear panel)
Display: 1× DP and 1× HDMI for modern dual-display support
Expansion:

1× M.2 Key-B 3052 (for 4G/5G or LTE modules)
1× M.2 Key-E 2230 (on the back of the motherboard, for Wi-Fi/Bluetooth)

Cooling: Fanless passive cooling design (requires adequate airflow)
Power Input: DC 12V / 4A or higher via DC jack

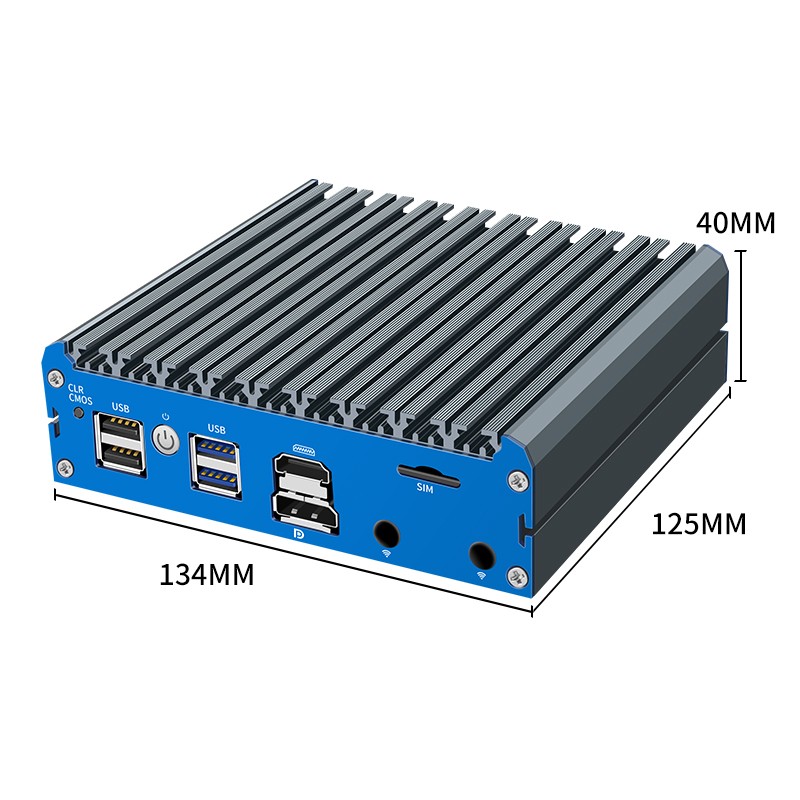

Chassis Size: 134 × 125 × 40 mm
Weight: 0.65 kg (net), 1.25 kg (with accessories)
Operating Environment: 0–50℃, 5–90% RH (non-condensing)

Typical Application Scenarios

Firewall & Router Appliance: Well-suited for pfSense, OPNsense, and other open-source or commercial firewall/router platforms.
VPN Gateway: Provides secure remote access and site-to-site VPN for SOHO, SMB, or branch offices.
IoT & Edge Computing: Acts as an edge gateway for data collection, protocol translation, and local processing in IoT deployments.
Commercial & Industrial Networking: Compact, fanless design makes it ideal for kiosks, cabinets, and noise-sensitive or dust-prone environments.
Home Lab / SOHO Server: Can be used as a silent home firewall, lab router, lightweight NAS, or microserver.
