OTS-1310NP-6L4S

The OTS-1310NP-6L4S is a high-performance network and security computing platform powered by an Intel Atom C3000 series processor. It is designed for scenarios such as network security, virtualization, storage gateways, and edge computing. Supporting both desktop and rack-mount designs, it integrates high-density network interfaces and flexible expansion options, making it an ideal solution for homes and small businesses to build efficient, secure, and reliable IT infrastructure.

Place an order

Key Features

Processor: Intel® Atom C-Series (FCBGA1310), energy-efficient and optimized for network workloads
Memory: 2× DDR4 SO-DIMM slots, up to 64GB, 2400 MT/s
Storage: 2× SATA 6 Gb/s, 1× M.2 Key-M 2280 SSD
Networking: 6× RJ45 Gigabit LAN + 4× SFP+ 10 GbE (Intel i350 / X553 controller options)
USB: 1× USB 3.0 (front) + 3× USB 2.0 (rear)
Console: 1× RJ45 COM port
Display: 1× VGA port
Expansion:

1× PCIe x8 (slot operates at x4 speed, Gen3)
1× M.2 Key-B 3052 (USB 3.0 signal)
1× mPCIe slot (PCIe / USB signal)

SIM Slots: 2 × Nano SIM card slots for LTE/5G module support
Cooling: Active cooling with 1× CPU fan

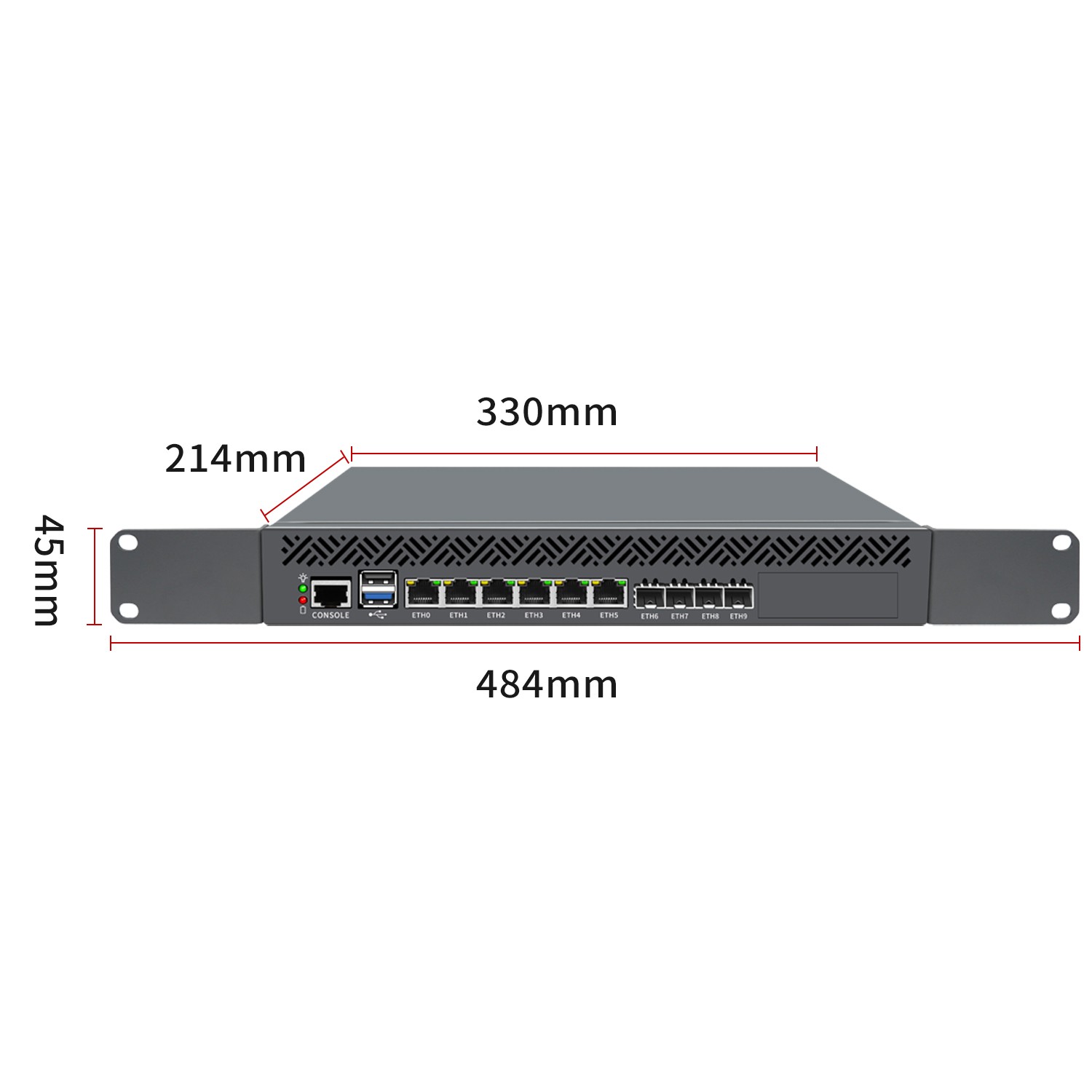

Chassis: 330 × 215 × 45 mm ; Weight: 3.65 kg (net), 4.50 kg (with accessories)
Power Supply: Input 100–240 V AC (50/60 Hz) ; Output 12 V 7 A DC
Environment: Operating 0–50 °C ; Humidity 5–90 % RH (non-condensing)

Application Scenarios

Firewall & UTM Gateway: Ideal for pfSense / OPNsense deployments requiring multi-port LAN + 10 Gb fiber connectivity.
VPN Server / Router: Supports high-speed encryption and secure remote connectivity for SMB networks.
Edge Computing Platform: Optimized for distributed data processing and IoT traffic management at the network edge.
Industrial Applications: Durable design with wide voltage support for continuous operation in factory and data center environments.
Hybrid Network Systems: Supports LAN + SFP+ uplink architecture for flexible deployment in complex networks.
