OTS C246 8L

The OTS C246 8L is a compact desktop 8-LAN network appliance based on the Intel C246/C240 series chipset. It supports FCLGA1151 platform processors and DDR4 SO-DIMM memory up to 64GB at 2666 MT/s. The system provides 8 × Intel I226V 2.5GbE RJ45 LAN ports, 4 × USB-A 3.0 ports, 1 × RJ45 COM console port, and supports 2 × SATA 6Gb/s, 2 × M.2 Key-M 2280 SSD slots, PCIe 3.0 x8 expansion, M.2 Key-E, M.2 Key-B, mPCIe, VGA/HD display, and reserved antenna openings. With a compact desktop chassis, active cooling, and DC 24V input, it is suitable for enterprise security appliances, multi-port network management, edge computing nodes, industrial gateways, industrial automation control, and embedded network systems.

Place an order

Core Specifications

Model: OTS C246 8L
Processor Platform: Intel C246/C240 series chipset, supports FCLGA1151 platform processors
Memory: DDR4 SO-DIMM, up to 64GB, up to 2666 MT/s
Storage: 2 × SATA 6Gb/s, 2 × M.2 Key-M 2280 SSD
Network: 8 × 2.5GbE RJ45, 8 × Intel I226V controllers
PCIe Expansion: 1 × PCIe x8 at x4 rate
Module Expansion: 1 × M.2 Key-E 2230 with PCIe/USB signal; 1 × M.2 Key-B 3052 with USB signal; 1 × mPCIe with PCIe/USB signal

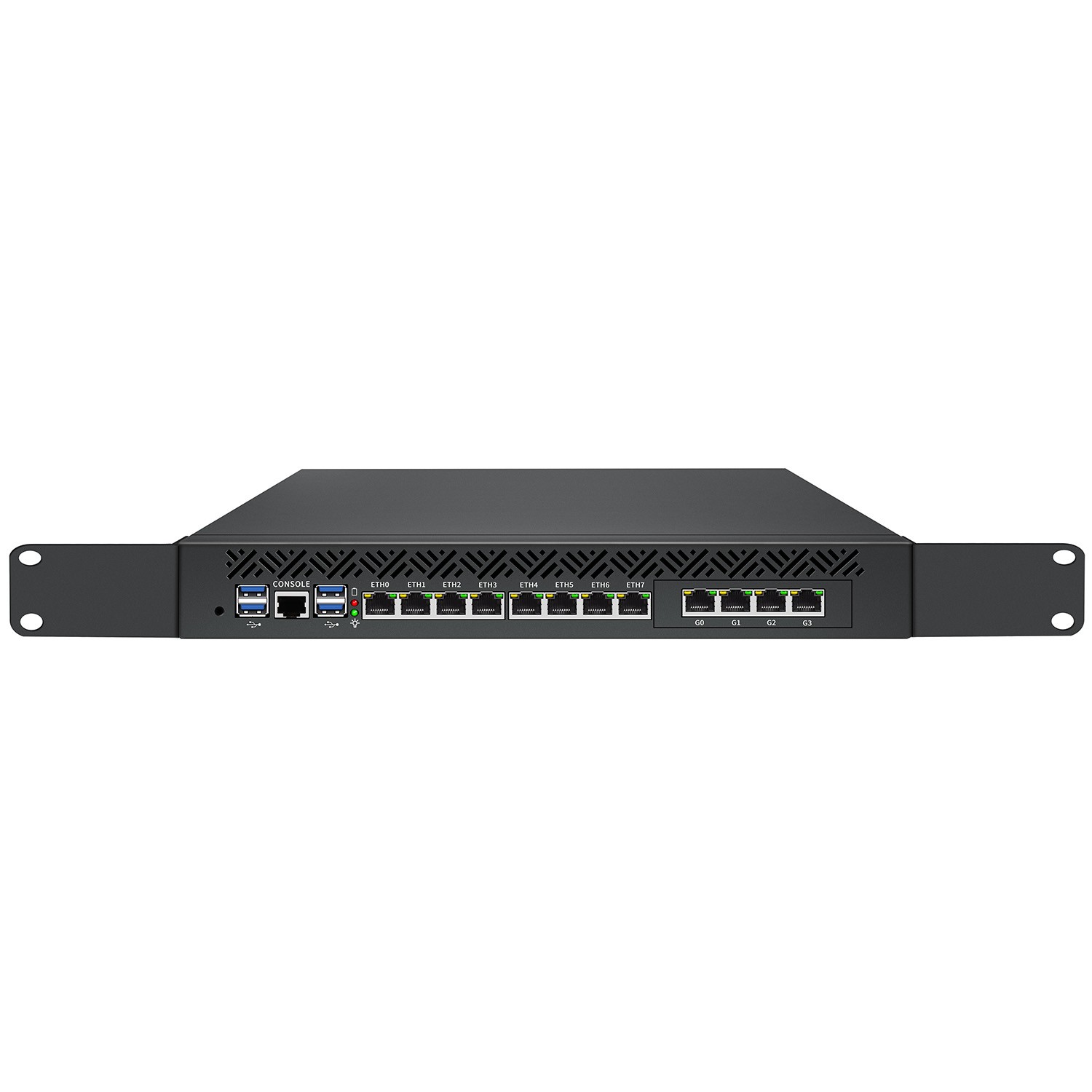

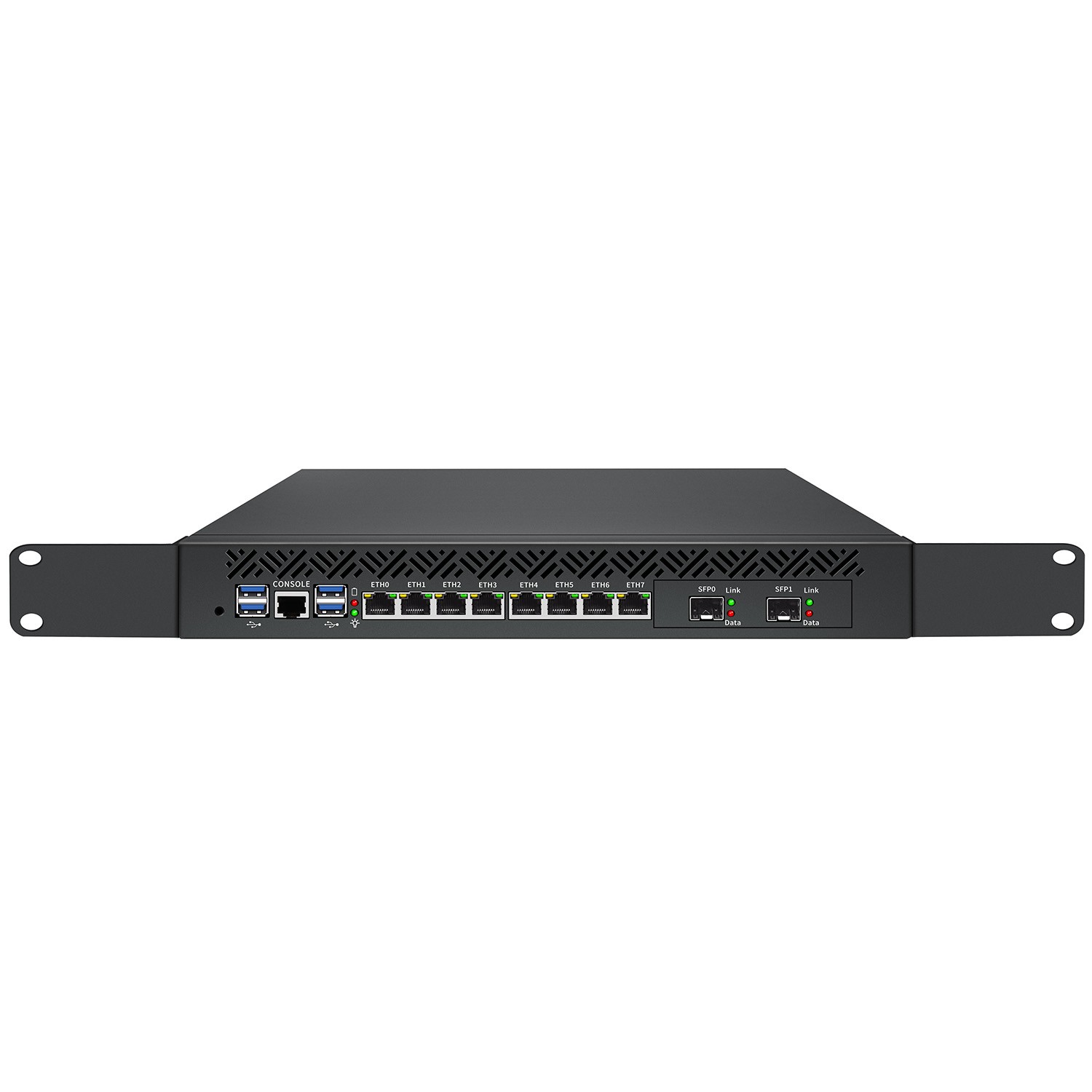

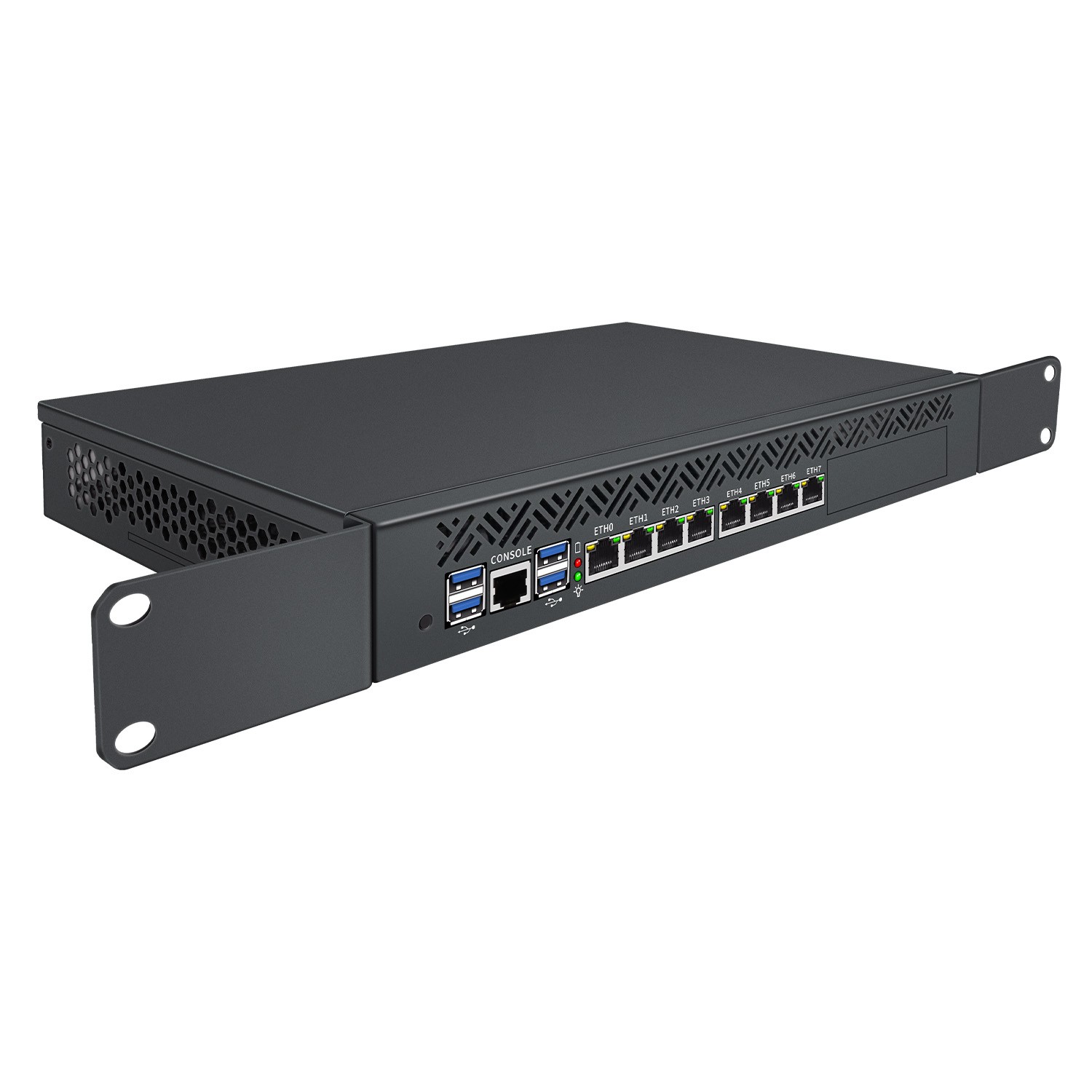

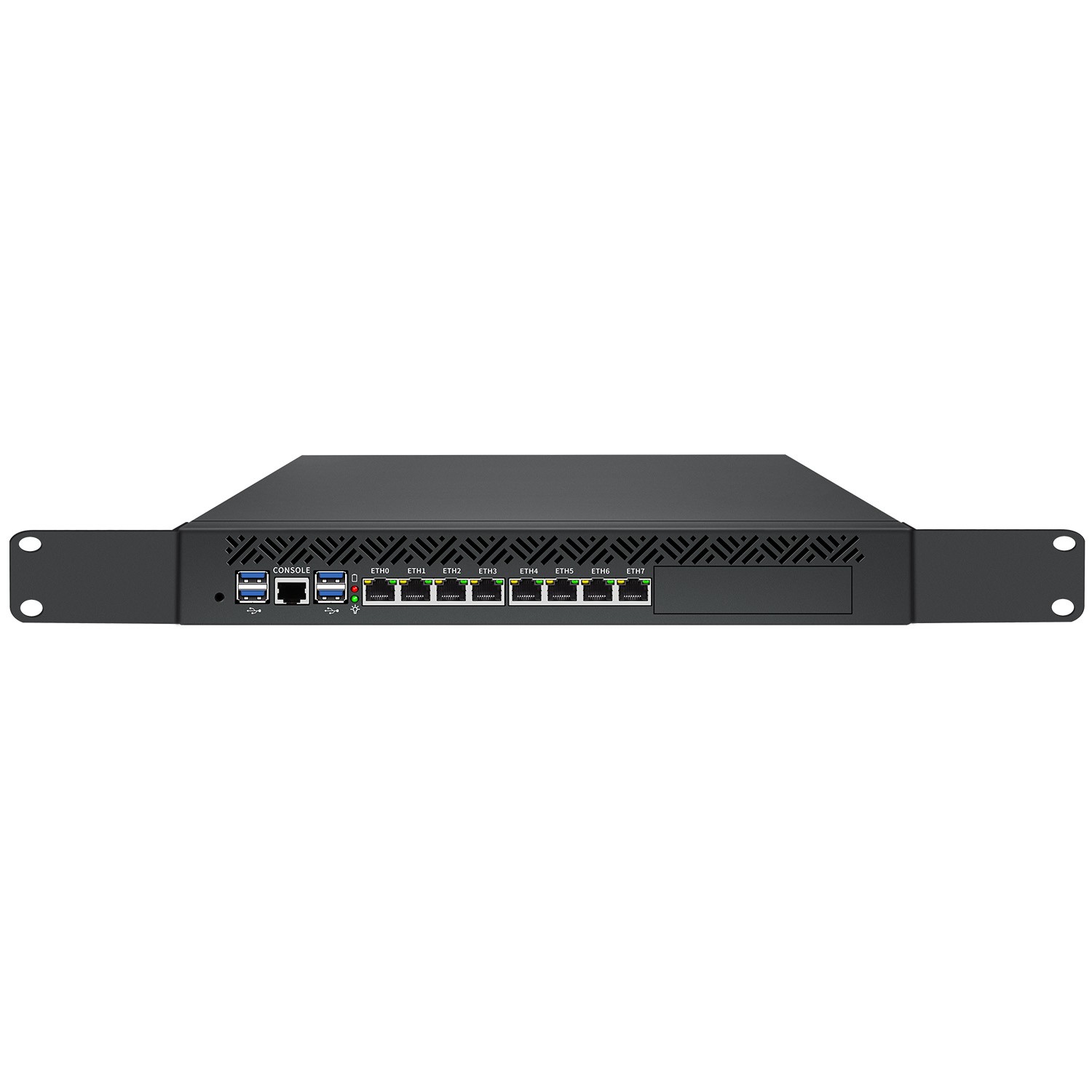

Front Panel: 8 × RJ45 LAN, 4 × USB-A 3.0, 1 × RJ45 COM, 1 × PCIe expansion position

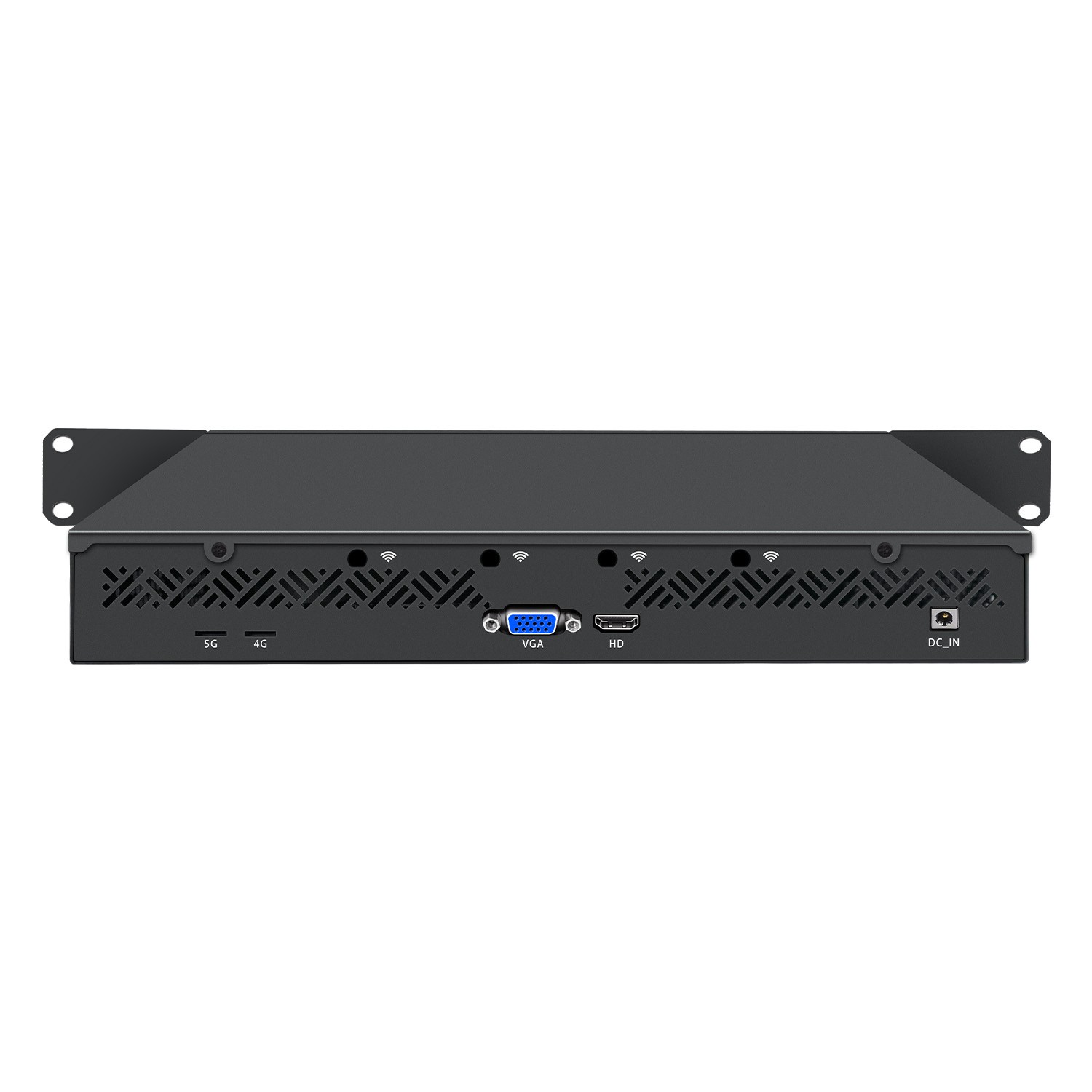

Rear Panel: 1 × VGA, 1 × HD, 1 × power button, 2 antenna groups reserved, 1 × Jack DC 5.5/2.5mm
Display: 1 × VGA, 1 × HD, display function depends on the processor integrated graphics
Cooling Method: Active cooling, 1 × CPU fan
Chassis Size: 330 × 200 × 45 mm
Weight: Equipment weight 1.90KG; package weight 2.45KG including accessories
Power Mode: DC 24V 8A or higher
Operating Temperature: 0°C to 50°C
Operating Humidity: 5% to 90% relative humidity, non-condensing

Product Features

Compact desktop chassis for offices, weak-current cabinets, equipment cabinets, and industrial site deployment.
Based on the Intel C246/C240 series chipset and supports FCLGA1151 platform processors for high-performance networking and industrial applications.
DDR4 SO-DIMM memory support up to 64GB for multitasking, network services, and edge computing workloads.
Integrated 8 × Intel I226V 2.5GbE LAN ports for multi-segment access, traffic distribution, and network management.
Dual M.2 Key-M 2280 SSD slots and dual SATA 6Gb/s interfaces support system drives, cache drives, and local data storage.
PCIe 3.0 x8 expansion position supports additional network cards, feature cards, or project-specific modules.
M.2 Key-E, M.2 Key-B, and mPCIe interfaces support wireless, cellular, or other expansion modules.
RJ45 COM, USB 3.0, VGA/HD display, and reserved antenna interfaces support system maintenance and project integration.
Active cooling and DC 24V input support stable long-term operation.
