2U C246 8L

The 2U C246 8L is an enterprise-class 2U rackmount network and storage server based on the Intel C246 chipset. It supports FCLGA1151 platform processors and DDR4 SO-DIMM memory up to 64GB at 2666 MT/s. The front panel provides 8 × Intel I226V 2.5GbE RJ45 LAN ports, 4 × USB-A 3.0 ports, 1 × RJ45 COM console port, and 2 reserved PCIe expansion positions. The system also supports 2 × SATA 6Gb/s, 2 × M.2 Key-M 2280 SSD slots, PCIe x16, PCIe x8, M.2 Key-E, M.2 Key-B, mPCIe, reserved VGA/HD display, and reserved antenna openings. With a 2U rackmount chassis, active cooling, and a 200W AC power supply, it is suitable for enterprise security appliances, multi-port network management, edge computing nodes, industrial automation control, enterprise gateways, and enterprise-class storage applications.

Place an order

Core Specifications

Model: 2U C246 8L
Processor Platform: Intel C246 chipset, supports FCLGA1151 platform processors
Memory: DDR4 SO-DIMM, up to 64GB, up to 2666 MT/s
Storage: 2 × SATA 6Gb/s, 2 × M.2 Key-M 2280 SSD
Network: 8 × 2.5GbE RJ45, Intel I226V controllers

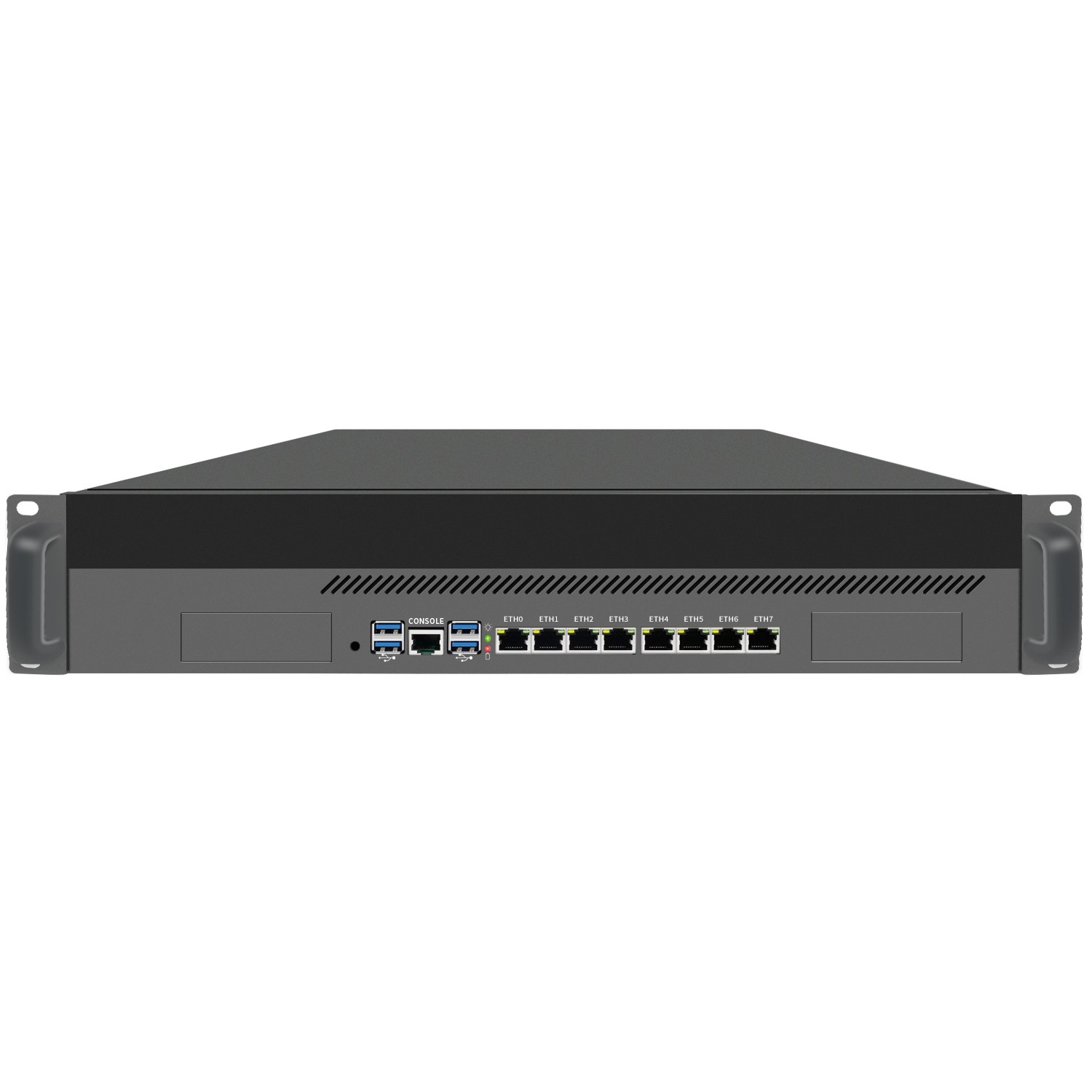

Front Panel: 8 × RJ45 LAN, 4 × USB-A 3.0, 1 × RJ45 COM, 2 × PCIe expansion positions
Rear Panel: 1 × VGA, 1 × HD reserved, 1 × power button, 2 antenna groups reserved, 1 × AC power socket
PCIe Expansion: 1 × PCIe x16 at x8 rate; 1 × PCIe x8 at x4 rate
Module Expansion: 1 × M.2 Key-E 2230 with PCIe/USB signal; 1 × M.2 Key-B 3052 with USB signal; 1 × mPCIe with PCIe/USB signal
Display: 1 × VGA, 1 × HD reserved, display function depends on the processor integrated graphics
Cooling Method: Active cooling, 1 × CPU fan, 2 × chassis fans
Chassis Size: 440 × 420 × 90 mm
Weight: Equipment weight 6.40KG; package weight 8.50KG including accessories
Power Mode: Input: 200V~240V AC 50/60Hz, output: 200W MAX
Operating Temperature: 0°C to 50°C
Operating Humidity: 5% to 90% relative humidity, non-condensing

Product Features

2U rackmount chassis provides more internal space for centralized deployment in server racks, equipment rooms, and enterprise network centers.
Based on the Intel C246 chipset and supports FCLGA1151 platform processors for high-performance networking and edge computing applications.
DDR4 SO-DIMM memory support up to 64GB for multitasking, network services, and lightweight virtualization workloads.
Integrated 8 × Intel I226V 2.5GbE LAN ports for multi-segment access, traffic distribution, and network management.
Dual M.2 Key-M 2280 SSD slots and dual SATA 6Gb/s interfaces support system drives, cache drives, and local data storage.
PCIe x16 and PCIe x8 expansion slots support additional network cards, feature cards, or project-specific modules.
M.2 Key-E, M.2 Key-B, and mPCIe interfaces support wireless, cellular, or other expansion modules.
Compared with a 1U chassis, the 2U structure improves cooling space, cabling convenience, expansion installation, and maintenance accessibility.
Front-access LAN, USB, and RJ45 COM console interfaces simplify installation, debugging, and maintenance.
