2U-1310NP-6L4S

Key Features

• Processor: Intel® Atom C-Series (FCBGA1310) — low power, multi-core architecture optimized for networking and security workloads

• Memory: 2× DDR4 SO-DIMM slots, up to 64GB, 2400 MT/s

• Storage: 2× SATA 6Gb/s, 1× M.2 Key-M 2280 SSD

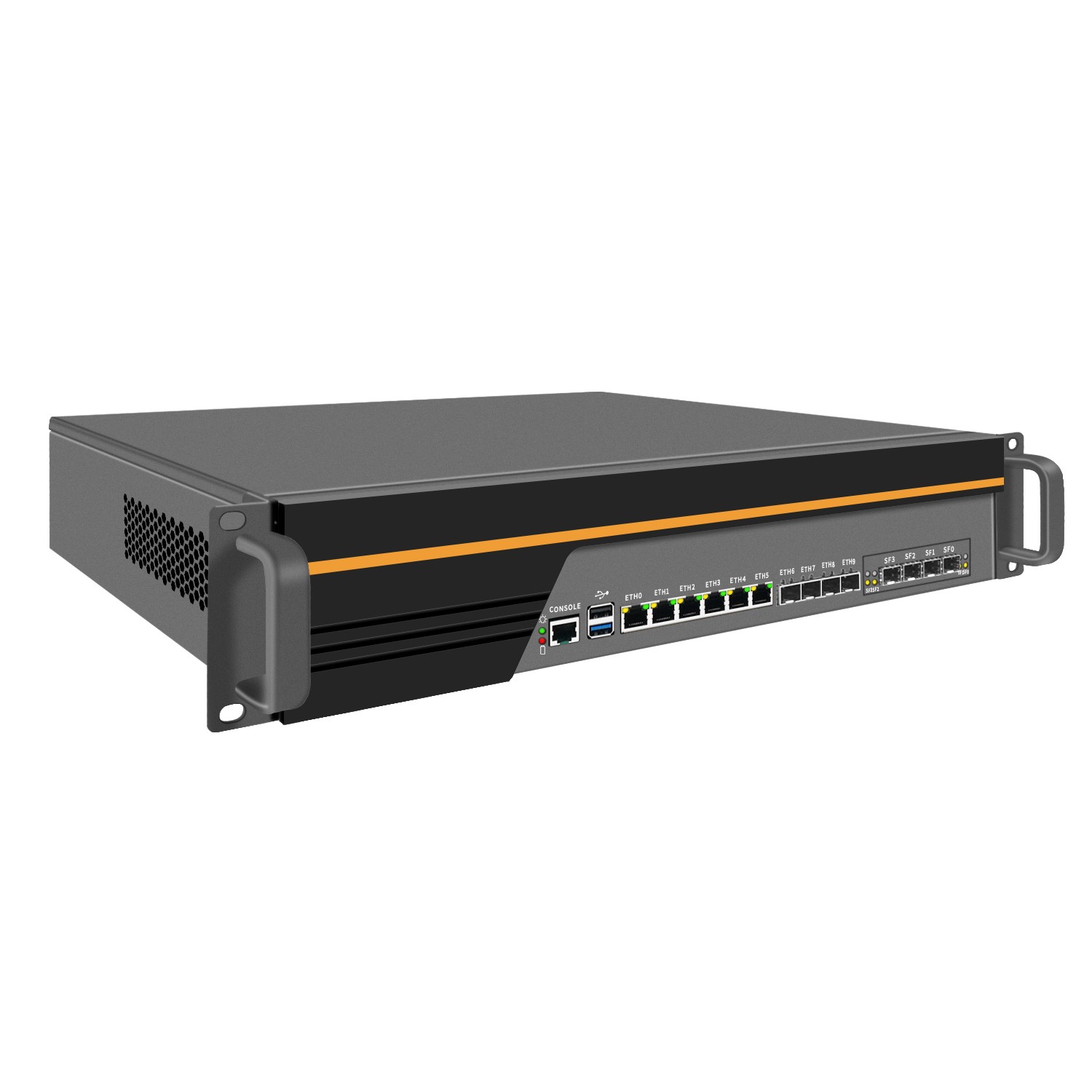

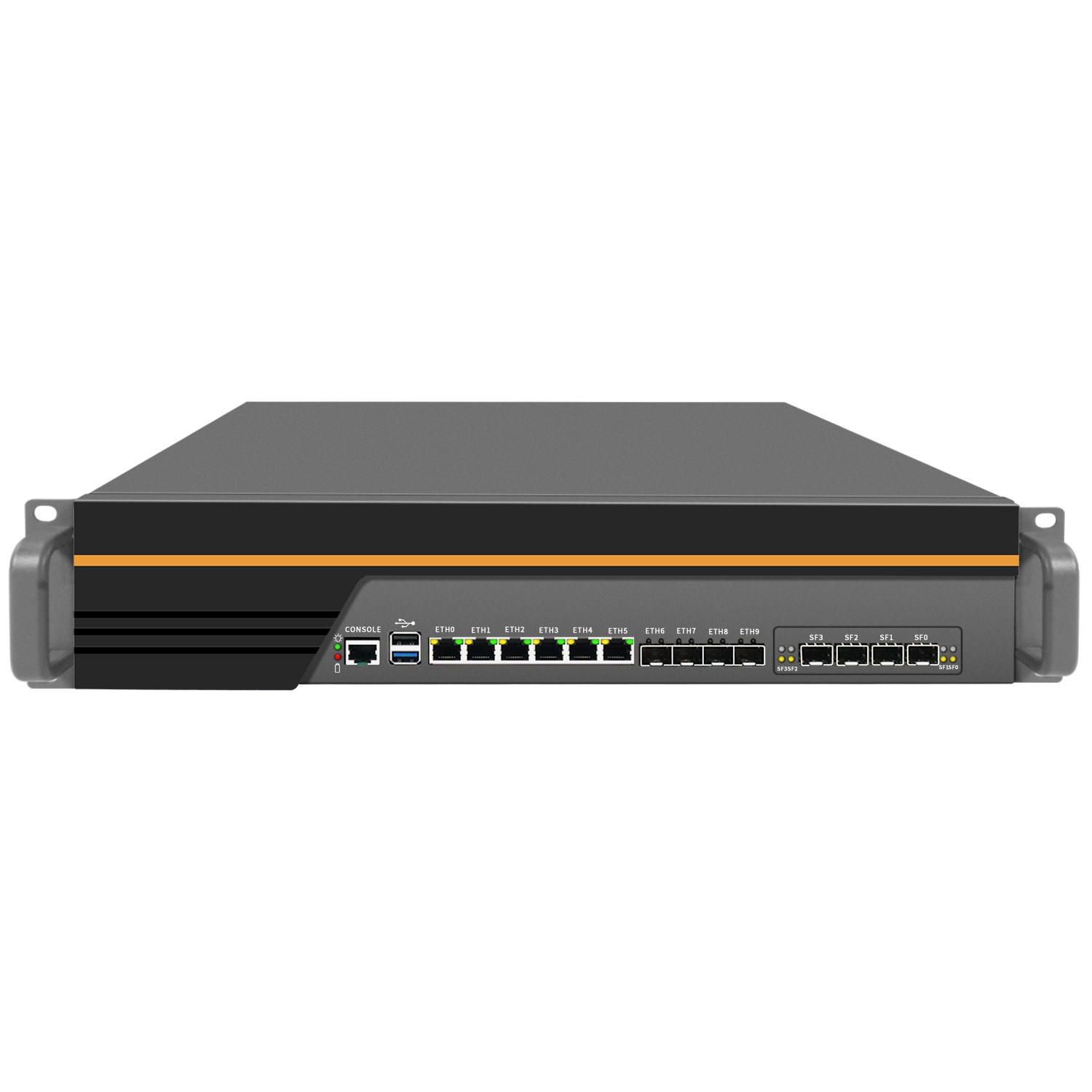

• Networking: 6× RJ45 Gigabit Ethernet + 4× 10G SFP+ ports for hybrid connectivity

• Console: 1× RJ45 COM management port

• USB Ports: 1× USB 3.0 and 3× USB 2.0

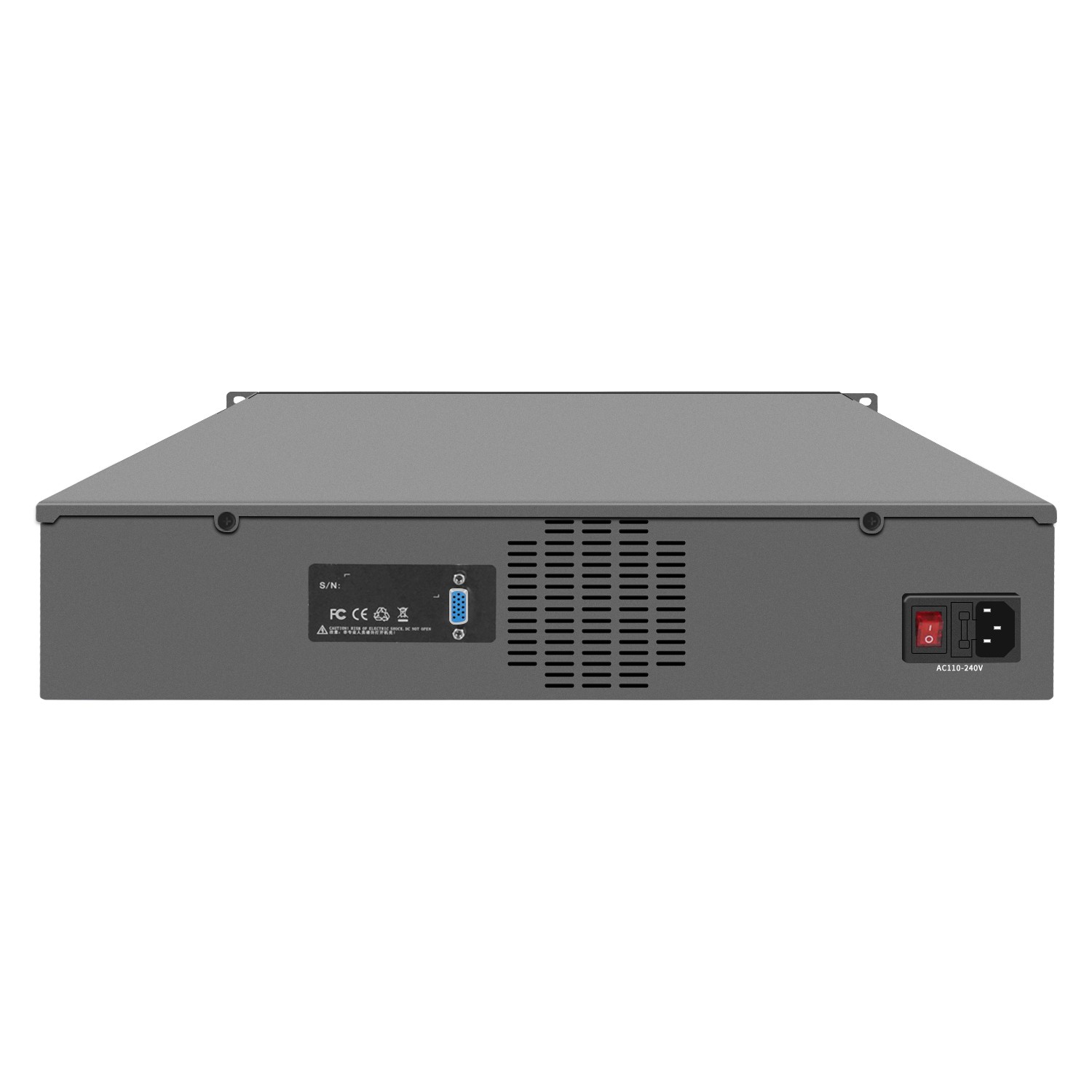

• Display: 1× VGA (rear panel)

• Expansion:

• 1× PCIe x8 (PCIe Gen3 x4 rate)

• 1× M.2 Key-B 3052 (USB 3.0 signal)

• 1× mPCIe (PCIe/USB signal)

• Cooling: Active cooling with 1× CPU fan and 2× chassis fans

• Power: Input 100–240V AC, Output 75W Max

• Chassis Size: 435 × 405 × 90 mm (2U standard)

• Weight: Net 6.40 kg / Packaged 8.50 kg

• Operating Conditions: 0–50°C; 5–90% RH (non-condensing)

Application Scenarios

• Firewall and UTM Appliance: Supports pfSense, OPNsense, and similar security solutions for enterprise protection.

• VPN Gateway: Provides secure tunneling and high concurrent connections for branch connectivity.

• Edge Computing Node: Ideal for distributed processing and IoT gateway applications.

• Data Center Router: Flexible LAN/WAN design for hybrid network infrastructures.

• Industrial Control & Automation: Reliable operation for industrial communication and monitoring systems.

Resources

Data Sheet
 Product Manual
