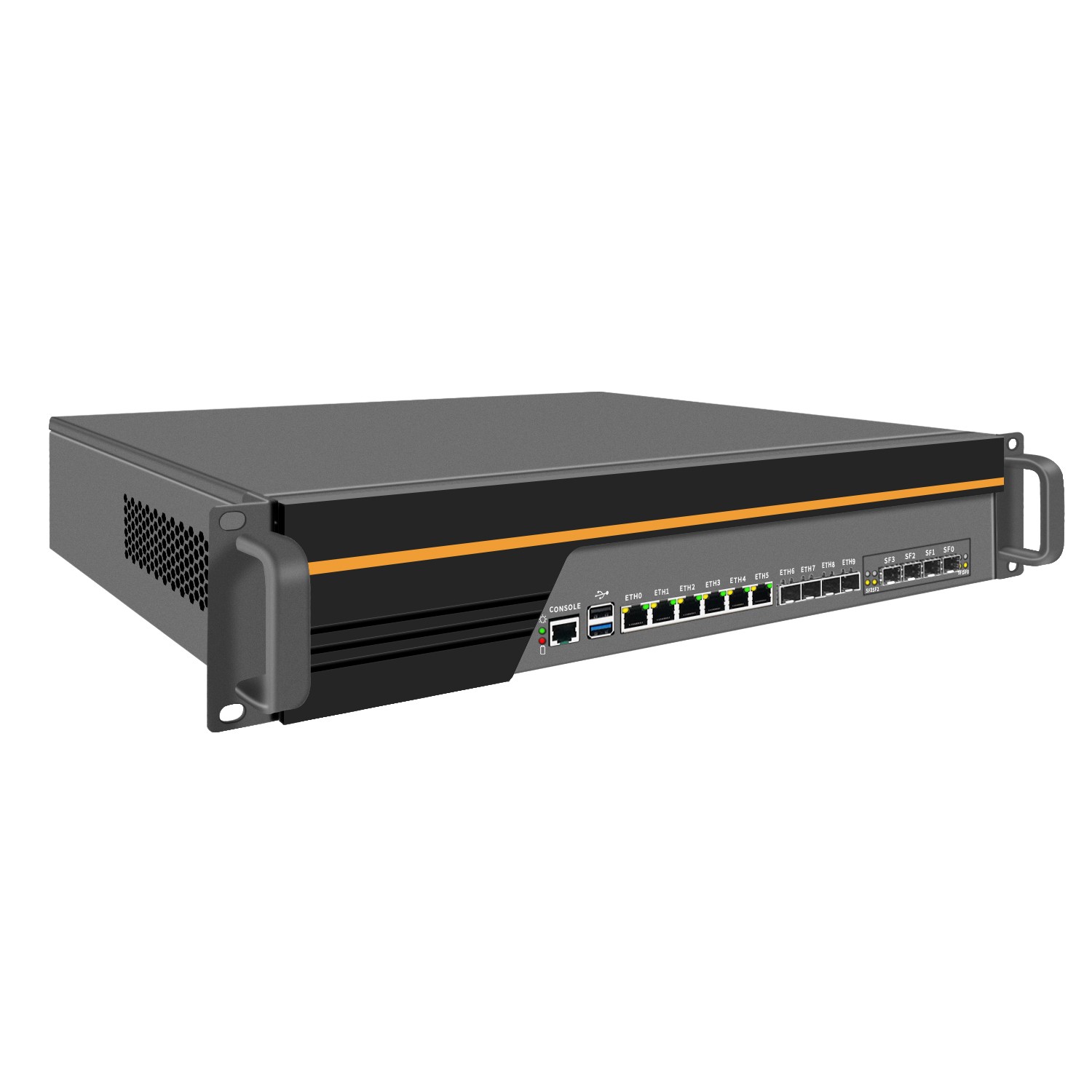

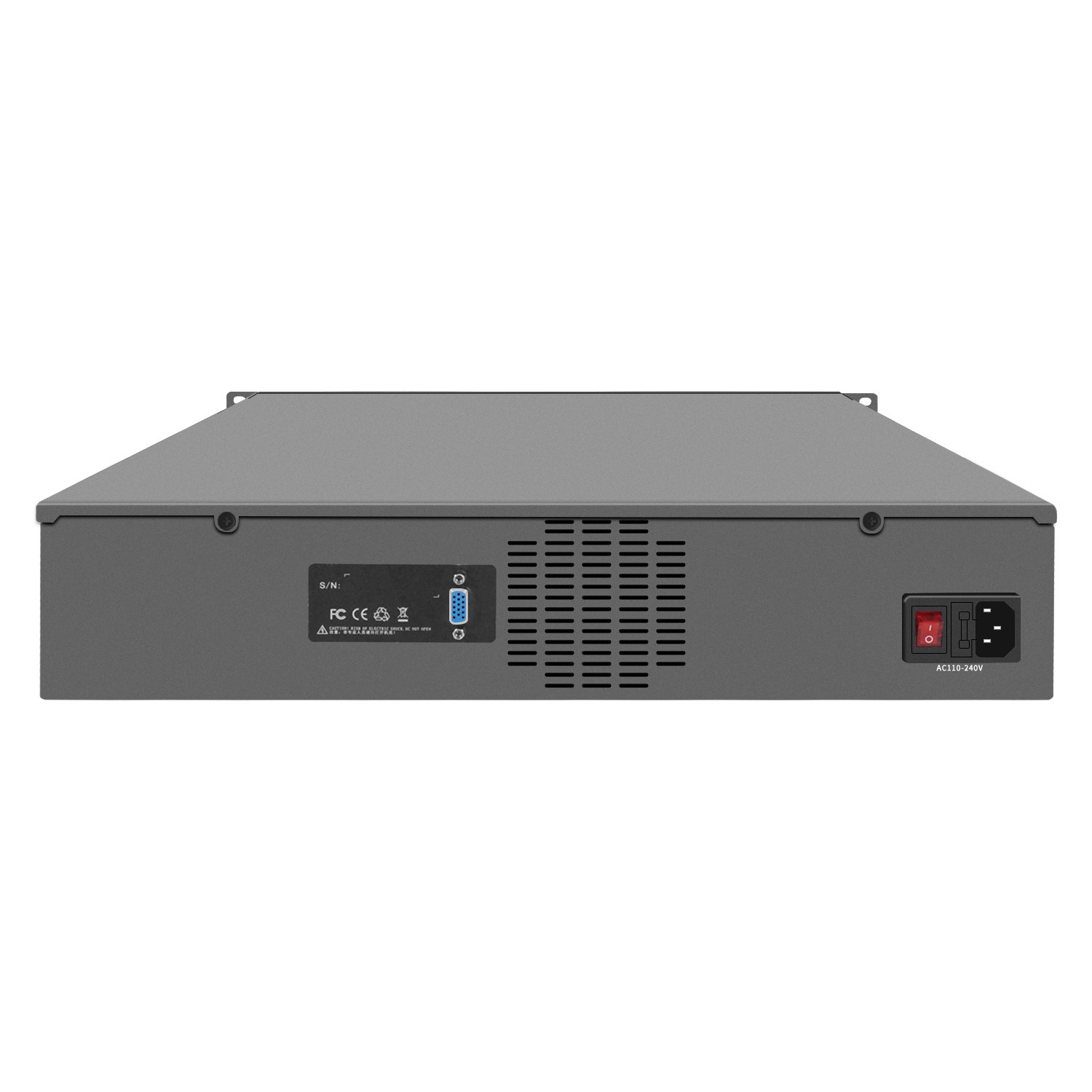

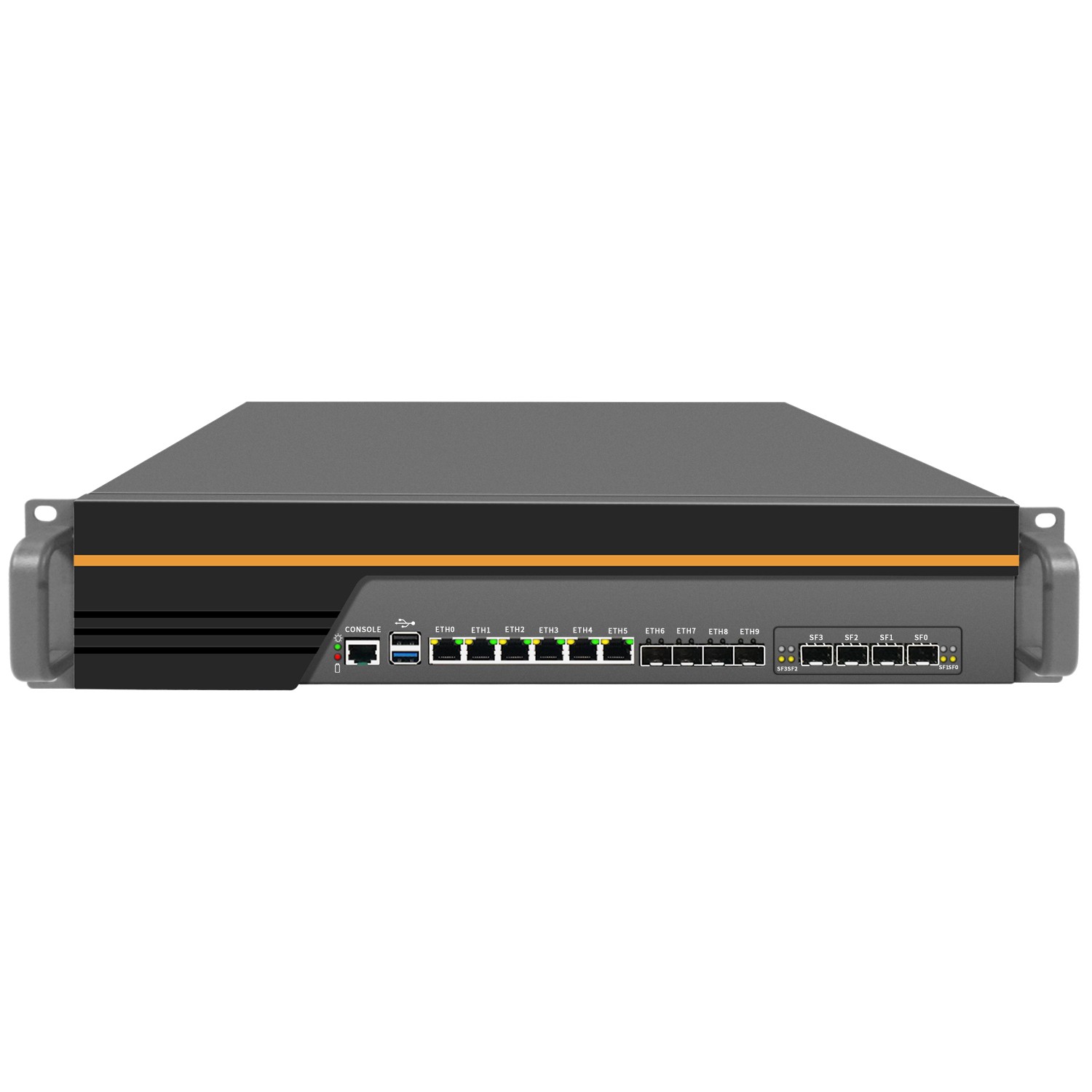

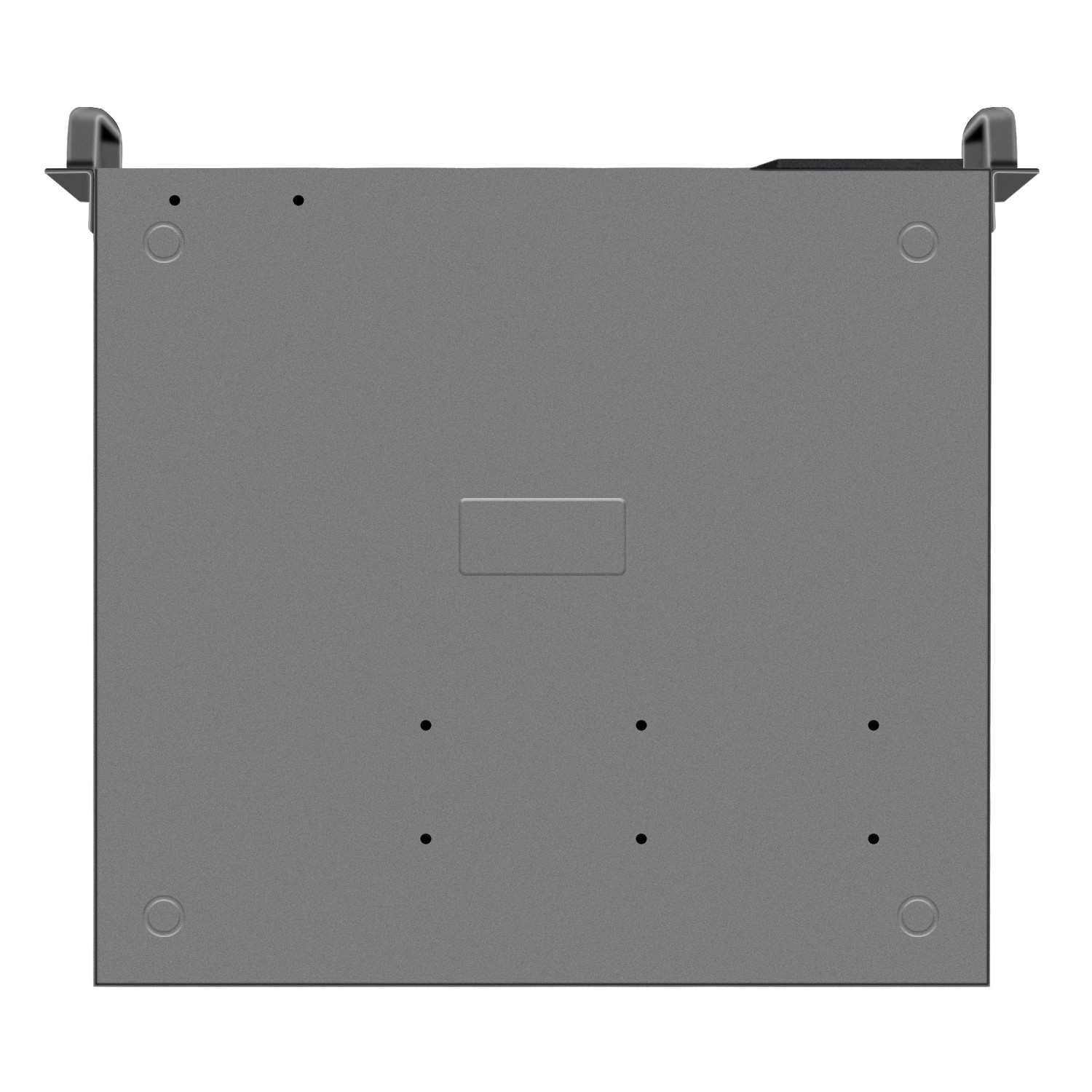

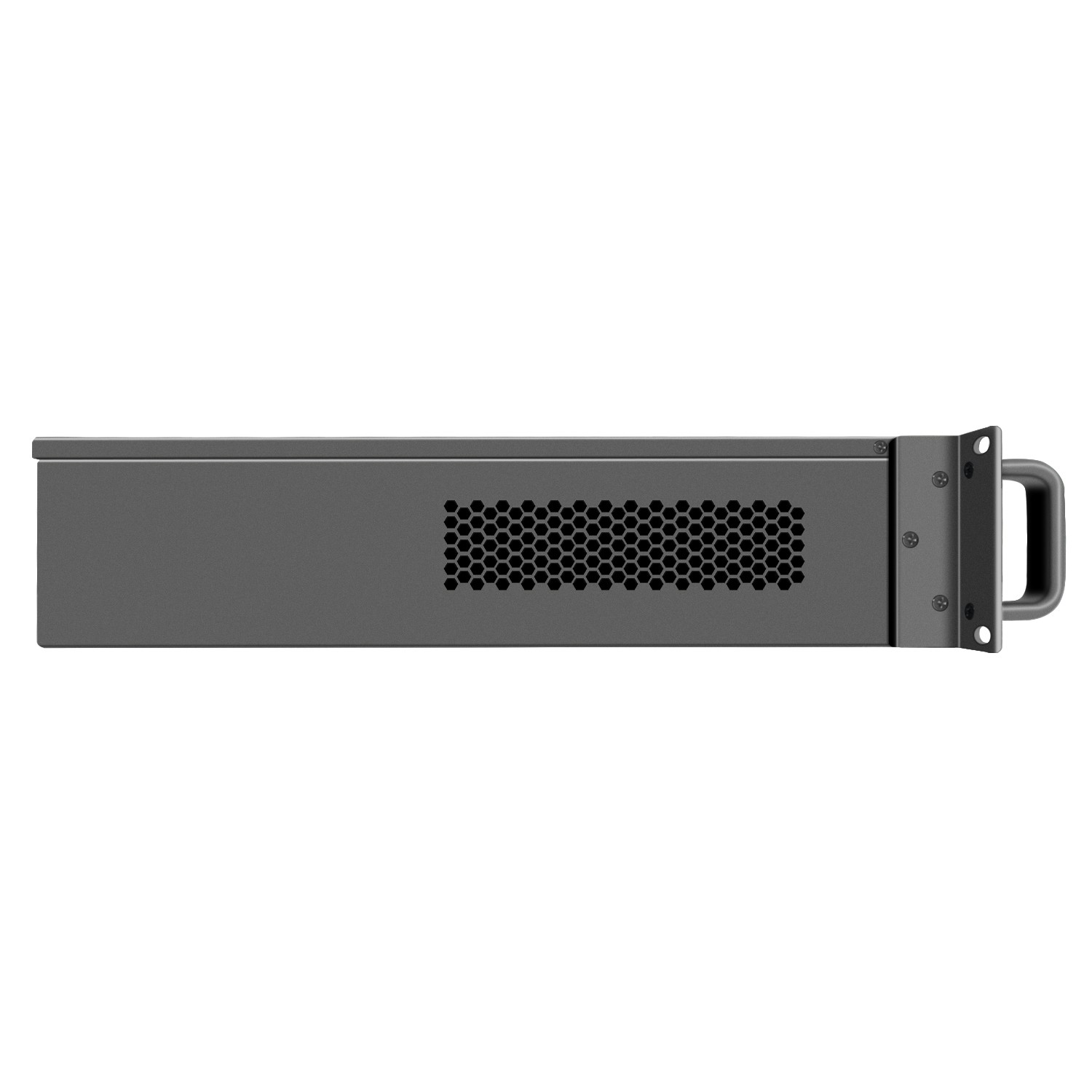

2U-C3808-6L4S

The 2U-C3808-6L4S is a high-performance network and security computing platform powered by an Intel Atom C3808 processor. Featuring a standard 2U rackmount design, it offers high-density network ports, flexible scalability, and industrial-grade stability. It provides robust hardware support for high-bandwidth networking, security, virtualization, and edge computing scenarios, meeting the stringent requirements of enterprise data centers and carrier-grade applications.

Place an order

Key Features

Processor: Intel® Atom C-Series (FCBGA1310) — low power, multi-core architecture optimized for networking and security workloads
Memory: 2× DDR4 SO-DIMM slots, up to 64GB, 2400 MT/s
Storage: 2× SATA 6Gb/s, 1× M.2 Key-M 2280 SSD
Networking: 6× RJ45 Gigabit Ethernet + 4× 10G SFP+ ports for hybrid connectivity
Console: 1× RJ45 COM management port
USB Ports: 1× USB 3.0 and 3× USB 2.0
Display: 1× VGA (rear panel)
Expansion:

1× PCIe x8 (PCIe Gen3 x4 rate)
1× M.2 Key-B 3052 (USB 3.0 signal)
1× mPCIe (PCIe/USB signal)

Cooling: Active cooling with 1× CPU fan and 2× chassis fans
Power: Input 100–240V AC, Output 75W Max
Chassis Size: 435 × 405 × 90 mm (2U standard)
Weight: Net 6.40 kg / Packaged 8.50 kg
Operating Conditions: 0–50°C; 5–90% RH (non-condensing)

Application Scenarios

Firewall and UTM Appliance: Supports pfSense, OPNsense, and similar security solutions for enterprise protection.
VPN Gateway: Provides secure tunneling and high concurrent connections for branch connectivity.
Edge Computing Node: Ideal for distributed processing and IoT gateway applications.
Data Center Router: Flexible LAN/WAN design for hybrid network infrastructures.
Industrial Control & Automation: Reliable operation for industrial communication and monitoring systems.
