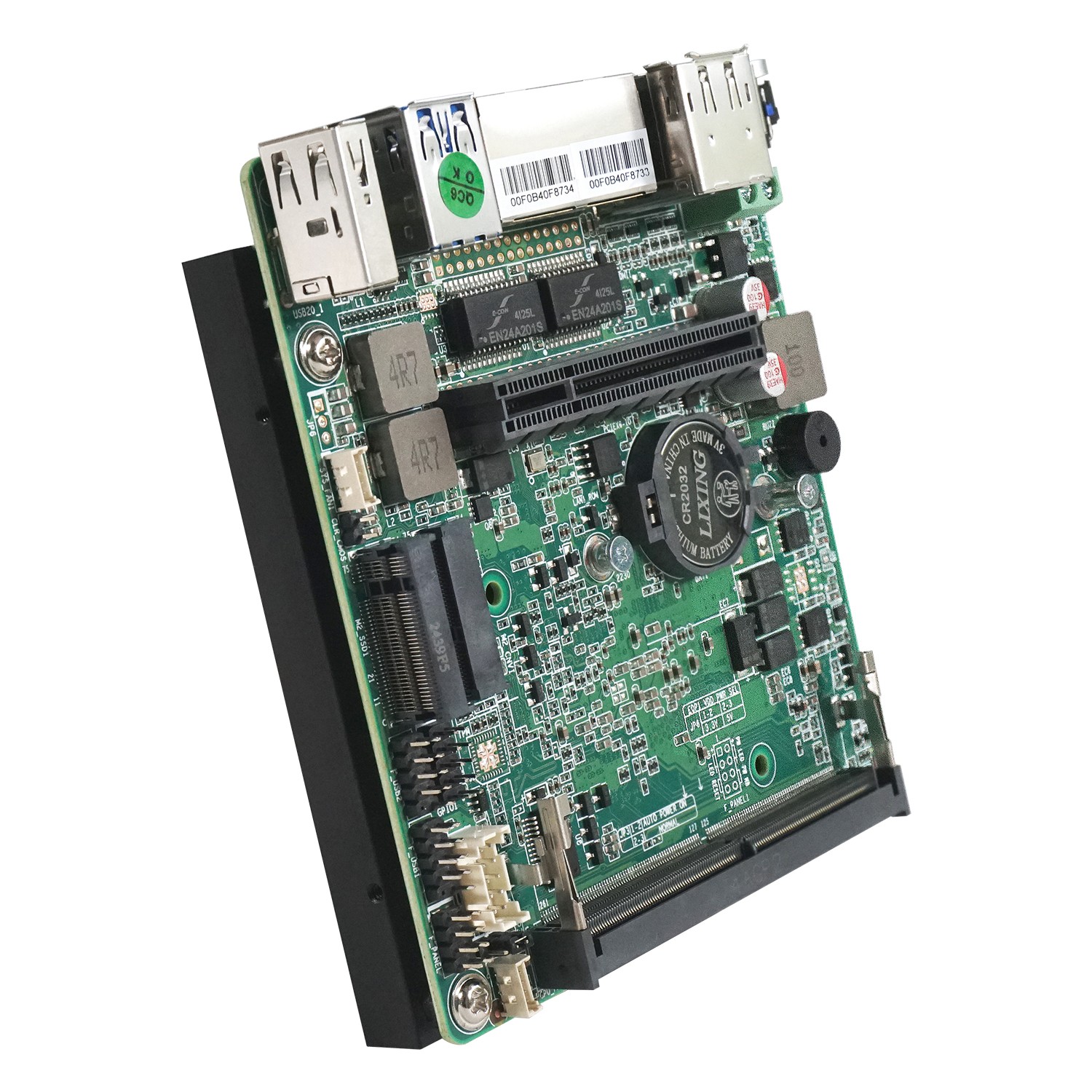

1264-10 Motherboard

Core Specifications

• Model: 1264-10

• Processor Platform: Intel Processor N-series

• Socket: FCBGA1264

• Memory: DDR5 SO-DIMM, up to 16GB, up to 4800 MT/s

• Storage: 1 × M.2 Key-B+M 2280, PCIe x1 or SATA 3.0

• Network: 2 × 2.5GbE RJ45, 2 × Intel I226V controllers

• Expansion Interface: 1 × PCIe x6-IO, non-standard definition

• Wireless Expansion: 1 × M.2 Key-E 2230, CNVi

• Display: 1 × DP, 1 × HD, 1 × customizable eDP

• Graphics: Intel UHD Graphics

• I/O Chip: IT8613E-LX for GPIO, COM, and fan control

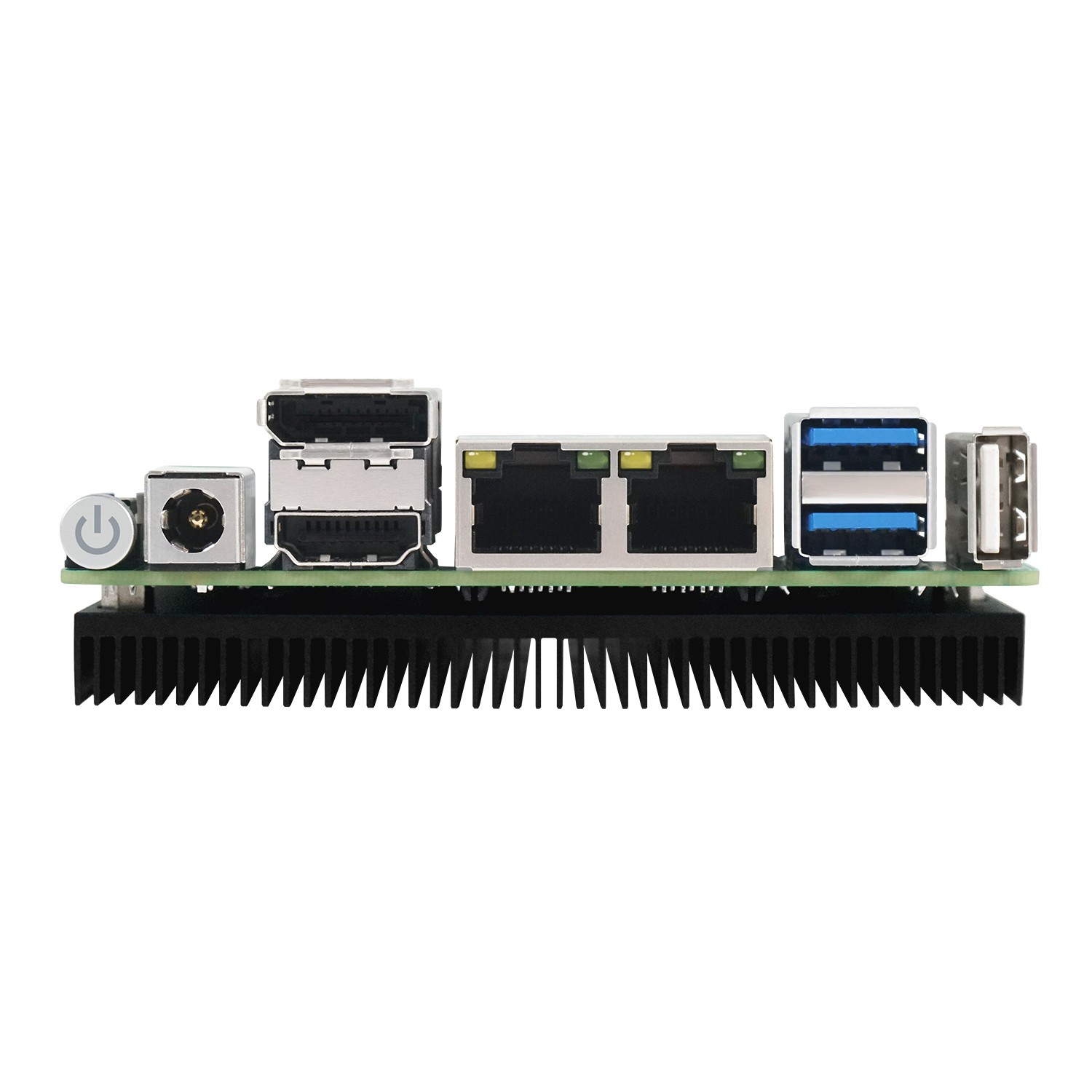

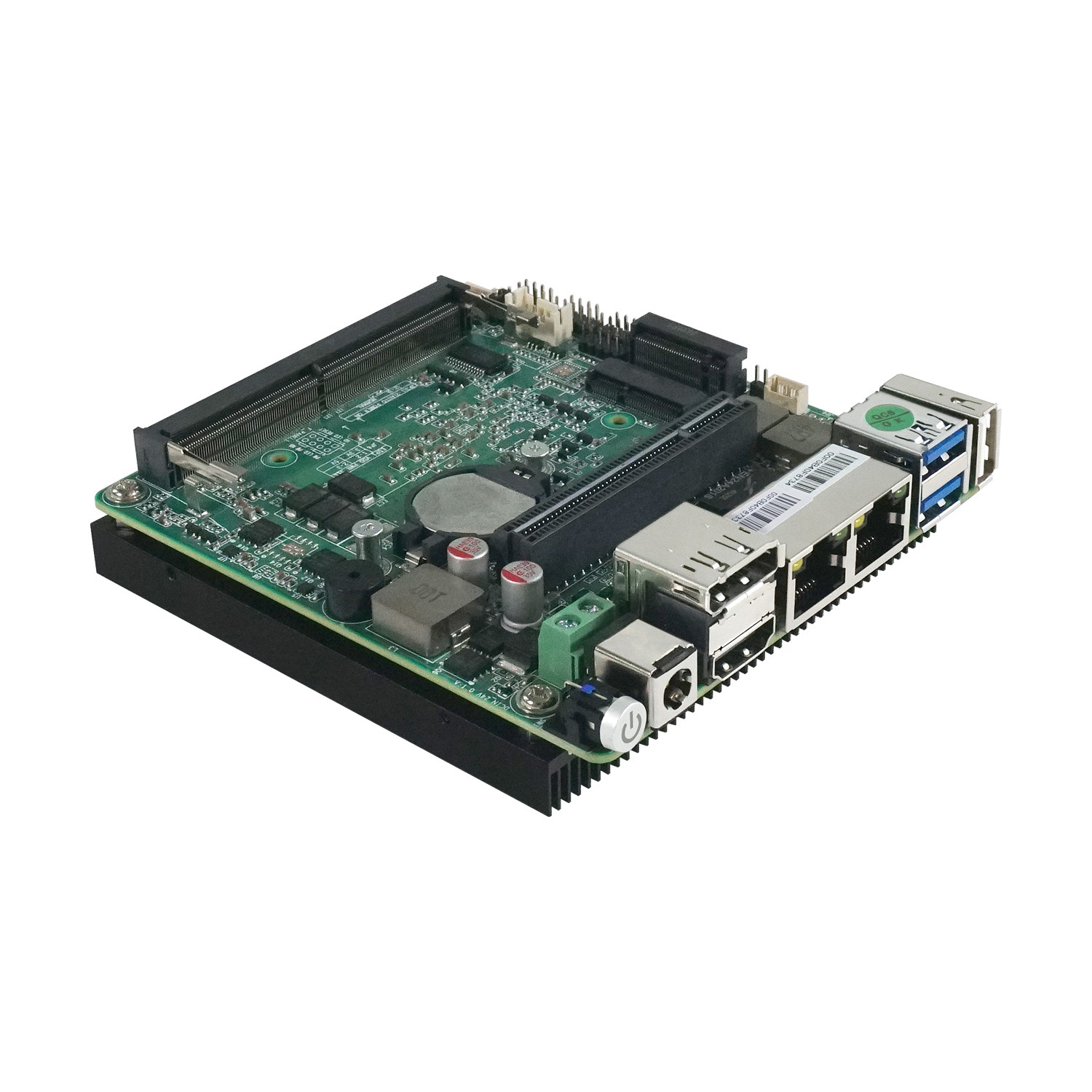

• Rear I/O: 2 × USB-A 3.2, 1 × USB-A 2.0, 1 × DP, 1 × HD, 2 × RJ45, 1 × Jack DC 5.5/2.5mm

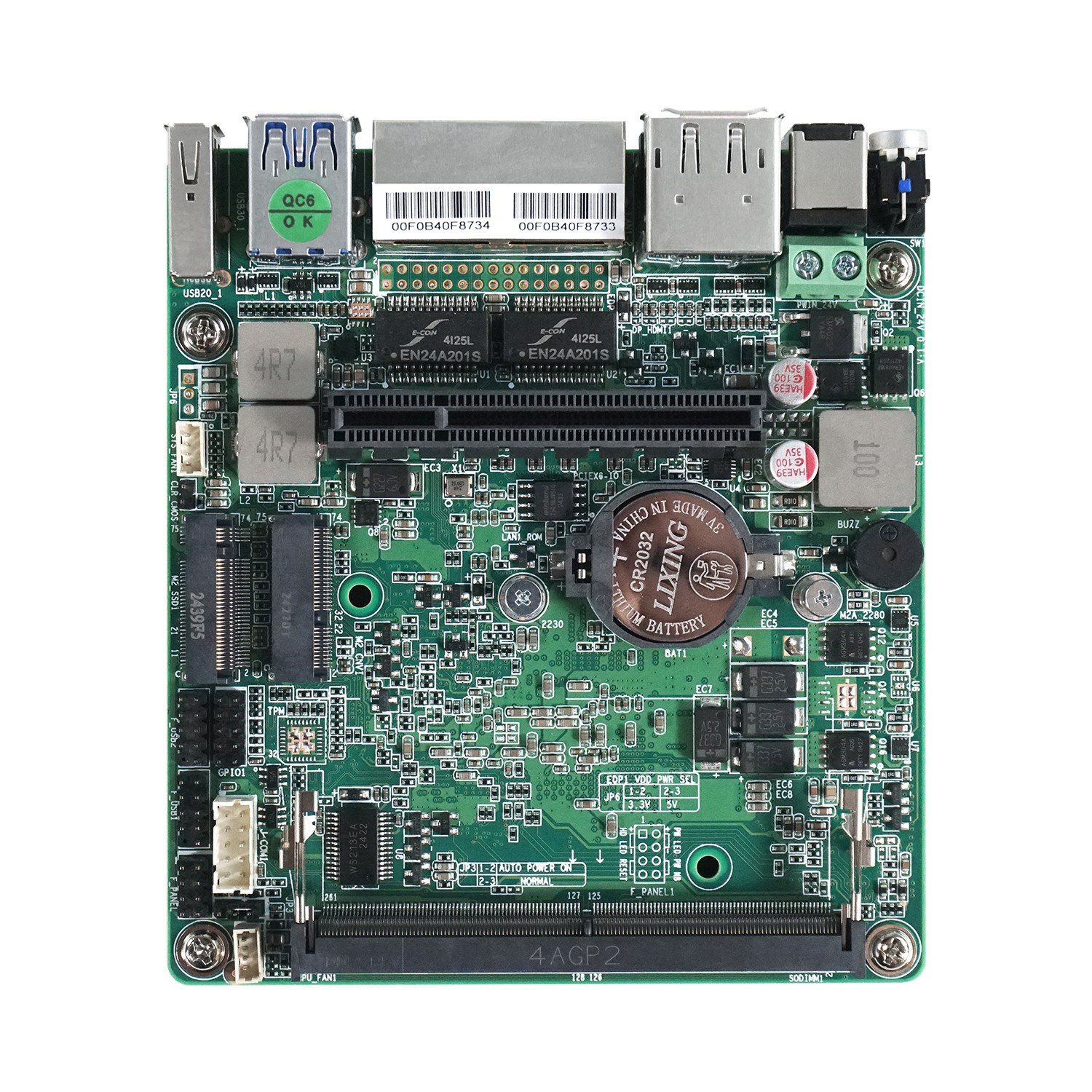

• Onboard I/O: 2 × F_USB 2.0, 1 × J_COM, 1 × J_GPIO

• Fan Headers: 1 × CPU_FAN, 1 × reserved SFP_FAN

• Power Input: DC 12V~24V

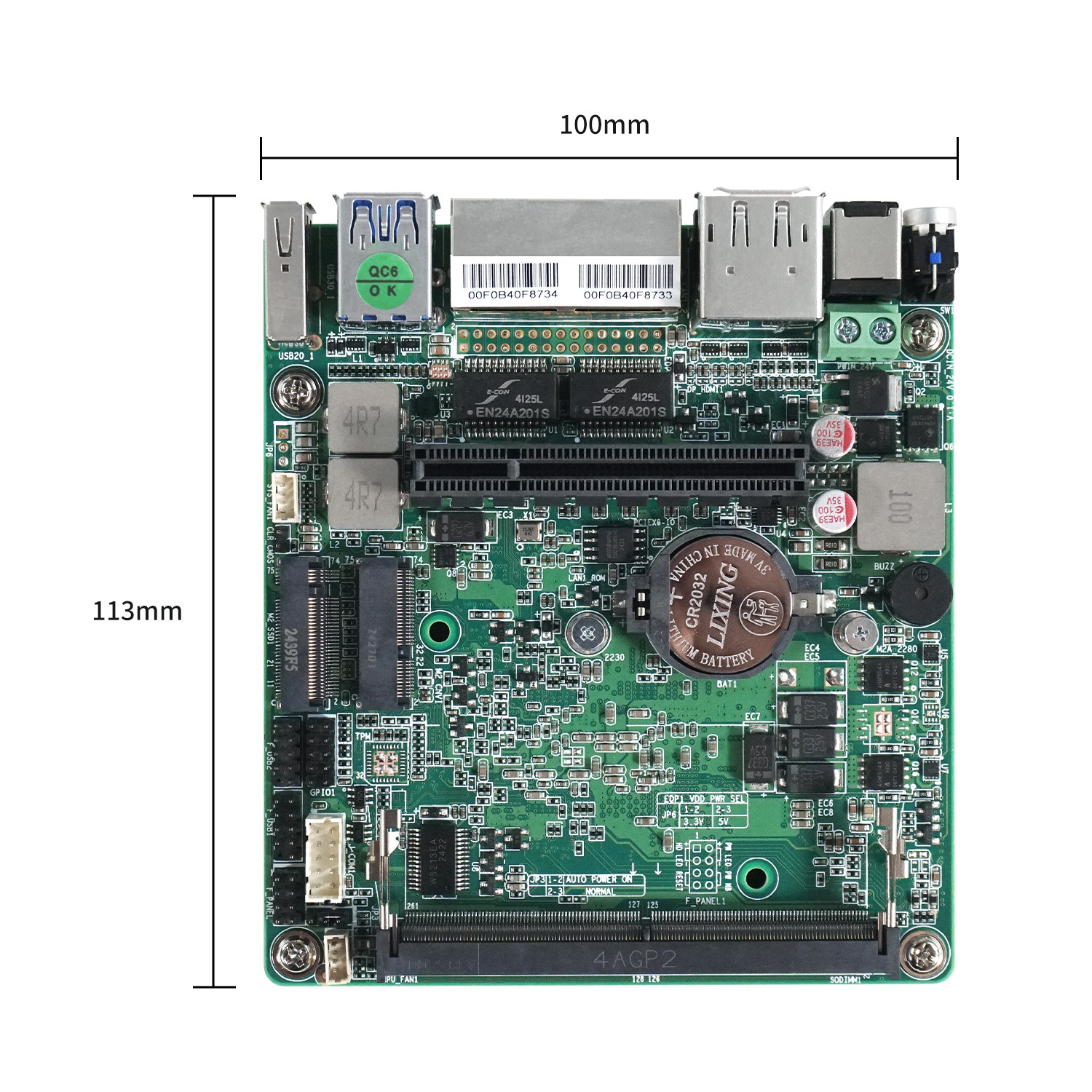

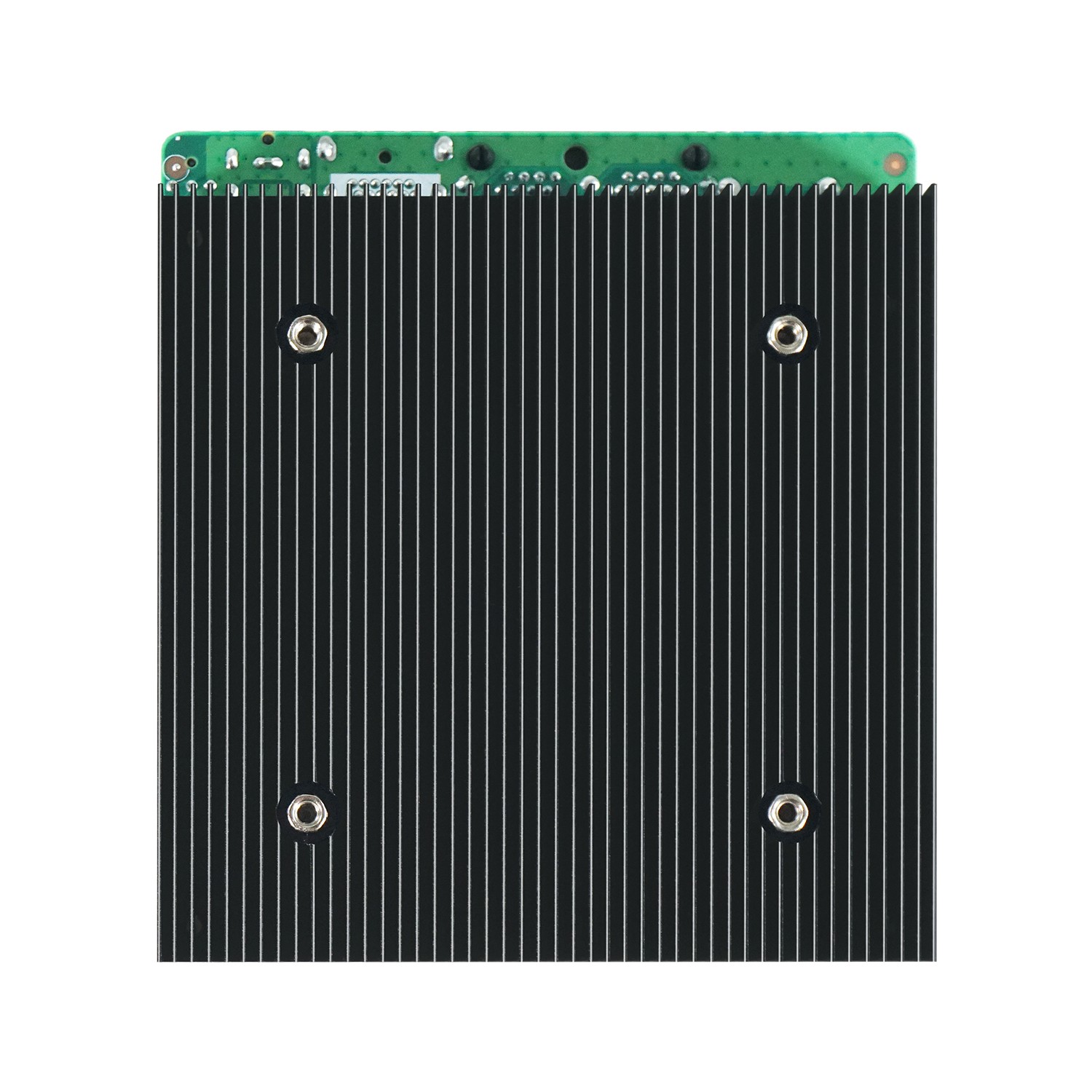

• Motherboard Size: 110 × 100 mm

• Operating Temperature: -20°C to 60°C

• Storage Temperature: -20°C to 70°C

• Operating Humidity: 5% to 90% relative humidity, non-condensing

Product Features

• Based on the Intel N-series low-power platform, balancing performance, power efficiency, and long-term stability.

• Ultra-compact 110 × 100 mm motherboard size for space-constrained embedded devices and compact industrial terminals.

• DDR5 SO-DIMM memory support up to 16GB and 4800 MT/s for modern embedded workloads.

• Integrated 2 × Intel I226V 2.5GbE LAN ports for edge network access, industrial communication, and data acquisition applications.

• M.2 Key-B+M 2280 storage interface supports PCIe x1 or SATA 3.0 for system drives or local data storage.

• Non-standard PCIe x6-IO expansion interface supports dedicated industry modules through adapter solutions.

• M.2 Key-E, COM, GPIO, and USB expansion support wireless modules, sensors, controllers, and industrial peripherals.

• DP, HD, and customizable eDP display outputs support embedded display terminals and industrial HMI systems.

• DC 12V~24V wide-voltage input and -20°C to 60°C operating temperature support industrial field deployment.

Application Scenarios

• Edge computing nodes

• Industrial automation control

• Embedded industrial terminals

• Industrial gateway devices

• Network communication devices

• Data acquisition and monitoring systems

• Industrial HMI systems

• Compact industrial control systems
