1U 1851NP OCP 8L

The 1U 1851NP OCP 8L is a high-performance 1U rackmount network appliance based on Intel Core Ultra Processors Series 2 with the FCLGA1851 socket. It supports 2 × DDR5 SO-DIMM memory up to 96GB at 6400 MT/s. The front panel provides 8 × RJ45 LAN ports, 4 × USB-A 3.0 ports, 1 × RJ45 COM console port, and 2 reserved PCIe expansion positions. The platform also supports 4 × SATA 6Gb/s, 2 × M.2 Key-M SSD slots, PCIe x8, OCP PCIe x16, M.2 Key-E, 2 × M.2 Key-B, optional bypass, dual SIM card slots, VGA, and active cooling. It is suitable for enterprise security appliances, multi-WAN gateways, edge computing nodes, industrial gateways, virtualization servers, and OEM/ODM customized network platforms.

Place an order

Core Specifications

Model: 1U-1851NP-OCP-8L
Processor Platform: Intel Core Ultra Processors Series 2
CPU Socket: FCLGA1851
Memory: 2 × DDR5 SO-DIMM, up to 96GB, up to 6400 MT/s
Storage: 4 × SATA 6Gb/s, 2 × M.2 Key-M SSD
Network: 8 × RJ45 LAN, motherboard platform integrates 8 × Intel I226V 2.5GbE controllers
Optional Function: 4 bypass segments based on i226-LM
Expansion Slots: 1 × PCIe x8 at x4 rate; 1 × OCP PCIe x16
Module Expansion: 1 × M.2 Key-E 2230, 2 × M.2 Key-B 3052

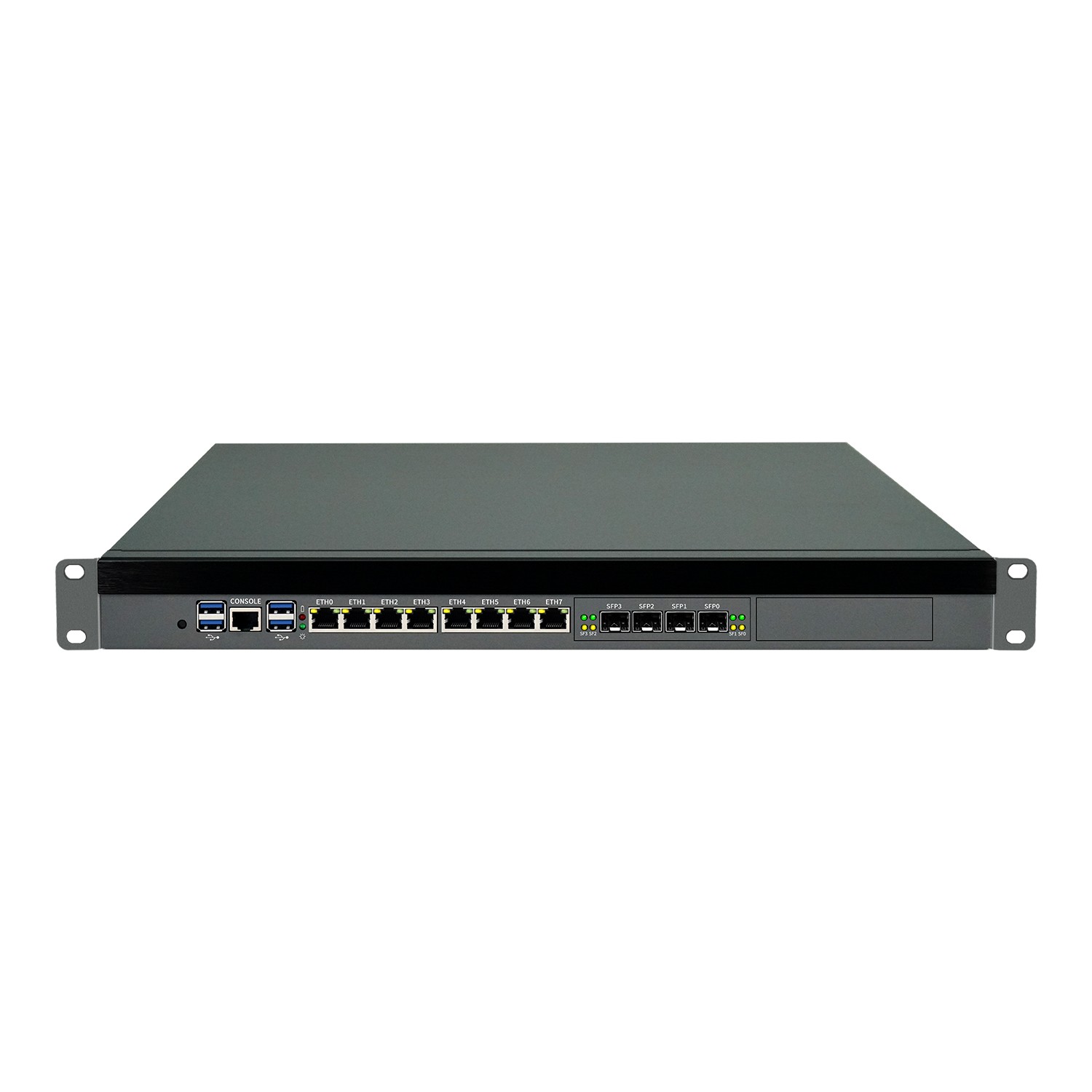

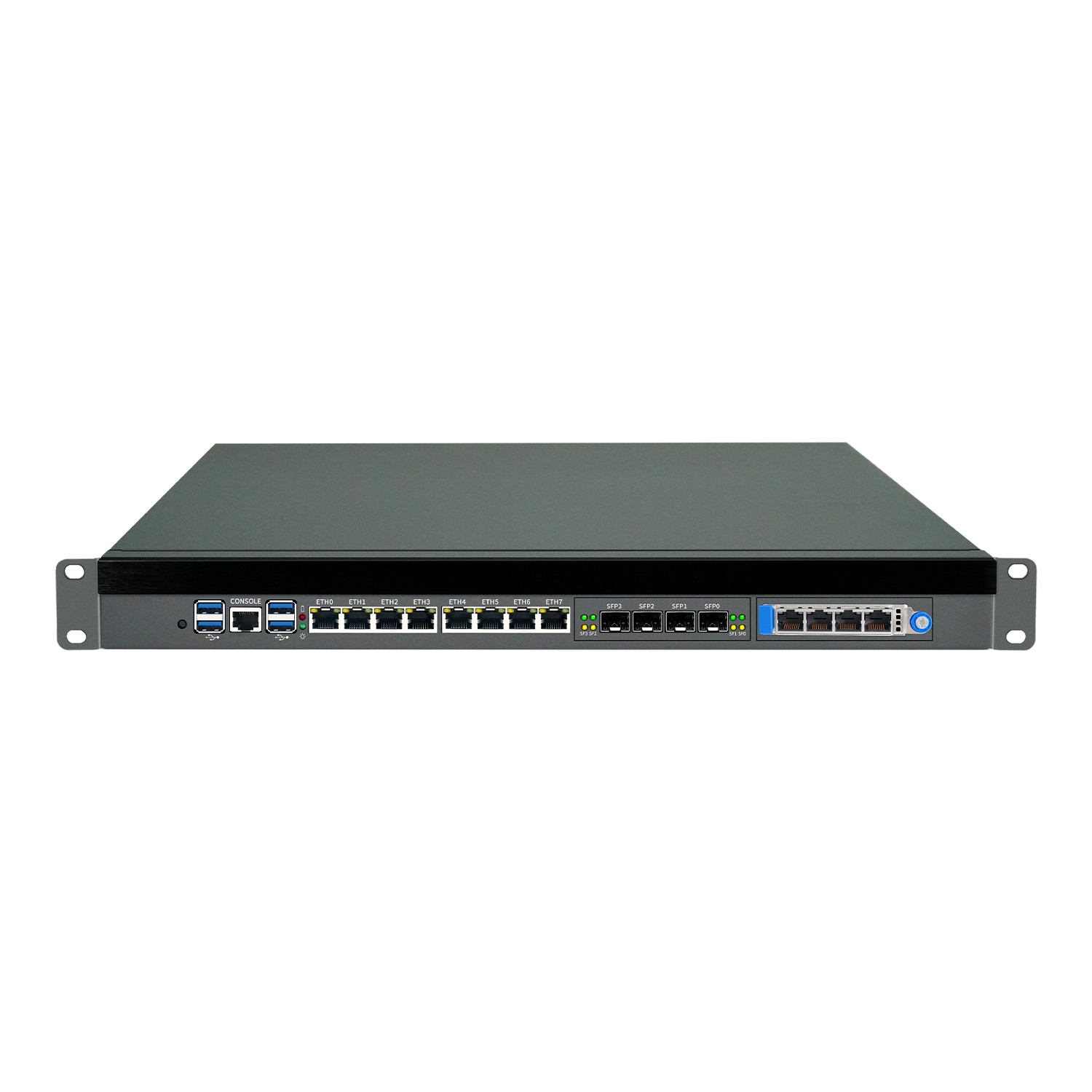

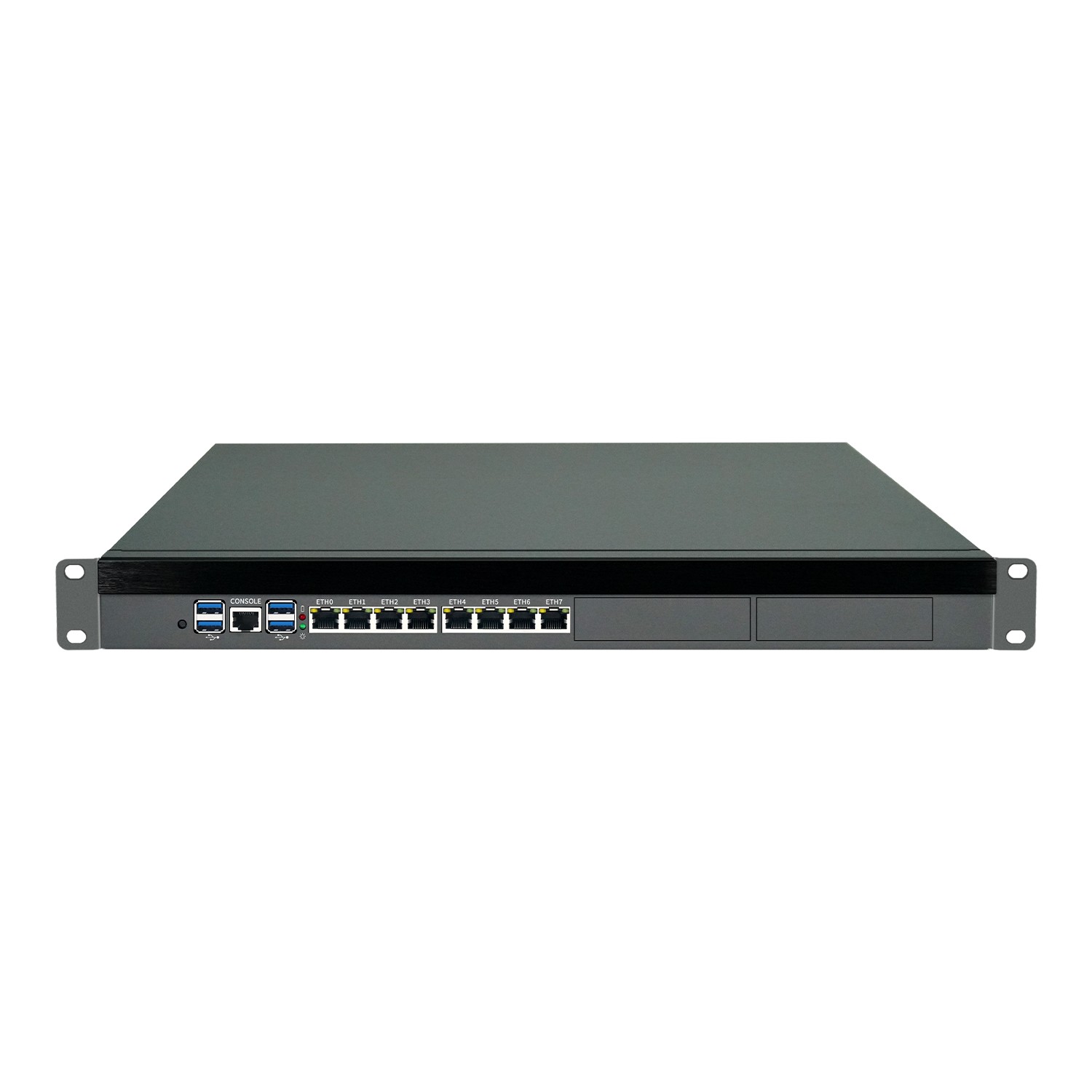

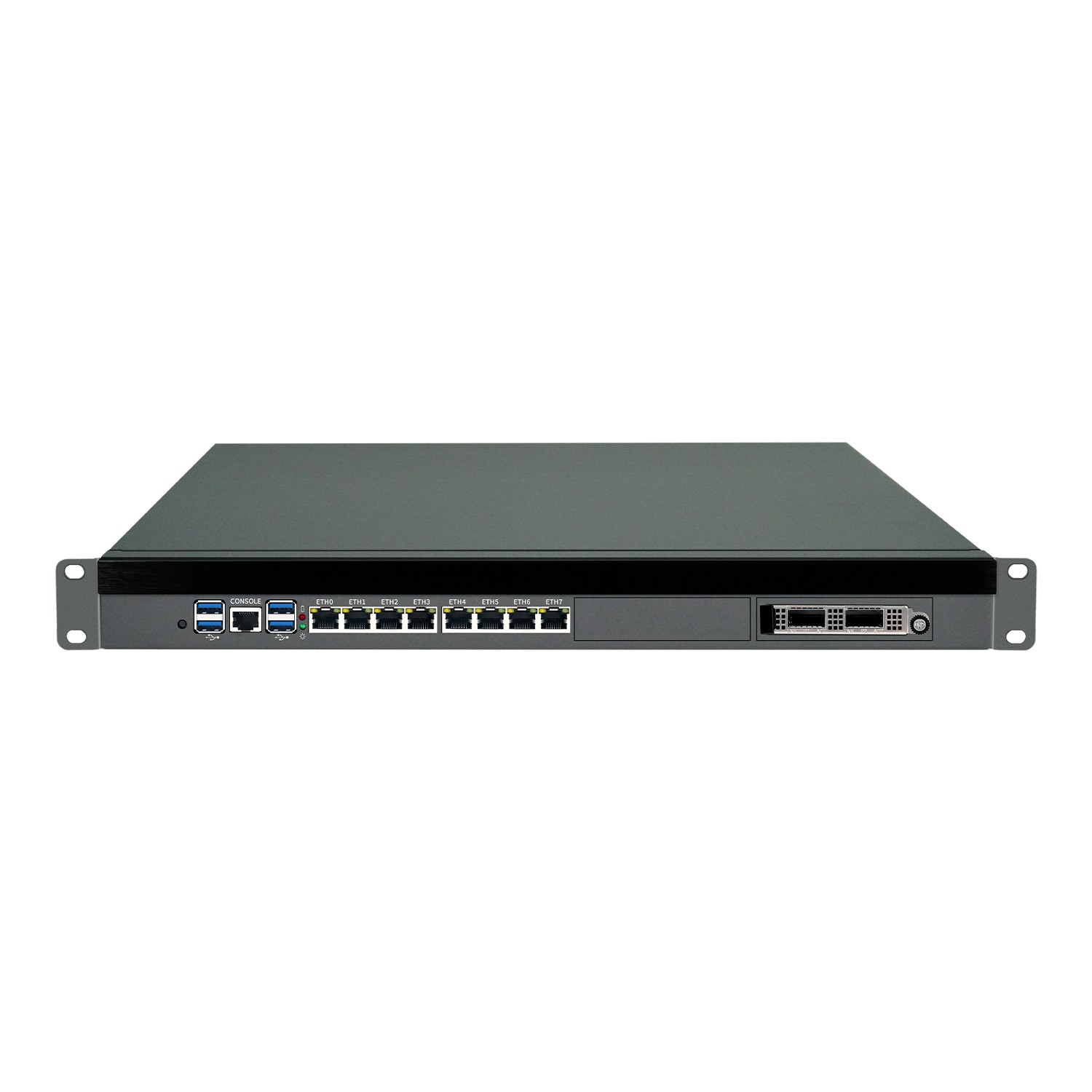

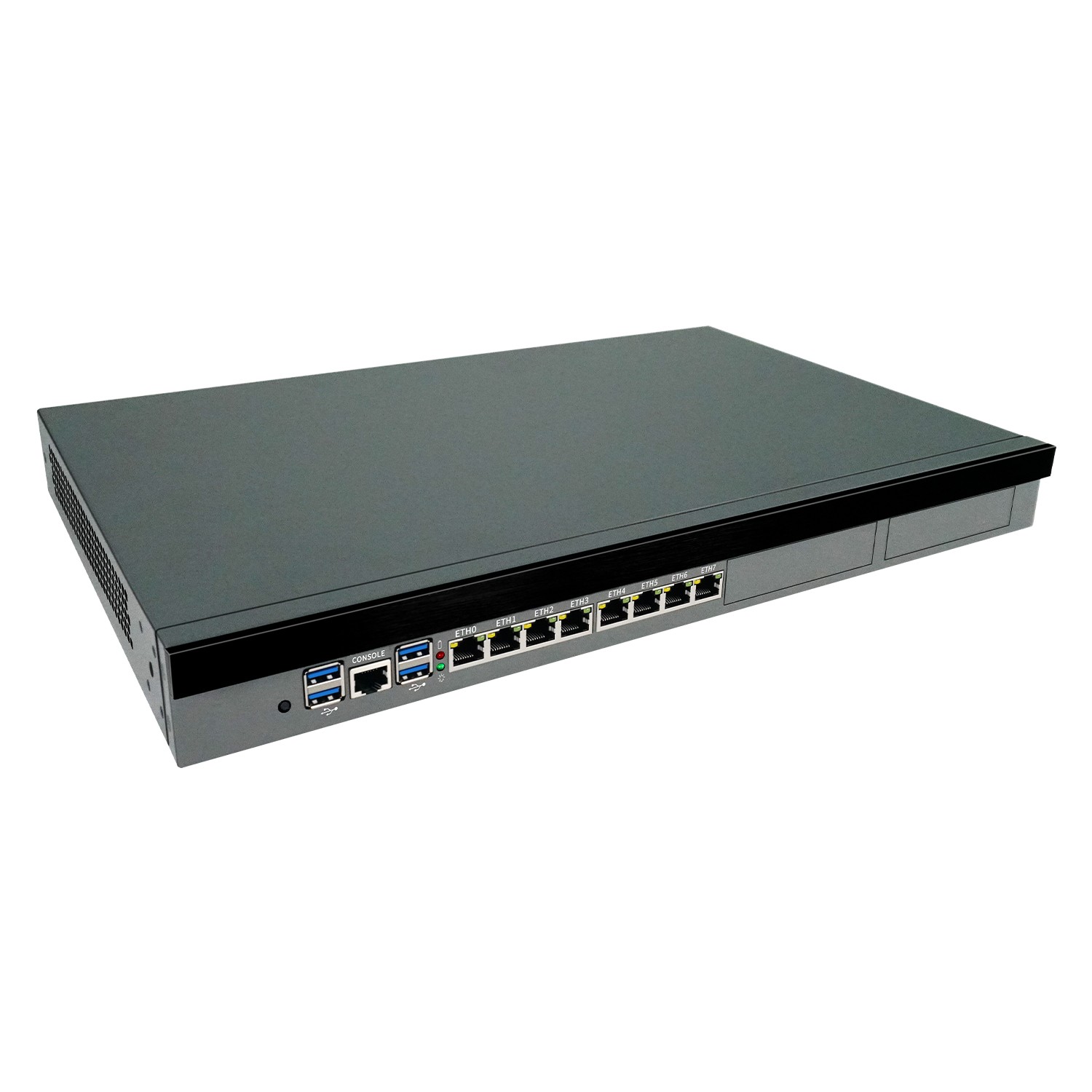

Front Panel: 8 × RJ45 LAN, 4 × USB-A 3.0, 1 × RJ45 COM, 2 × PCIe expansion ports

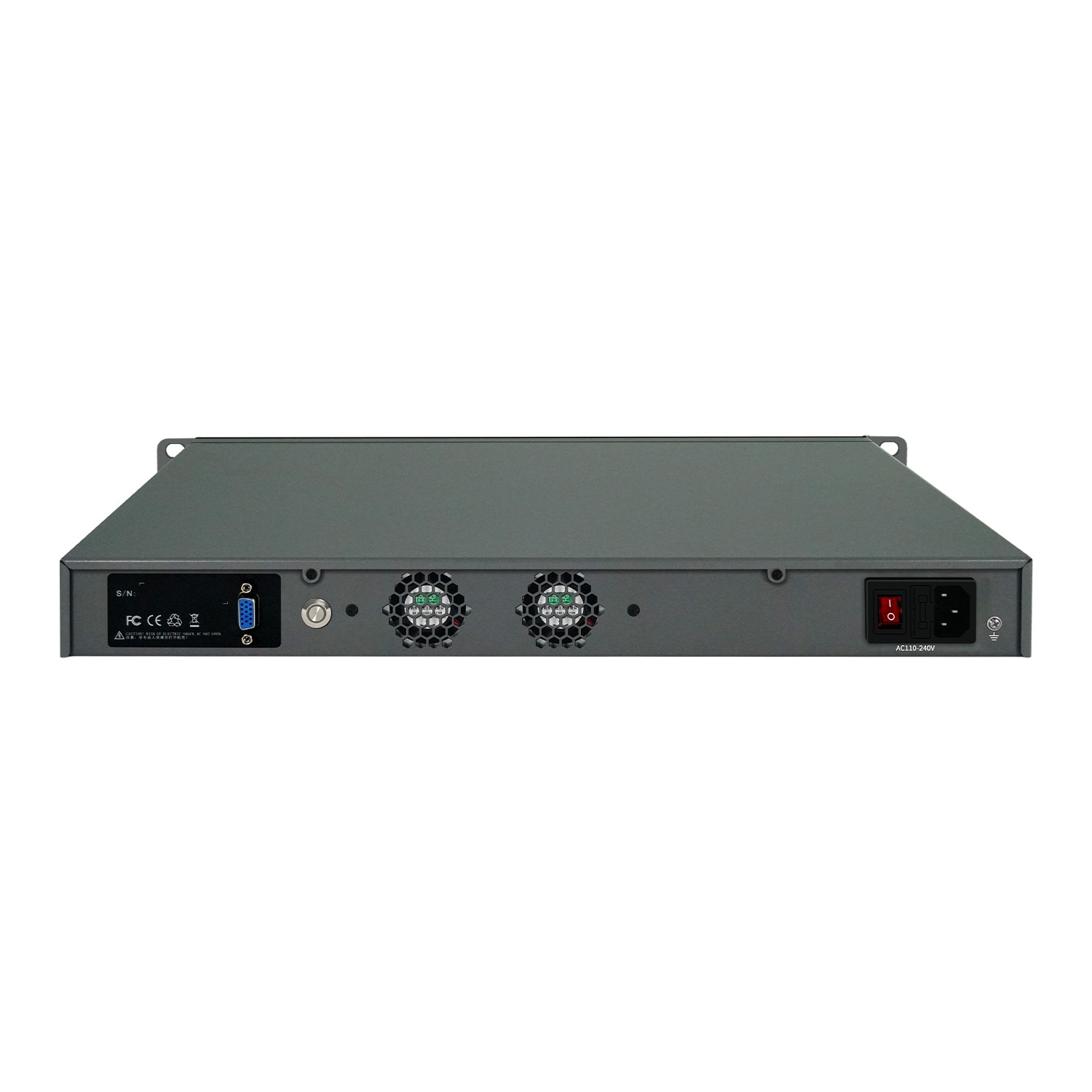

Rear Panel: 1 × VGA, 2 × antenna holes, 1 × power button, 1 × AC socket
Display: 1 × VGA, graphics support depends on the processor
Cooling Method: Active cooling, 1 × CPU fan, 2 × chassis fans
Chassis Size: 440 × 255 × 45 mm
Weight: Equipment weight 3.65KG; package weight 4.50KG including accessories
Power Mode: 80V~264V AC input with PFC, output: DC 24V
Operating Temperature: 0°C to 50°C
Operating Humidity: 5% to 90% relative humidity, non-condensing

Product Features

Based on Intel Core Ultra Processors Series 2 for high-performance networking, edge computing, and multitasking applications.
DDR5 SO-DIMM memory support up to 96GB and 6400 MT/s for virtualization, multi-service workloads, and high-load network applications.
Front panel provides 8 × RJ45 LAN ports for multi-WAN access, network segmentation, enterprise gateways, and network management systems.
Optional 4 bypass segments help improve link continuity in selected security appliance deployments during maintenance or failure scenarios.
OCP PCIe x16 and PCIe x8 expansion support high-speed network cards, acceleration cards, storage controllers, or project-specific modules.
4 × SATA 6Gb/s and 2 × M.2 Key-M SSD slots support system drives, log storage, cache drives, and local data storage.
M.2 Key-E, dual M.2 Key-B, and dual SIM slots support wireless, cellular, or remote communication modules.
Front-access USB, RJ45 COM, and PCIe expansion positions simplify installation, debugging, and project integration.
1U rackmount chassis, active cooling, and wide-range AC input support stable long-term operation in racks and enterprise network centers.
