G30 N2840 4L

The G30 N2840 4L is a low-power fanless embedded industrial network computer based on the Intel Bay Trail platform.  It integrates 4 × Gigabit RJ45 Ethernet ports, DDR3L SO-DIMM memory support, SATA and mSATA storage,  and an mPCIe expansion interface. With a compact metal chassis and passive cooling design, it is built for reliable  long-term operation in industrial, network, and edge application environments.

Key Features

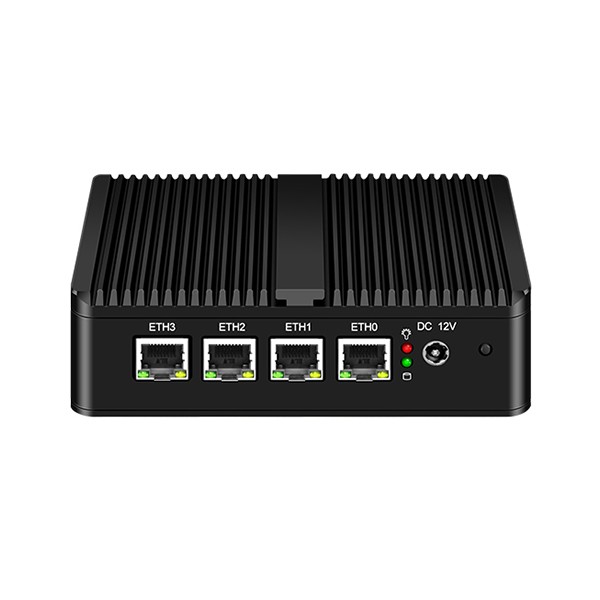

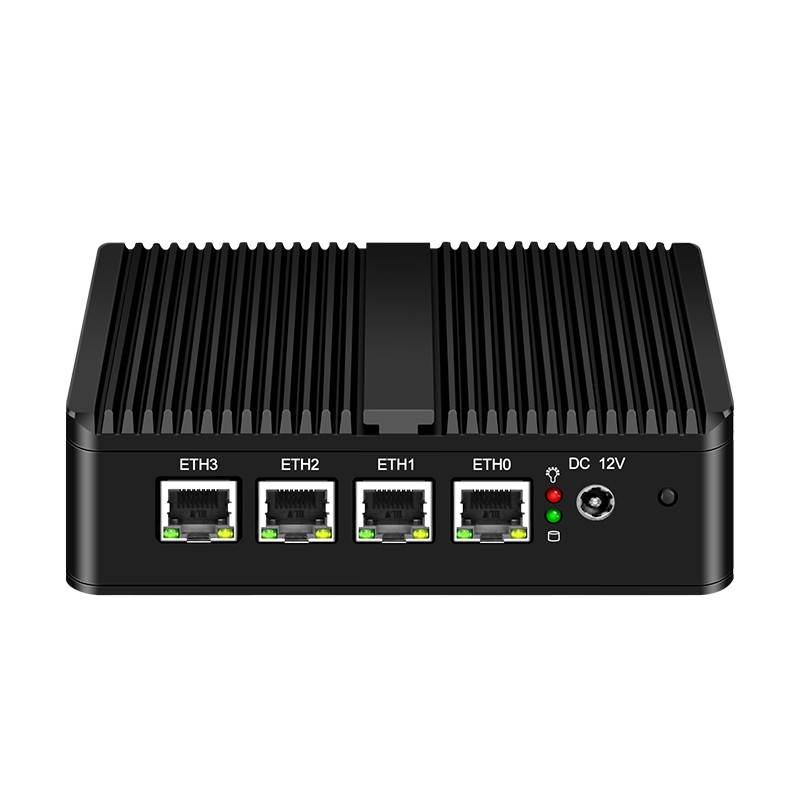

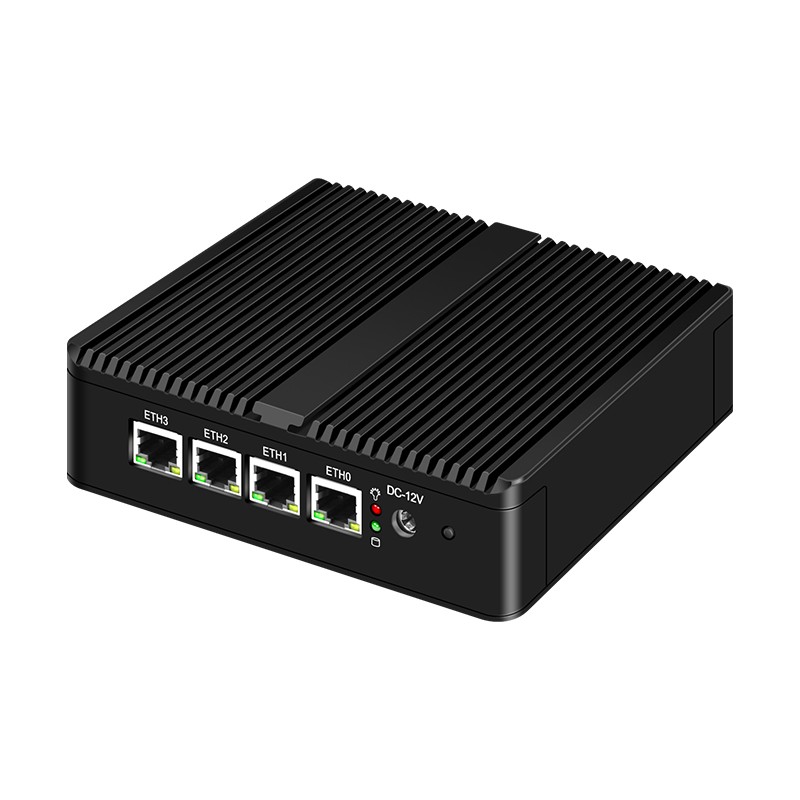

• 4 × Gigabit RJ45 Ports: Built with Intel I211/I210 Ethernet controllers for stable multi-port network connectivity.

• Low-Power Bay Trail Platform: Designed for energy-efficient and continuous operation in embedded applications.

• Fanless Passive Cooling: The metal chassis and passive cooling structure help reduce noise and maintenance requirements.

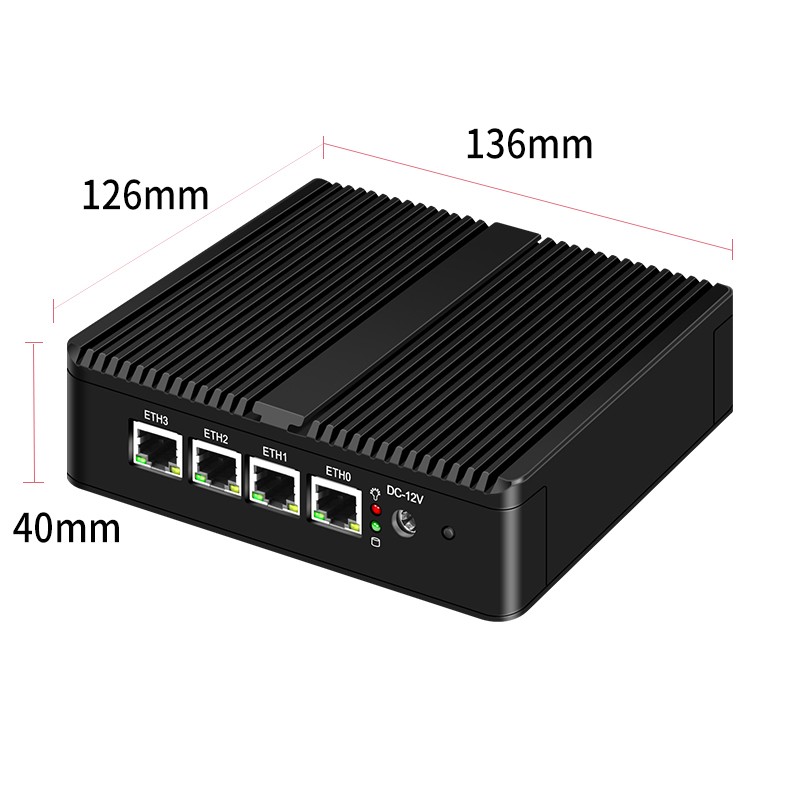

• Compact Chassis: The system measures approximately 136 × 126 × 40 mm, making it suitable for space-limited deployments.

• DDR3L Low-Voltage Memory: Supports DDR3L SO-DIMM 1.35V memory, up to 8GB and up to 1333MHz.

• Flexible Storage: Supports 1 × SATA 2.0 and 1 × mSATA for system and data storage configurations.

• Rich Expansion Options: Includes mPCIe expansion, SIM card slot, and COM interface for industrial and communication modules.

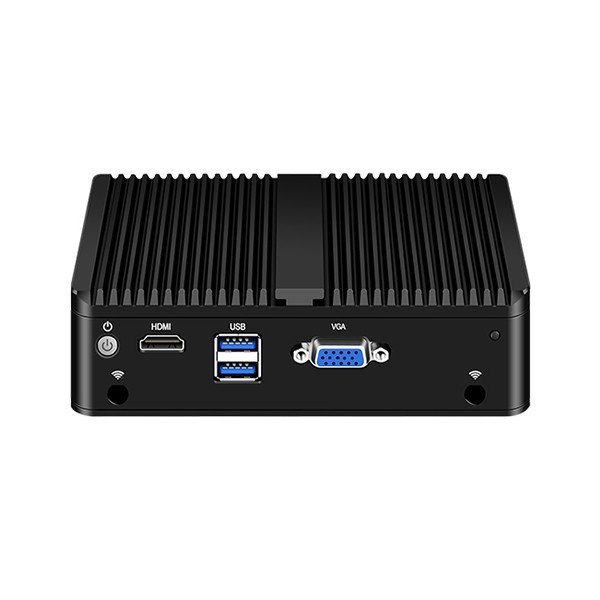

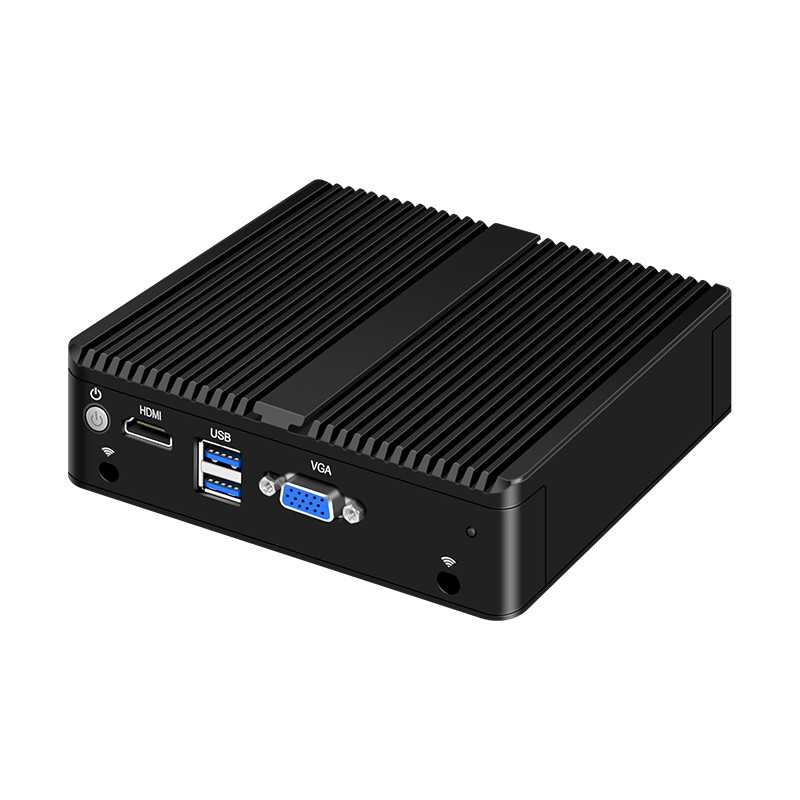

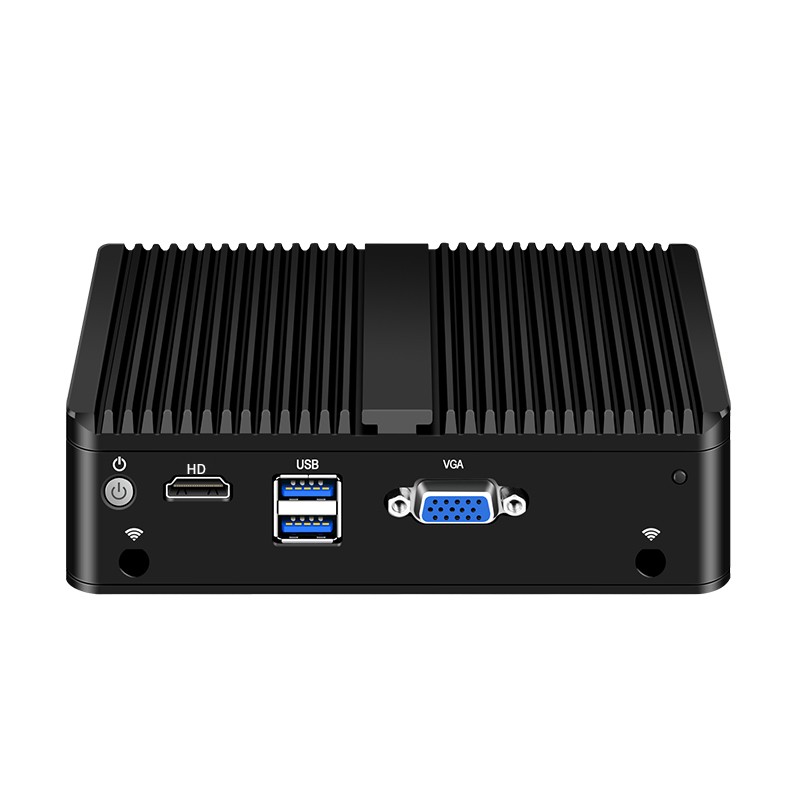

• Dual Display Output: Supports VGA and HD display output for local setup, maintenance, and system management.

Core Specifications

• Model: G30-1170NP-4L

• Platform: Intel Bay Trail

• Socket: FCBGA1170

• Memory: DDR3L SO-DIMM 1.35V low-voltage memory, up to 8GB, up to 1333MHz

• Network: 4 × 1GbE RJ45, Intel I211/I210 controllers

• Storage: 1 × SATA 2.0, 1 × mSATA

• USB: 2 × USB-A 3.0

• Display: 1 × VGA, 1 × HD

• Expansion: 1 × mPCIe

• Interfaces: SIM card slot, COM interface, F_PANEL front panel connector

• Cooling Method: Passive cooling, fanless design, airflow recommended

• Power Input: DC 12V 4A or higher

• Chassis Size: 136 × 126 × 40 mm

• Device Weight: Approx. 0.65 KG; package weight approx. 1.25 KG including accessories

• Operating Temperature: 0°C to 50°C

• Operating Humidity: 5% to 90% relative humidity, non-condensing

Application Scenarios

• Cybersecurity appliances

• IoT edge gateways

• Industrial control automation

• Embedded terminals

• Multi-port network routing and edge computing

• Compact cabinet and space-constrained deployments
