OTS N2840 4L

The OTS N2840 4L is a compact embedded industrial computer powered by an Intel Celeron N2840 processor. Despite its small size, it integrates four Gigabit Ethernet ports, supports mSATA storage, features active cooling, and is housed in a rugged industrial-grade chassis. With its rich I/O interfaces and reliable performance, it is ideal for lightweight networking, industrial control applications, and custom embedded systems.

Place an order

Key Features

Processor Platform: Intel Bay Trail platform, FCBGA1170
Memory: DDR3L SO-DIMM (1.35V), up to 8GB, up to 1333 MHz
Networking: 4× RJ45 Ethernet ports for multi-LAN segmentation and industrial connectivity
Storage Options:

1× SATA 2.0 (3Gb/s)
1× mSATA slot

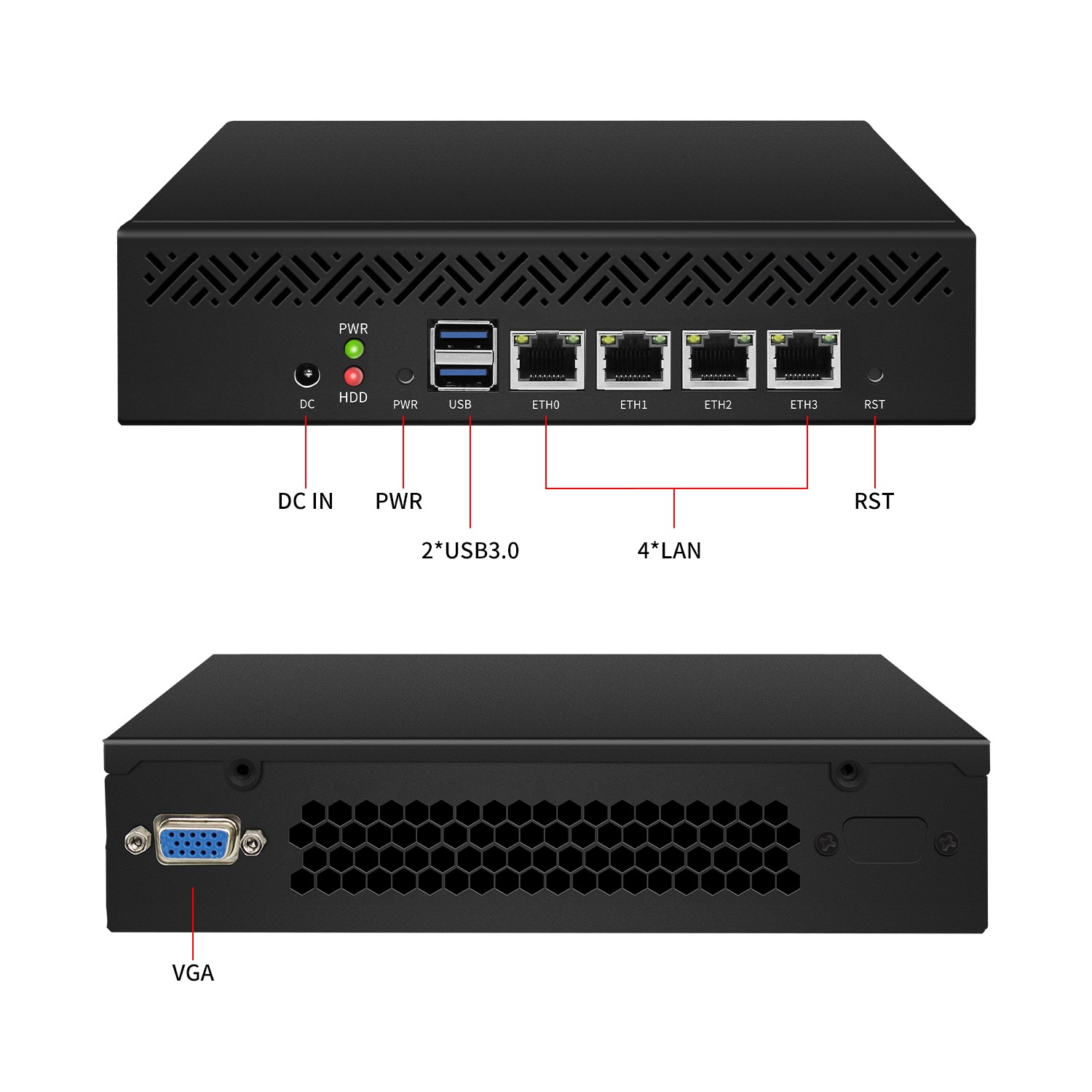

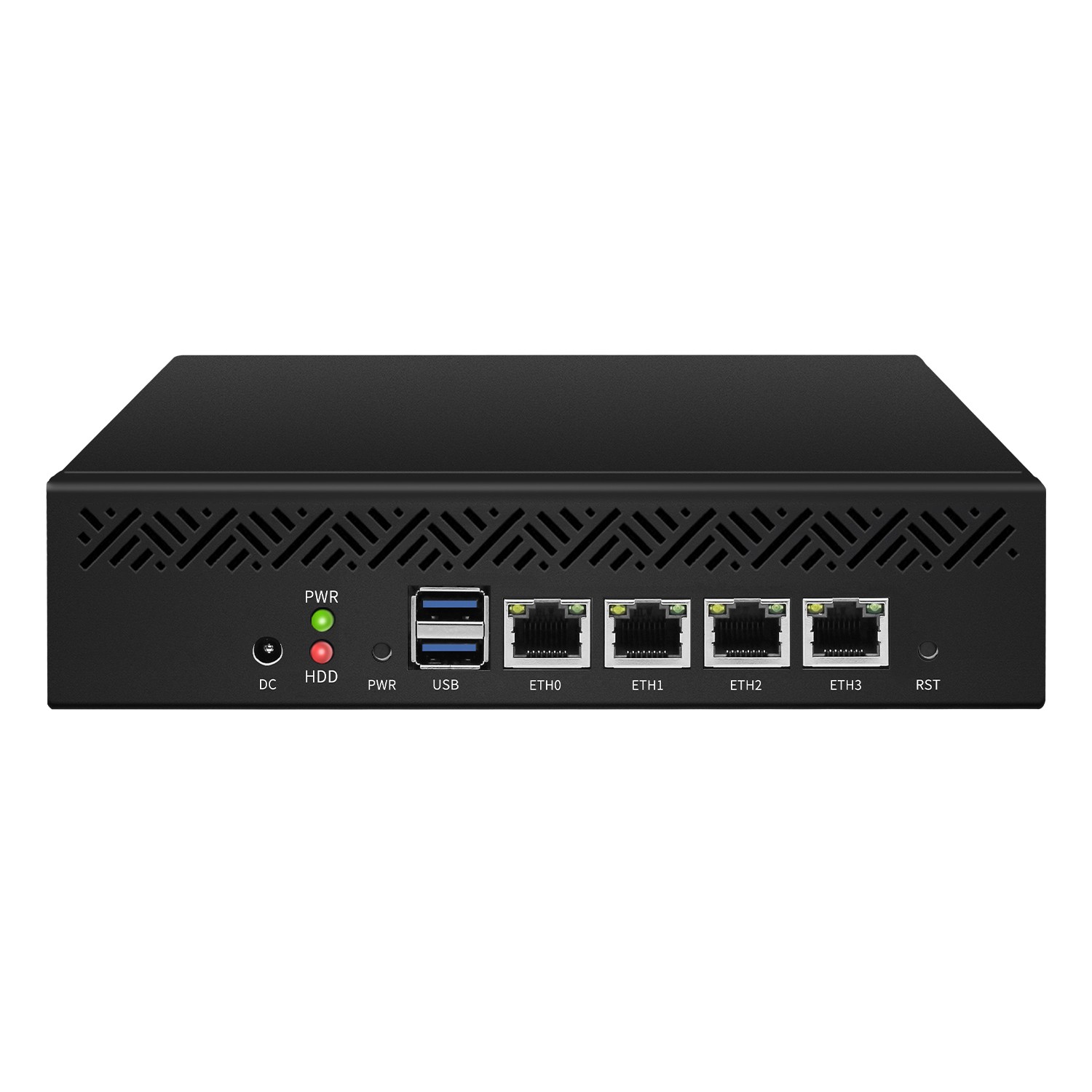

Front Panel I/O:

4× RJ45
2× USB-A 3.0
DC-in power jack
Start/Restart button + Reset button

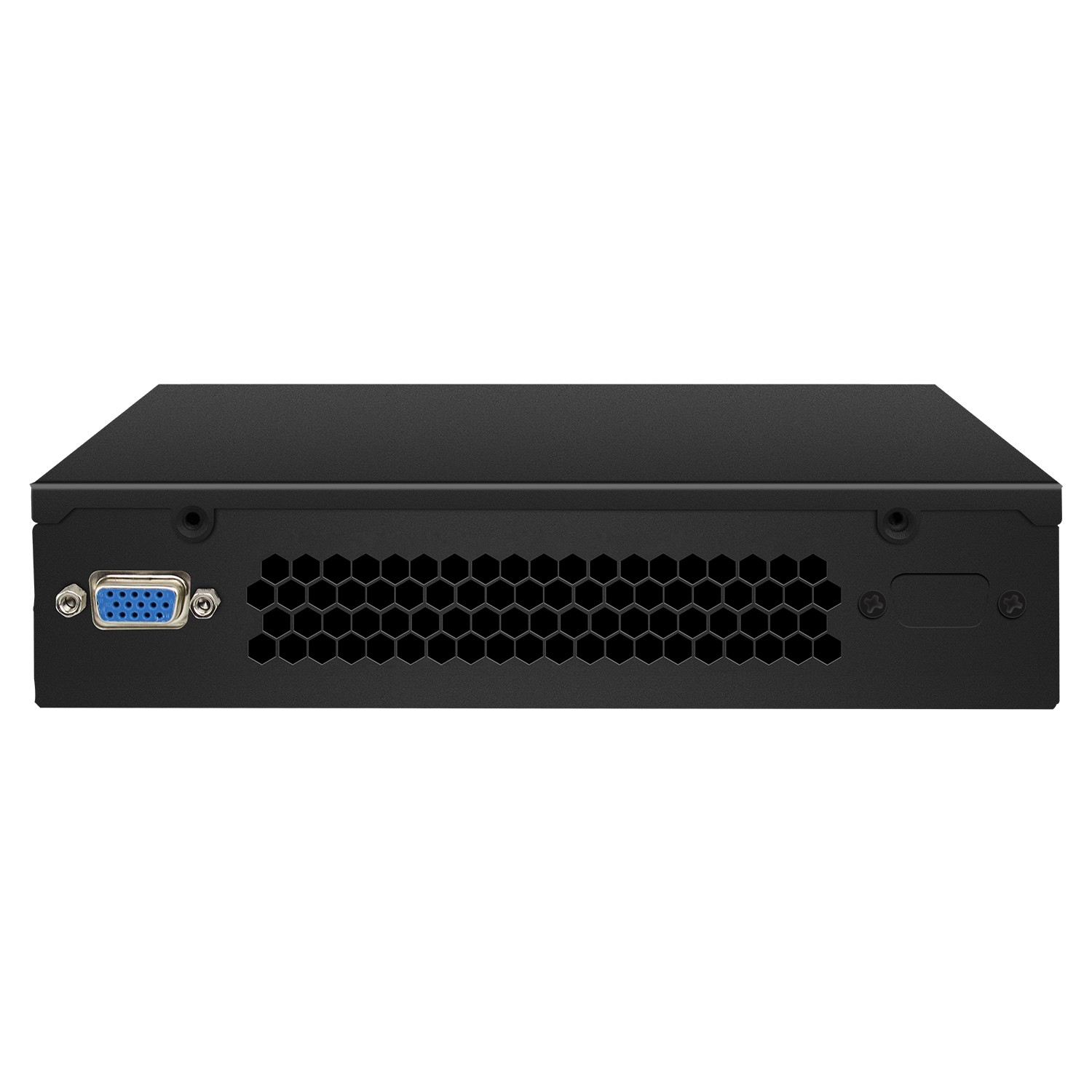

Rear Panel I/O:

1× VGA display output
Reserved DB9 COM hole

Expansion: 1× mPCIe slot (USB 2.0 signal) for wireless or functional expansion
Cooling: Active cooling with dedicated CPU fan
Power Input: DC 12V, 4A or higher
Chassis Size: 190 × 165 × 45 mm
Weight: 0.90 kg (net), 1.45 kg (with accessories)
Operating Environment: 0–50°C, 5–90% RH (non-condensing)

Typical Application Scenarios

Industrial Gateway: Cost-effective gateway for data collection, protocol conversion, and device connectivity.
Compact Firewall Appliance: 4 LAN ports for small office routing, segmentation, and basic security deployments.
Industrial Automation: Suitable for production line monitoring, equipment management, and control system integration.
Remote Monitoring & IoT: mPCIe expansion supports wireless modules for remote connectivity solutions.
Lightweight Edge Computing: For low-power edge processing tasks in space-constrained environments.
