G30 J1900 4L

Product Overview

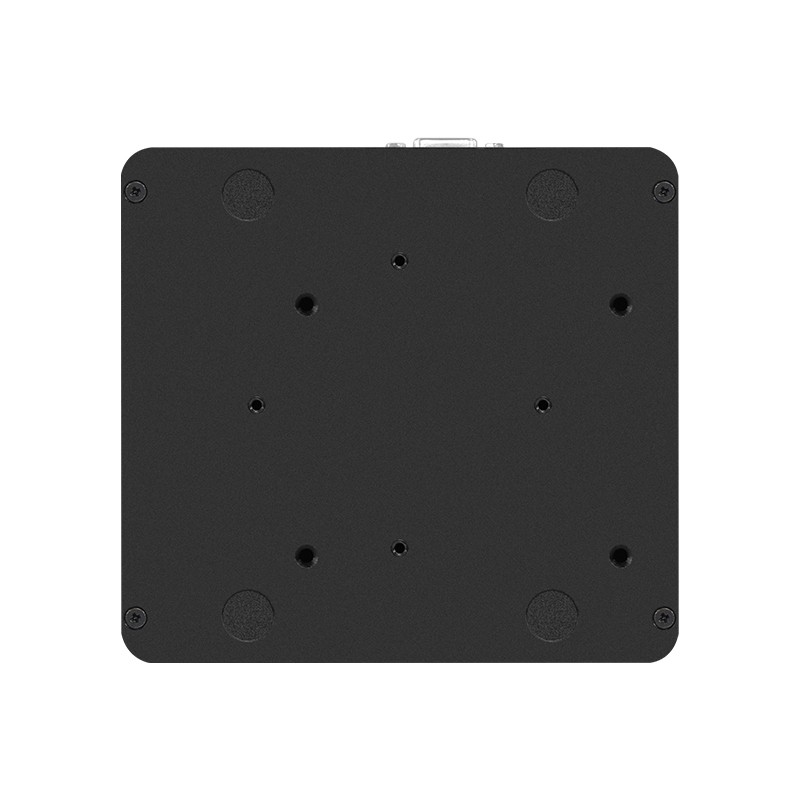

The G30-1170NP-4L is a compact and energy-efficient embedded network appliance powered by the Intel® Bay Trail platform. Designed with a fanless cooling structure, it offers silent and stable performance for continuous operation. Equipped with 4× Gigabit Ethernet ports, DDR3L low-voltage memory (up to 8GB), and flexible storage options including SATA and mSATA, it is ideal for firewall, VPN, IoT gateway, and lightweight edge computing applications. Its compact form factor and low power consumption make it perfect for space-constrained or energy-sensitive environments.

Key Features

• Processor: Intel® Bay Trail SoC (FCBGA1170)

• Memory: DDR3L SO-DIMM up to 8GB, 1333 MHz (1.35V low-voltage)

• Storage: 1× SATA 2.0 (3Gb/s), 1× mSATA slot

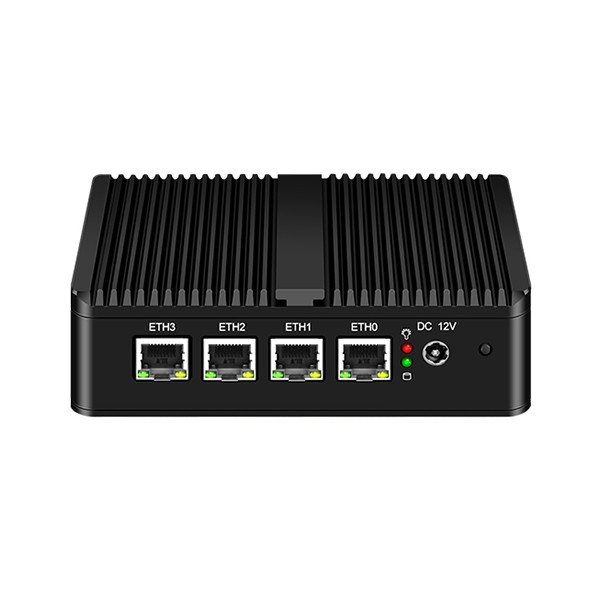

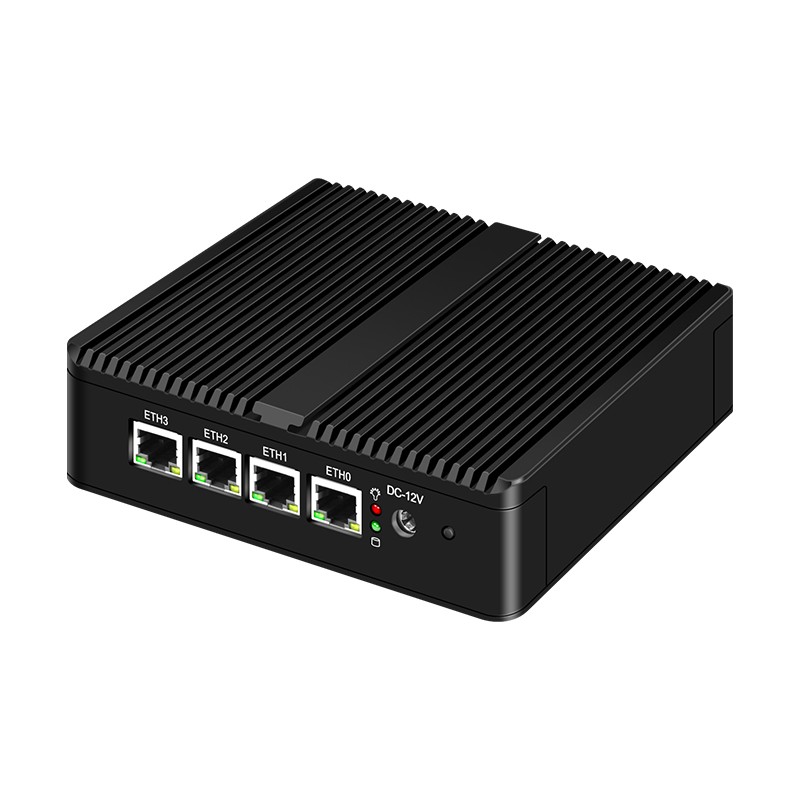

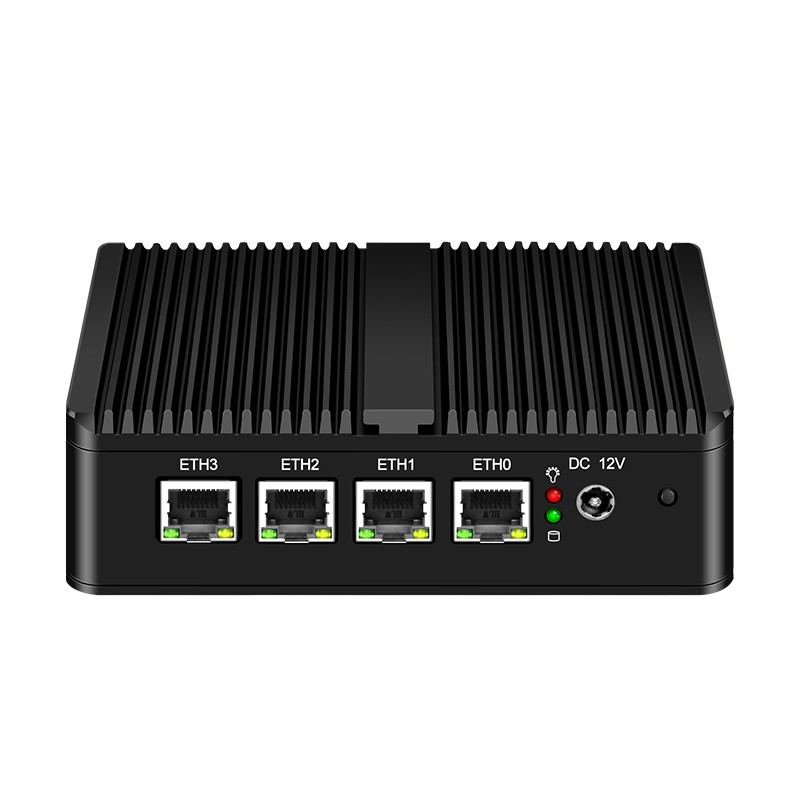

• Networking: 4× RJ45 Gigabit Ethernet ports

• USB: 2× USB 3.0 ports (rear panel)

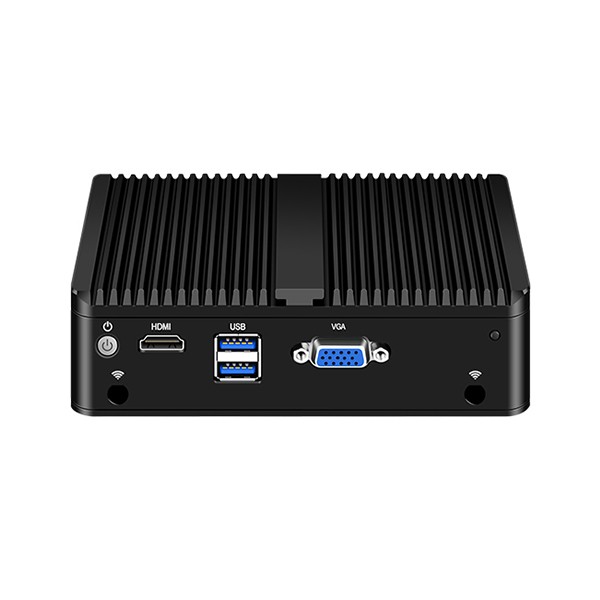

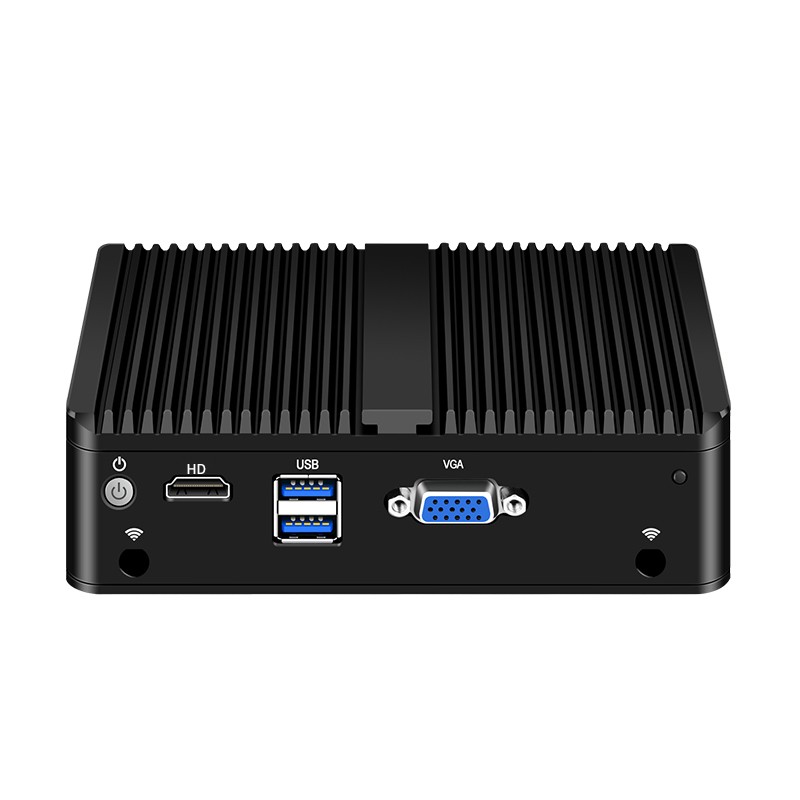

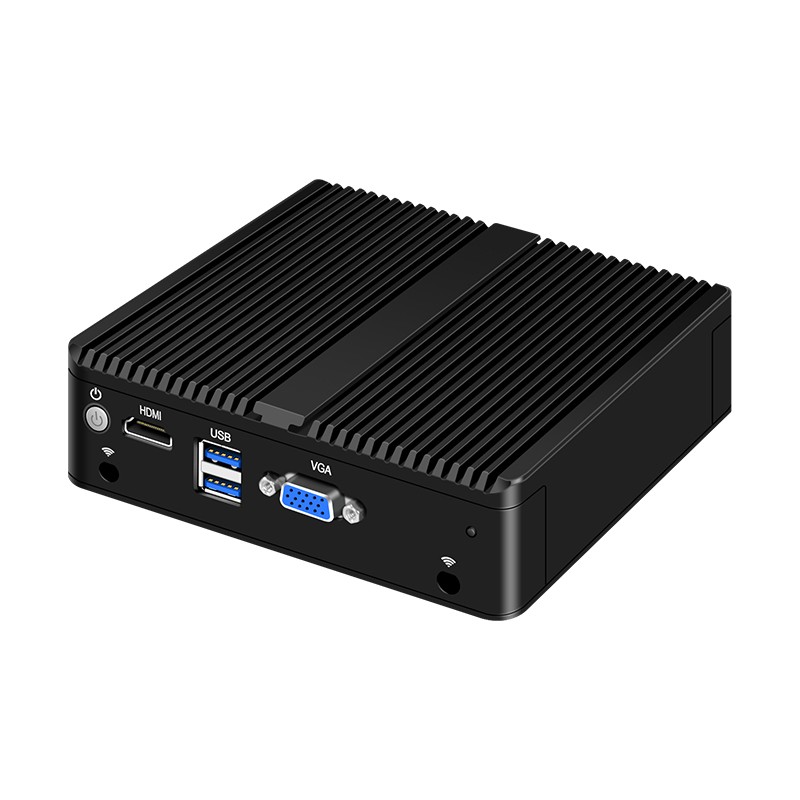

• Display: 1× VGA, 1× HDMI

• Expansion: 1× mPCIe slot for wireless or functional modules

• Cooling: Fanless passive cooling (requires external airflow)

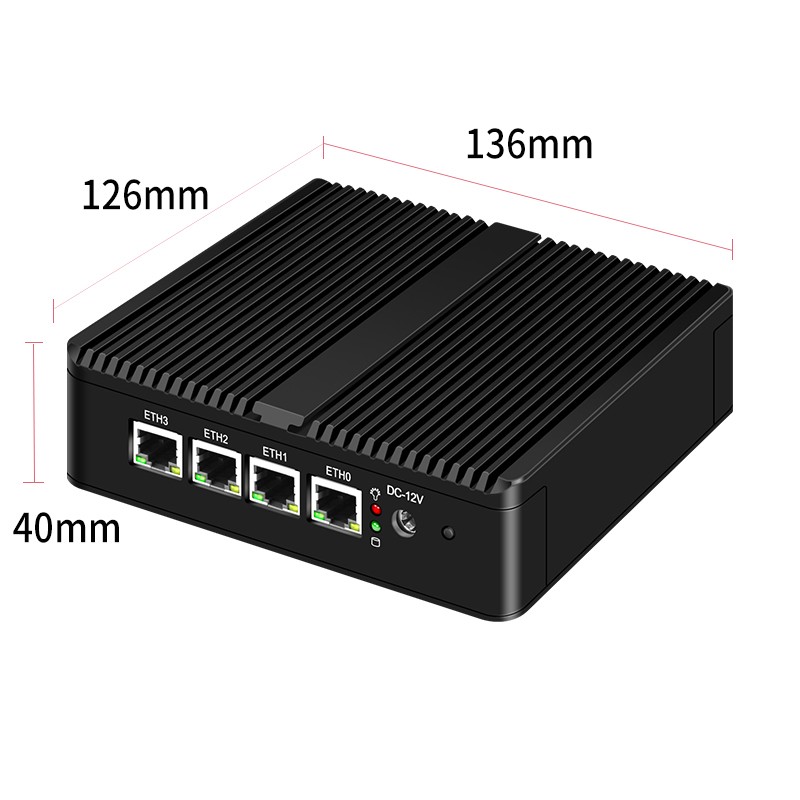

• Chassis Size: 136 × 126 × 40 mm; Weight: 0.65 kg (net), 1.25 kg (with accessories)

• Power: DC 12V / 4A or higher

• Environment: Operating temperature 0–50℃; Humidity 5–90% RH (non-condensing)

Application Scenarios

• Firewall & Security Gateway: Suitable for pfSense / OPNsense deployment with multiple LAN interfaces

• VPN Gateway: Provides reliable encrypted connectivity for small business or remote offices

• Industrial IoT Node: Designed for data acquisition, protocol conversion, and device networking

• Edge Computing: Supports lightweight processing and real-time analytics in distributed environments

• Mini Server / Home Network Hub: Silent, low-power platform for home labs or small offices
