H30 1170 2L2C

Product Overview

The H30-1170-2L2C is a compact, fanless embedded industrial computerbuilt on the Intel Celeron J Series / N Series platform (FCBGA1170). It integrates dual Gigabit Ethernet ports, dual serial interfaces, and dual display outputswithin a compact and rugged enclosure. Designed for silent operation and long-term stability, the H30-1170-2L2C delivers reliable performance for industrial automation, IoT gateways, and embedded applications requiring continuous 24/7 operation.

Key Features

• Processor Platform: Intel Celeron J Series / N Series, FCBGA1170

• Memory: DDR3L SO-DIMM (1.35V), up to 8GB, up to 1333 MHz

• Networking: 2× Gigabit Ethernet (Realtek 8111)

• Storage Options:

• 1× SATA 2.0 (3Gb/s)

• 1× mSATA slot

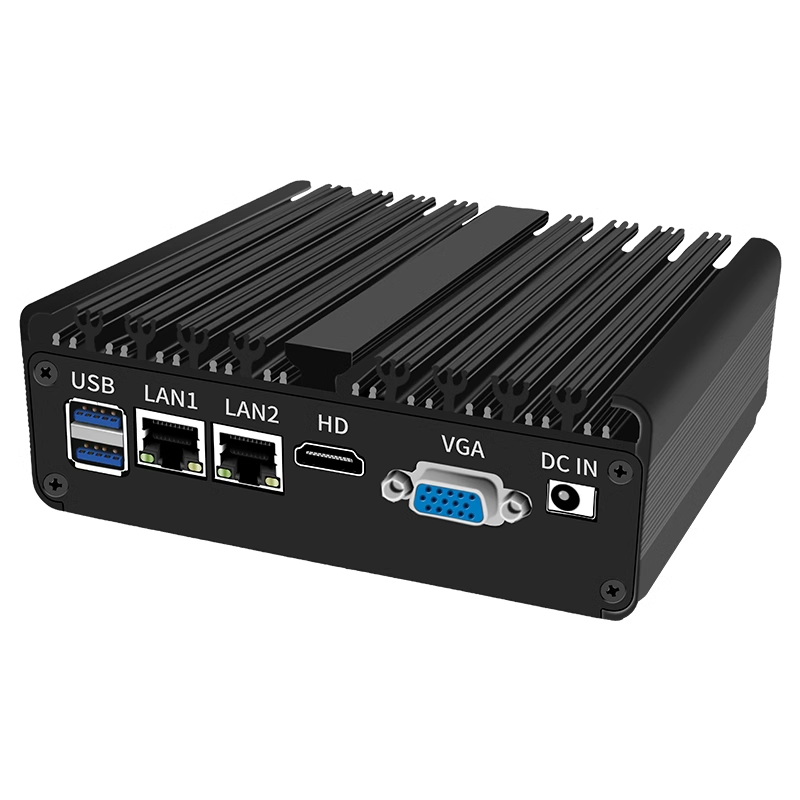

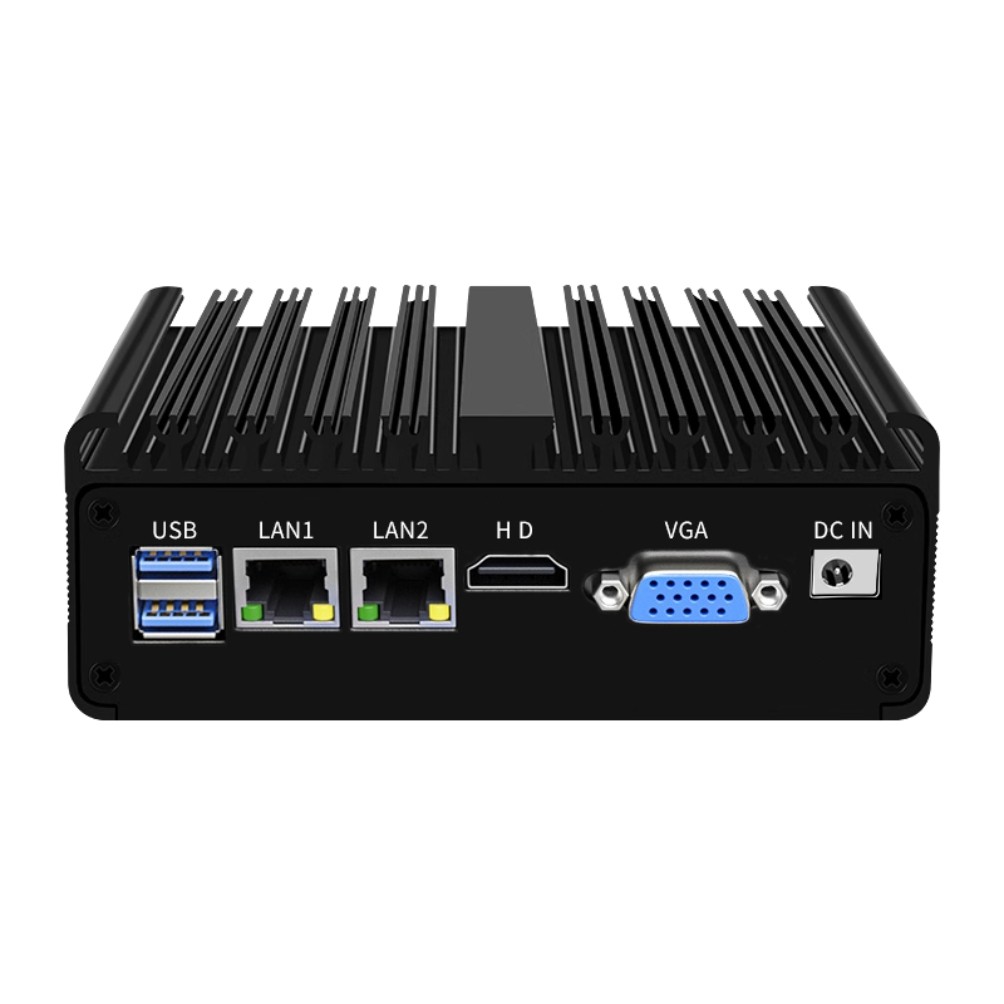

• Front Panel I/O:

• 1× DC-IN power jack

• 1× VGA + 1× HD display output

• 2× RJ45 Ethernet

• 1× USB-A 2.0 + 1× USB-A 3.0

• 2× reserved antenna holes

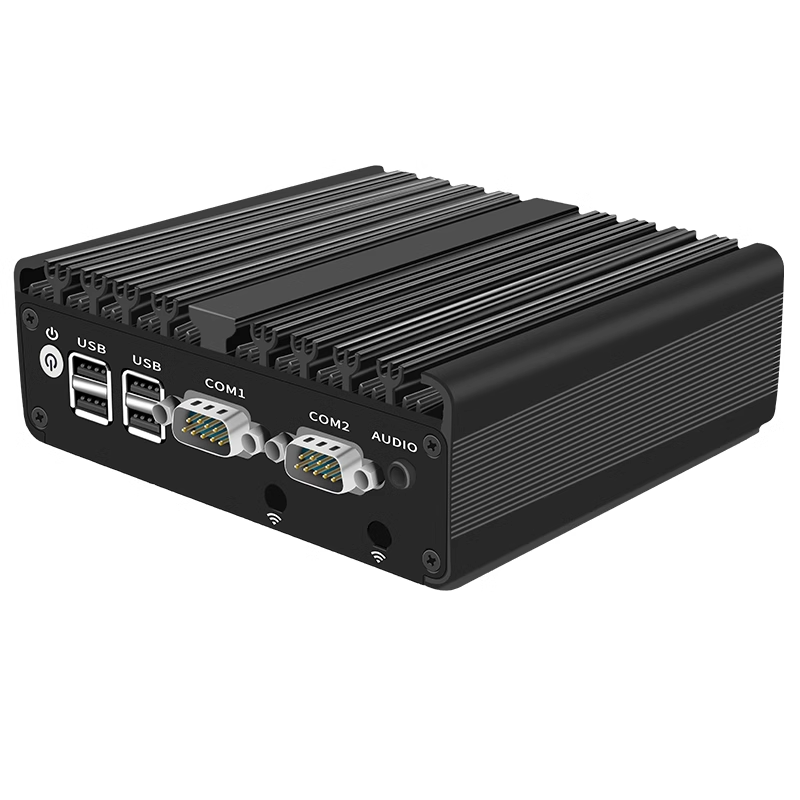

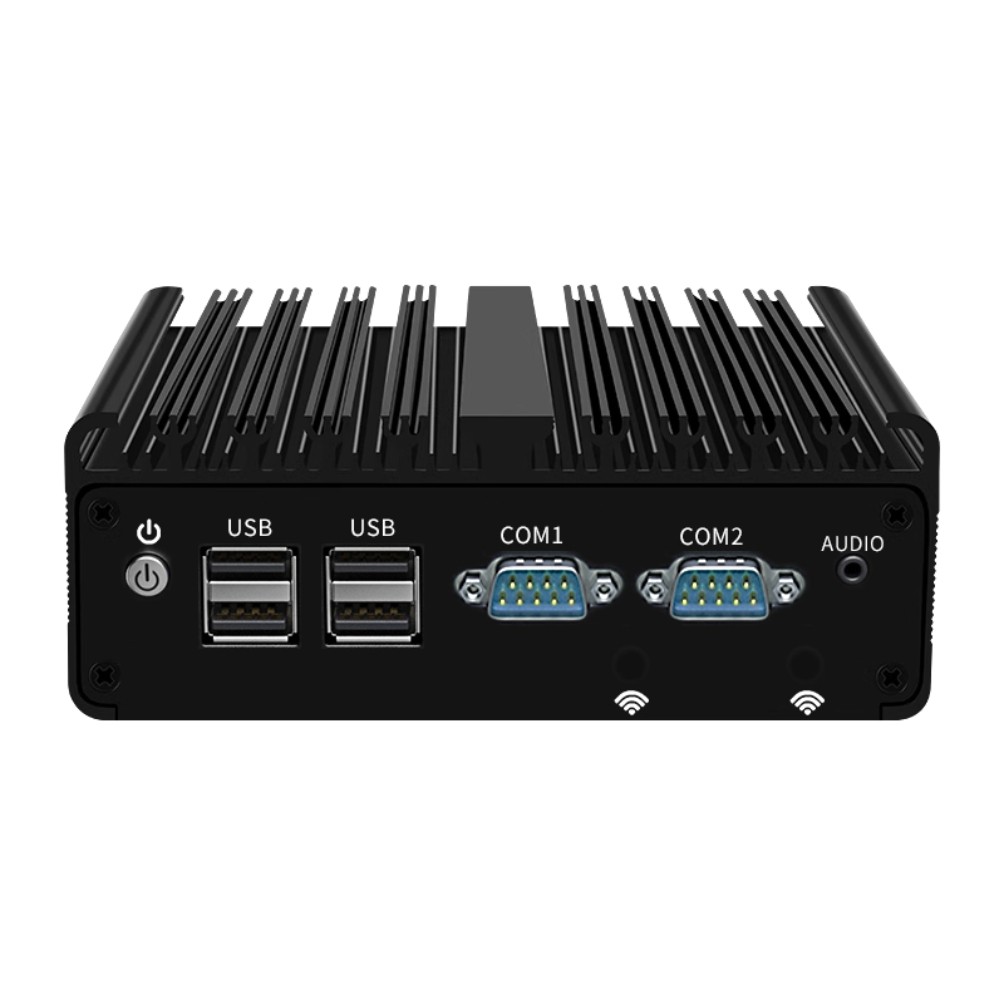

• Rear Panel I/O:

• 1× Start/Restart button

• 4× USB-A 2.0

• 2× DB9 COM ports (RS232)

• 1× 3.5mm audio jack

• Expansion: 1× mPCIe slot for wireless or functional modules

• Cooling: Fanless passive cooling (requires airflow)

• Power Input: DC 12V, 4A or higher

• Chassis Size: 138 × 126 × 48 mm

• Weight: 0.75 kg (net), 1.25 kg (with accessories)

• Operating Environment: 0–50°C, 5–90% RH (non-condensing)

Typical Application Scenarios

• Industrial Automation: Reliable platform for machine control and factory systems.

• IoT Gateway: Edge device for data acquisition and protocol conversion.

• Embedded Commercial Systems: Suitable for kiosks, POS systems, and digital signage.

• Network Gateway: Compact solution for entry-level routing and network connectivity.

• Serial Communication Applications: Dual COM ports support legacy industrial devices and RS232 equipment.
