G590 1170 2L2C

Product Overview

The G590-1170-2L2C is a compact and fanless embedded industrial computerbased on the Intel Celeron J Series / N Series platform (FCBGA1170). It integrates dual Gigabit Ethernet ports, dual serial interfaces, and dual display outputswithin a robust and slightly larger chassis design for enhanced thermal performance. With its silent operation, industrial reliability, and flexible I/O configuration, the G590-1170-2L2C is well suited for industrial automation, IoT gateways, network communication, and commercial embedded applications requiring stable 24/7 operation.

Key Features

• Processor Platform: Intel Celeron J Series / N Series, FCBGA1170

• Memory: DDR3L SO-DIMM (1.35V), up to 8GB, up to 1333 MHz

• Networking: 2× Gigabit Ethernet (Realtek 8111)

• Storage Options:

• 1× SATA 2.0 (3Gb/s)

• 1× mSATA slot

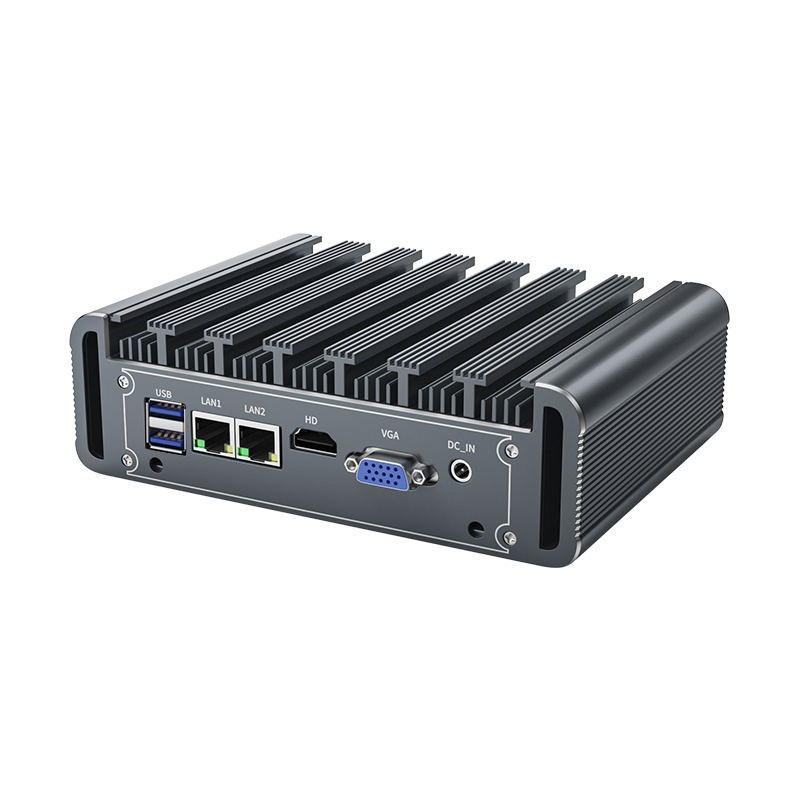

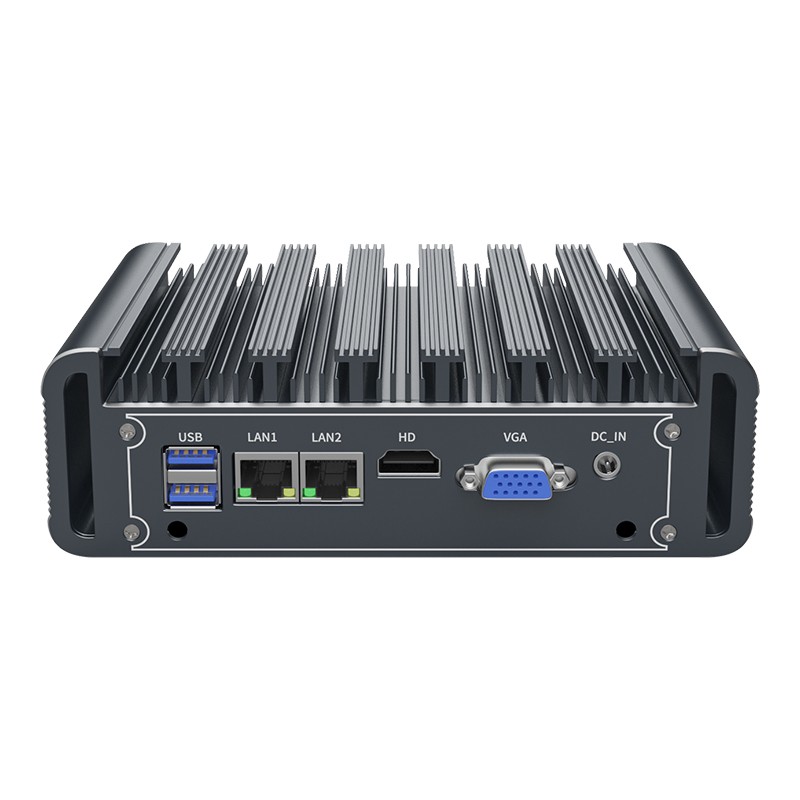

• Front Panel I/O:

• 1× DC-IN power jack

• 1× VGA + 1× HD display output

• 2× RJ45 Ethernet

• 1× USB-A 2.0 + 1× USB-A 3.0

• 2× reserved antenna holes

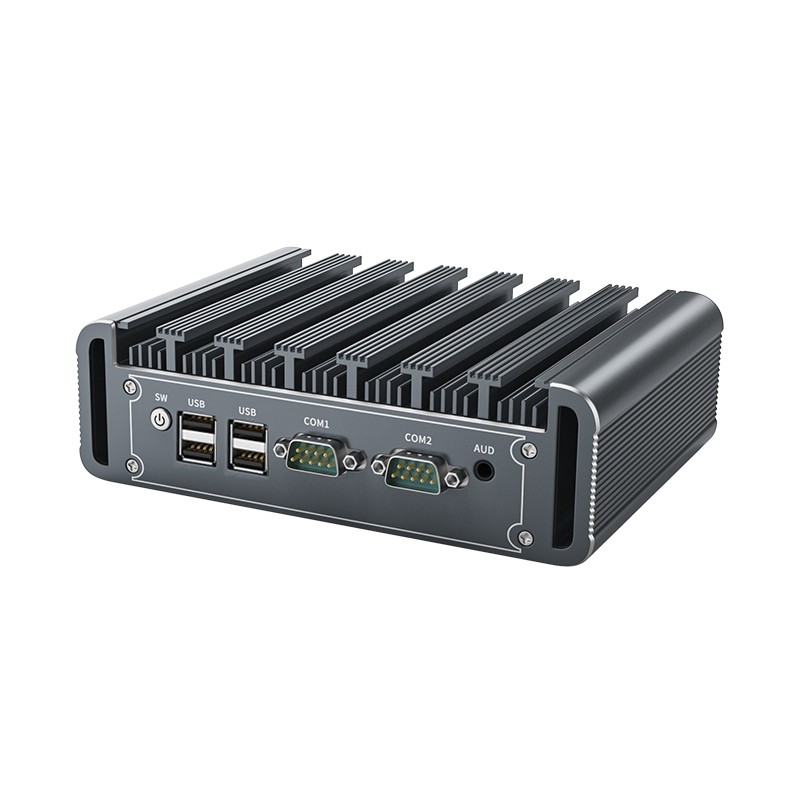

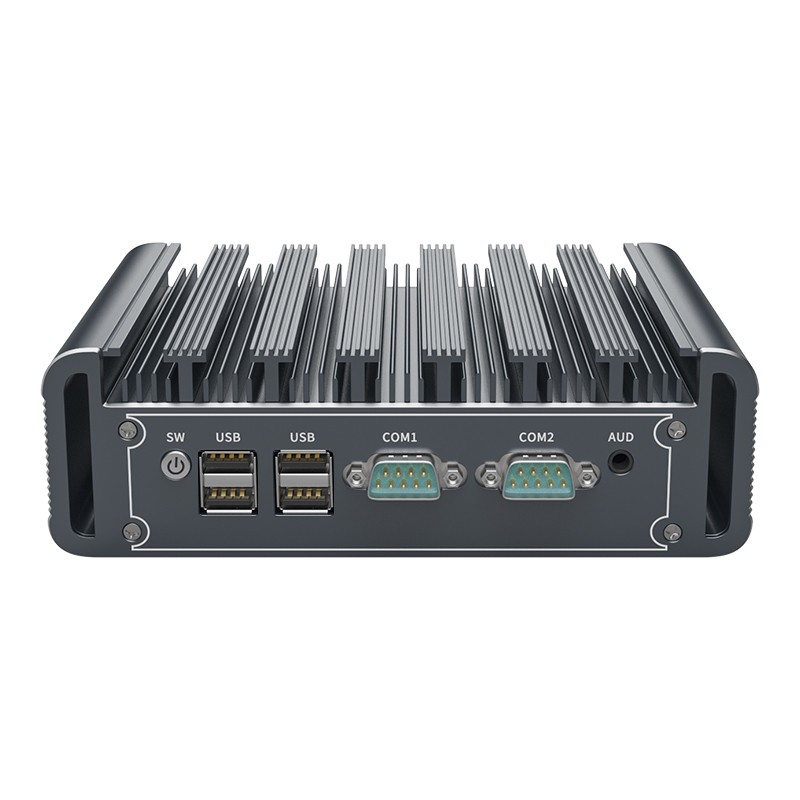

• Rear Panel I/O:

• 1× Start/Restart button

• 4× USB-A 2.0

• 2× DB9 COM ports (RS232)

• 1× 3.5mm audio jack

• Expansion: 1× mPCIe slot for wireless or functional modules

• Cooling: Fanless passive cooling (requires airflow)

• Power Input: DC 12V, 4A or higher

• Chassis Size: 178 × 126 × 56 mm

• Weight: 1.15 kg (net), 1.85 kg (with accessories)

• Operating Environment: 0–50°C, 5–90% RH (non-condensing)

Typical Application Scenarios

• Industrial Automation: Stable platform for machine control and industrial integration.

• IoT Gateway: Suitable for data acquisition, edge processing, and remote connectivity.

• Commercial Embedded Systems: Ideal for POS terminals, kiosks, and digital signage.

• Network Gateway: Dual LAN configuration supports routing and network segmentation.

• Serial Communication Systems: Dual COM ports for industrial RS232 device integration.
