G31F 1115G4 4L

The BKHD G31F-1115G4-4L is an actively cooled compact network appliance powered by the 11th Gen Intel Core i3-1115G4 processor. Housed in a metal chassis with a smart chassis fan, it integrates 4 × Intel I226-V 2.5GbE LAN ports, DDR4 memory up to 64GB, SATA 3.0 and M.2 Key-M storage, and an RJ45 RS232 console for firewalls, VPN gateways, and edge networking.

Core Specifications

  • Model: G31F-1115G4-4L (G31F-1449NP-4L Platform)

  • Processor: 11th Gen Intel Core i3-1115G4 (Tiger Lake, FCBGA1449)

  • Memory: 2 × DDR4 SO-DIMM, up to 64GB, up to 3200 MT/s

  • Storage: 1 × SATA 3.0 (6Gb/s), 1 × M.2 Key-M 2280

  • Network: 4 × 2.5GbE RJ45 LAN (4 × Intel I226-V controllers)

  • Expansion: 1 × mPCIe, onboard SIM card slot

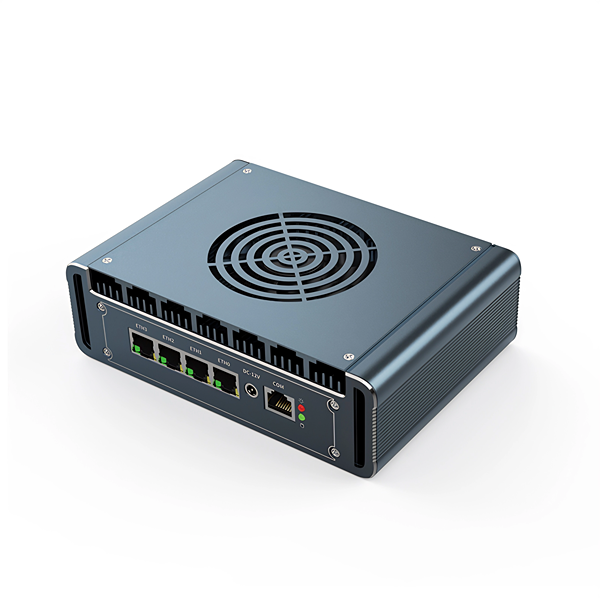

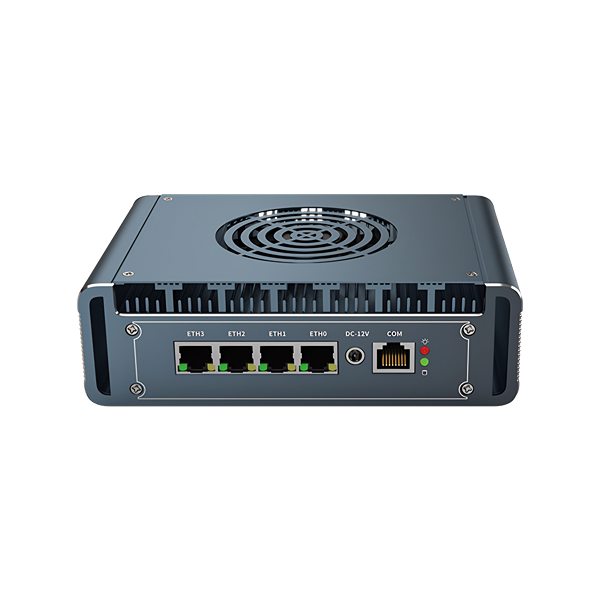

  • Front Panel I/O: 4 × RJ45 LAN, 1 × Jack DC_IN (5.5/2.5mm), 1 × RJ45 COM RS232

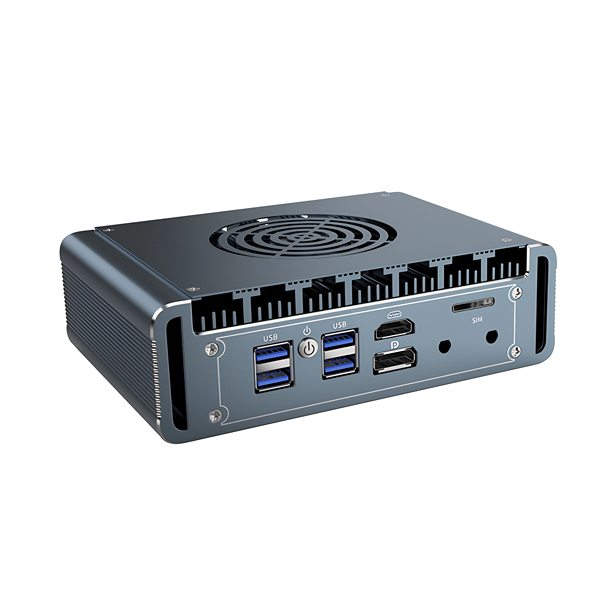

  • Back Panel I/O: 1 × Start or Restart button, 4 × USB-A 3.0, 1 × DP, 1 × HD, 2 × Reserved antenna holes

  • Cooling Method: Active cooling with 1 × smart chassis fan

  • Chassis Dimensions: 178 × 126 × 56 mm

  • Weight: Equipment weight 1.25 kg; Package weight 1.95 kg (including accessories)

  • Power Input: DC 12V, 10A or higher (for Core processor)

  • Operating Environment: 0°C to 50°C; 5% to 90% RH (non-condensing)

Product Features

  • Powered by 11th Gen Intel Core i3-1115G4 for efficient routing, hardware encryption, and edge computing workloads.

  • Four Intel I226-V 2.5GbE ports deliver stable multi-WAN load balancing and LAN segmentation.

  • Smart active fan cooling maintains sustained thermal performance during continuous 24/7 high-load operations.

  • Dual DDR4 SO-DIMM slots up to 64GB support memory-intensive virtualization and packet inspection.

  • Front RJ45 RS232 console and four USB 3.0 ports enable convenient local diagnostics and peripheral expansion.

Before Ordering & Compatibility Notes

  • Configuration Options: Available as a barebone unit (no RAM/SSD) or pre-configured with DDR4 RAM and NVMe SSD.

  • OS Compatibility: Tested with pfSense, OPNsense, Proxmox VE, ESXi, VyOS, Ubuntu, and Windows.

Application Scenarios

  • High-Throughput Firewalls & VPN Gateways

  • SD-WAN & Multi-WAN Branch Routers

  • Proxmox / ESXi Virtualization Hosts

  • Industrial Edge Gateways & Network Appliances

Downloads

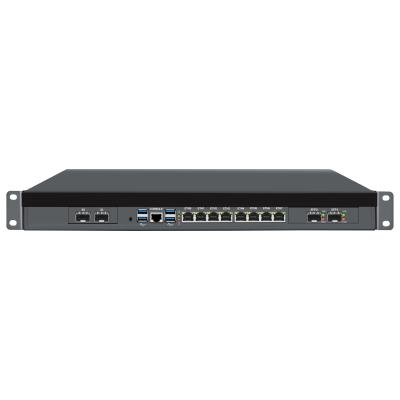

PREVIOUS:1U-C3758-6L4S NEXT:G31F 1185G7 4L
