OTS 8130U 6L

The OTS-1356NP-6L is a high-performance embedded network appliance powered by 8th Gen Intel Core processors. Featuring a compact metal chassis and 6x integrated 2.5GbE Ethernet ports, it delivers exceptional network performance and flexible system configuration. Designed for space-constrained environments, it provides robust hardware support for network security, edge computing nodes, and industrial control applications.

Place an order

Key Features

Processor: 8th Gen Intel® Core™ (FCBGA1356)
Memory: DDR4 SO-DIMM up to 32GB, 2400 MT/s
Storage: 1× SATA 6Gb/s, 1× M.2 Key-M 2280 (PCIe)

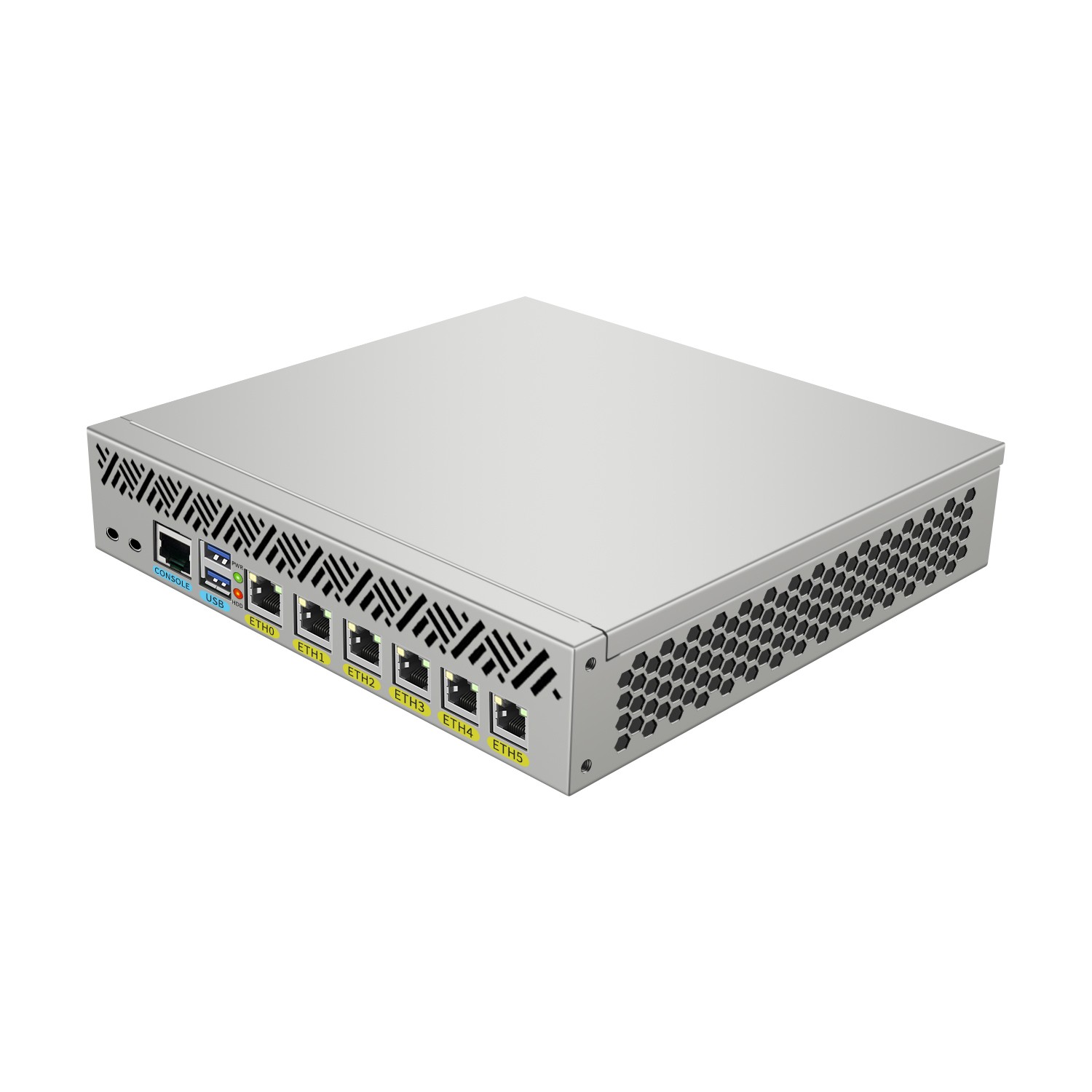

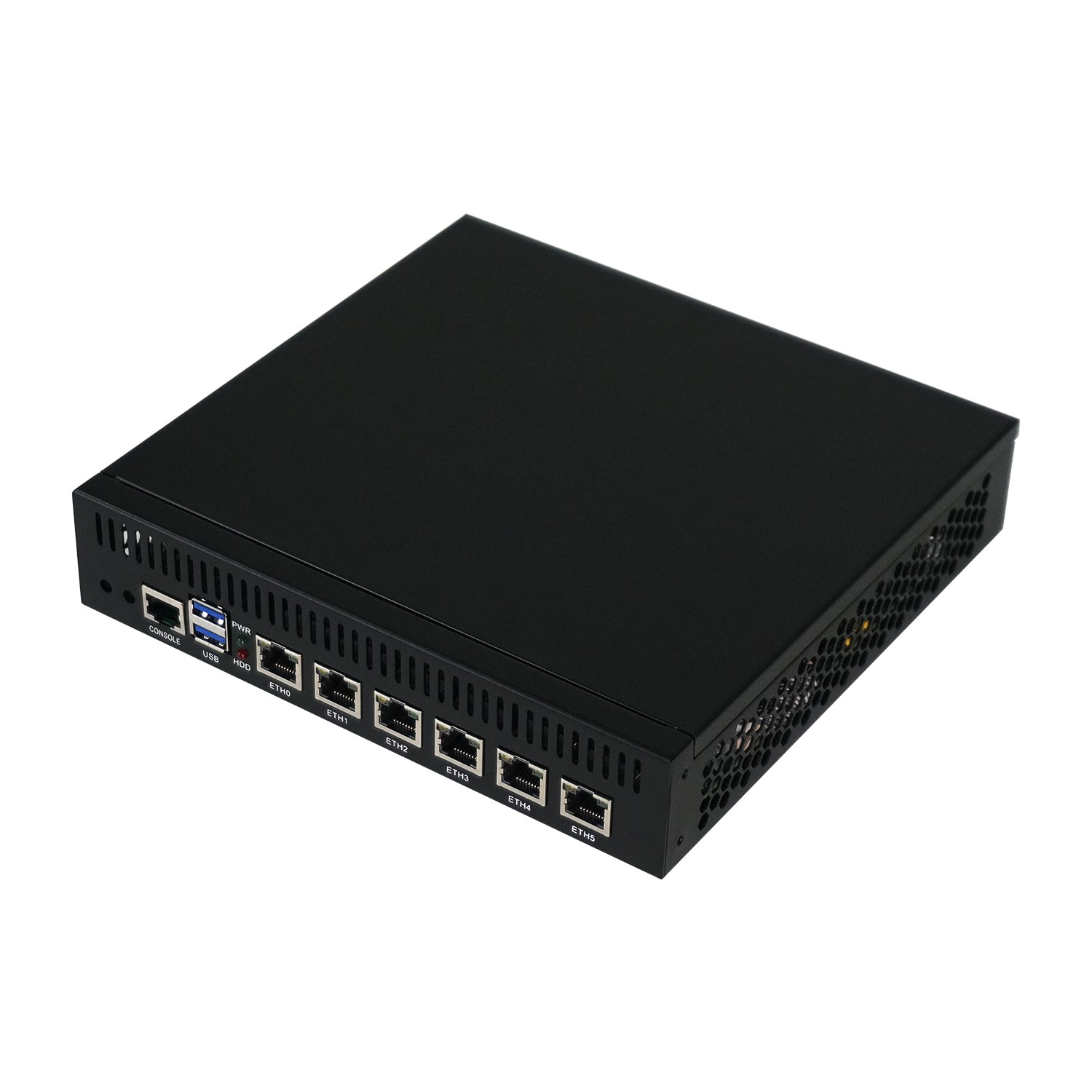

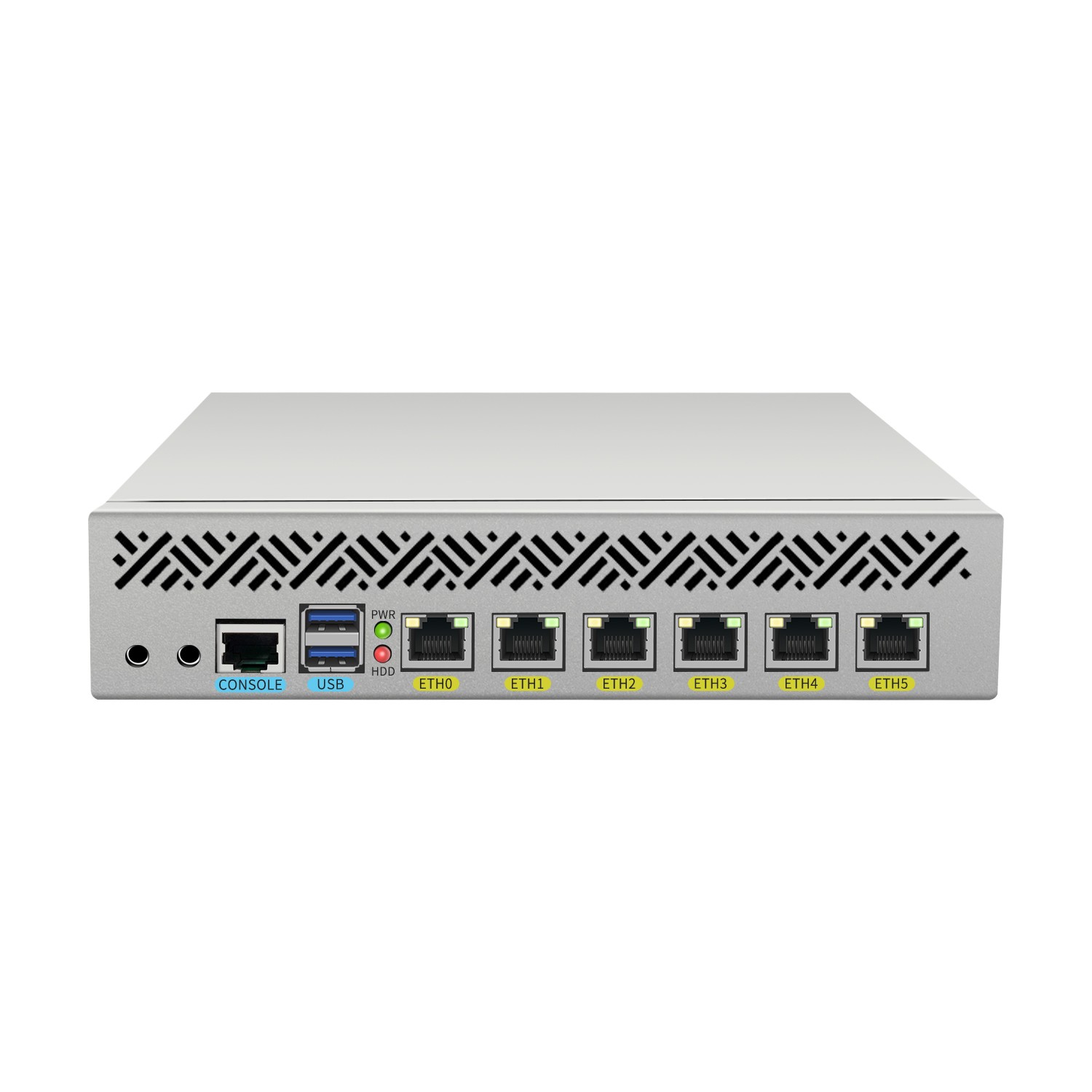

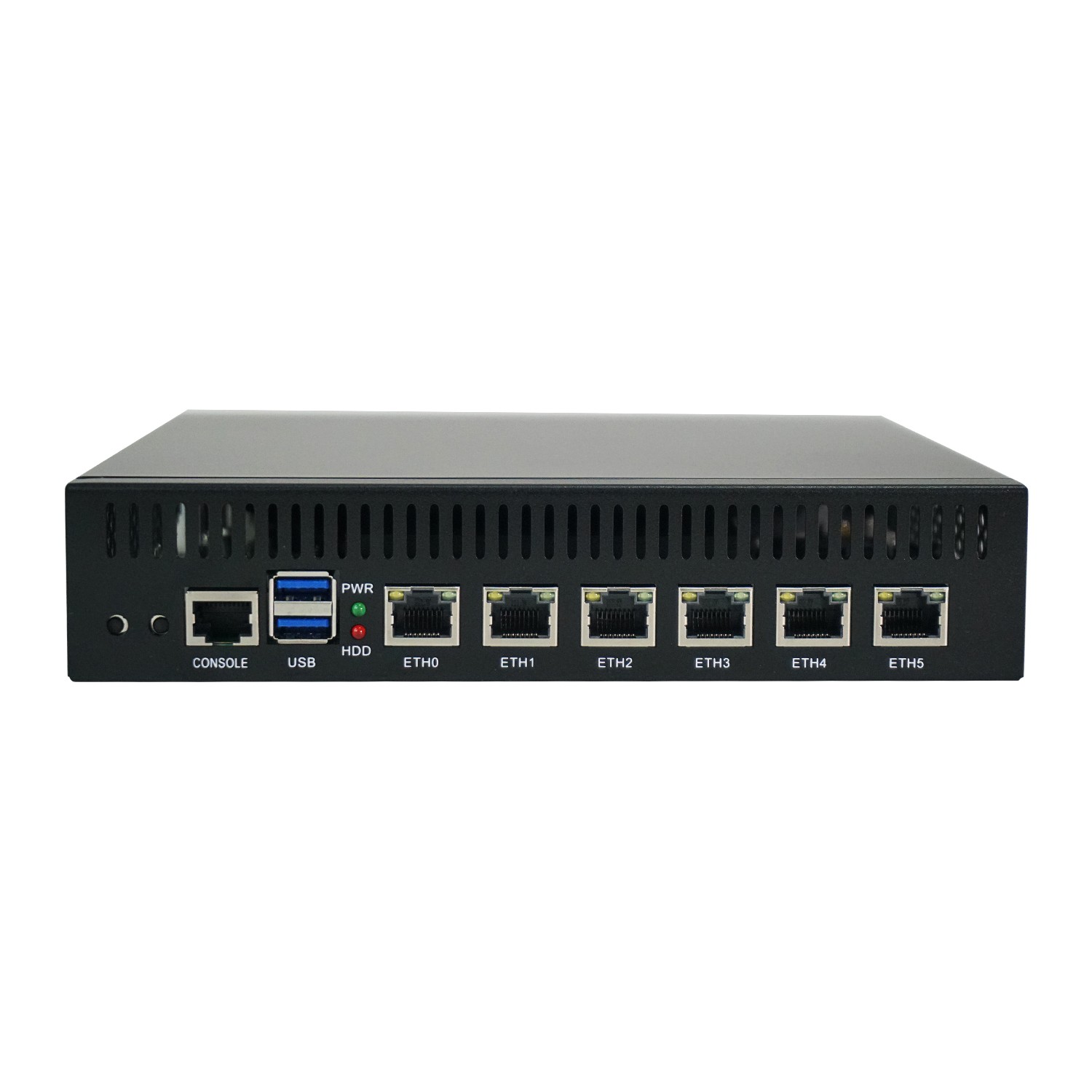

Networking: 6× RJ45 1GbE ports
USB: 2× USB-A 3.0 (front)
Console: 1× RJ45 COM (front)

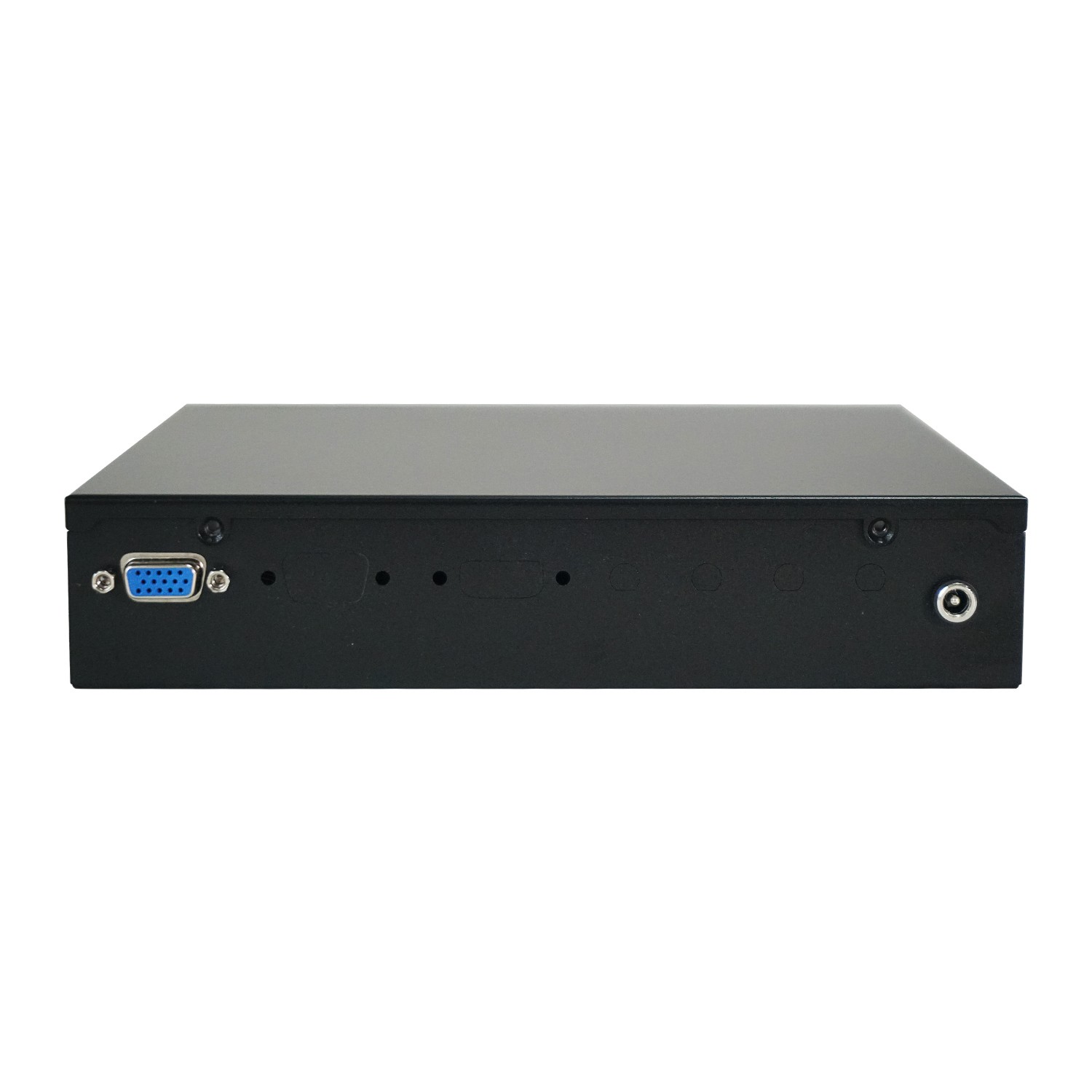

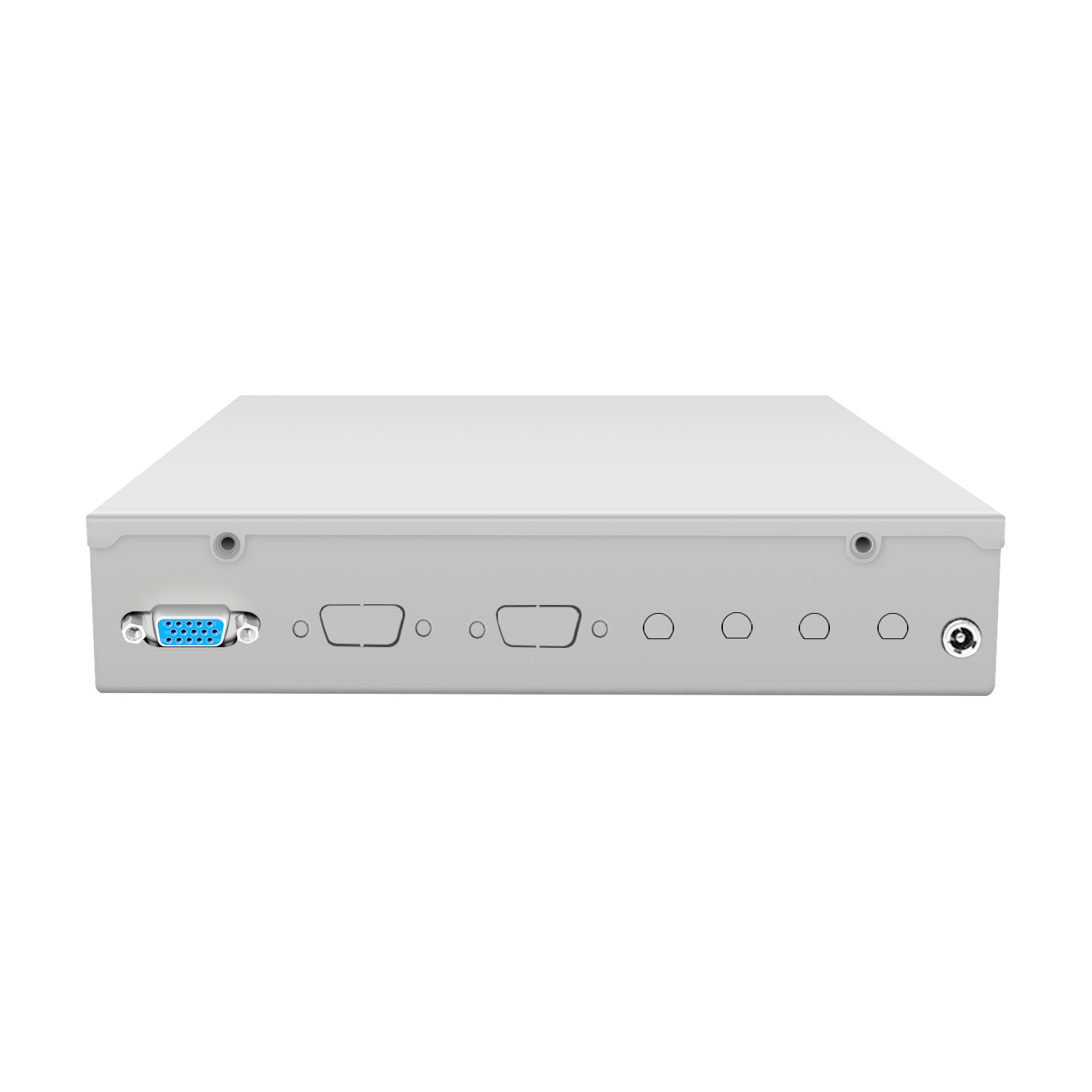

Display: 1× VGA / 1× HD (reserved)
Expansion: 1× mPCIe (PCIe signal); 1× mPCIe (USB 2.0 signal, single-sided Wi-Fi module supported)

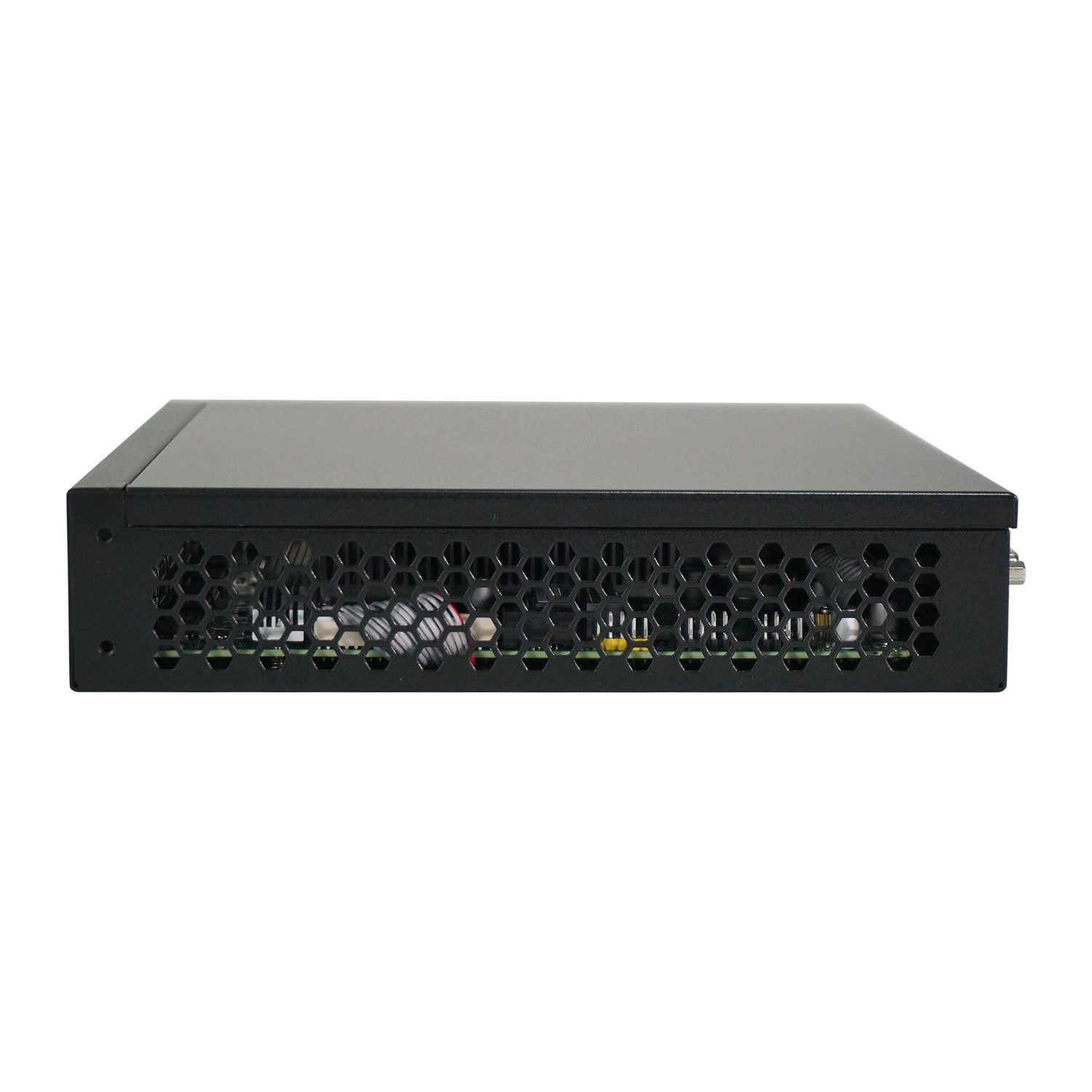

Cooling: Active cooling with 1× CPU fan

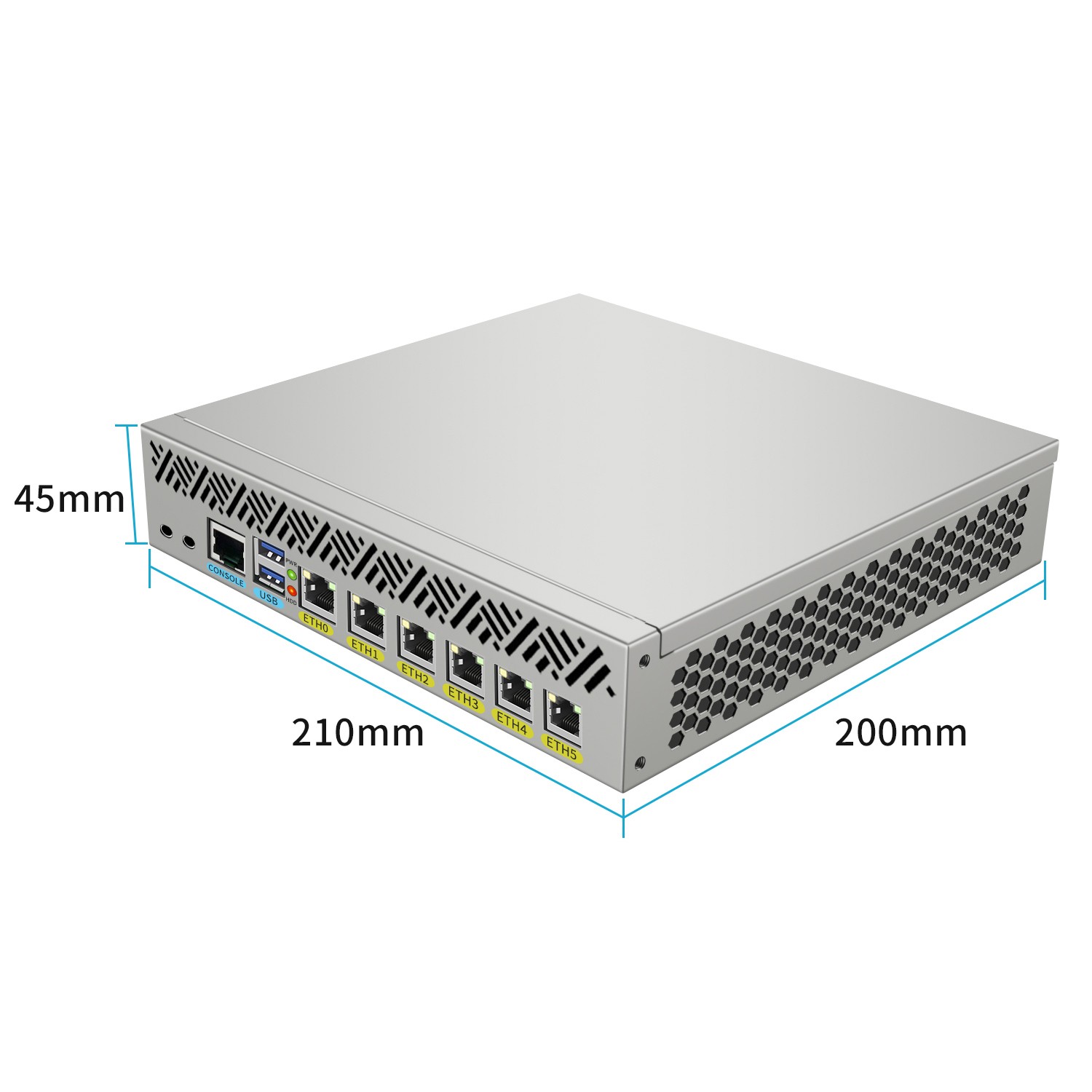

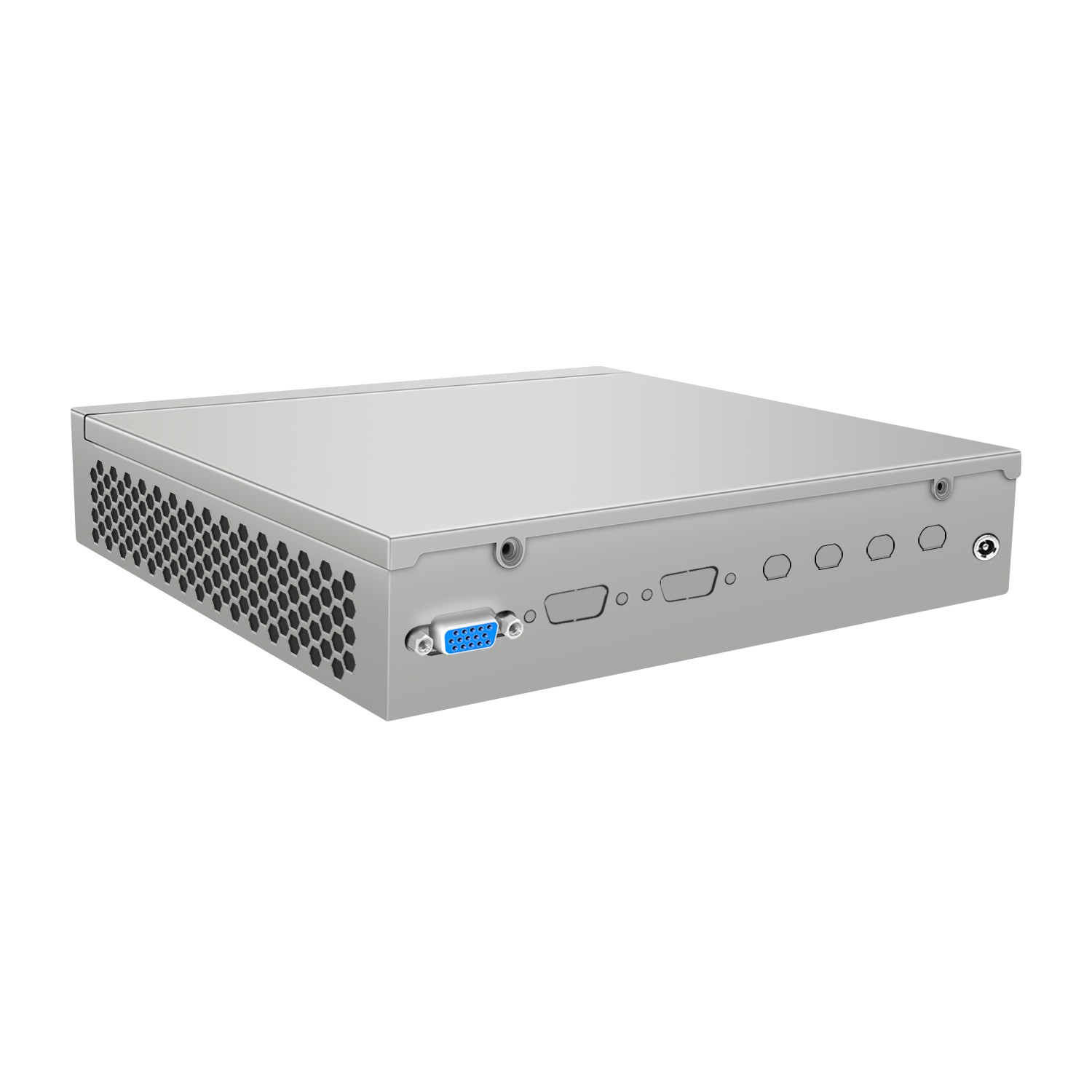

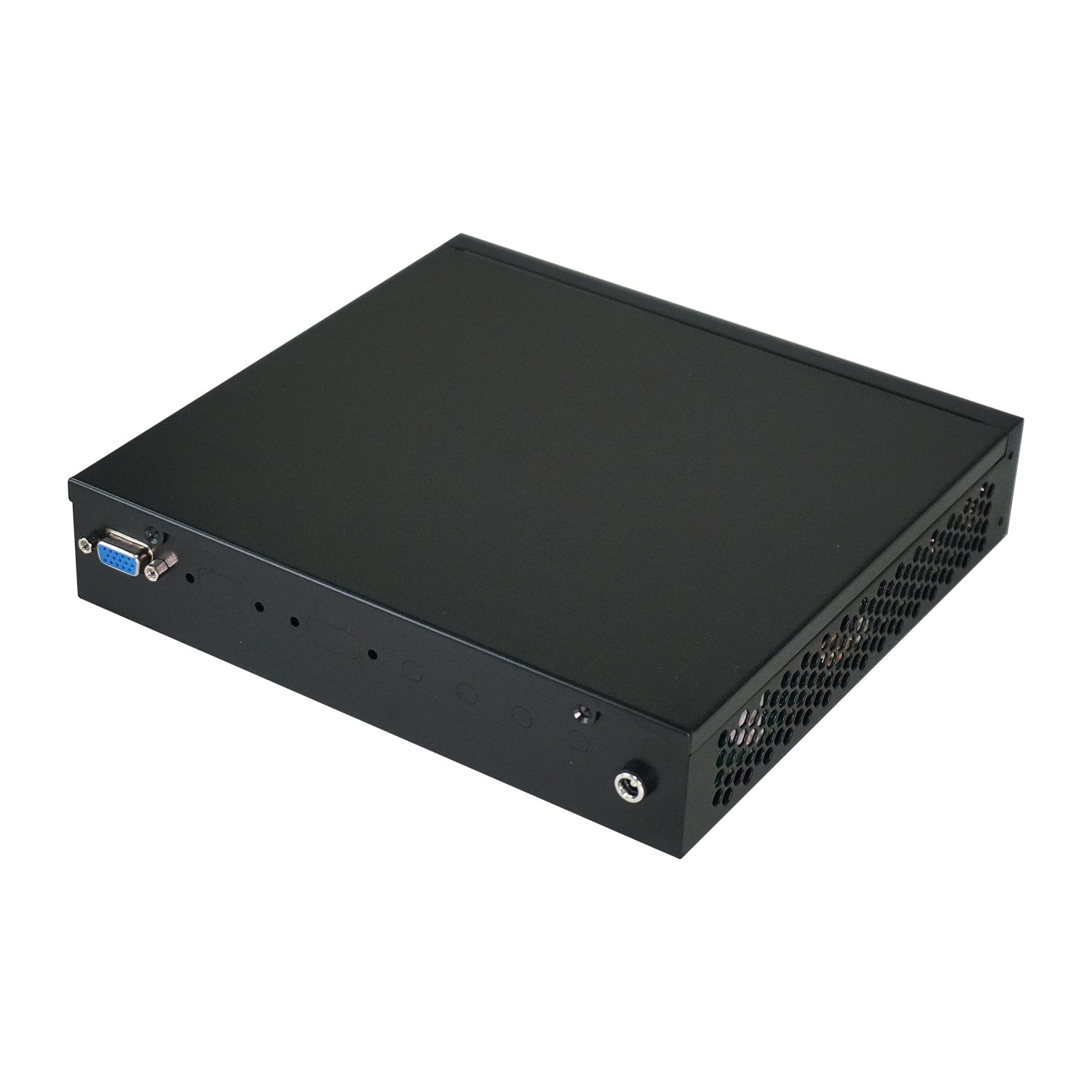

Chassis: 210 × 200 × 45 mm; Weight: 1.25 kg (net), 1.65 kg (with accessories)
Power: DC 12V / 4A or higher (5.5/2.5 mm jack)
Environment: Operating 0–50℃; Humidity 5–90% RH (non-condensing)

Application Scenarios

Firewall & Security Gateway: Ideal for pfSense/OPNsense-based secure routing and UTM
VPN / SD-WAN: Branch connectivity and remote access with consistent performance
Edge Networking: Compact desktop platform for traffic control and policy enforcement
IoT / Wireless Expansion: mPCIe slots support Wi-Fi/LTE modules for flexible deployments
SMB Infrastructure: Quiet, space-saving design for small offices and 24/7 operation
