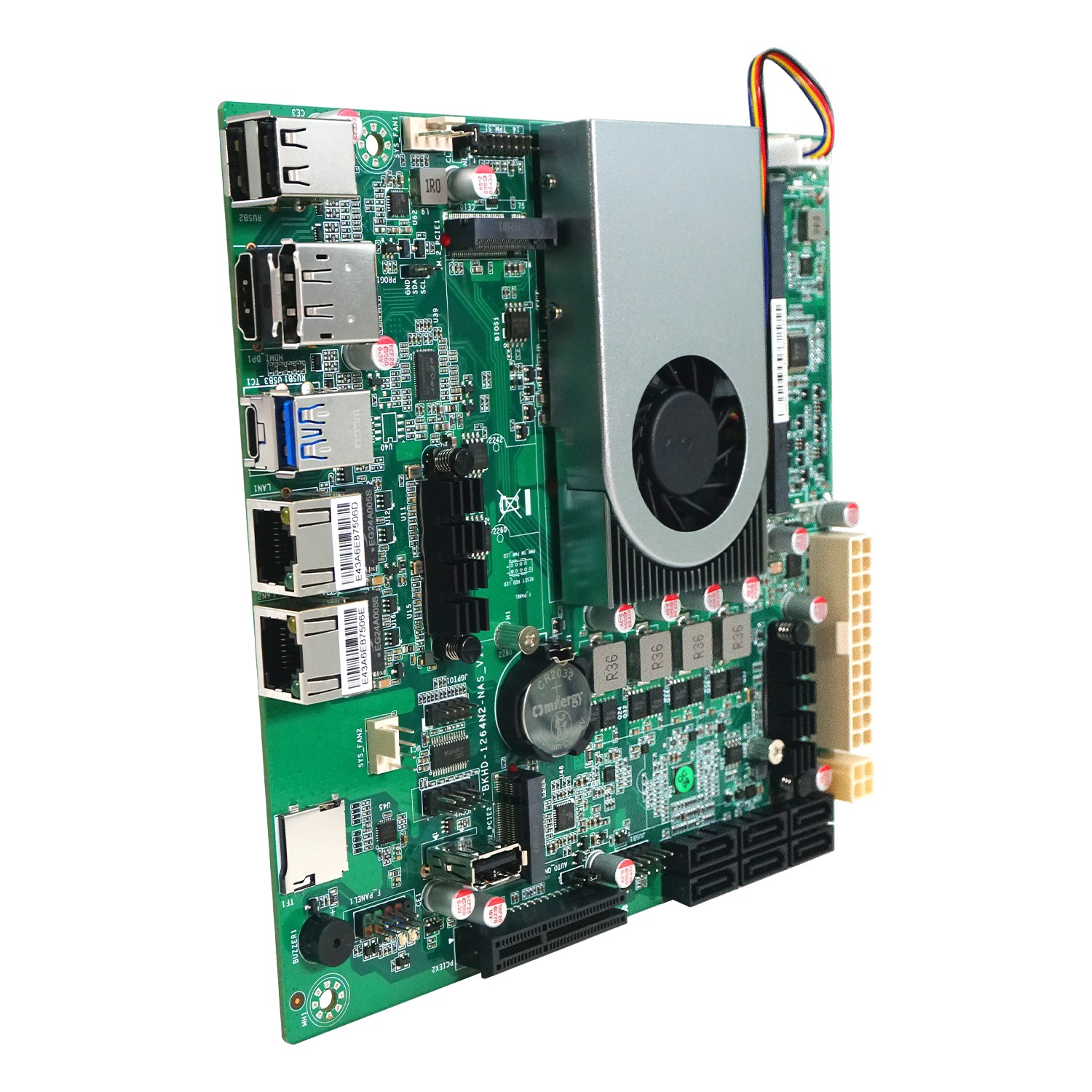

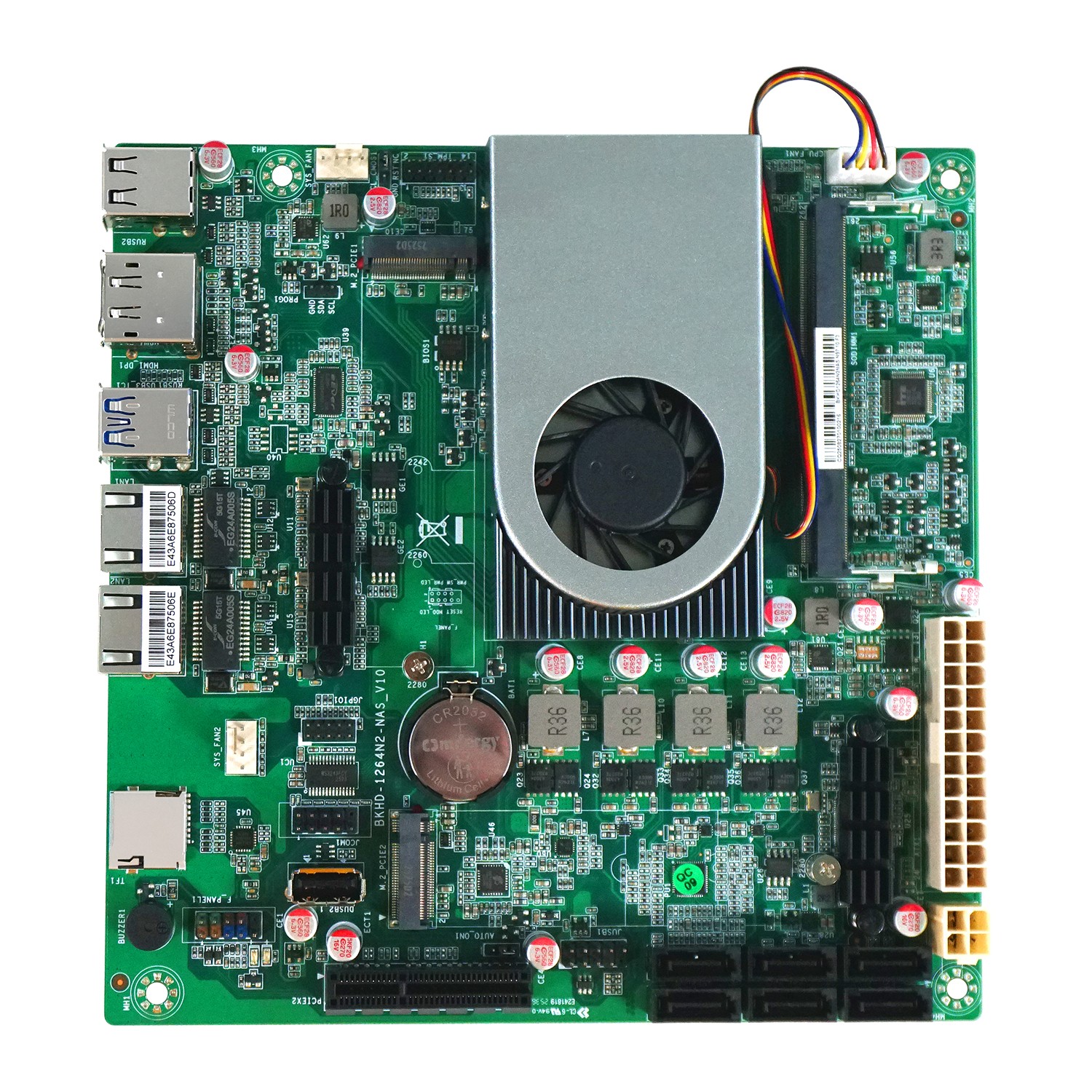

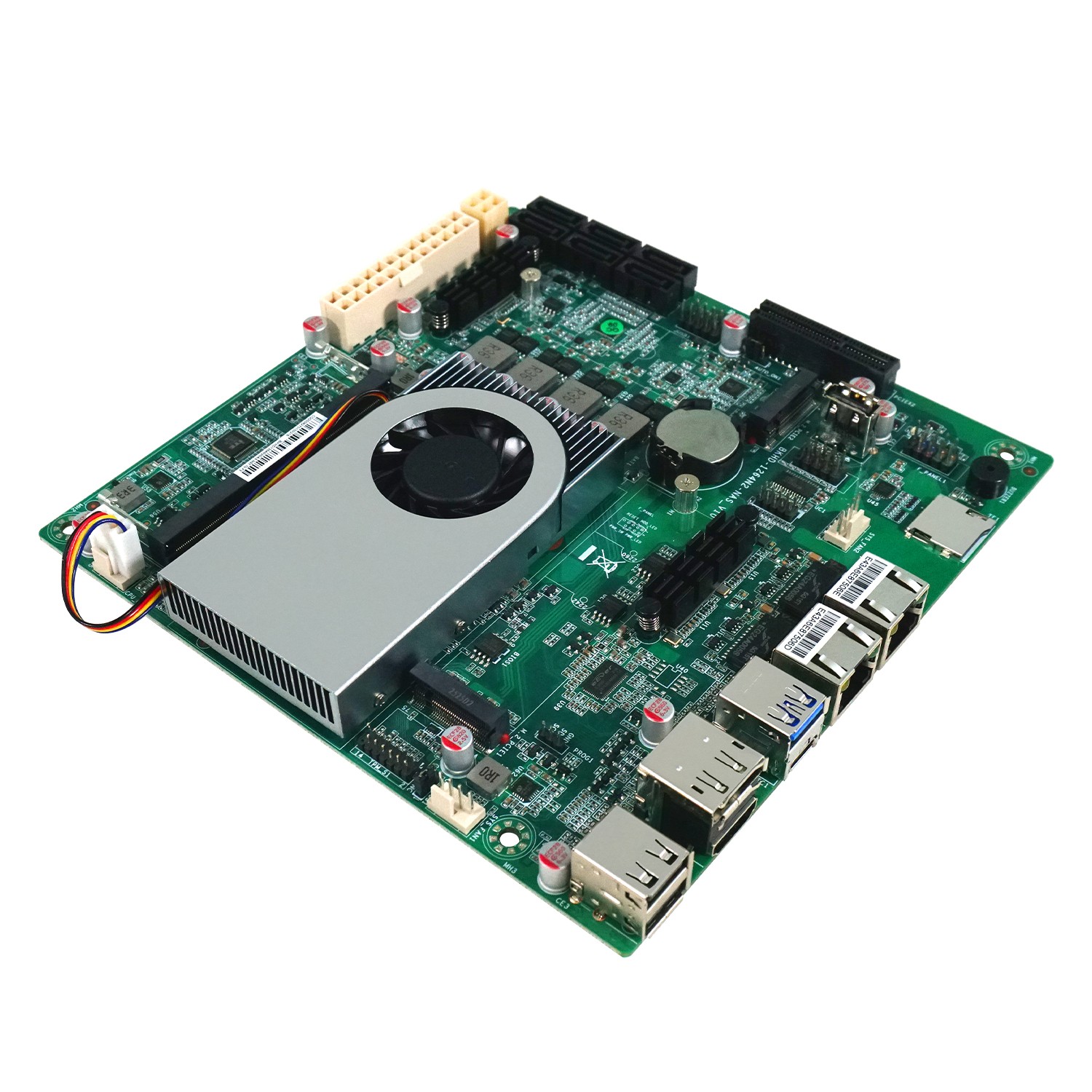

1264N2-NAS MB

The 1264N2-NAS is a Mini-ITX industrial motherboard designed specifically for network storage applications. Powered by the Intel Processor N-series low-power platform, it integrates the ASM1166 high-speed storage controller and supports 6x SATA 3.0 drive interfaces, 2x M.2 Key-M 2280 SSD slots, 2x 2.5GbE RJ45 ports, DDR5 SO-DIMM memory, PCIe x4 expansion, TF card slot, TPM, GPIO, and multiple fan headers. With multi-bay storage scalability, high-speed networking, low power consumption, and flexible expansion, it is ideal for home network storage, media file servers, video surveillance storage, SMB private cloud systems, and virtualization platforms.

Place an order

Core Specifications

Model: 1264N2-NAS
Processor Platform: Intel Processor N-series
Socket: FCBGA1264
Motherboard Size: Mini-ITX, 170 × 170 mm
Memory: DDR5 SO-DIMM, up to 16GB, up to 4800 MT/s
Storage: 6 × SATA 3.0, 2 × M.2 Key-M 2280
Storage Controller: ASM1166, PCIe x2 to 6 × SATA
Network: 2 × 2.5GbE RJ45, Intel I226V controllers
Expansion: 1 × PCIe x4, Gen3 x2 rate

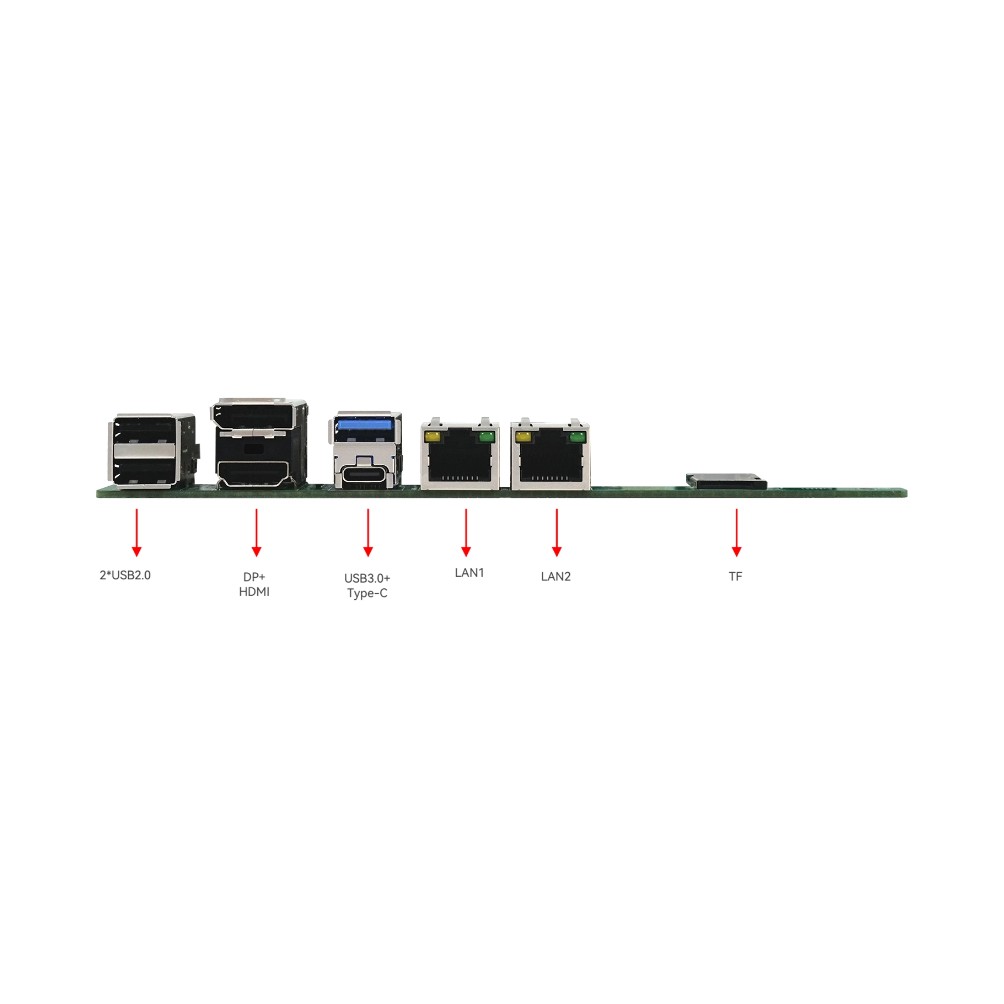

Display: 1 × DP, 1 × HD, 1 × USB-C
USB: 2 × USB-A 2.0, 1 × USB-A 3.0, 1 × USB-C, 1 × onboard USB-A 2.0, 1 × J_USB1 expandable to 2 × USB2.0 ports
Other Interfaces: TF card slot, F_PANEL, J_COM, J_GPIO, TPM
Fan Headers: 2 × SYS_FAN, 1 × CPU_FAN
Power Input: ATX 24-pin + 4-pin
Operating Temperature: 0°C to 60°C
Storage Temperature: -20°C to 75°C
Operating Humidity: 0% to 95% relative humidity, non-condensing
