Q670 NAS motherboard

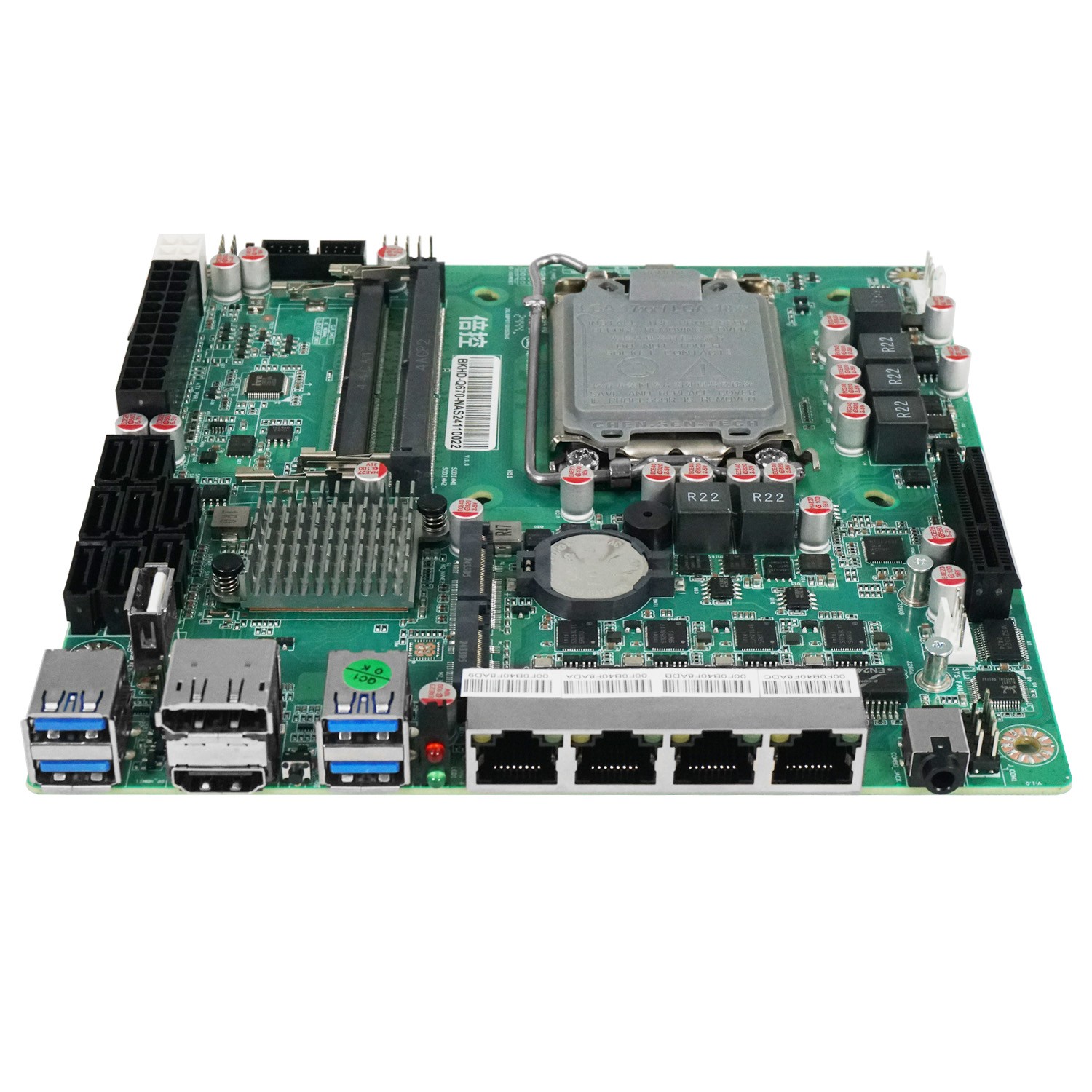

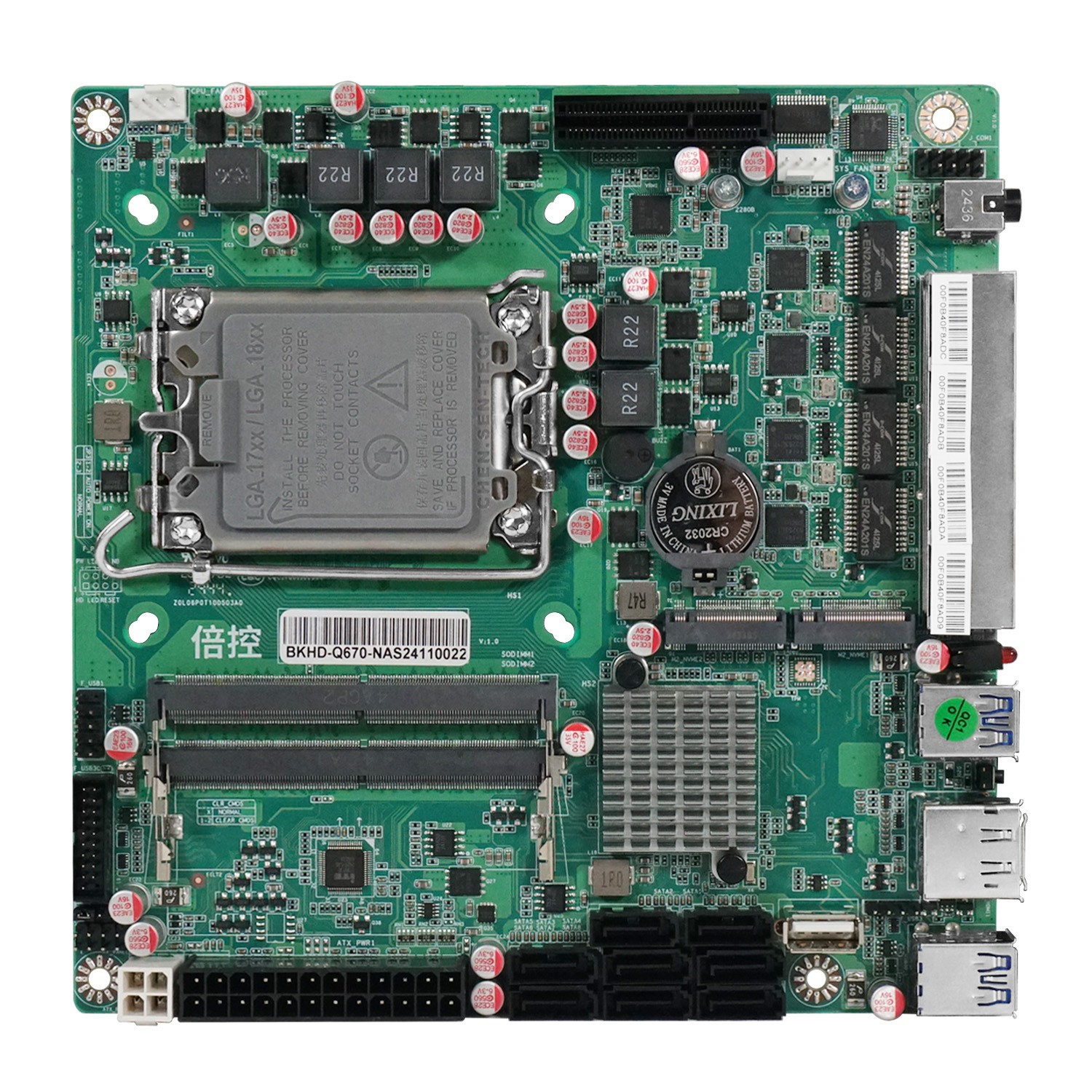

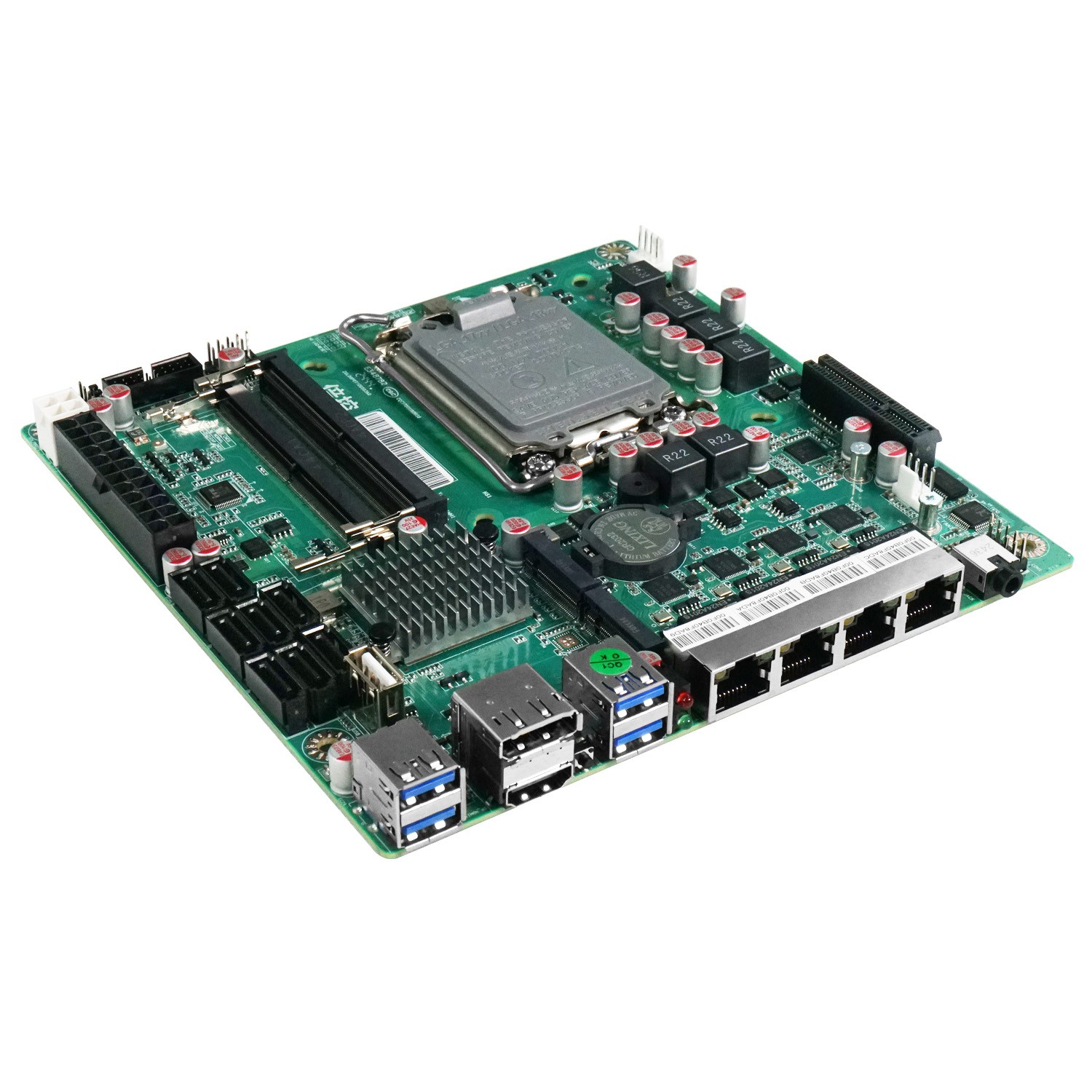

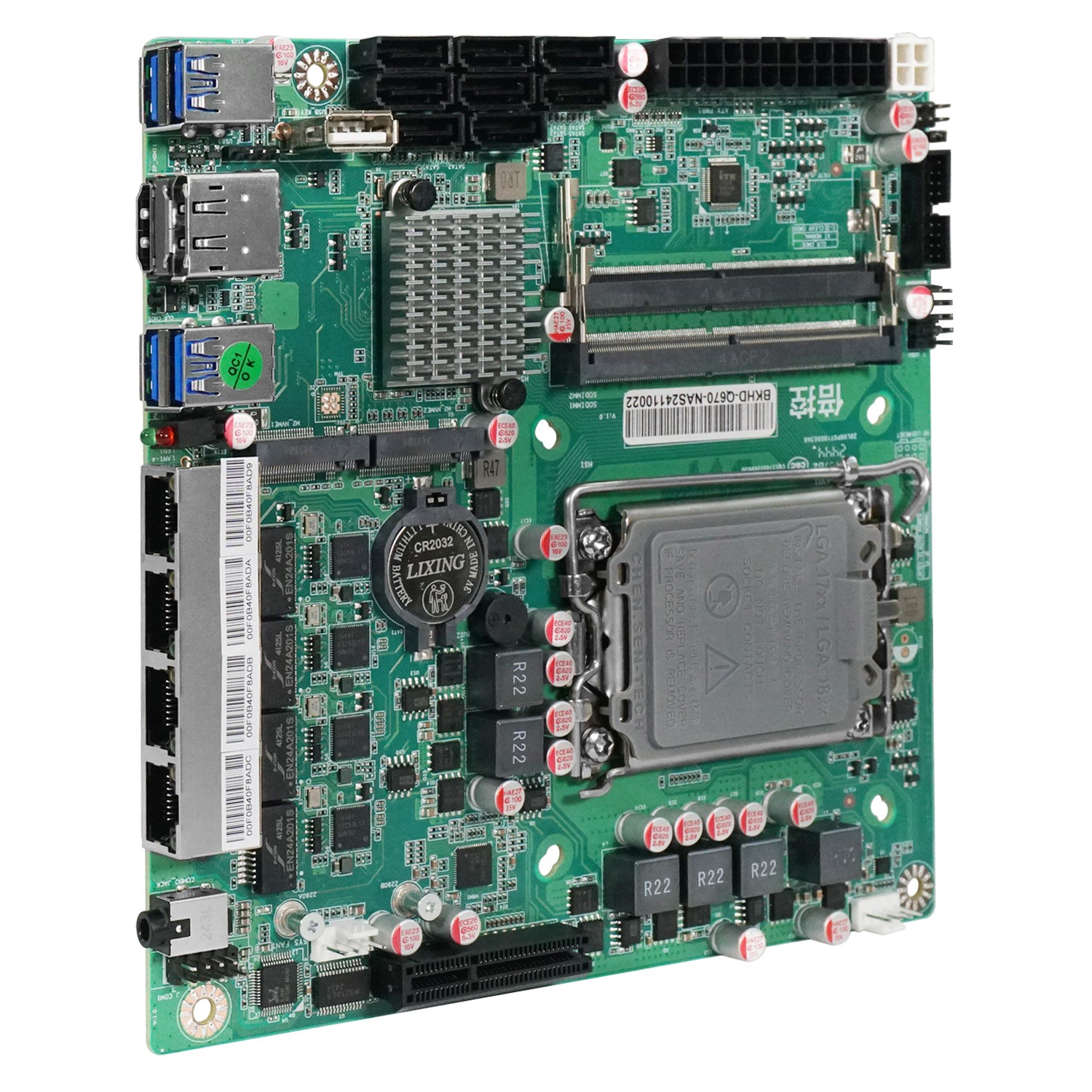

The Q670-NAS-MB is a high-performance Mini-ITX NAS motherboard based on the Intel Q670 chipset, compatible with 12th–14th Gen Intel Core, Pentium, and Celeron processors. It supports dual-channel DDR5 memory, 8x SATA 6Gb/s ports, 2x M.2 NVMe slots, and 4x 2.5GbE interfaces. Combining powerful computing, large storage capacity, and enterprise-level networking, it is ideal for NAS systems, home servers, edge computing, and industrial control applications.

Place an order

Key Features

Processor: Supports 12th/13th/14th Gen Intel® Core™, Pentium®, and Celeron® processors (FCLGA1700)
Chipset: Intel® Q670 platform with stable enterprise-level performance
Memory: 2× DDR5 SO-DIMM, up to 96GB (2×48GB), 4800 MT/s
Storage: 8× SATA 3.0, 2× M.2 Key-M 2280 (1× PCIe Gen4 x4, 1× PCIe Gen3 x4)
Networking: 4× 2.5GbE ports (3× Intel I226V + 1× Intel I226LM)
Expansion: 1× PCIe Gen4 x4 slot for additional network or storage cards
Display: 1× DP and 1× HDMI (processor-dependent integrated graphics)

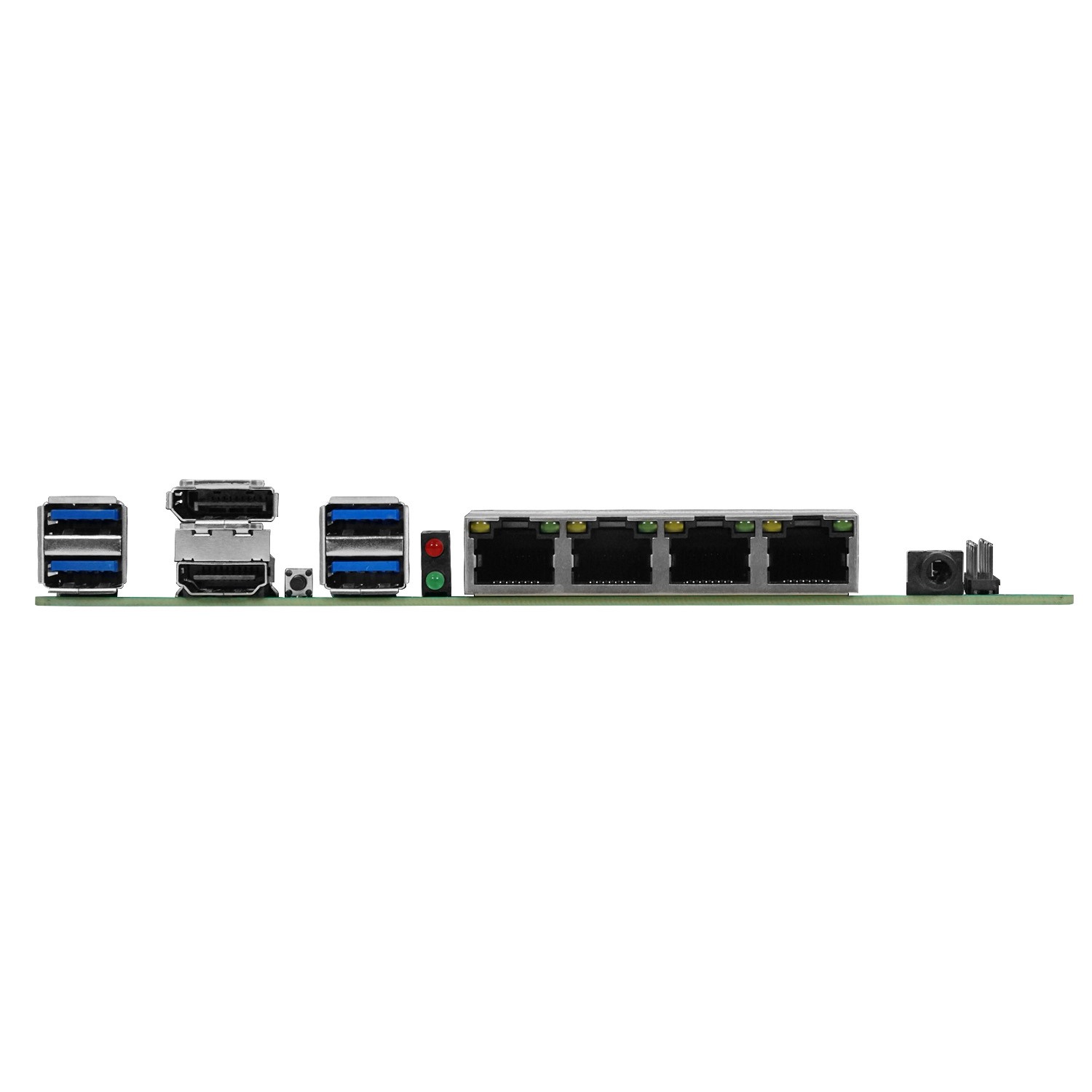

USB: 4× USB 3.2 (rear I/O) + internal USB 2.0/3.0 headers
Audio: Combo 3.5mm jack for Line-out or Mic-in
Cooling: 1× CPU_FAN + 1× SYS_FAN headers for reliable 24/7 operation
Power: ATX 24-pin + 4-pin connectors for stable system power
Form Factor: 170×170 mm Mini-ITX, compact yet highly expandable

Application Scenarios

Network Attached Storage (NAS): Supports up to 8 SATA drives for large-capacity data backup or multimedia servers
Home & Enterprise Server: Ideal for private cloud, data sharing, or IP surveillance storage systems
Virtualization: Excellent CPU and memory scalability for lightweight virtualization or container deployments
Edge Computing: Suitable for compact, low-power compute nodes with high-speed networking
AIoT & Industrial Applications: Stable operation across 0–60°C environments, supporting 24/7 uptime
