OTS 3320M 6L

The OTS 3320M 6L is an embedded device designed for professional networking applications. It features an Intel Core i5-3320M processor, 6x integrated RJ45 Ethernet ports, and a compact, industrial-grade design. This device provides a high-performance, highly reliable hardware platform solution for scenarios such as network security, industrial control, and edge computing.

Place an order

Key Features

Processor Platform: Legacy Intel Core processors, FCPGA988 socket
Memory: DDR3 / DDR3L SO-DIMM, up to 8GB, up to 1600 MT/s
Networking: 6× RJ45 Ethernet ports for routing, firewalling, and network segmentation
Storage: 1× mSATA SSD slot for compact and reliable storage

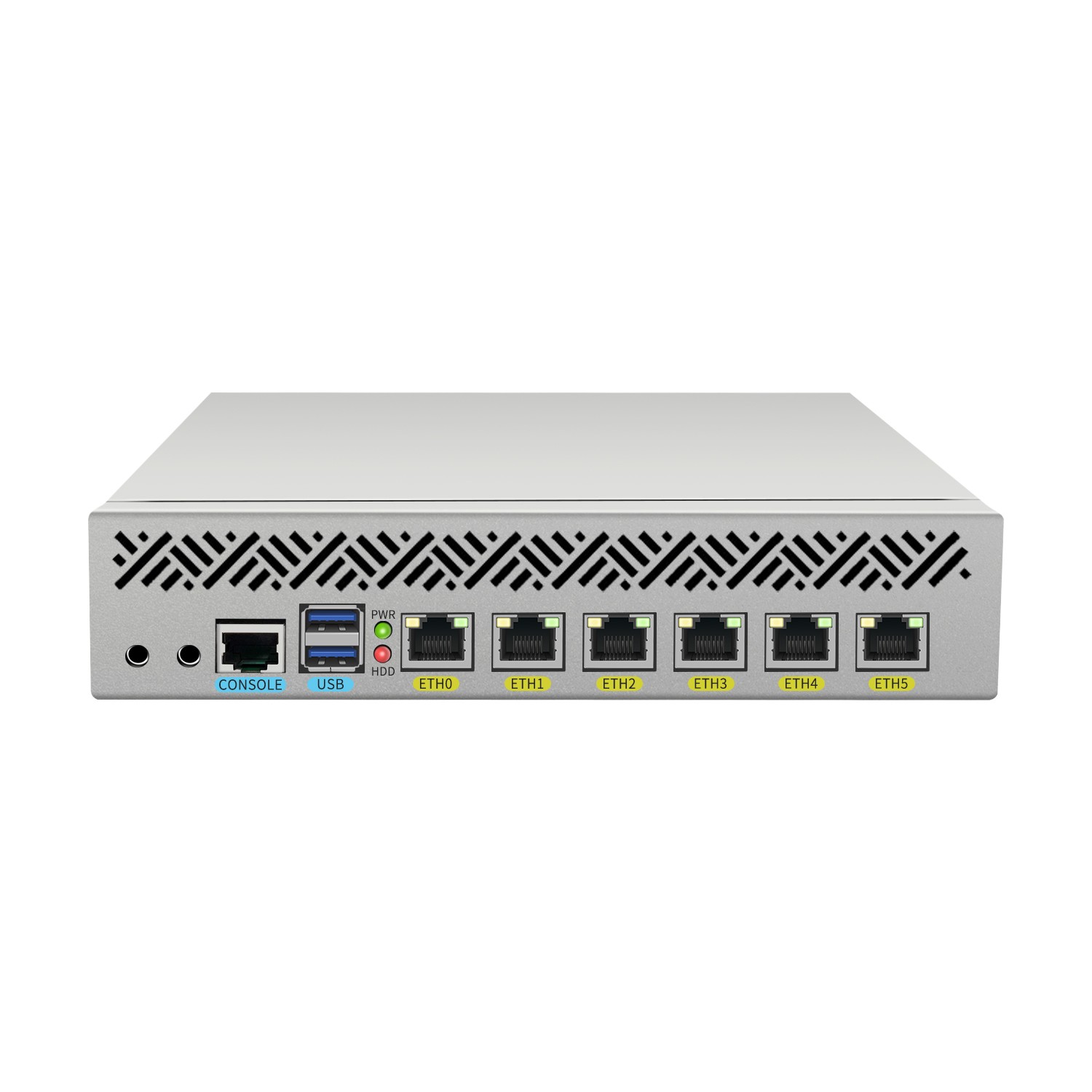

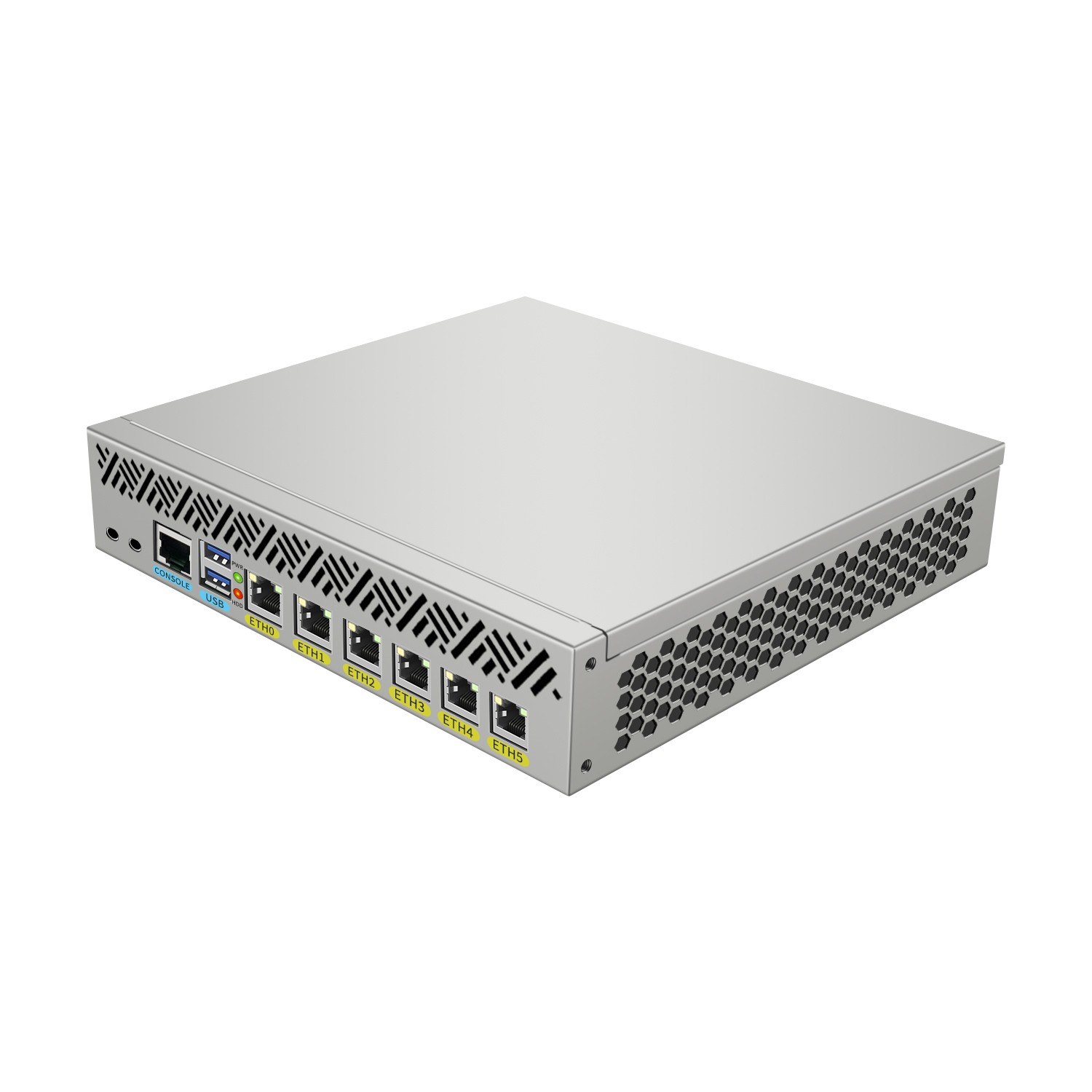

Front Panel I/O:

6× RJ45 LAN ports
2× USB-A 3.0
1× RJ45 Console port

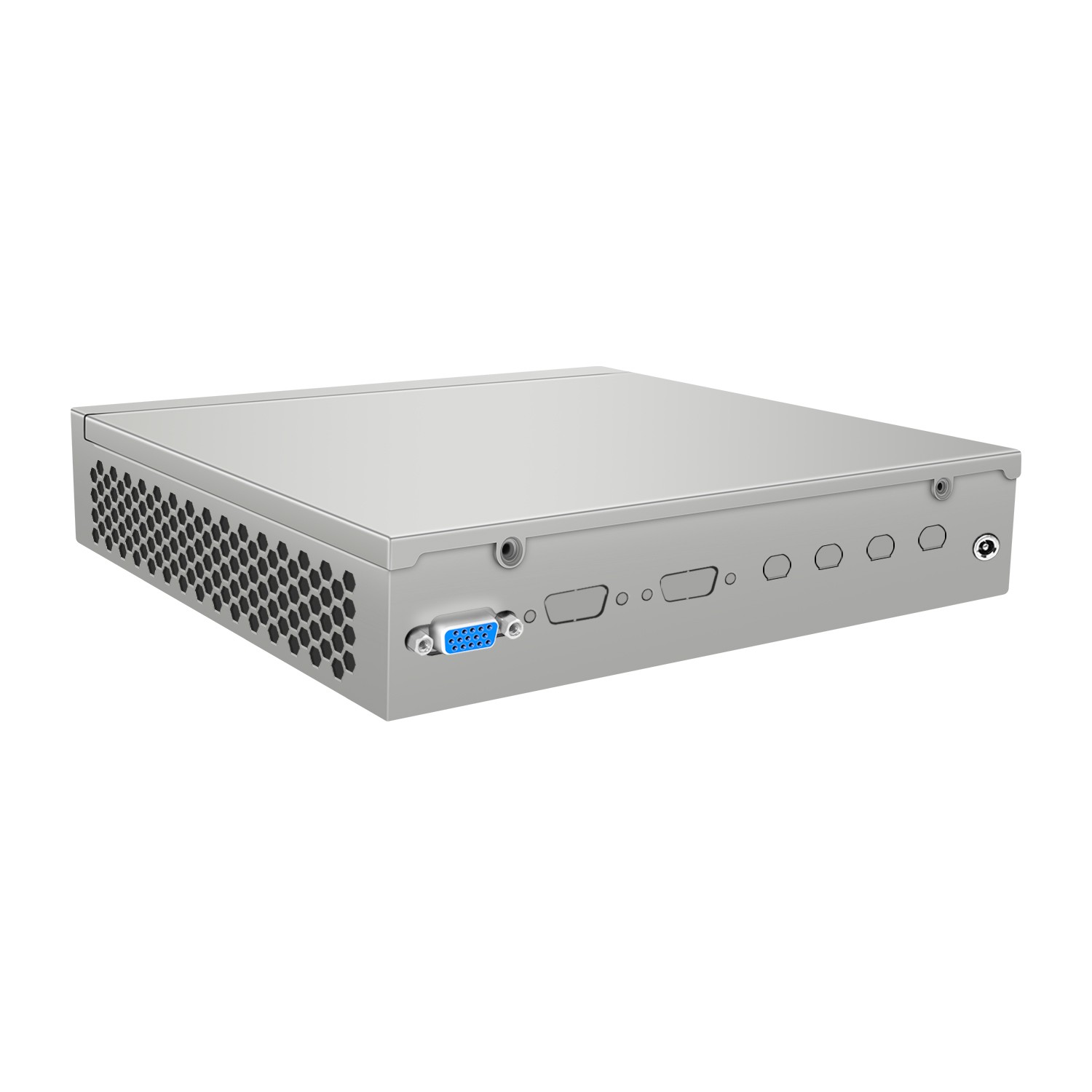

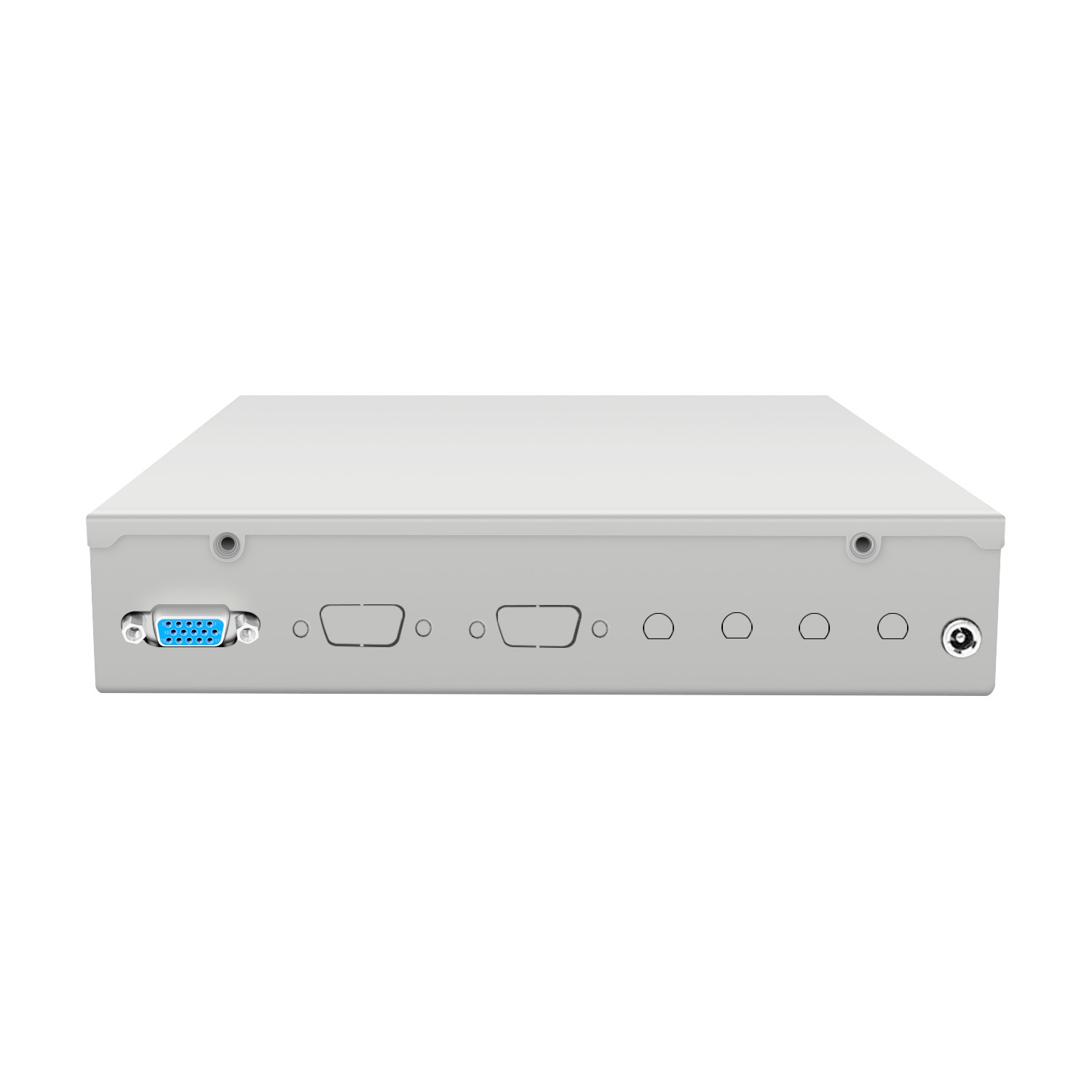

Rear Panel I/O:

1× VGA display output (HD reserved)
2× antenna holes (reserved)
DC power input jack (5.5 / 2.5 mm)

Expansion: 1× mPCIe slot for wireless or functional expansion modules
Cooling: Active cooling design with dedicated CPU fan
Power Input: DC 12V, 4A or higher
Chassis Size: 210 × 200 × 45 mm
Weight: 1.25 kg (net), 1.65 kg (with accessories)
Operating Environment: 0–50°C, 5–90% RH (non-condensing)

Typical Application Scenarios

Firewall & Security Gateway: Suitable for pfSense, OPNsense, and Linux-based firewall systems.
Multi-LAN Router: Ideal for network segmentation, VLAN routing, and traffic control.
Industrial Network Gateway: Reliable connectivity for industrial Ethernet and control systems.
Edge Network Appliance: Compact platform for branch offices and distributed network deployments.
Legacy Platform Replacement: Cost-effective solution for upgrading existing Intel Core-based network devices.
