1U-B760-14400-8L

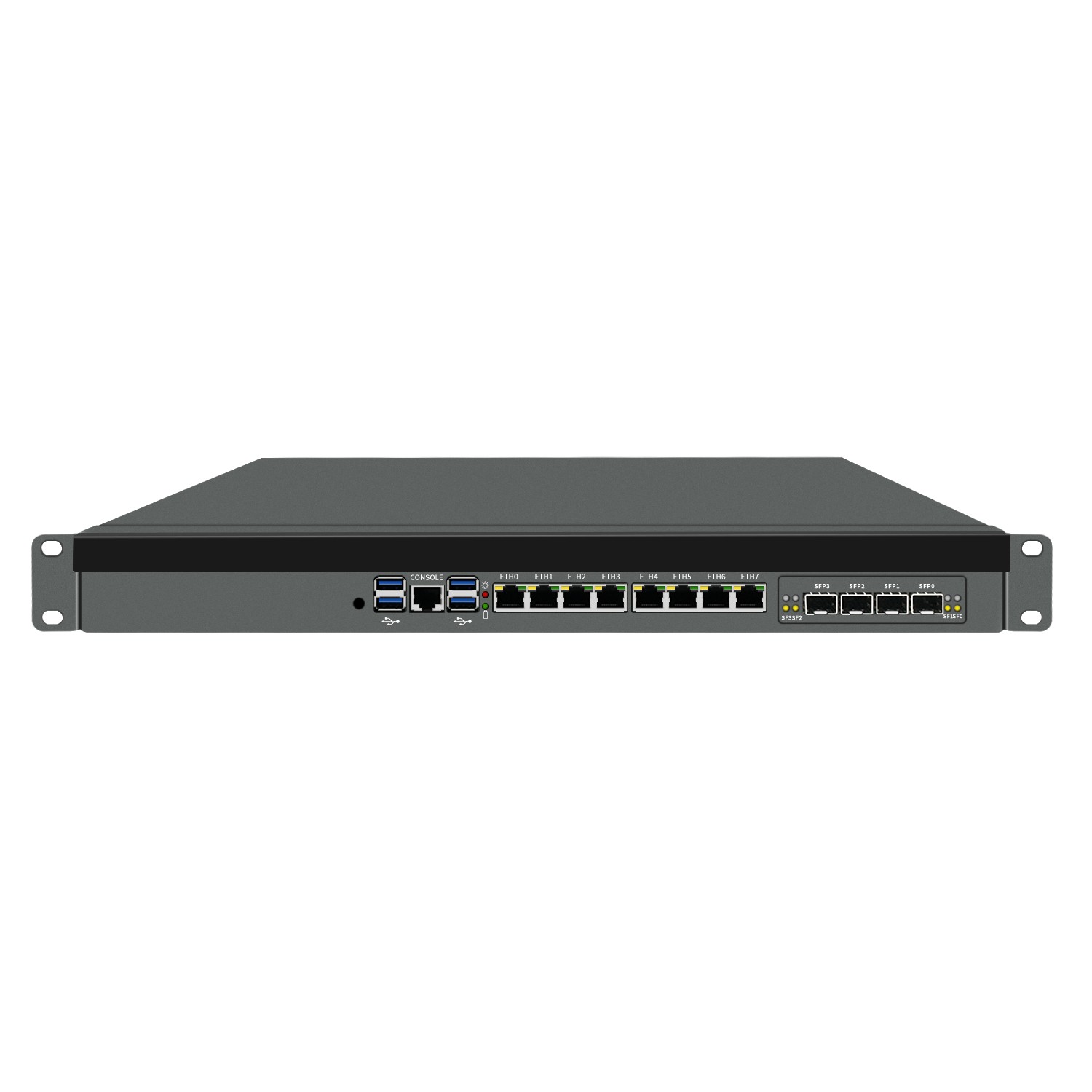

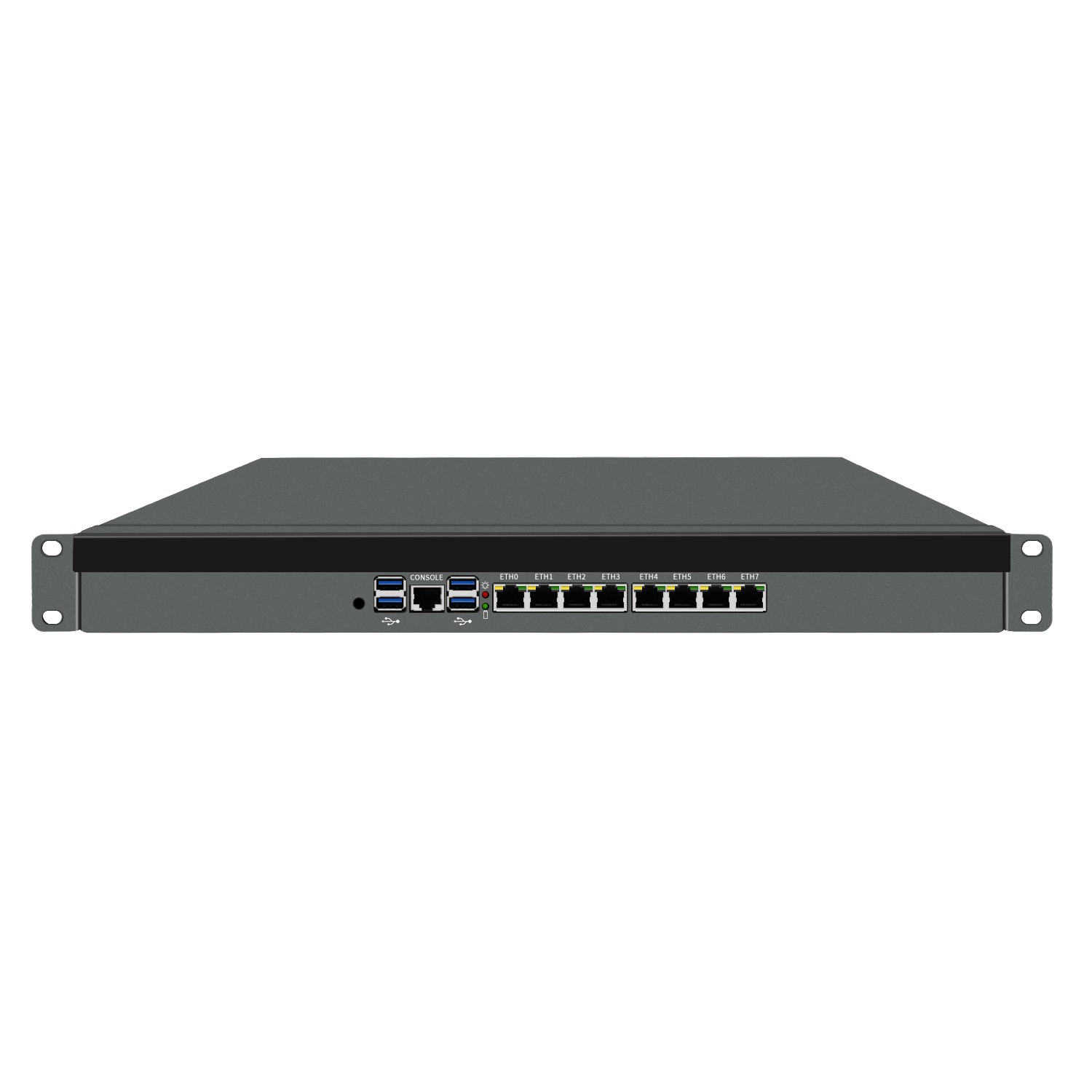

The 1U-B760-8L is a high-performance 1U rack-mount server based on the Intel B760 chipset, supporting Intel 12th, 13th, and 14th Generation processors. It integrates 8x 2.5GbE high-speed network ports on the front panel and offers dual PCIe expansion capabilities. With exceptional network density, powerful computing performance, and a comprehensive cooling system, it is an ideal solution for enterprise network cores, data center edge nodes, and high-load network applications.

Place an order

Key Features

Processor: Supports 12th/13th/14th Gen Intel® Core™, Pentium®, and Celeron® processors (FCLGA1700)
Memory: 2× DDR5 SO-DIMM up to 96GB (2×48GB), 4800 MT/s
Storage: 4× SATA 3.0, 2× M.2 Key-M 2280 (PCIe Gen4 x4 / Gen3 x1)
Networking: 8× 2.5GbE RJ45 (Intel I226V controller)
Expansion:

1× PCIe x16 (PCIe 5.0)
1× PCIe x4 (PCIe 4.0)
1× M.2 Key-B 3052 (USB 3.0 signal)
2× mPCIe (PCIe 3.0 + USB 2.0 signal)

USB: 4× USB 3.2 (front panel)
Console: 1× RJ45 COM
Display: 1× VGA / 1× HDMI (reserved)
Cooling: Active cooling with 1× CPU fan + 2× chassis fans
Power: AC 80–264V input with PFC, DC 24V output
Chassis: 440 × 255 × 45 mm; Weight: 3.65 kg (net), 4.50 kg (with accessories)
Environment: Operating 0–50℃; Humidity 5–90% RH (non-condensing)

Application Scenarios

Firewall & Security Gateway: Multi-LAN network security solutions using pfSense or OPNsense
VPN / SD-WAN: Secure branch connectivity and load balancing for enterprise networks
Virtualization Server: Runs lightweight VMs or containers for network and cloud applications
Edge Computing: Localized processing and secure traffic control at network edge
Data Center & SMB Infrastructure: Reliable 24/7 performance in rackmount environments
