G31F 1265U 6L

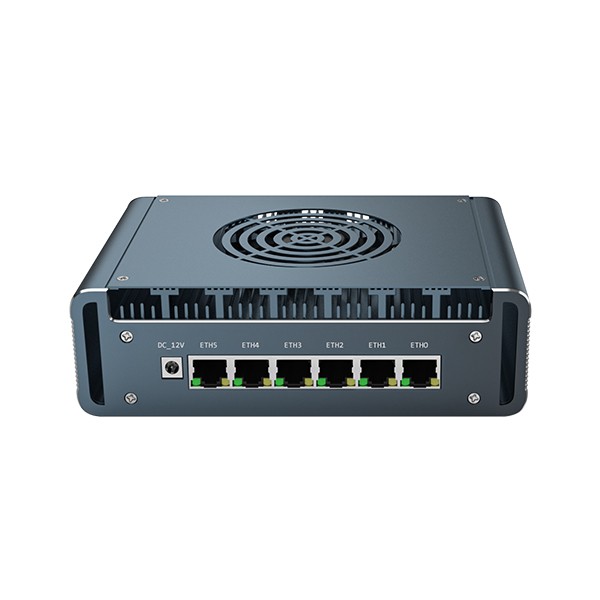

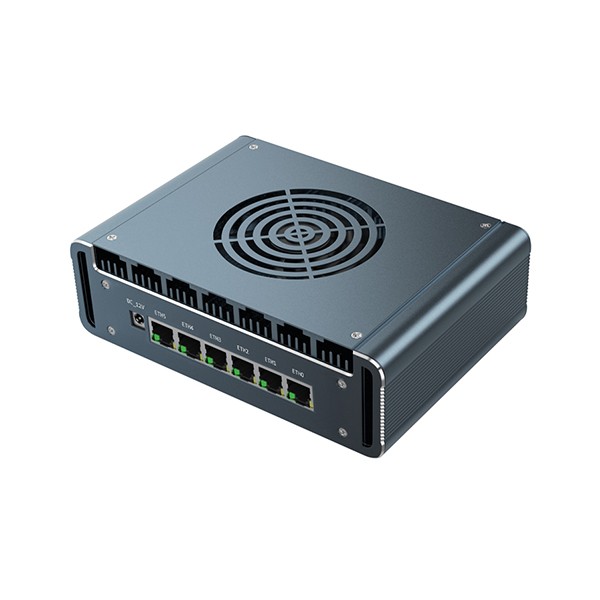

The G31F-1744NP-6L is a high-performance embedded network appliance powered by 12th/13th Gen Intel processors. It supports dual-channel DDR5 memory and integrates 6x 2.5Gb Ethernet ports. Built with a durable metal chassis and an intelligent temperature-controlled cooling system, it combines exceptional computing power, outstanding network performance, and smart thermal management. It is ideally suited for firewalls, SD-WAN, virtualization nodes, and edge computing gateways that demand superior performance and long-term stability.

Place an order

Key Features

Processor: Intel® 12th/13th Gen (FCBGA1744)
Memory: DDR5 SO-DIMM up to 64GB (2×32GB), 4800 MT/s
Storage: 1× SATA 3.0, 1× M.2 Key-M 2280
Networking: 6× RJ45 1GbE ports
USB: 4× USB-A 3.0 (rear)
Console: 1× RJ45 COM (rear)
Display: 1× DP, 1× HDMI
Wireless Expansion: 1× M.2 Key-E 2230 (CNVi), 1× mPCIe (PCIe 3.0)
Cooling: Active cooling with intelligent TPM fan
Chassis: 178 × 126 × 56 mm; Weight: 1.25 kg (net), 1.95 kg (with accessories)
Power: DC 12V—7A (Pentium) / 10A (Core), 5.5/2.5 mm jack
Environment: Operating 0–50℃; Humidity 5–90% RH (non-condensing)

Application Scenarios

Firewall & Security Gateway: pfSense/OPNsense for multi-port secure routing and UTM
VPN / SD-WAN: Secure branch connectivity and remote access with consistent performance
Edge Computing: Local data processing and policy enforcement at the network edge
IoT & Wireless Gateways: CNVi Key-E and mPCIe for Wi-Fi/LTE modules and sensor backhaul
24/7 SMB Deployments: Active cooling supports continuous operation in compact spaces
