G30 J5005 4L

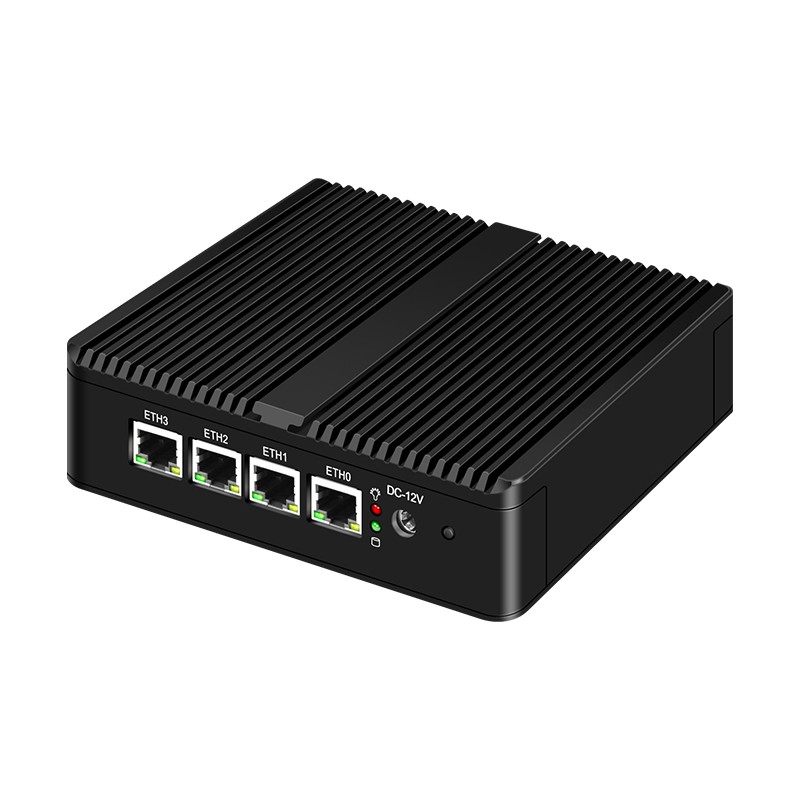

The G30 J5005 4L is an ultra-compact fanless embedded industrial PC based on the Intel Gemini Lake / Gemini Lake-R platform.  It integrates 4 × 2.5GbE RJ45 ports, low-power computing performance, flexible storage options, and an mPCIe expansion interface  in a compact metal chassis. With passive cooling and reliable network connectivity, it is designed for long-term operation in  industrial and embedded network environments.

Key Features

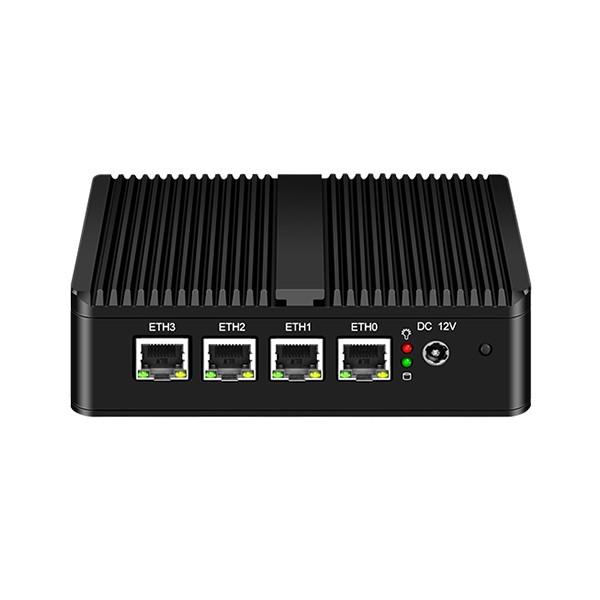

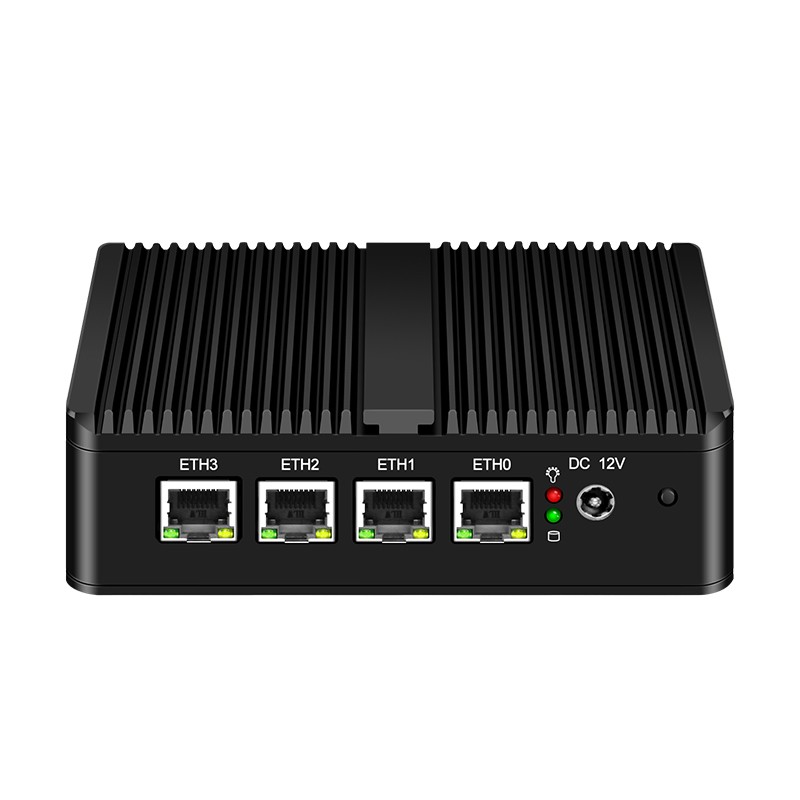

• 4 × 2.5GbE RJ45 Ports: Built with 4 Intel I226V Ethernet controllers for high-speed and reliable network connectivity.

• Low-Power Platform: Based on the Intel Gemini Lake / Gemini Lake-R platform for energy-efficient 24/7 operation.

• Fanless Cooling Design: Passive cooling structure reduces noise, dust intake, and mechanical wear.

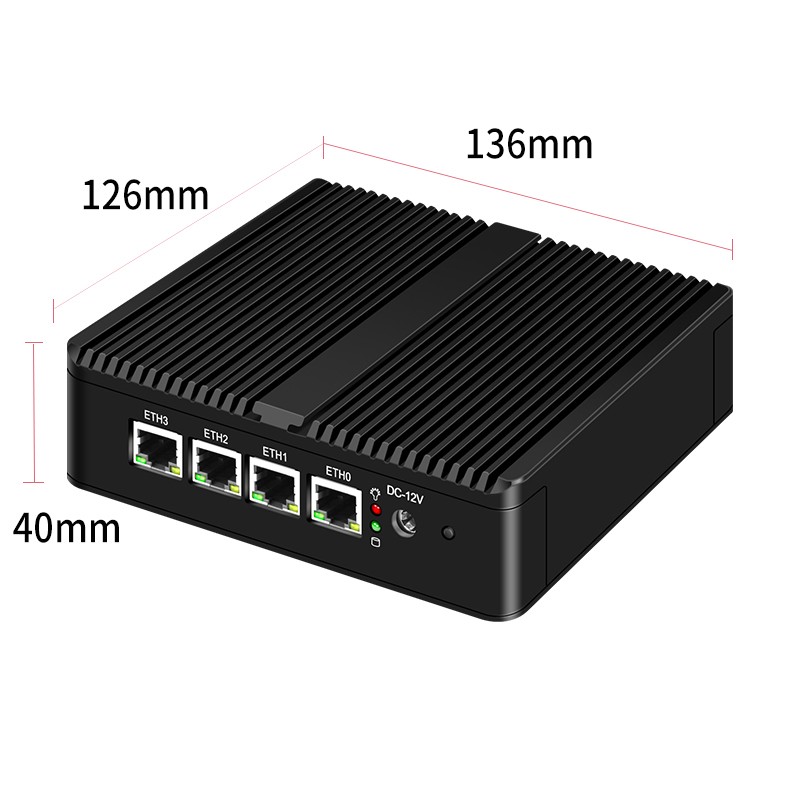

• Ultra-Compact Chassis: The system measures approximately 136 × 126 × 40 mm, making it suitable for space-constrained installations.

• Flexible Storage: Supports 1 × SATA 2.0 and 1 × mSATA for system and data storage configurations.

• Expansion Capability: Includes 1 × mPCIe slot for wireless modules or other expansion requirements.

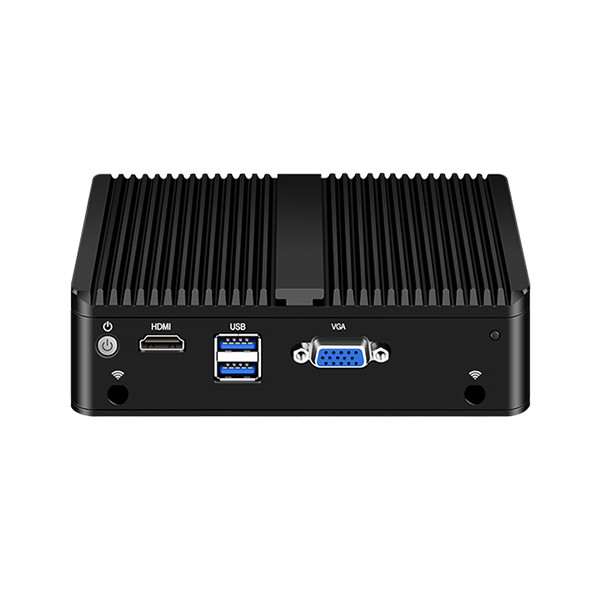

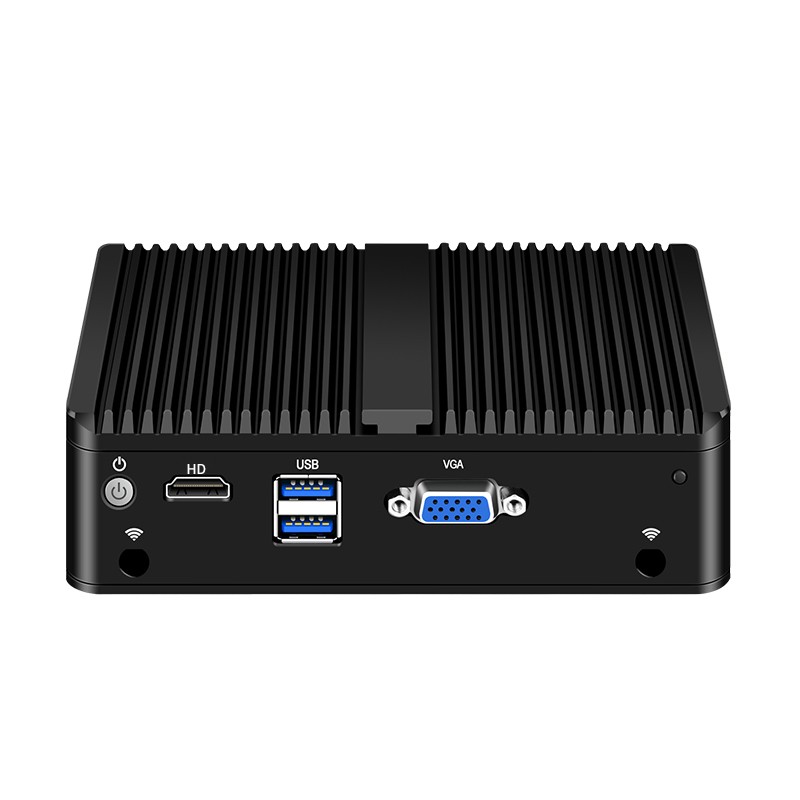

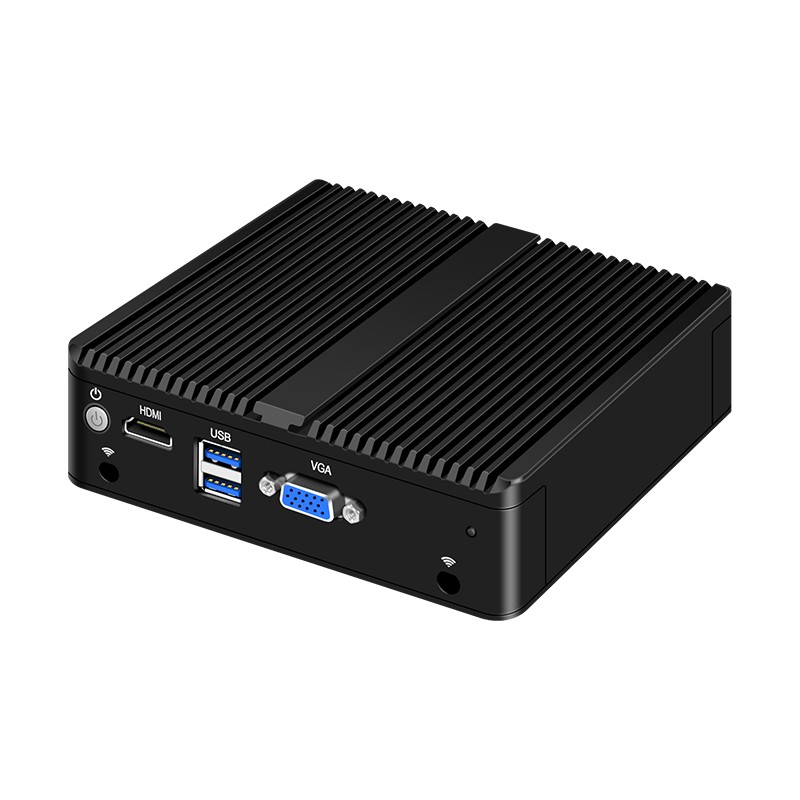

• Dual Display Output: Supports VGA and HD display output for local maintenance, setup, and monitoring.

Core Specifications

• Model: G30 J5005 4L

• Platform: Intel Gemini Lake / Gemini Lake-R

• Socket: FCBGA1090

• Memory: DDR4 SO-DIMM, up to 8GB, up to 2400MHz

• Network: 4 × 2.5GbE RJ45, Intel I226V controllers

• Storage: 1 × SATA 2.0, 1 × mSATA

• USB: 2 × USB-A 3.0

• Display: 1 × VGA, 1 × HD

• Expansion: 1 × mPCIe

• Power Input: DC 12V 4A or higher

• Cooling Method: Passive cooling, fanless design, airflow recommended

• Chassis Size: 136 × 126 × 40 mm

• Operating Temperature: 0°C to 50°C

• Operating Humidity: 5% to 90% relative humidity, non-condensing

Application Scenarios

• Cybersecurity appliances

• IoT edge gateways

• Industrial control automation

• Embedded terminals

• Multi-port network routing and edge computing

• Compact cabinet and space-limited deployments
