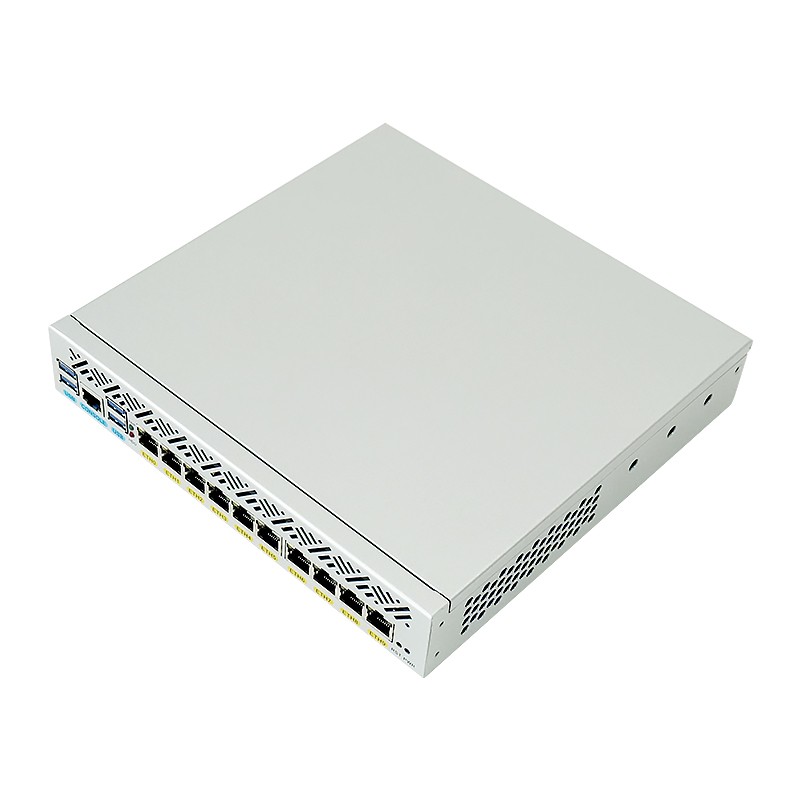

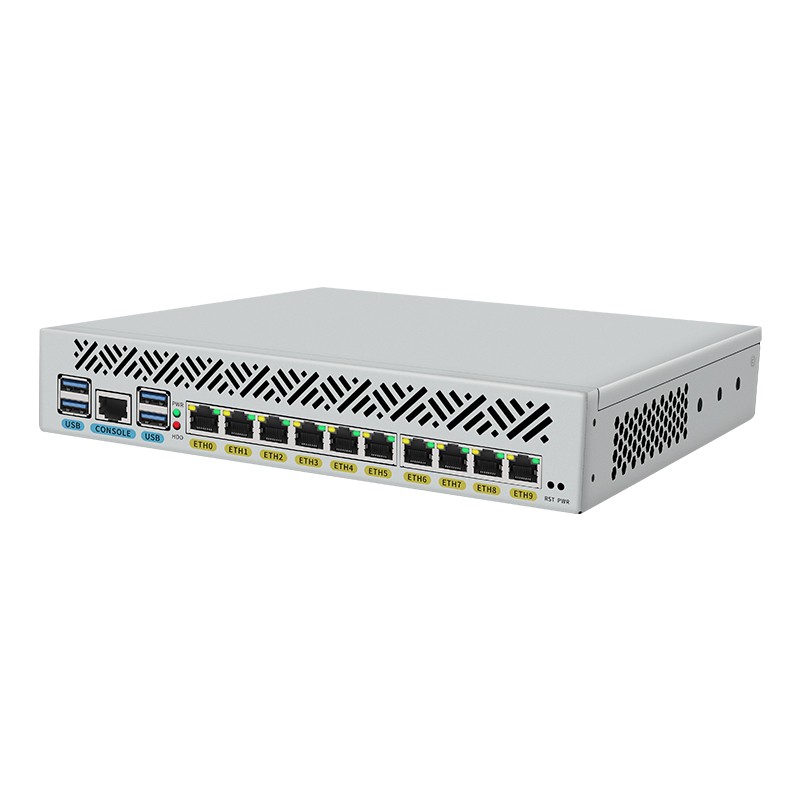

OTS 10510U 10L

The OTS 10510U 10L is a compact networking device powered by an 10th-gen Intel Core i7-10510U processor. It integrates 10 Gigabit Ethernet ports, supports dual-channel DDR4 memory, features industrial-grade thermal design, and a slim metal chassis. This device is ideal for building software routers, firewalls, and multi-WAN network gateways for small and medium-sized businesses. Equipped with extended rack-mount ears, it can be installed in standard server racks.

Place an order

Key Features

Processor Platform: 8th / 10th Gen Intel® Core™ processors, FCBGA1528
Memory: DDR4 SO-DIMM, up to 2×32GB (64GB total), up to 2400/2666 MT/s
High-Density Networking: 10× RJ45 Ethernet ports for routing, firewalling, VLAN segmentation, and multi-WAN designs

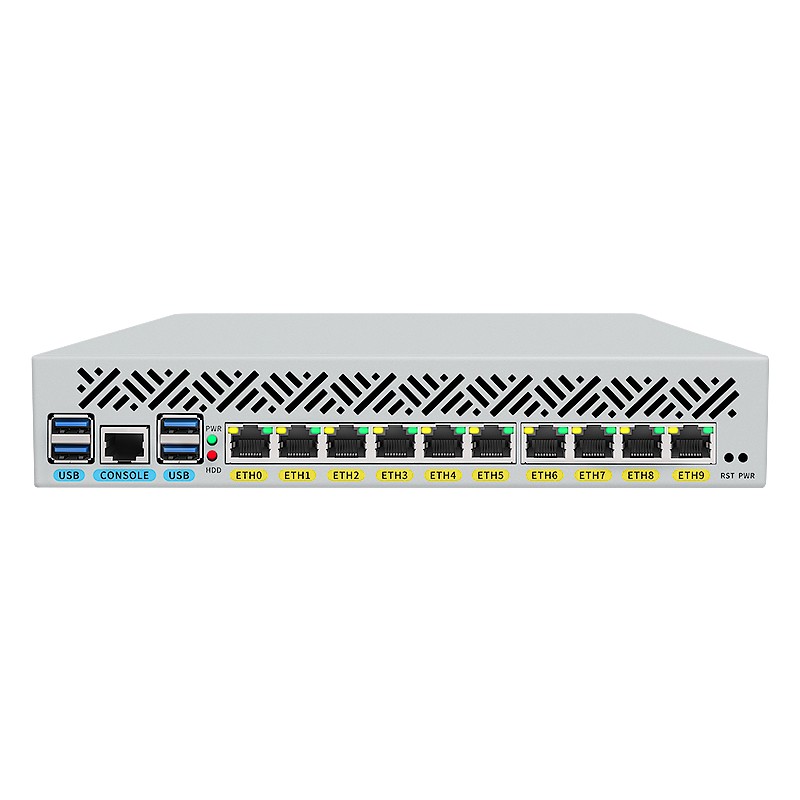

Front Panel I/O:

10× RJ45 Ethernet
2× USB-A 3.0
1× RJ45 console port (RS232)
Power button + Reset button

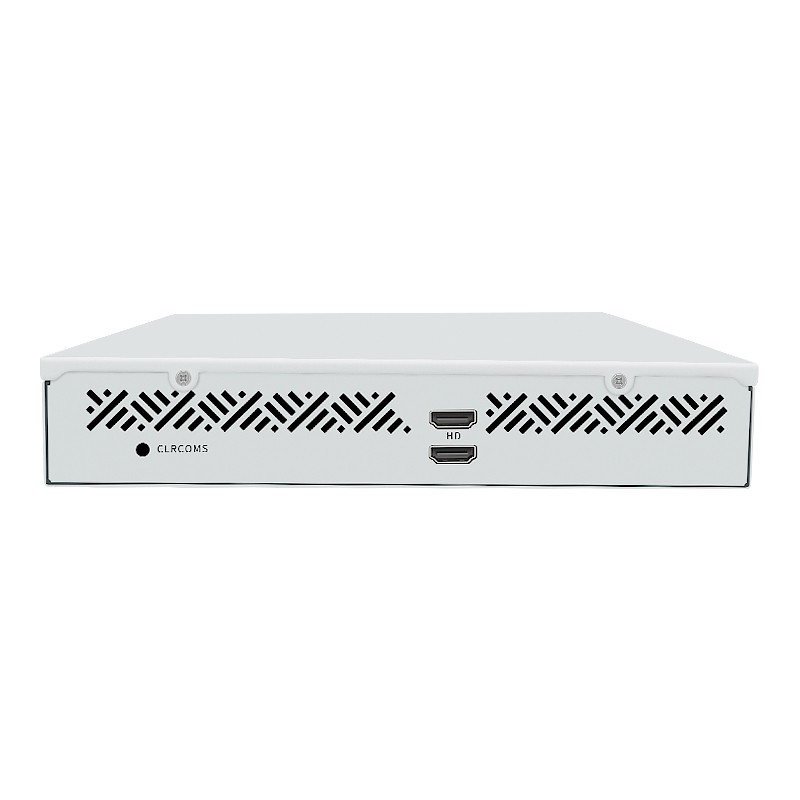

Rear Panel I/O:

Clear CMOS button
2× HD display outputs
Reserved antenna set

Storage: 1× mSATA slot for compact SSD storage
Expansion: 1× mPCIe slot (USB 2.0 signal) for wireless/functional modules
Cooling: Active cooling with dedicated CPU fan
Power Input: DC 12V, 4A or higher (DC jack)
Chassis Size: 240 x 235 x 43 mm
Weight: 1.55 kg (net), 3.20 kg (with accessories)
Operating Environment: 0–55°C, 5–90% RH (non-condensing)

Typical Application Scenarios

Next-Gen Firewall / UTM Appliance: Ideal platform for pfSense/OPNsense and commercial security software.
Multi-WAN Enterprise Router: 10 LAN ports support multi-WAN, policy routing, and traffic shaping.
Network Segmentation & VLAN Gateway: Suitable for branch offices, retail chains, and campus edge segmentation.
Industrial Edge Networking: Reliable appliance for industrial Ethernet aggregation and secure connectivity.
SD-WAN / Remote Office Edge: Supports flexible port allocation for SD-WAN endpoints and remote sites.
