B760-6LAN Motherboard

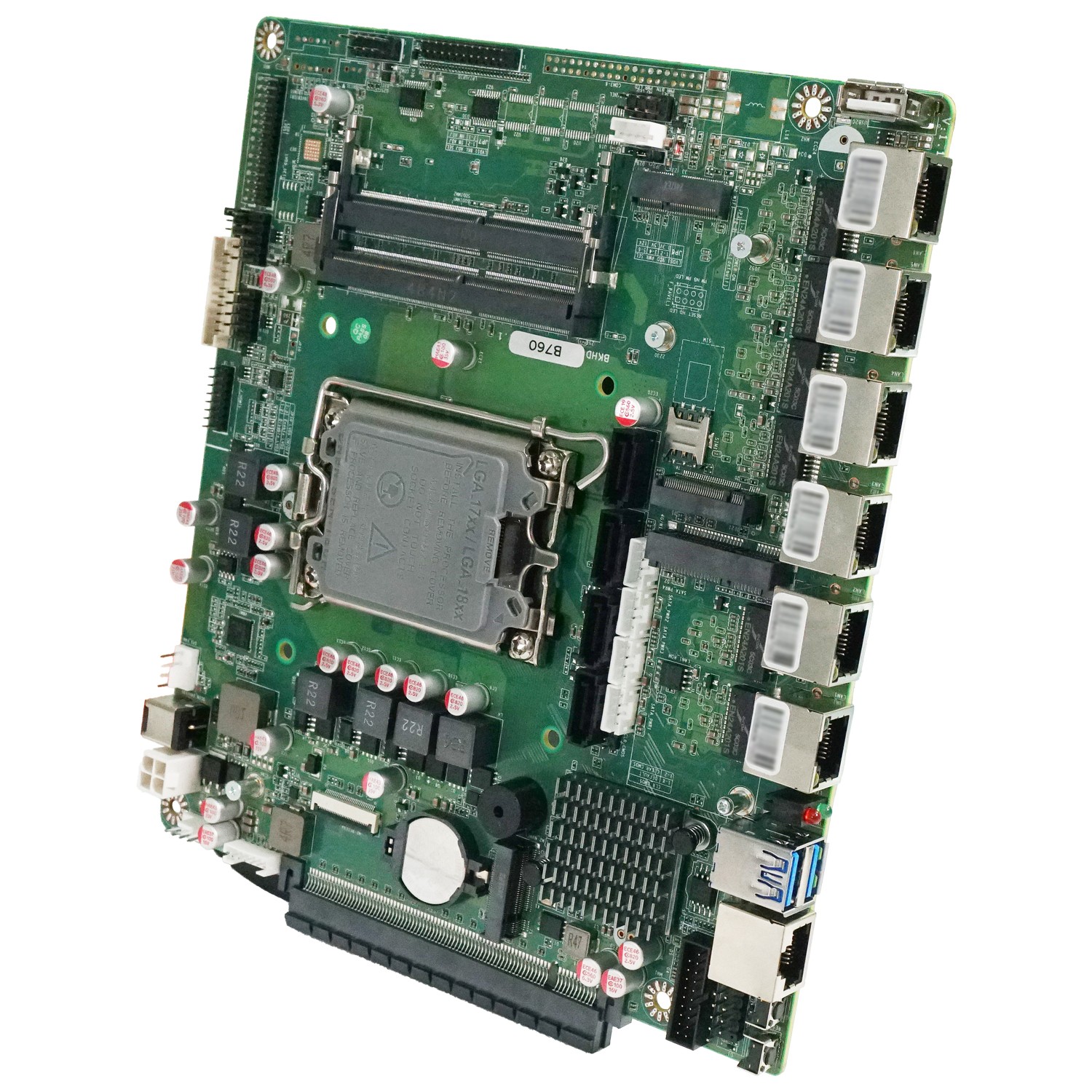

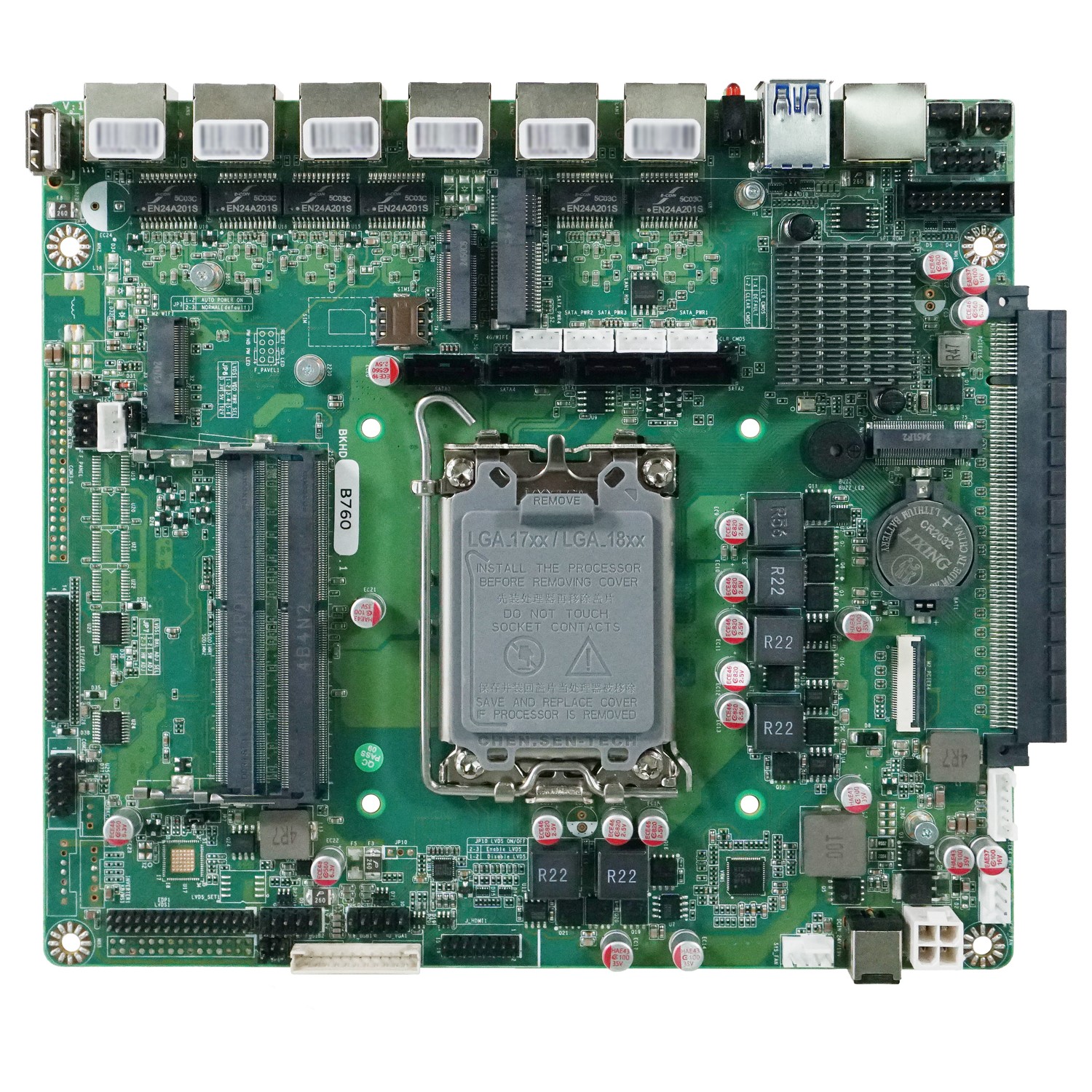

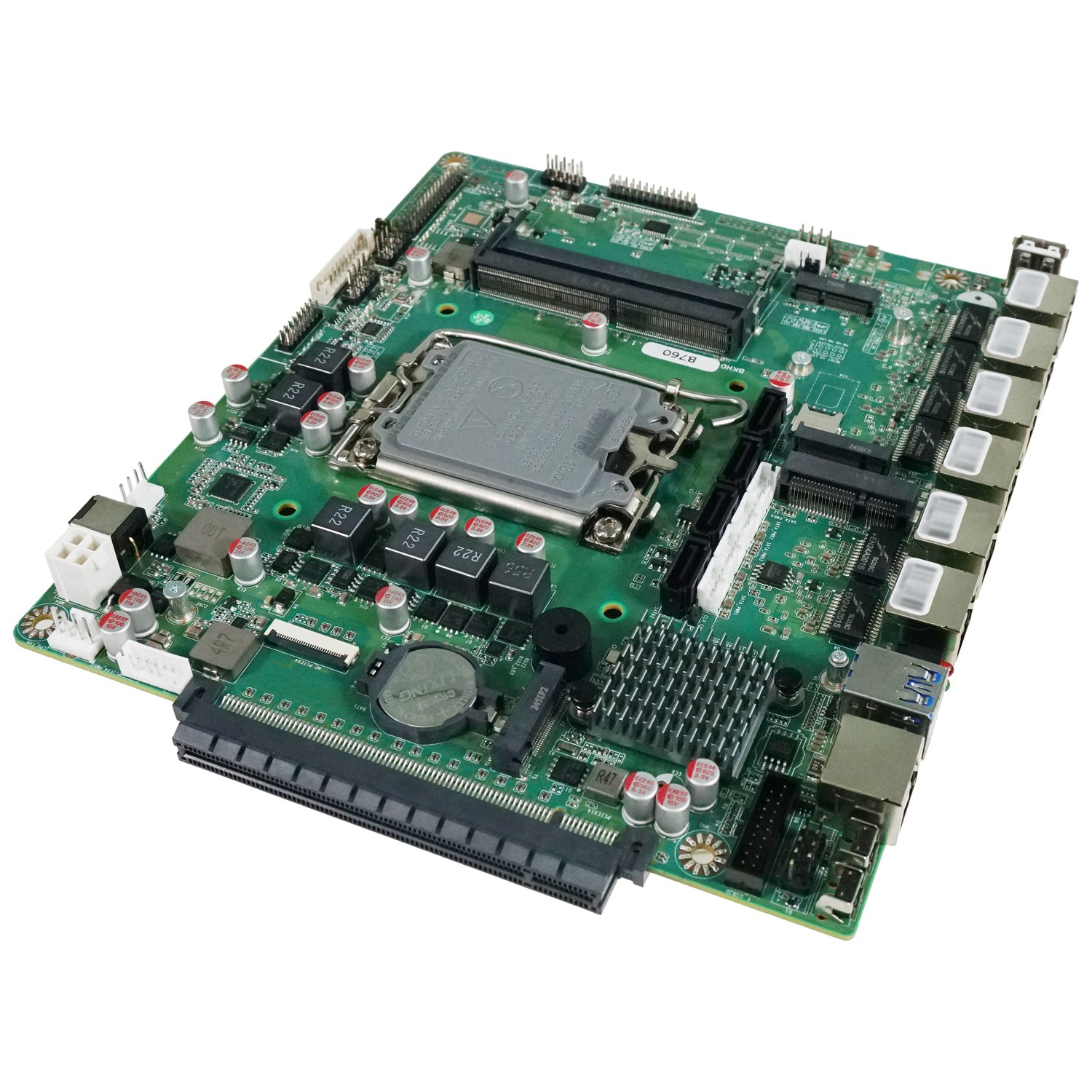

The BKHD B760-6LAN is a high-performance industrial network motherboard based on the Intel B760 chipset, supporting 12th, 13th, and 14th Gen Intel processors. It features 6 × Intel I226V 2.5GbE LAN ports, dual DDR4 SO-DIMM memory slots up to 64GB, PCIe 5.0 expansion, 1 × M.2 Key-M 2280 slot, 4 × SATA 3.0 ports, M.2 Key-E, M.2 Key-B 3052, mPCIe, Nano SIM slot, COM, GPIO/LPT, I2C, and TPM interfaces. With strong computing performance, flexible expansion, and industrial I/O support, it is suitable for enterprise security gateways, firewall appliances, edge computing nodes, industrial automation systems, and customized high-performance network platforms.

Place an order

Core Specifications

Model: B760-6LAN
Processor Platform: Intel 12th/13th/14th Gen Processor
Chipset: Intel B760
Socket: FCLGA1700
Motherboard Size: 180 × 200 mm
Memory: 2 × DDR4 SO-DIMM, up to 2 × 32GB, up to 3200 MT/s
Storage: 4 × SATA 3.0, 1 × M.2 Key-M 2280
M.2 Storage: 1 × M.2 Key-M 2280, PCIe Gen4 x4
Network: 6 × 2.5GbE RJ45, Intel I226V controllers
Expansion: 1 × PCIe x16, PCIe 5.0; 1 × PCIe x4 via FPC cable
Wireless and Module Expansion: 1 × mPCIe with USB 2.0 signal, 1 × M.2 Key-E 2230, 1 × M.2 Key-B 3052 with USB 3.0 signal, 1 × Nano SIM slot
Display: 1 × J_VGA, 1 × J_HD, 1 × J_eDP or J_LVDS, display function depends on the processor

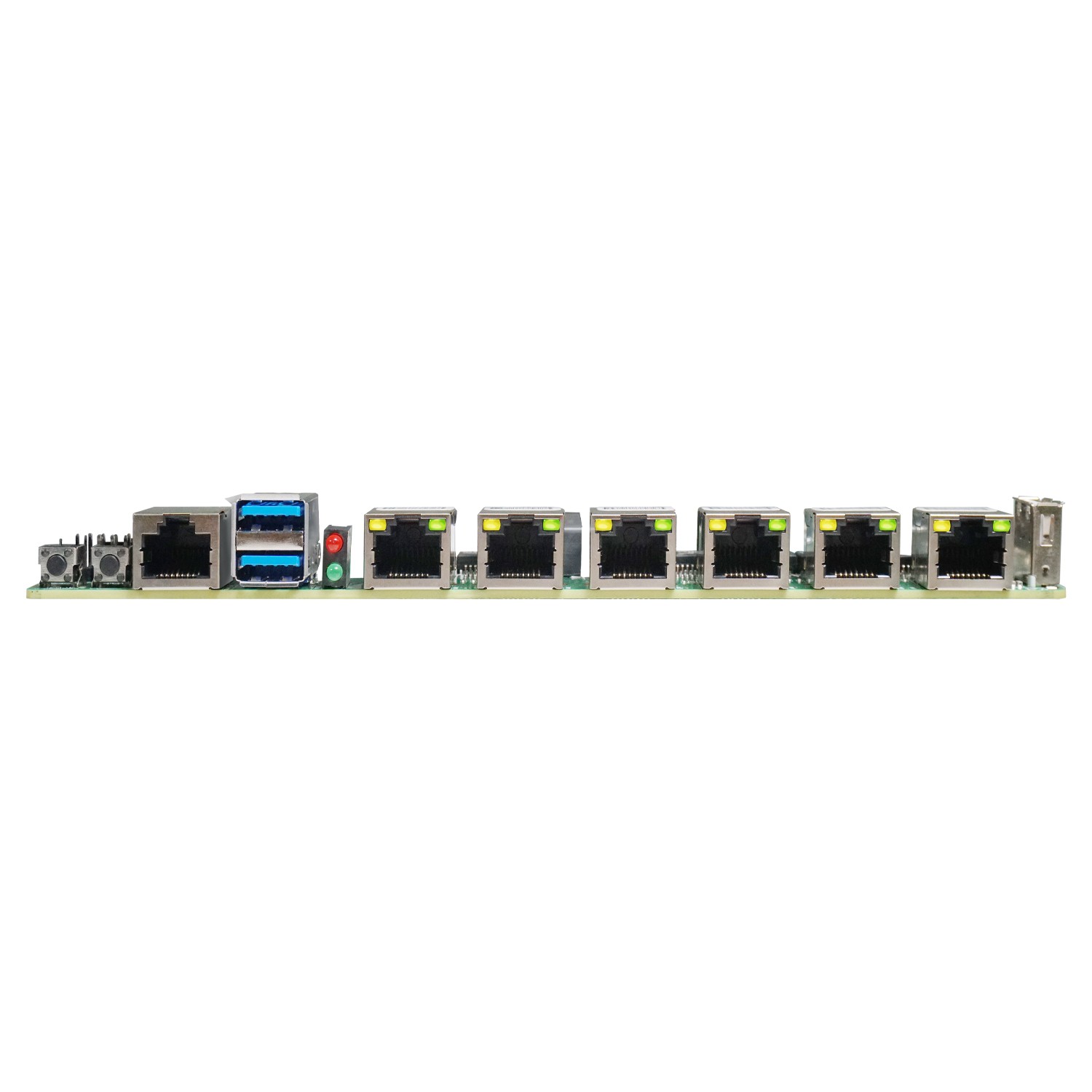

Rear I/O: 2 × USB-A 3.2 10Gb/s, 1 × RJ45 COM-RS232, 6 × RJ45, 1 × DC 5.5/2.5mm
Onboard I/O: 4 × SATA data connectors, 4 × SATA power sockets, 1 × USB-A 2.0, 1 × F_PANEL, 1 × J_COM 2, 1 × J_COM 3-6, 1 × F_USB 3.0, 2 × F_USB 2.0, 1 × J_GPIO or J_LPT, 1 × J_I2C, 1 × J_KB/MS, 1 × J_TPM
Fan Headers: 1 × CPU_FAN, 1 × SYS_FAN
Power Input: DC 19/24V, 1 × ATX 4-pin Connector or 1 × Jack DC 24V
Operating Temperature: -20°C to 60°C
Operating Humidity: 0% to 90% relative humidity, non-condensing

Product Features

Supports Intel 12th, 13th, and 14th Gen processors for high-performance network and edge applications.
Integrated 6 × Intel I226V 2.5GbE LAN ports for medium-to-high-density multi-port network deployment.
Dual DDR4 SO-DIMM slots support up to 64GB memory for multitasking and demanding workloads.
PCIe 5.0 x16 expansion and PCIe x4 expansion via FPC cable support flexible project customization.
1 × M.2 Key-M 2280 and 4 × SATA 3.0 ports provide options for system drives and local data storage.
M.2 Key-E, M.2 Key-B, mPCIe, Nano SIM, COM, GPIO/LPT, I2C, and TPM interfaces support industrial customization.
DC 19/24V power input and wide-temperature support enable stable long-term industrial operation.
