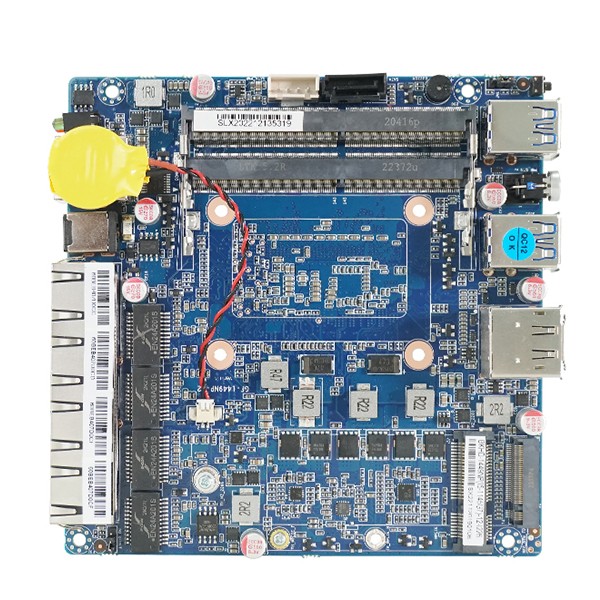

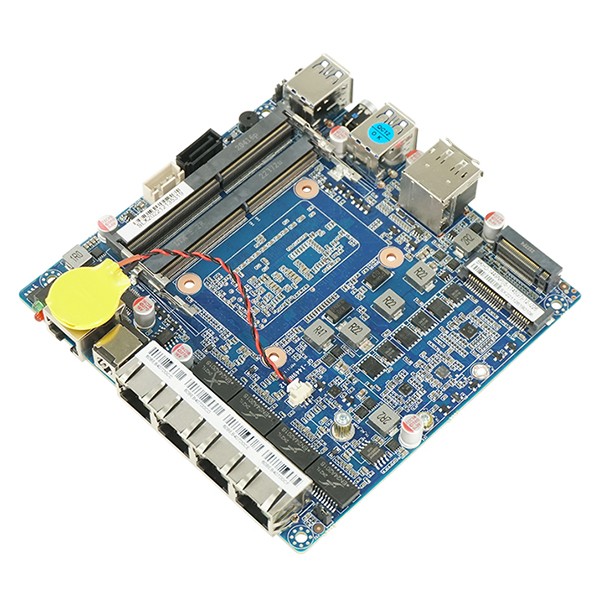

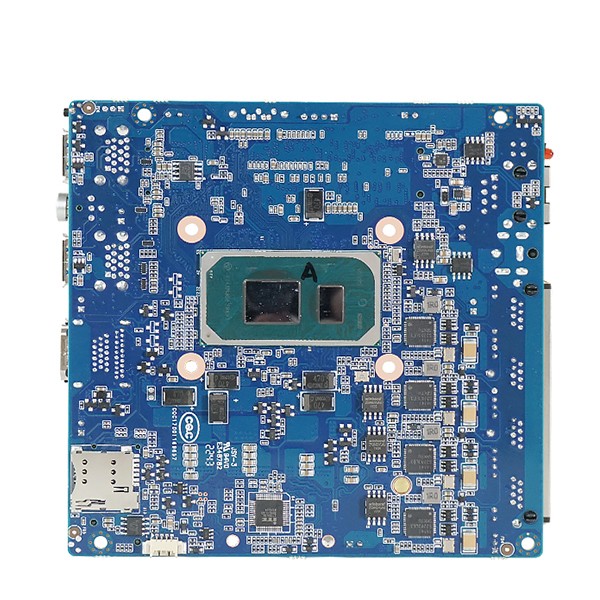

1449NP-12-4L MB

Brand BKHD
Model BKHD 1449NP-12-4L
Chipset BKHD-1449NP-12-4L
Network port 4*Intel i226 2.5G
Memory 2*DDR4 SO-DIMM
Storage 1*NVMe/1*SATA
Expandable 1*mPCIe for WiFi/BT/4G module
Video output 1*DP/1*HD
Power Adapter DC 12V

Optional Processor

Pentium 7505 Cores: 2 Threads: 4
Core i3-1115G4 Cores: 2 Threads: 4
Core i5-1135G7 Cores: 4 Threads: 8
Core i7-1185G7 Cores: 4 Threads: 8

Related Attachments (Click to download)

Motherboard Specifications

BIOS file

Product Features:

Equipped with the 11th generation Tiger Lake series processor, a variety of performance options from basic to high-end, you can choose the appropriate processor configuration according to your needs to adapt to different application requirements.
Equipped with 4 Intel i226 chips, it provides up to 2.5Gbps network bandwidth and is backward compatible with 10/100/1000Mbps to meet the needs of high-speed data transfer.
Supports dual-channel DDR4 SO-DIMM, supports up to 64GB memory, and provides stable performance and efficient data processing capabilities.
Supports 1 high-speed NVMe SSD interface, 1 traditional SATA interface, and 1 compact mSATA storage interface, providing flexible storage solutions to meet various storage needs.
Offers 1 mPCIe interface to support WiFi, Bluetooth, or 4G expansion modules, providing flexible connectivity options to adapt to a variety of network environments and application scenarios.
Provides 1 DP and 1 HD video output port. Supports multi-monitor configuration, suitable for application scenarios requiring high-resolution display.

Application scenarios:

Virtualization Server: Powerful processors and large memory are ideal for virtualization applications and provide an efficient operating platform for multiple virtual machines.
Firewalls and routers: Multiple 2.5G network card configurations and high-performance processing capabilities enable enterprise-class firewalls and routers for high-performance network security and traffic management.
Industrial control systems: High-performance processors and multiple network card configurations are suitable for industrial data acquisition and processing, providing a highly reliable, low-latency control system.
IoT Gateway: Suitable as an IoT gateway to connect and manage multiple IoT devices, process and transmit data.
Data Acquisition and Processing: Multiple high-speed network interfaces and powerful processing capabilities make it suitable for industrial data acquisition and processing tasks.
Digital Signage: The compact design and multiple video output ports are suitable for digital signage and advertising displays, providing high-definition content playback.
Self-service terminal: It can be used as the core computing device of the self-service terminal, providing high performance and low power computing capabilities.
Multimedia Server: As a home media server, the processor's powerful decoding capabilities enable streaming media services and high-definition content playback.
Edge computing: As an edge computing node, it provides localized data processing and storage, reducing latency and bandwidth consumption.
