G31 1449 2L

Brand BKHD
Model G31 1449 2L
Chipset BKHD-1449-12
Network port 2*1GbE RJ45 RTL8111
Memory 2*DDR4 SO-DIMM
Storage 1*NVMe/1*SATA
Expandable 1*mPCIe for WiFi/Bluetooth/4G
Video output 1*VGA/1*HDMI
Power Adapter DC 12V-7/10A

Optional Processor

Model: Core i3-1115G4/ i5-1135G7/ i7-1165G7

Cores: 2/4/4

Threads: 4/8/8




Related Attachments (Click to download)

Product Manual

Product Specifications

BIOS file



Product Features:

The G31 1449 2L fanless mini host is an industrial computer with exquisite design and powerful performance. It is an ideal choice for application scenarios such as industrial automation, data collection, and the Internet of Things. Equipped with the optional Tiger Lake series Core i3, i5, or i7 processor, it provides users with an excellent ratio of computing power and power consumption to meet the performance needs of various users.

In terms of memory, the device can support up to 64GB of dual-channel DDR4 memory, ensuring fast and effective multitasking capabilities. For storage needs, this host has 1*NVMe slot, 1*mSATA slot, and 1*SATA slot built-in, providing users with flexible storage options and ensuring high-speed data reading and writing capabilities.

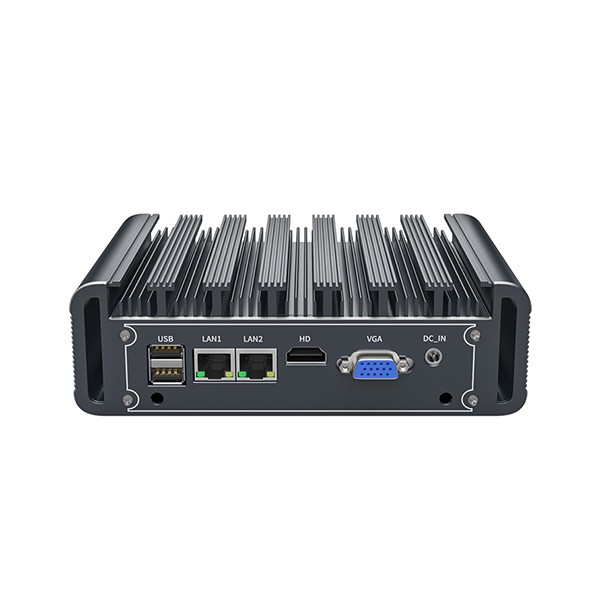

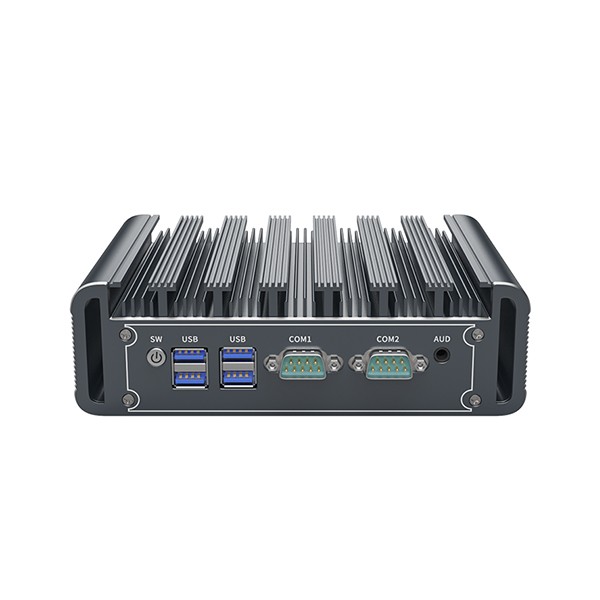

In terms of display output, it supports VGA and HDMI dual displays, which can achieve synchronous or asynchronous output, greatly enhancing the flexibility of multi-tasking and display. In addition, the 2*COM ports support RS232 and RS485 protocols and can be switched by jumper, providing convenience for different industrial communication needs.

In addition, the device is equipped with 4*USB 3.0 interfaces and 2*USB 2.0 interfaces, which can connect more peripheral devices, further expanding its application range. The fanless design not only ensures efficient heat dissipation of the equipment in a compact space, but also means continuous and stable operation in industrial environments, reducing maintenance costs.

With excellent performance, high scalability, and stable operating efficiency, this fanless mini-host has become the product of choice for industrial automation, data collection, and IoT solutions. Whether you need high-performance computing, robust data transfer, or flexible storage solutions, we can meet your needs.
