G30S 1338 2L

Brand BKHD
Model G30S 1338 2L
Chipset BKHD-1264-12
Network port 2*1GbE RJ45 RTL8111
Memory 1*DDR4 SO-DIMM
Storage 1*NVMe/1*mSATA/1*SATA
Expandable 1*M.2 2230 for WiFi/Bluetooth
Video output 1*DP/2*HDMI
Power Adapter DC 12V-4A

Optional Processor

Model: Celeron N4500/N5105/Pentium N6000

Cores: 2/4/4

Threads: 2/4/4



Related Attachments (Click to download)

Product Manual

Product Specifications

BIOS file



Product Features:

With today's demand for high performance, reliability and stability, the G30S 1338 2L fanless mini host with its excellent design and performance provides ideal solutions for industrial control, data acquisition, Internet of Things, machine vision and other application scenarios.

Equipped with the Jasper Lake Series Celeron N4500/N5105/ Pentium N6000 processor, it delivers powerful computing performance with low power consumption, ensuring efficient operation and long-term system stability.

It supports dual-channel DDR4 SO-DIMM memory and can support up to 16GB of memory capacity, providing ample space and smooth experience for processing large amounts of data. The device is equipped with 1*NVMe and 1*SATA slot, providing users with flexible storage options to meet high-speed storage solutions for various application needs.

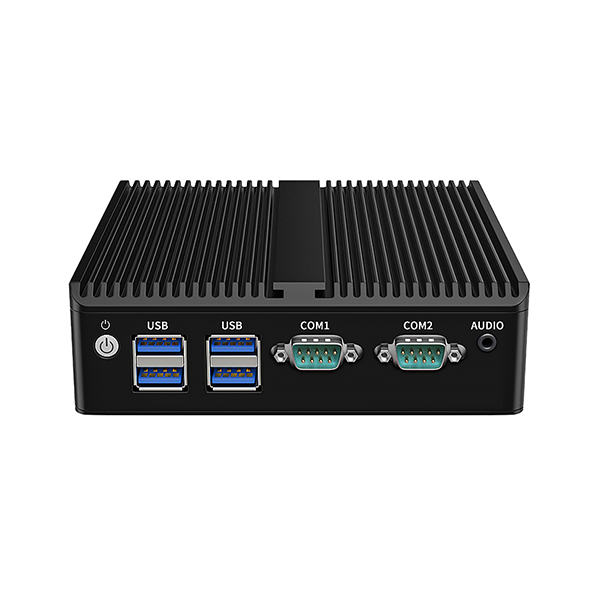

The interface configuration of the device is also eye-catching, including 2*COM ports supporting RS232/RS485 protocols. 2*HDMI and*1 DP display interface not only ensure rich peripheral connection capabilities, but also ensure high-quality image output, adapting to multi-screen display and complex visual processing requirements.

The fanless design not only reduces noise, but also greatly improves the reliability and lifetime of the equipment. It is especially suitable for industrial environments and intensive task processing that require long-term stable operation. Whether in industrial automation, intelligent monitoring, IoT integration, or data management and analysis, the devices provide excellent performance and stable support.
