989G 8L2F 4S

Brand BKHD
Model 1U 989Grey 8L2F 4S
Chipset HM77
Network port 8*1GE Intel NIC
2*intel i350 1G SFP
4*intel X710 10G SFP
Memory 1*DDR3L-SODIMM
Storage 1*mSATA/1*SATA
Expandable 1*mPCIe for WiFi/Bluetooth
1*mPCIe for 4G
1*PCIe X8 Slot
Video output 1*VGA/1*HDMI (Opt)
Power Adapter ATX 100~240V IN 12V Out

Processor









Model

Core

Thread

Frequency

Core i3 2350M

2

4

2.3 GHz

Core i3 3110M

2

4

2.4 GHz

Core i5 3320M

2

4

2.6 GHz

Core i7 3520M

2

4

2.9 GHz



Memory(RAM)





Config

Capacity

NO RAM

0

DDR3L SO-DIMM

2GB/4GB/8GB





Storage 1(SSD)





Config

Space

NO SSD

0

mSATA SSD

16GB/32GB/64GB/128GB/256GB/512GB/1TB





Storage 2(SSD)





Config

Space

NO SSD

0

SATA SSD

64GB/128GB/256GB/512GB/1TB





Extension module(mPCIe





Config

Net

WiFi

WiFi

4G

LTE/4G





Related accessories (click to download)



Product manual



Product specification



BIOS file







Product features:

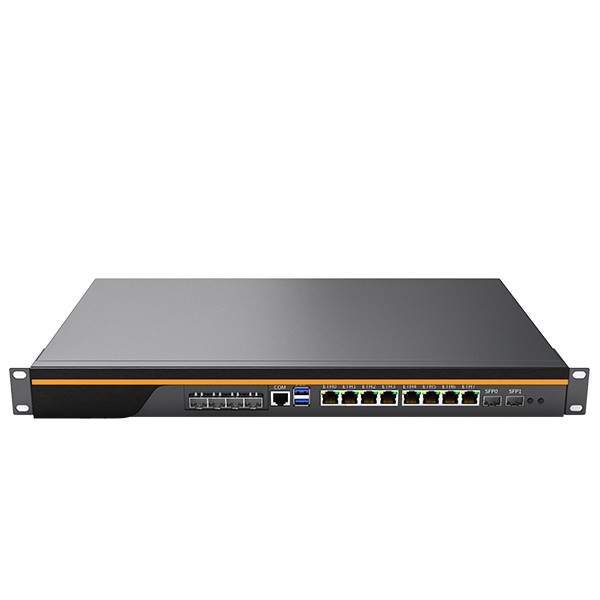

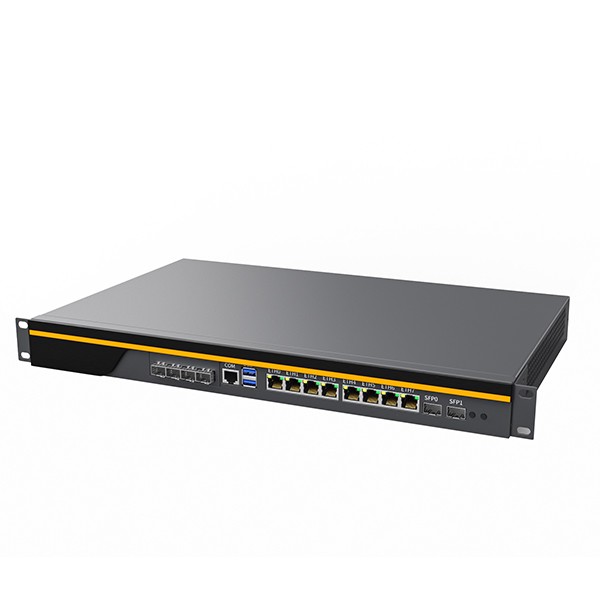

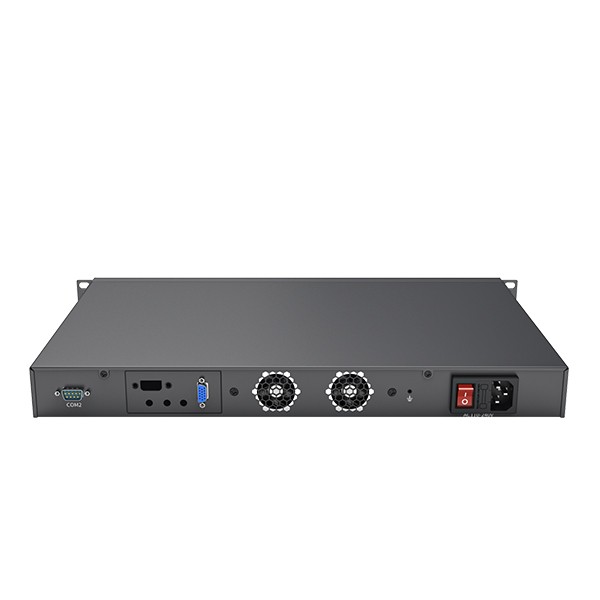

The BKHD 1U 989G 8L2F 4S is a rack-mountable network appliance with a built-in third-generation Intel Core processor (optional). The processor power consumption is only 35W. It is equipped with DDR3 memory and supports a maximum memory capacity of 8GB.


The device features a rack-mountable chassis design with a standard 19-inch 1U size, making it easy to install and manage in the cabinet. At the same time, it has the ability to adapt to a wide temperature environment and operate stably in the temperature range of -20 degrees Celsius to 60 degrees Celsius, ensuring the reliability and stability of the equipment.


X86 architecture design and excellent compatibility can widely support various operating systems and software. Whether you use various routing systems such as OPNsense, Pfsense, MikrotikOS, VyOS, or Windows desktop and server series, they can easily meet your working environment requirements.


Equipped with 8x Gigabit/2.5G Ethernet ports and using Intel adaptive network card technology, it provides excellent support for high-speed network data transmission. It can meet the needs of various scenarios such as high-speed home networking and enterprise-level networking, easily connect multiple devices, and achieve fast and stable data transmission.


Reliable security, supporting advanced security functions such as firewall and VPN. Protect your network from malicious attacks and unauthorized access. It's also highly scalable, supporting additional expansion slots and connections so you can upgrade and expand as needed.



Powerful routing and switching capabilities support dynamic routing protocols and multiple VLAN settings for efficient data transmission and traffic management. It also provides easy management and monitoring functions. Through an intuitive and easy-to-use interface, you can easily configure and manage the device, and monitor the status and performance of the network in real time.


Energy-saving and environmentally friendly, it adopts low-power design and complies with environmental protection standards. It can not only save energy and reduce operating costs, but also help reduce the impact on the environment.
