1U C246 8L

The 1U C246 8L is a high-density 1U rackmount 8-LAN network appliance based on the Intel C246 chipset. It supports FCLGA1151 processors and DDR4 SO-DIMM memory up to 64GB at 2666 MT/s. The system integrates 8 × Intel I226V 2.5GbE RJ45 ports and provides 2 × SATA 6Gb/s, 2 × M.2 Key-M 2280 SSD slots, PCIe x16, PCIe x8, M.2 Key-E, M.2 Key-B, mPCIe, VGA, reserved HD, RJ45 COM, USB 3.0, active cooling, and AC wide-voltage input. It is suitable for enterprise security appliances, lightweight servers, edge computing nodes, industrial IoT gateways, multi-port network management systems, and storage server applications.

Place an order

Core Specifications

Model: 1U-C246-8L
Processor Platform: Intel C246 chipset, supports FCLGA1151 platform processors
Memory: DDR4 SO-DIMM, up to 64GB, up to 2666 MT/s
Storage: 2 × SATA 6Gb/s, 2 × M.2 Key-M 2280 SSD
Network: 8 × 2.5GbE RJ45, 8 × Intel I226V controllers
I/O Chip: ITE IT8786E-I
PCIe Expansion: 1 × PCIe x16 at x8 rate; 1 × PCIe x8 at x4 rate
Module Expansion: 1 × M.2 Key-E 2230 with PCIe/USB signal; 1 × M.2 Key-B 3052 with USB signal; 1 × mPCIe with PCIe/USB signal

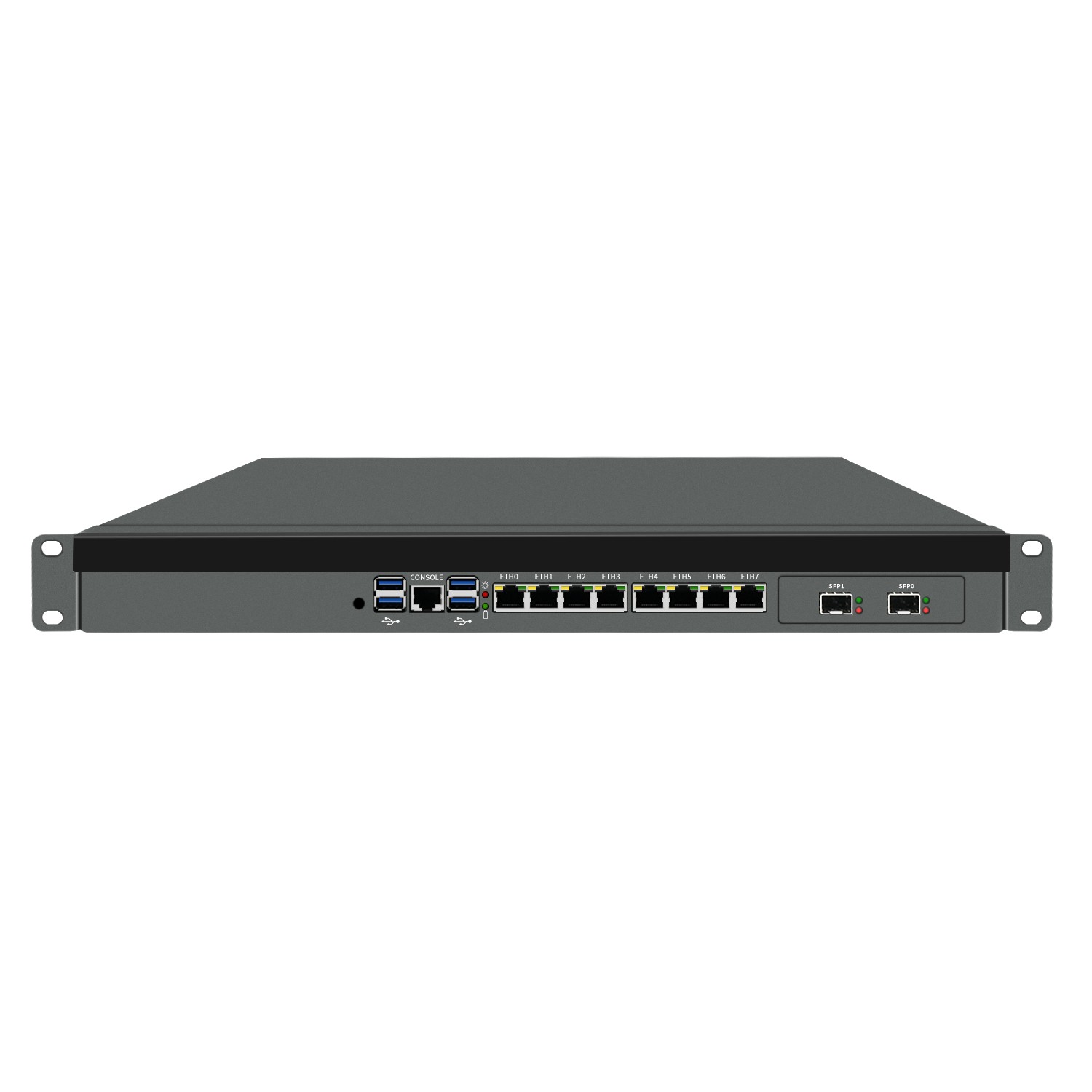

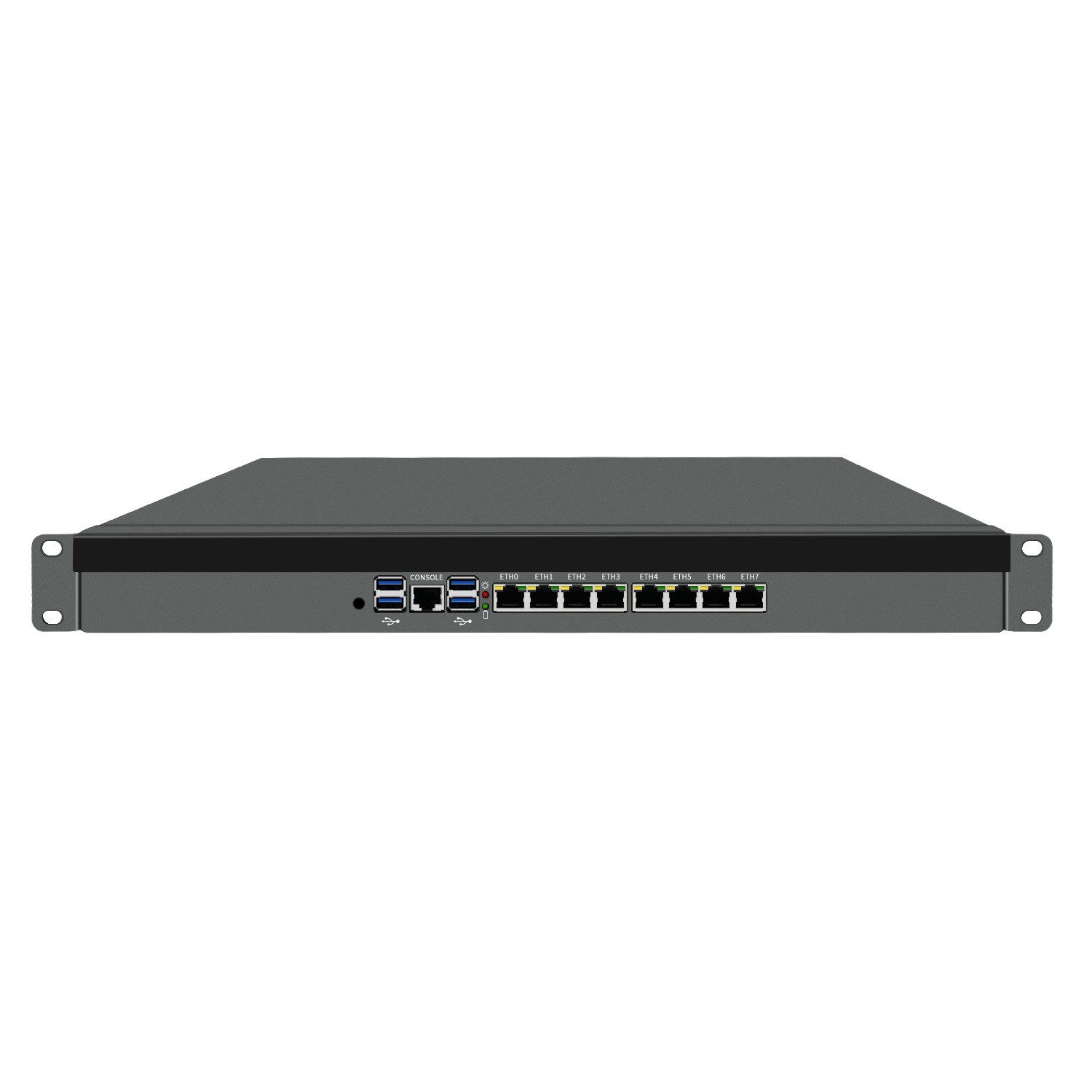

Front Panel: 8 × RJ45 LAN, 4 × USB-A 3.0, 1 × RJ45 COM, 2 × PCIe expansion reserved

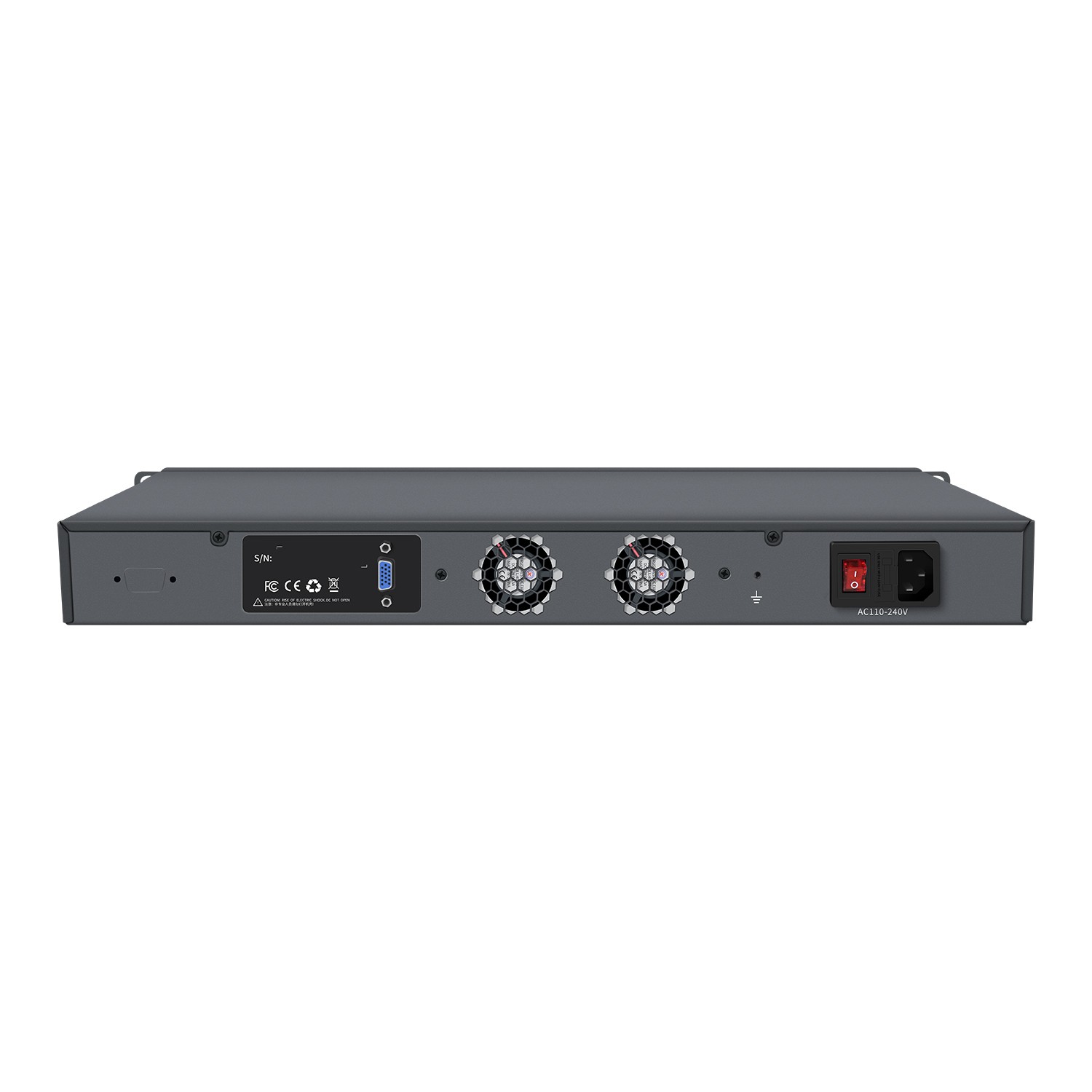

Rear Panel: 1 × VGA, 1 × HD reserved, 2 antenna groups reserved, 1 × AC power socket
Cooling Method: Active cooling, 1 × CPU fan, 2 × chassis fans
Chassis Size: 440 × 255 × 45 mm
Weight: Equipment weight 3.65KG; package weight 4.50KG including accessories
Power Mode: 80V~264V AC input with PFC, output: DC 24V
Operating Temperature: 0°C to 50°C
Operating Humidity: 5% to 90% relative humidity, non-condensing

Product Features

1U rackmount chassis for centralized deployment in server racks, equipment rooms, and enterprise network environments.
Based on Intel C246 chipset and supports FCLGA1151 platform processors for high-performance networking and edge computing applications.
DDR4 SO-DIMM memory support up to 64GB for multitasking and lightweight server workloads.
Integrated 8 × Intel I226V 2.5GbE LAN ports for multi-segment access, traffic distribution, and concurrent multi-user access.
Dual M.2 Key-M 2280 SSD slots and dual SATA 6Gb/s interfaces support system drives, cache drives, and local data storage.
PCIe x16 and PCIe x8 expansion slots support additional network cards, feature cards, or project-specific modules.
M.2 Key-E, M.2 Key-B, and mPCIe interfaces support wireless, cellular, or other expansion modules.
RJ45 COM, USB 3.0, VGA, reserved HD, and reserved antenna interfaces support system maintenance and project integration.
Active cooling and AC wide-voltage input support stable long-term operation.
