1U 1338NP 6L

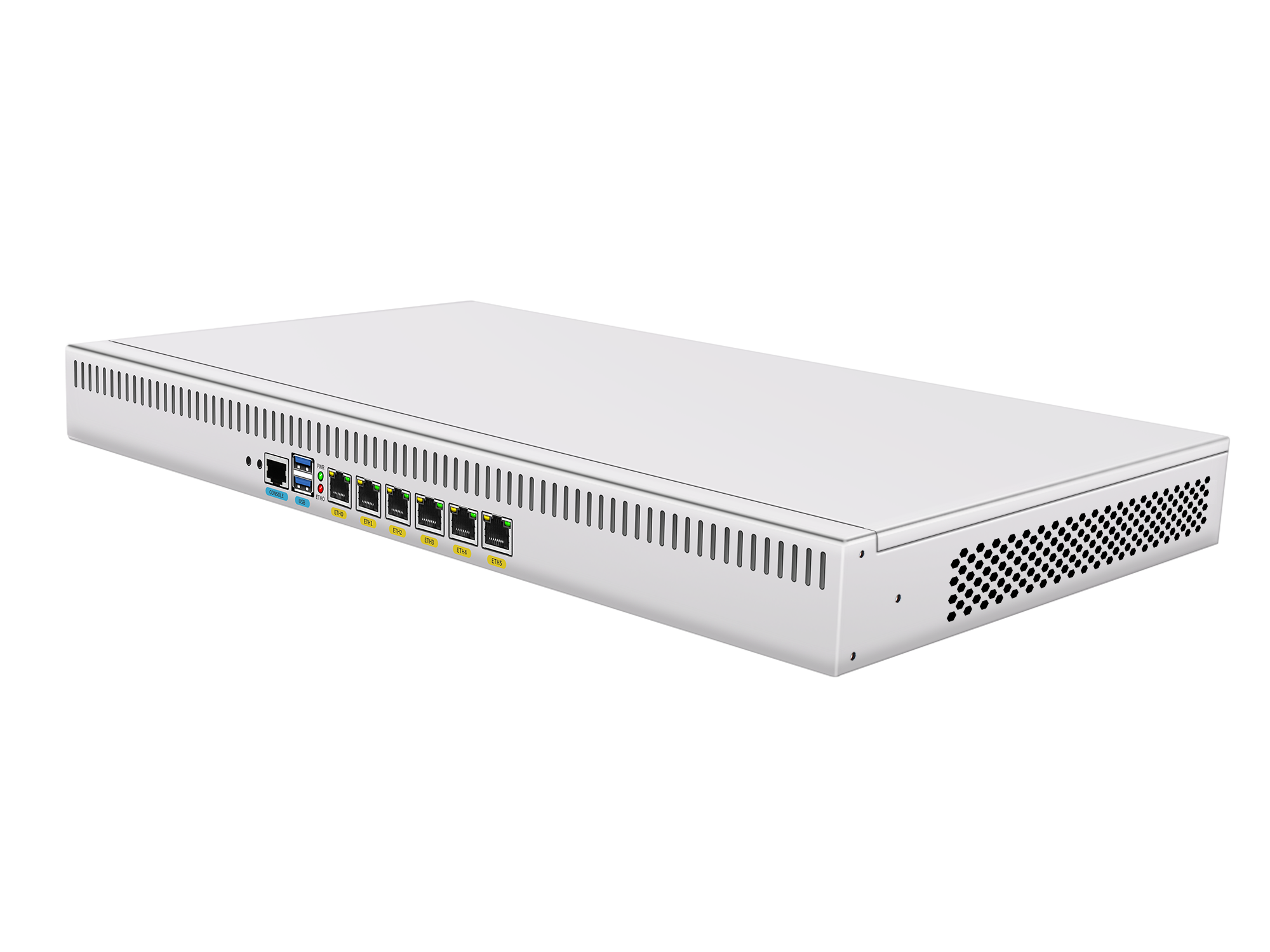

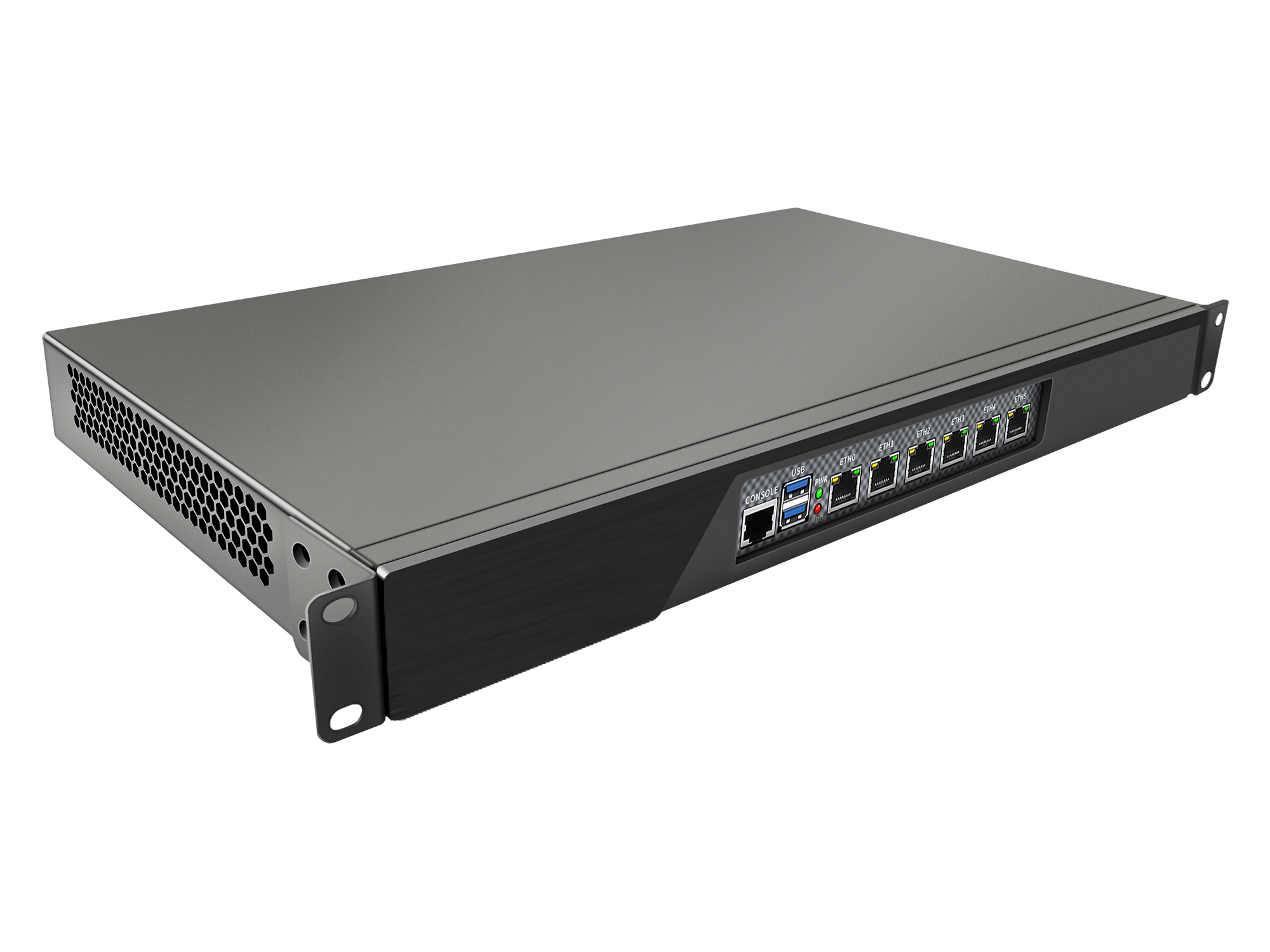

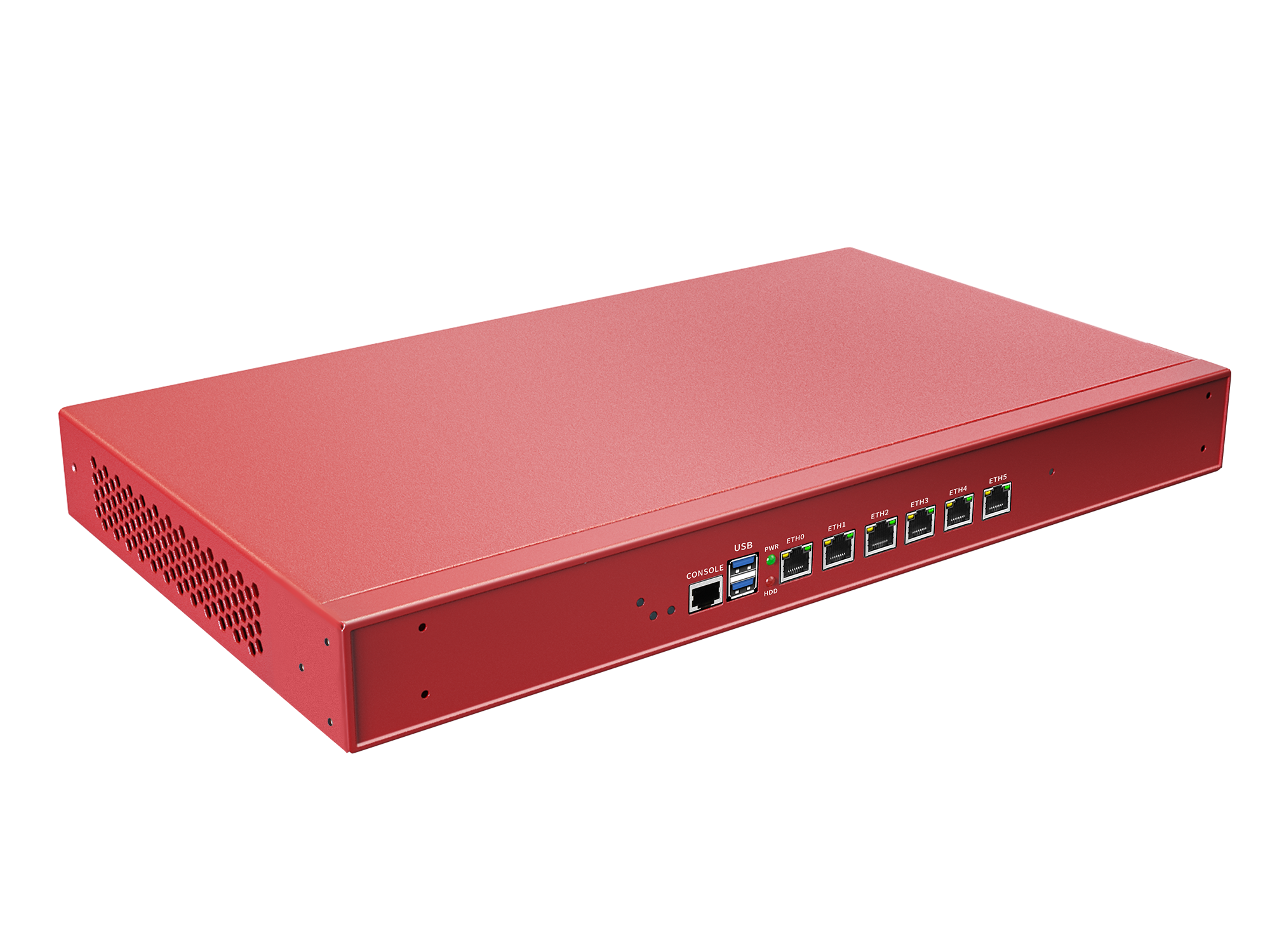

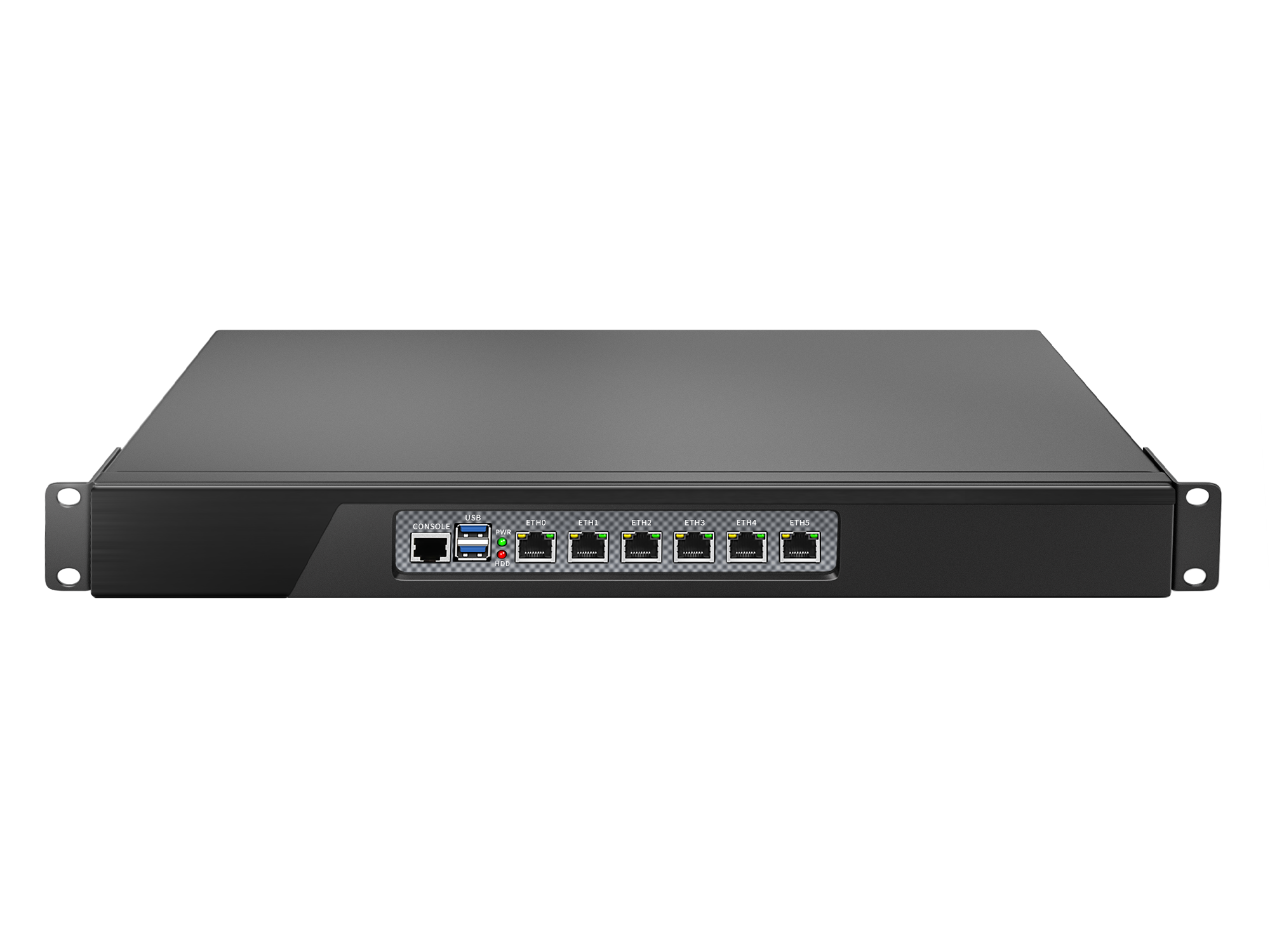

The 1U 1338NP 6L is a 1U rackmount 6-LAN network appliance based on the Intel Celeron Processor N Series platform. It supports DDR4 SO-DIMM memory up to 16GB at 2933MHz. The front panel provides 6x Intel I226V 2.5GbE RJ45 LAN ports, 2x USB-A 3.0 ports, and 1x RJ45 COM console port. The platform also supports SATA 6Gb/s, 1x mSATA, 2x mPCIe slots, SIM slot, reserved VGA/HD display, and reserved antenna openings. With a 1U rackmount chassis, active cooling, and AC wide-voltage input, it is suitable for enterprise security appliances, multi-port network management, edge computing nodes, industrial networking, lightweight servers, and rackmount network applications.

Place an order

Core Specifications

Model: 1U 1338NP 6L
Processor Platform: Intel Celeron Processor N Series
Socket: FCBGA1338
Memory: DDR4 SO-DIMM, up to 16GB, up to 2933MHz
Storage: 1 × SATA 6Gb/s, 1 × mSATA
Network: 6 × 2.5GbE RJ45, Intel I226V controllers
Expansion: 2 × mPCIe with USB2.0 signal

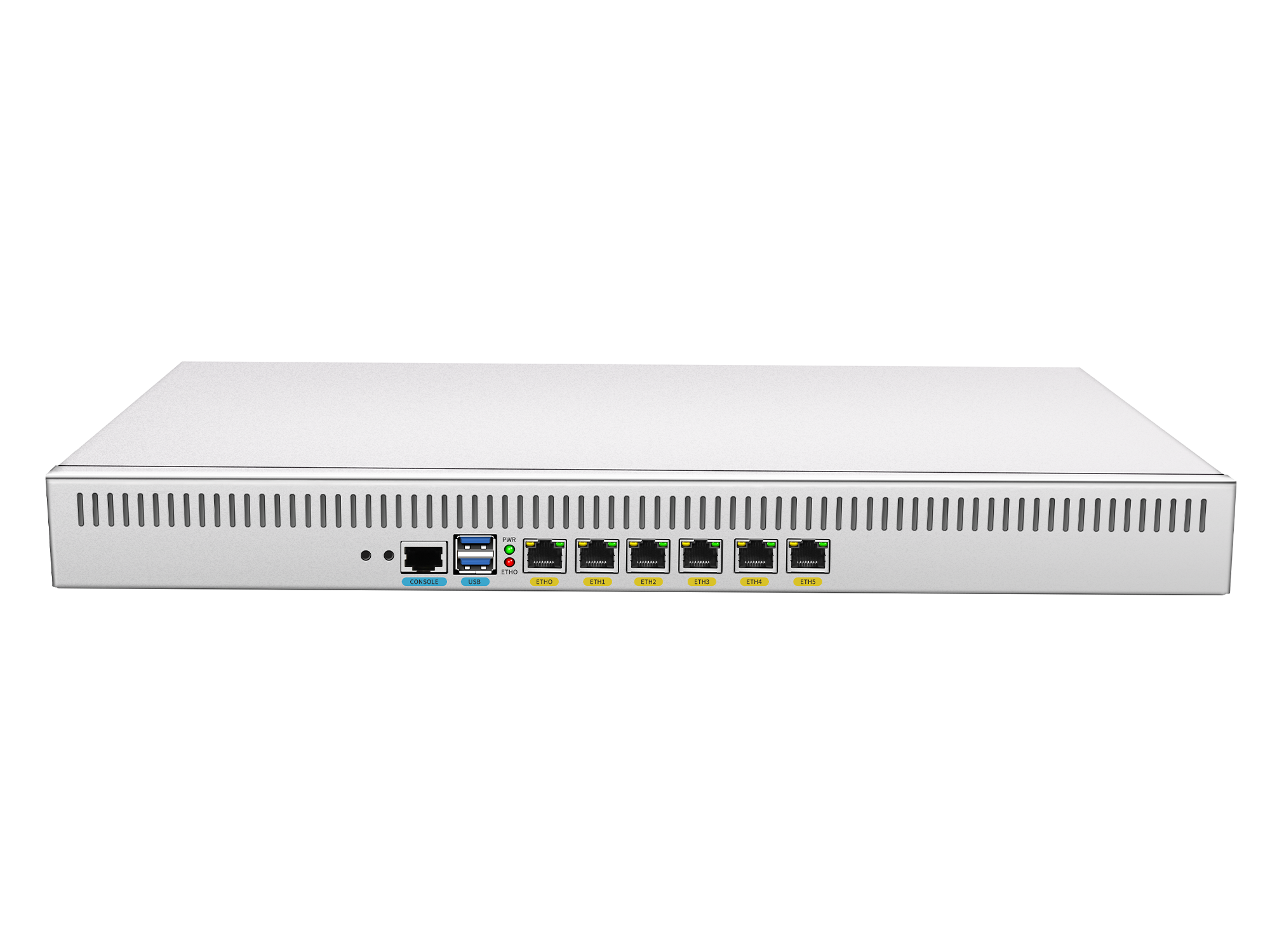

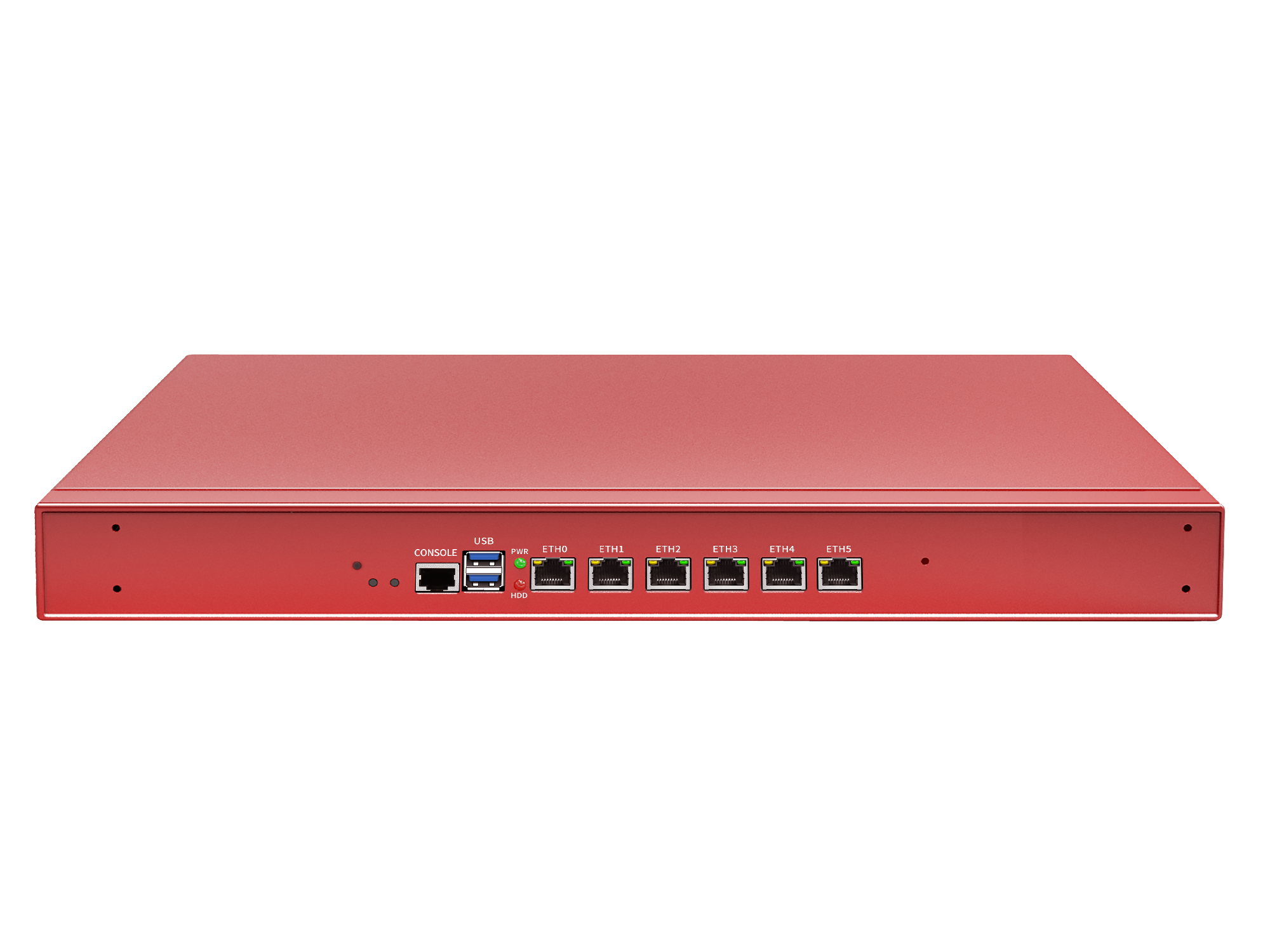

Front Panel: 6 × RJ45, 2 × USB-A 3.0, 1 × RJ45 COM

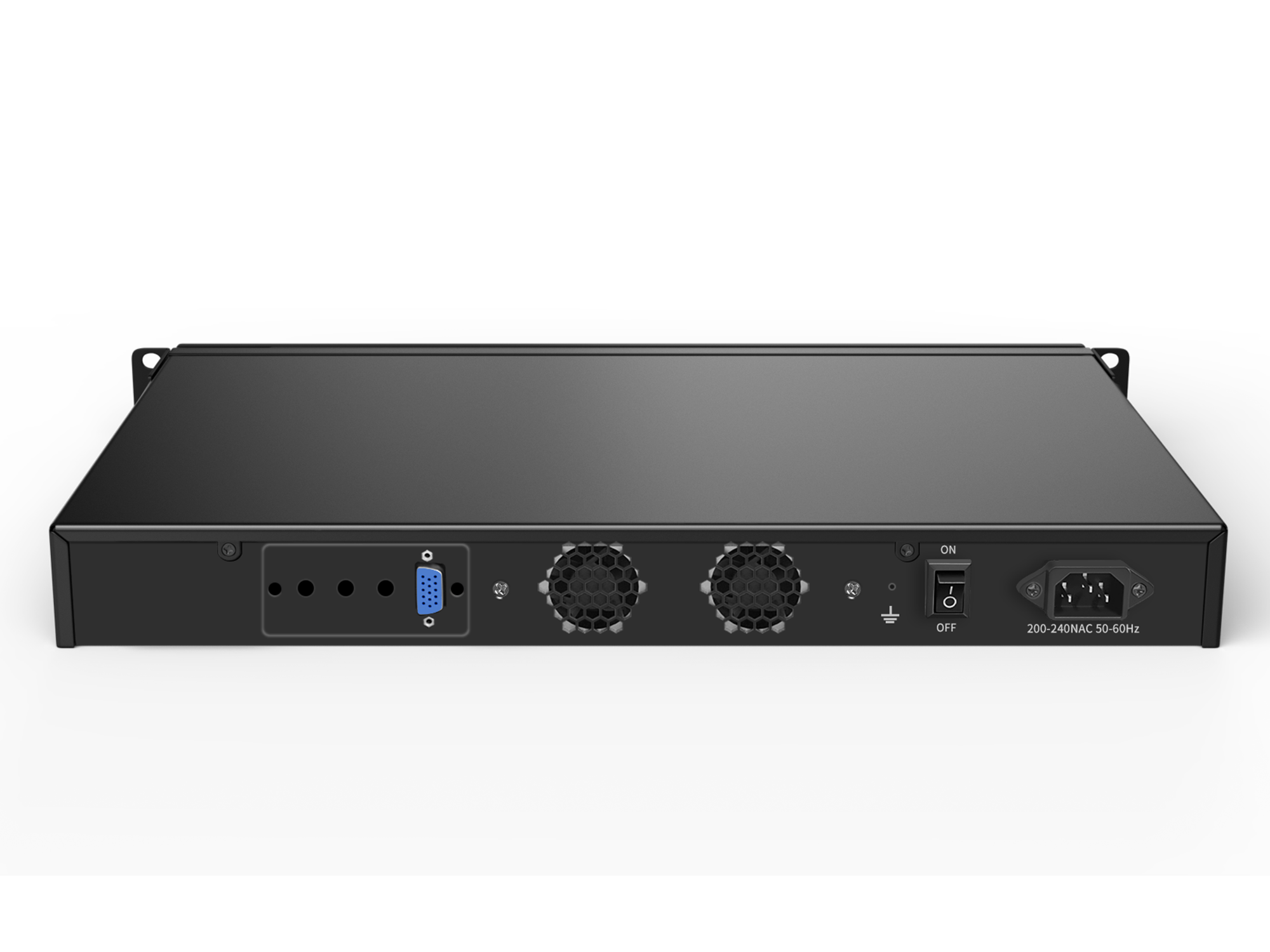

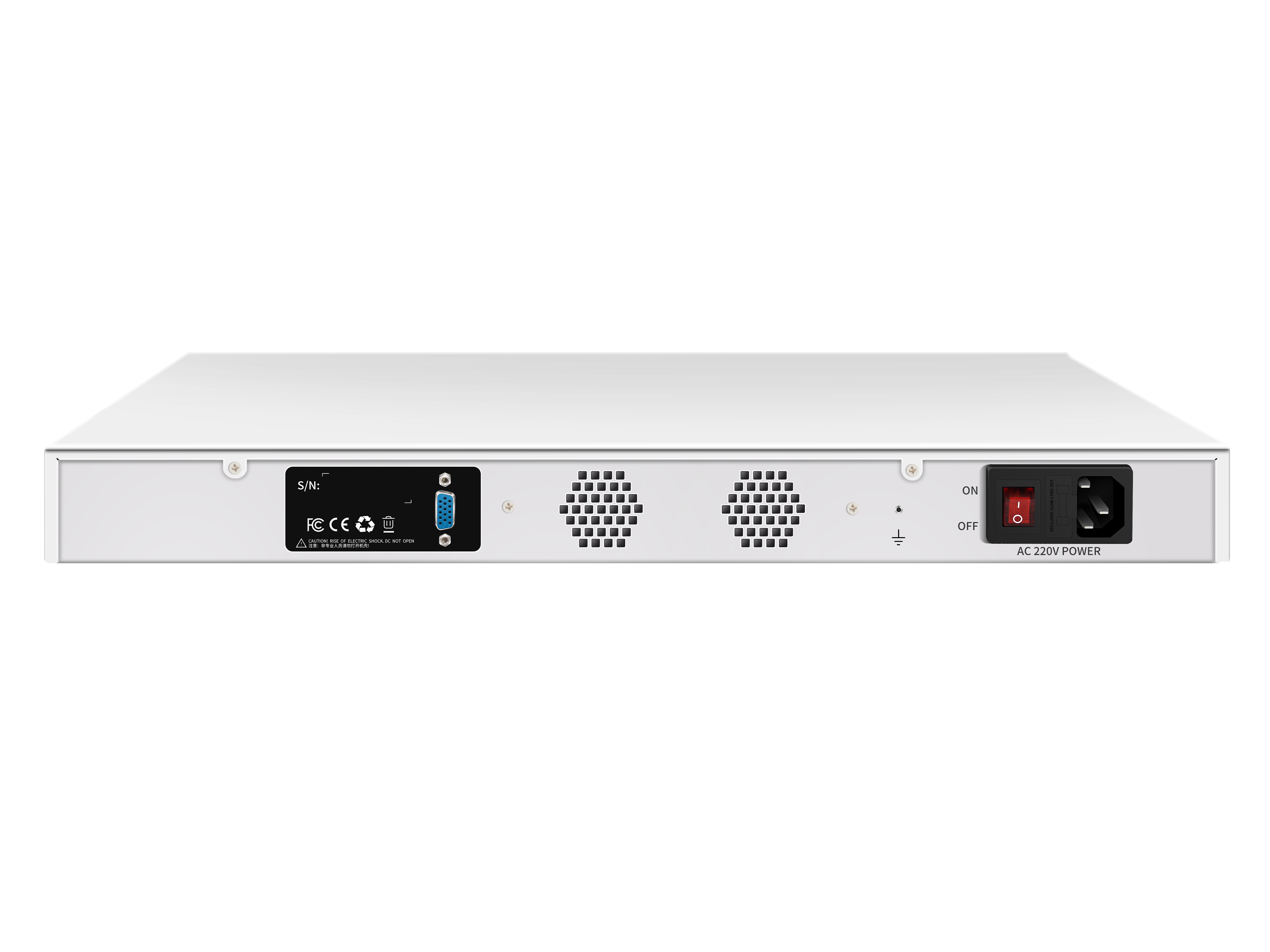

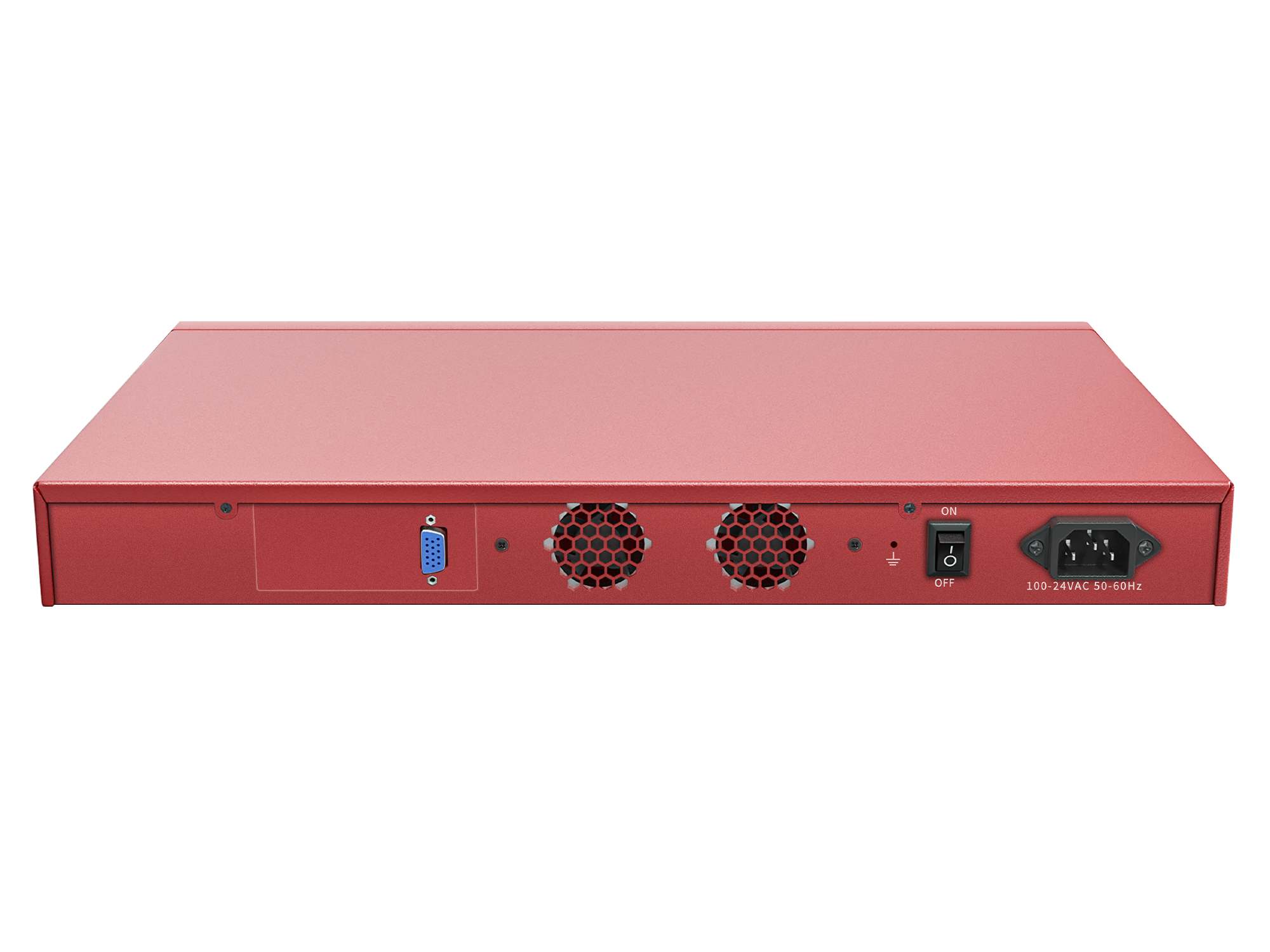

Rear Panel: 1 × VGA, 1 × HD reserved, 2 antenna groups reserved, 1 × AC power socket
Onboard I/O: 1 × SATA data connector, 1 × SATA power socket, 1 × J_VGA, 1 × J_HDMI, 1 × SIM card slot, 1 × F_PANEL, 1 × J_COM, 2 × F_USB 2.0, 1 × J_KM
Cooling Method: Active cooling, 1 × CPU fan, 2 × chassis fans
Chassis Size: 440 × 255 × 45 mm
Weight: Equipment weight 3.80KG; package weight 4.50KG including accessories
Power Mode: Input: 85V~264V AC 47~63Hz, output: DC 12V 6A
Operating Temperature: 0°C to 50°C
Operating Humidity: 5% to 90% relative humidity, non-condensing

Product Features

1U rackmount chassis for centralized deployment in server racks, equipment rooms, and industrial network environments.
Based on Intel Celeron N Series low-power platform, balancing stability, power efficiency, and network processing performance.
Integrated 6 × Intel I226V 2.5GbE LAN ports for multi-segment access, traffic distribution, and network management.
DDR4 SO-DIMM memory support up to 16GB for embedded networking and lightweight service workloads.
SATA 6Gb/s and mSATA storage interfaces support system drives, local data storage, or log recording.
Dual mPCIe expansion slots and SIM slot support wireless communication modules or project-specific function modules.
Front-access LAN, USB, and RJ45 COM console interfaces simplify installation, debugging, and maintenance.
Active cooling and AC wide-voltage input support stable long-term operation.
