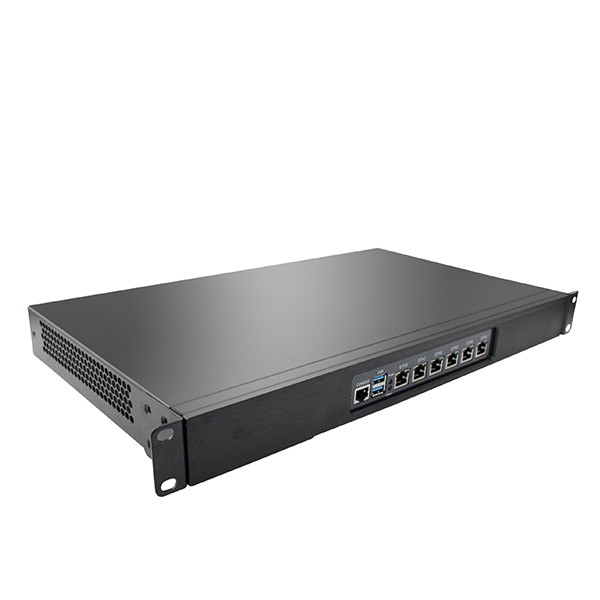

1U 1145G7 6L

The 1U-1449NP-6L is a 1U rack-mount network appliance designed for multi-port network applications, edge computing, and embedded storage scenarios. It is suitable for building high-performance routers, firewalls or IoT gateways. Equipped with an 11th Gen Intel processor and 6x I226V network controllers, it is suitable for data centers, industrial automation, or small and medium-sized enterprise environments, meeting the needs of multi-tasking, stable operation.

Place an order

Product Overview

The 1U-1449NP-6L is a high-reliability 1U rackmount network appliance built on 11th Gen Intel® processors. With support for up to 64GB DDR4 3200 MT/s, flexible SATA / mSATA / M.2 NVMe storage, and 6× Gigabit LAN, it is designed for firewall, VPN/SD-WAN, and edge computing scenarios that demand stable throughput and 24/7 operation.

Key Features

Processor: 11th Gen Intel® (FCBGA1449)
Memory: DDR4 SO-DIMM up to 64GB, 3200 MT/s
Storage: 1× SATA 6Gb/s, 1× mSATA, 1× M.2 Key-M 2280 (PCIe)
Networking: 6× RJ45 1GbE ports
USB: 2× USB-A 3.0 (front)
Console: 1× RJ45 COM (front)
Display: 1× VGA / 1× HD (reserved)
Expansion: 1× mPCIe
Cooling: Active—1× CPU fan + 2× chassis fans
Chassis: 440 × 255 × 45 mm; Weight: 3.80 kg (net), 4.50 kg (with accessories)
Power: Input 85–264V AC 47–63 Hz; Output DC 12V 6A
Environment: Operating 0–50℃; Humidity 5–90% RH (non-condensing)

Application Scenarios

Firewall & Security Gateway: pfSense/OPNsense deployments with multi-port routing
VPN / SD-WAN: Secure remote access and multi-branch connectivity
Edge Computing: Local data processing and policy enforcement at the network edge
Traffic Management: Load balancing, QoS, and content filtering
Lightweight Virtualization: Containers/VMs for network services
