1U C612NP 8L-6S

The BKHD 1U C612NP 8L-6S is a high-performance 1U rackmount network appliance based on the Intel C612 platform, supporting Intel Xeon E5 v4 processors. It features DDR4 SO-DIMM memory up to 64GB, 8 × Intel I226V 2.5GbE RJ45 copper ports, and 6 × 10G SFP+ fiber ports expanded through PCIe. The right-side optical ports are based on Intel X710 4×10G SFP+, while the left-side optical ports are based on Intel 82599ES 2×10G SFP+. With high-density copper LAN, high-speed optical uplinks, multi-core computing performance, PCIe expansion, active cooling, and AC wide-voltage input, it is suitable for enterprise security gateways, firewall appliances, data center edge access, network infrastructure, virtualization platforms, edge computing nodes, and high-bandwidth fiber network deployments.

Place an order

Core Specifications

Model: 1U C612NP 8L-6S
Processor Platform: Intel Xeon Processor E5 v4 Family
Chipset: Intel C612
Socket: FCLGA2011-3
Memory: DDR4 SO-DIMM, up to 64GB, up to 2400 MT/s
Copper LAN: 8 × 2.5GbE RJ45, Intel I226V controllers
Optical LAN: 6 × 10G SFP+, expanded through PCIe
SFP+ Configuration: Right side 4 × 10G SFP+ with Intel X710; left side 2 × 10G SFP+ with Intel 82599ES
Expansion: 1 × PCIe x16, Gen3 x8 rate; 1 × PCIe x8, Gen3
Module Expansion: 1 × mPCIe with USB signal; 1 × mPCIe with PCIe signal shared with M.2 Key-E; 1 × M.2 Key-E with PCIe signal shared with mPCIe

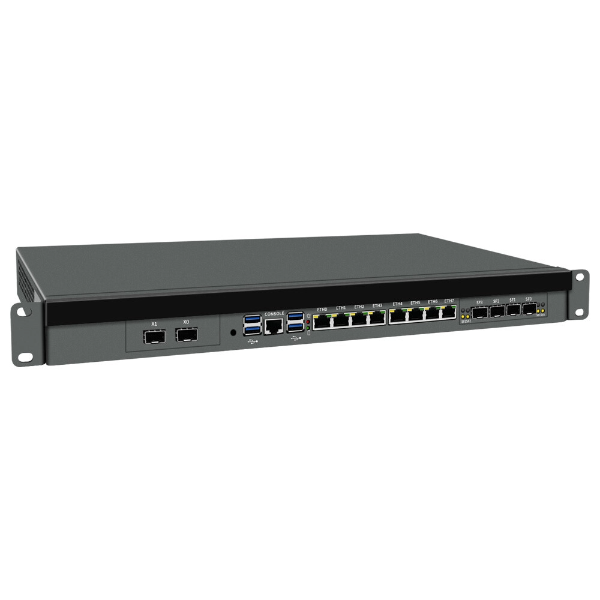

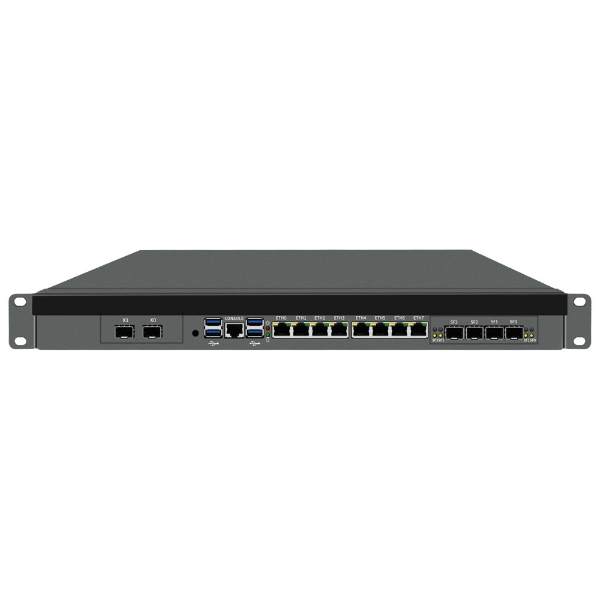

Front Panel: 8 × RJ45, 6 × 10G SFP+, 4 × USB-A 3.0, 1 × RJ45 COM

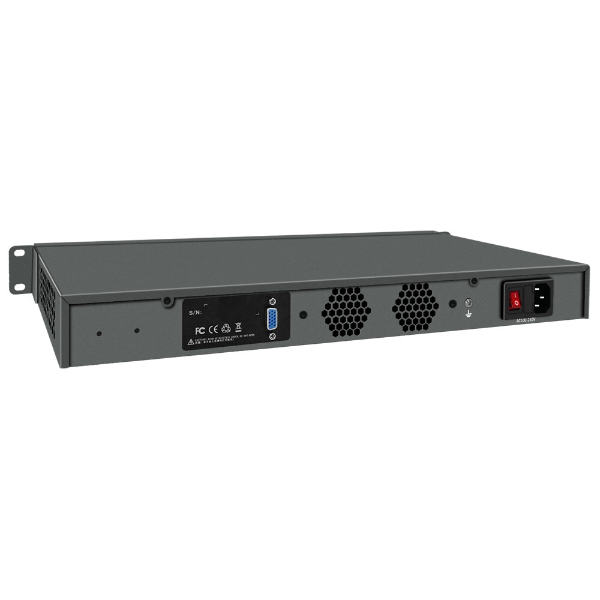

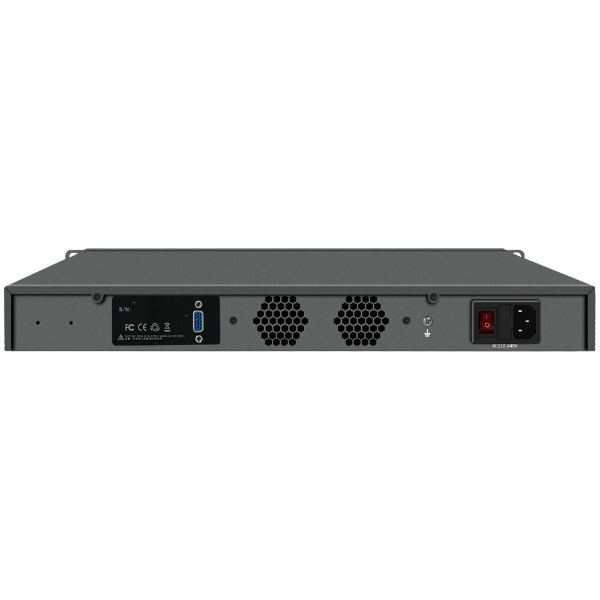

Rear Panel: 1 × VGA, 1 × AC socket, 4 × antenna holes
Cooling Method: Active cooling, 1 × CPU fan, 2 × chassis fans
Chassis Size: 440 × 255 × 45 mm
Weight: Equipment weight 3.80KG; package weight 4.50KG including accessories
Power Mode: Input: 85V~264V AC 47~63Hz, output: DC 24V 8.4A
Operating Temperature: 0°C to 50°C
Operating Humidity: 5% to 90% relative humidity, non-condensing

Product Features

1U rackmount chassis for centralized installation in server racks, equipment rooms, and engineering projects.
Supports Intel Xeon E5 v4 processors for high-load networking and multitasking applications.
Integrated 8 × Intel I226V 2.5GbE copper LAN ports for multi-segment access and local traffic distribution.
PCIe-expanded 6 × 10G SFP+ optical ports support high-speed fiber uplinks and high-bandwidth data aggregation.
Right-side Intel X710 4×10G SFP+ and left-side Intel 82599ES 2×10G SFP+ support flexible fiber network topology.
DDR4 SO-DIMM memory support up to 64GB for network forwarding, edge computing, and virtualization workloads.
PCIe Gen3 expansion interfaces support network cards, fiber modules, or project-specific expansion cards.
Active cooling and AC wide-voltage input support stable long-term operation.
