H14 8505 4L

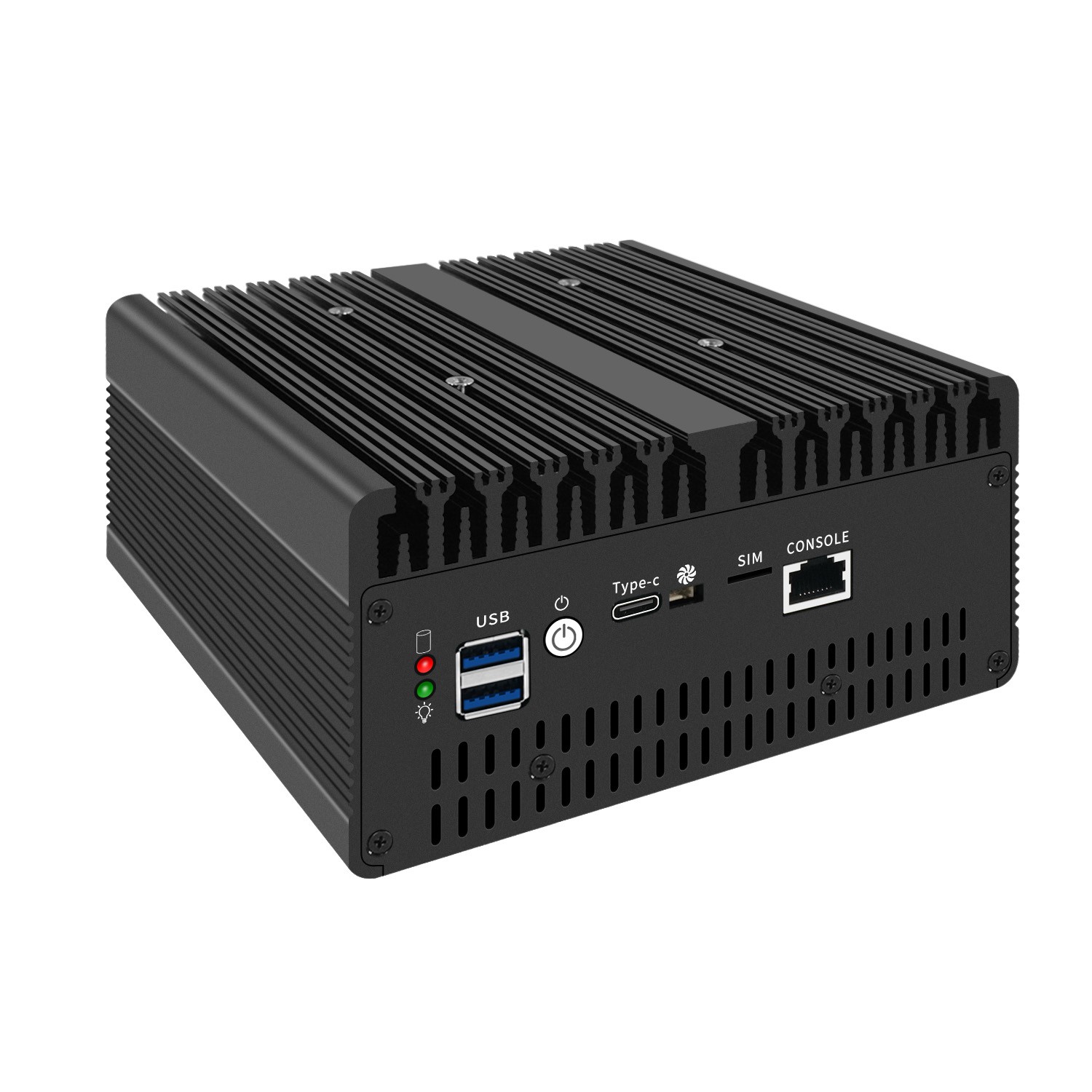

H14 8505 4L is a compact, high-performance industrial computer powered by 12th/13th Gen Intel processors. Featuring a rugged metal enclosure and fanless passive cooling, it delivers silent, reliable operation in space-constrained environments. With 4x 2.5Gb Ethernet ports, multiple USB interfaces, and flexible expansion options, it is well suited for edge computing, industrial networking, digital signage, and compact server applications.

Place an order

Key Features

Processor Platform: Intel 12th/13th Gen processors, FCBGA1744
Memory: DDR5 SO-DIMM, up to 2×32GB (64GB total), up to 4800 MT/s
Storage:

1× SATA 3.0 (6Gb/s)
1× M.2 Key-M 2280 slot

Networking: 4× RJ45 Ethernet ports for multi-zone LAN segmentation
Display Outputs: 1× HD + 1× DisplayPort
USB & I/O:

Front: 2× USB-A 2.0, DC-in, reserved antenna holes

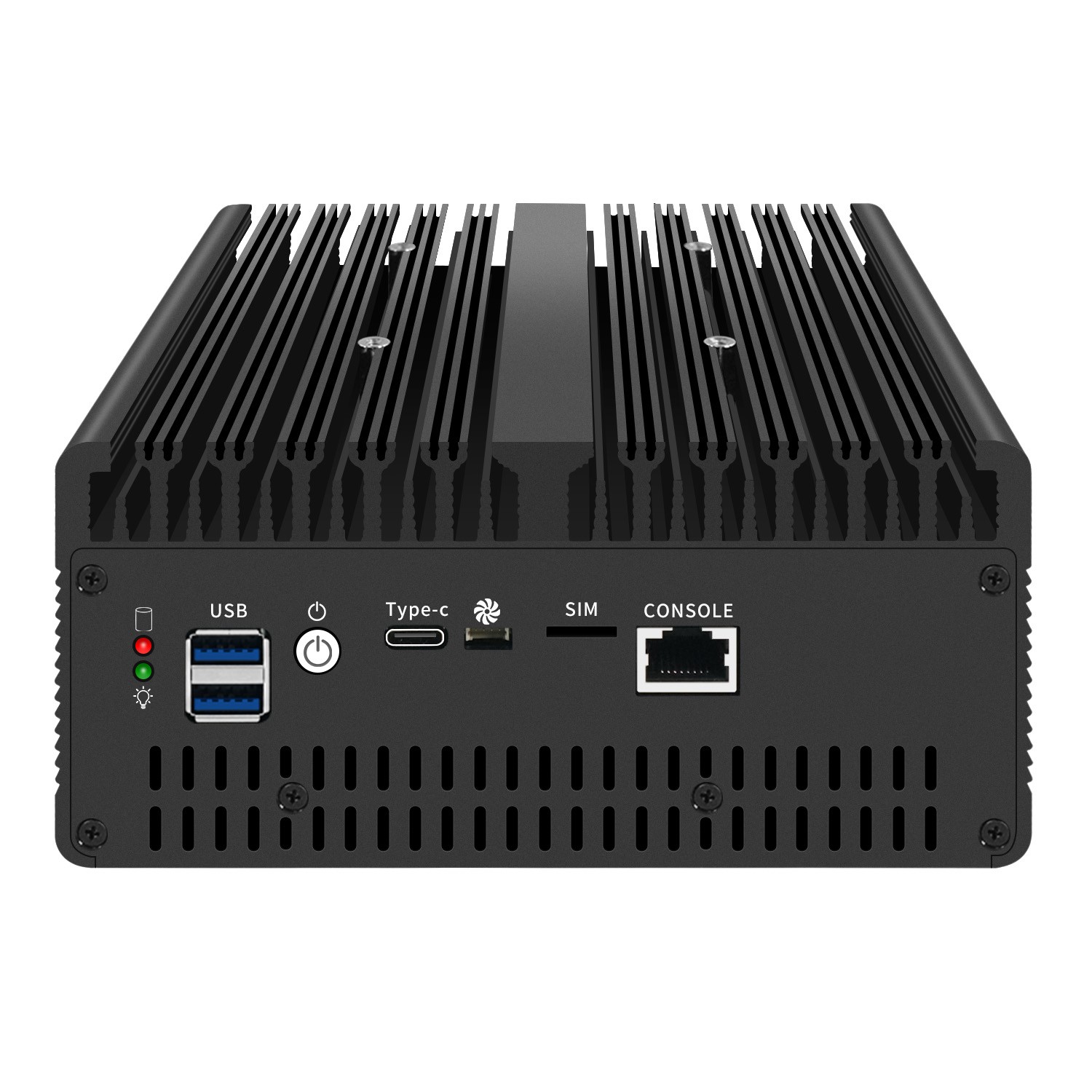

Rear: 2× USB-A 3.0 + 1× USB-C, Start/Restart button, RJ45 console
Integrated SIM card slot for cellular connectivity

Expansion:

1× PCIe x8 slot for high-speed expansion cards
1× M.2 Key-B 3052 for 4G/5G modules
1× M.2 Key-E 2230 for Wi-Fi / BT modules

Cooling: Passive cooling, fanless design (airflow required)
Power Input: DC 12V, 7A or higher
Chassis Size: 150 × 143 × 84 mm
Weight: 1.90 kg (net), 2.60 kg (with accessories)
Operating Environment: 0–50°C, 5–90% RH (non-condensing)

Typical Application Scenarios

Industrial Edge Computing: High CPU performance and DDR5 memory for AI inference, analytics, and on-site processing.
Network Security & Segmentation: 4× LAN ports support firewall, routing, and multi-zone network isolation.
Industrial IoT Gateway: Combine wired LAN with cellular connectivity via SIM and M.2 Key-B modules.
Digital Signage & Control Systems: Dual display outputs (HDMI + DP) for signage players and visualization terminals.
Embedded & Space-Constrained Deployments: Compact chassis with silent fanless operation for control cabinets and kiosks.
