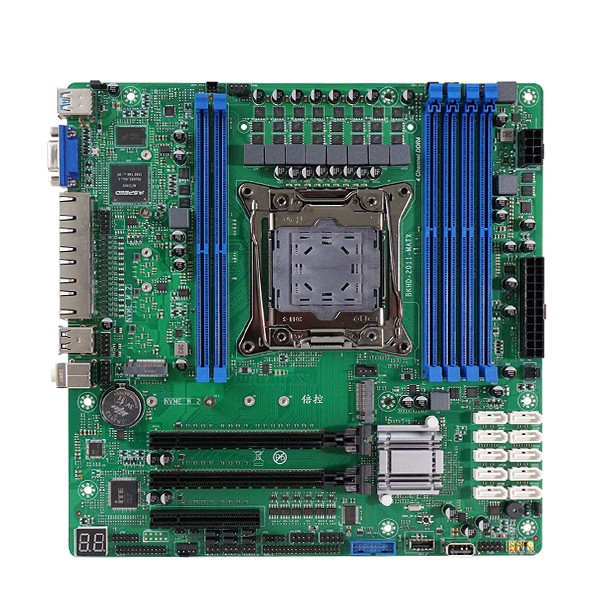

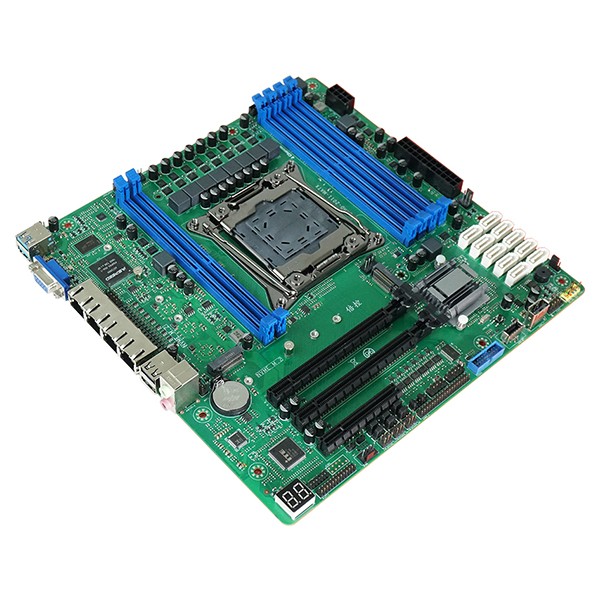

2011-MATX Motherboard

The BKHD 2011-MATX is a high-performance Micro-ATX server motherboard based on the Intel Xeon E5 v4 platform with an FCLGA2011-3 socket. It provides 6 × DDR4 DIMM slots supporting up to 384GB memory, 10 × SATA 6Gb/s interfaces, 2 × M.2 Key-M NVMe SSD slots, 4 × Intel I226V 2.5GbE LAN ports, and 3 × PCIe Gen3 expansion slots. It also integrates ASPEED AST2400 VGA graphics, up to 6 COM interfaces, TPM, LPT, USB expansion, case-open detection, and extensive fan connectivity. The platform is suitable for servers, NAS systems, file and backup servers, virtualization platforms, edge computing, industrial data processing, and OEM/ODM server solutions.

Place an order

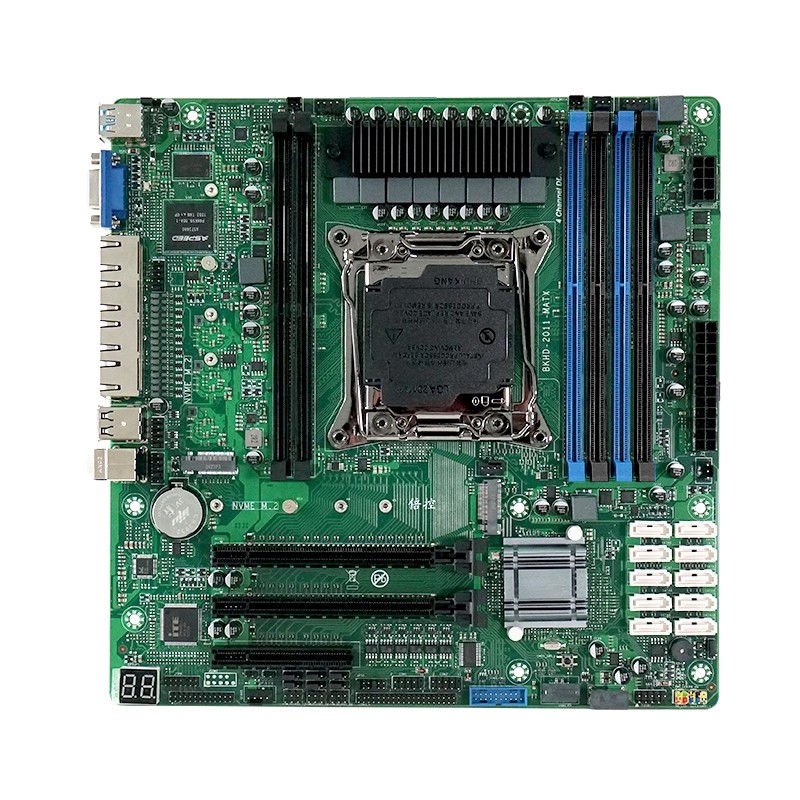

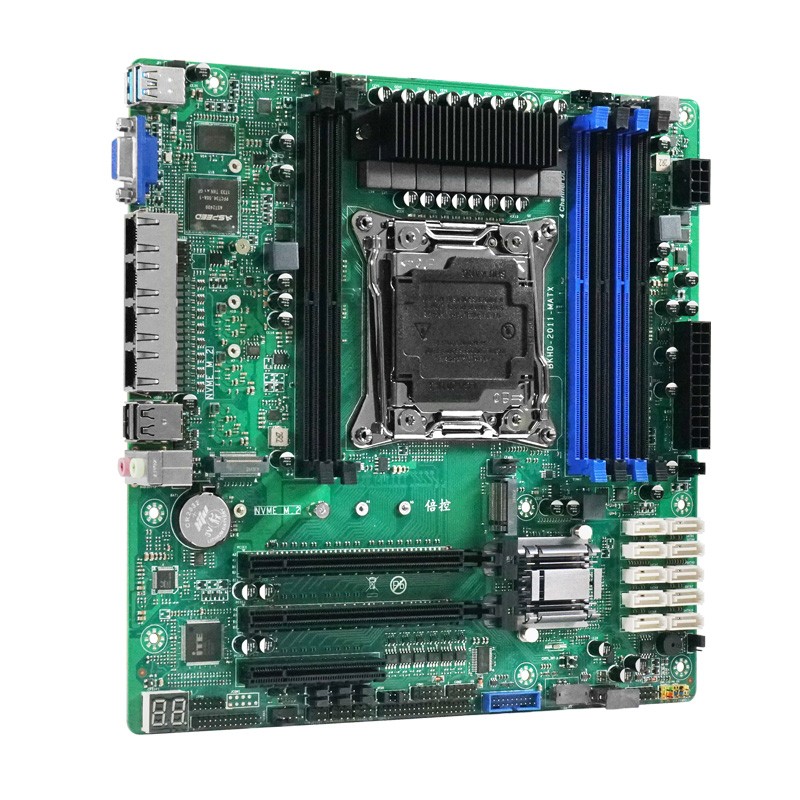

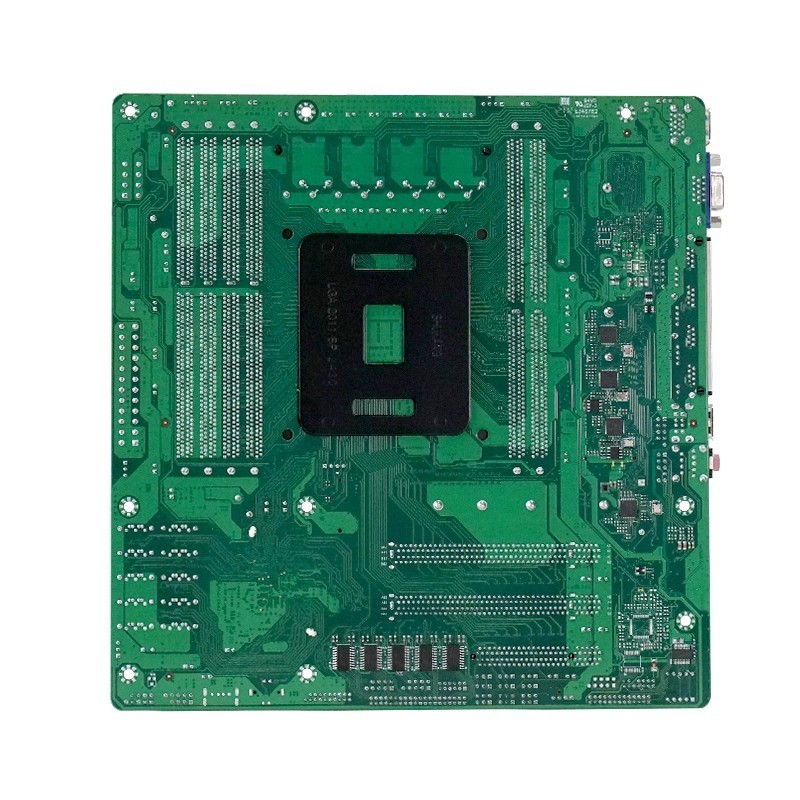

Core Specifications

Model: 2011-MATX
Form Factor: Micro-ATX, 245 × 245 mm
Processor Platform: Intel Xeon Processor E5 v4 Family
CPU Socket: FCLGA2011-3
Memory: 6 × DDR4 DIMM, up to 384GB (6 × 64GB), up to 2400 MT/s
SATA Storage: 10 × SATA 6Gb/s
M.2 Storage: 2 × M.2 Key-M, supports 2240/2280/22110 NVMe SSD
Network: 4 × 2.5GbE RJ45, 4 × Intel I226V controllers
PCIe Expansion: 1 × PCIe x16 Gen3, 1 × PCIe x16 physical slot at Gen3 x8 rate, 1 × PCIe x8 Gen3
Display: 1 × VGA, onboard ASPEED AST2400 graphics

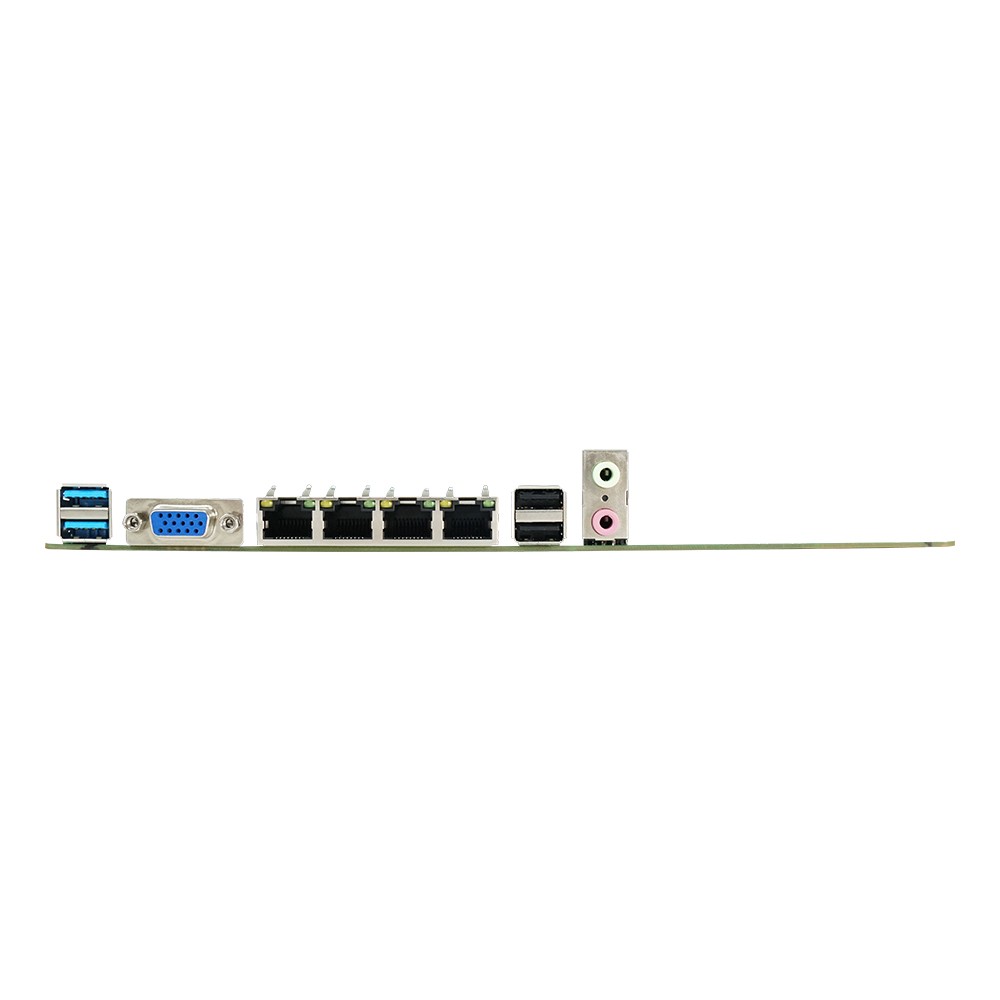

Rear I/O: 4 × RJ45, 2 × USB-A 3.0, 2 × USB-A 2.0, 1 × VGA, 2 × audio jacks for Line-Out and MIC-In
Serial Ports: 6 × COM, configurable for RS232 / RS485 operation
Onboard I/O: 1 × F_PANEL, 1 × F_USB2.0, 1 × F_USB3.0, 1 × LPT, 1 × TPM, 1 × LAN LED, 1 × F_AUDIO, 1 × Case Open
I/O Chip: ITE IT8786E-I
Fan Headers: 1 × 4-pin CPU fan, 3 × 4-pin system fans, 2 × 3-pin system fans, 2 × 2-pin system fans
Power Input: ATX 24-pin + ATX 8-pin
Operating Temperature: -10°C to 60°C
Operating Humidity: 5% to 90% relative humidity, non-condensing

Product Features

Based on the Intel Xeon E5 v4 server platform for server, storage, virtualization, and industrial computing applications.
Six DDR4 DIMM slots support up to 384GB memory for virtualization, databases, and multi-service server workloads.
Ten SATA 6Gb/s interfaces support multiple HDDs or SSDs for NAS, file servers, backup servers, and large-capacity local storage systems.
Dual M.2 Key-M NVMe SSD interfaces allow operating systems, cache drives, or high-speed working data to be separated from primary SATA storage.
Four Intel I226V 2.5GbE LAN ports provide high-speed connectivity for storage access, server networking, and multi-segment deployments.
Three PCIe Gen3 expansion slots support high-speed network adapters, SAS/SATA HBAs, storage controllers, accelerator cards, capture cards, and specialized industrial I/O cards.
Onboard ASPEED AST2400 graphics provides VGA output independently of processor integrated graphics for server installation, configuration, and maintenance.
Up to six COM interfaces support RS232 / RS485 selection for industrial equipment, controllers, and serial communication devices.
TPM, LPT, USB expansion, case-open detection, and extensive fan connectivity support professional server and industrial integration.
The 245 × 245 mm Micro-ATX form factor combines server-class expansion with standardized chassis compatibility.
