1U B760 6L

The BKHD 1U-B760-6L is a high-performance 1U rackmount network appliance based on the Intel B760 chipset, supporting 12th, 13th, and 14th Gen Intel processors. It features 6 × Intel I226V 2.5GbE RJ45 ports, dual DDR4 SO-DIMM memory up to 64GB, PCIe expansion, 1 × M.2 Key-M 2280 slot, 4 × SATA 3.0 ports, mPCIe, M.2 Key-E 2230, M.2 Key-B 3052, and front-access USB and console interfaces. With active cooling, AC wide-voltage input, and a compact 1U chassis, it is suitable for enterprise security gateways, firewall appliances, edge computing nodes, industrial network appliances, data center edge access, and medium-to-high-load network applications.

Place an order

Core Specifications

Model: 1U-B760-6L
Processor Platform: Intel 12th/13th/14th Gen Processor
Chipset: Intel B760
Socket: FCLGA1700
Memory: 2 × DDR4 SO-DIMM, up to 2 × 32GB, up to 3200 MT/s
Storage: 4 × SATA 3.0, 1 × M.2 Key-M 2280
Network: 6 × 2.5GbE RJ45, Intel I226V controllers
Expansion: 1 × PCIe x16, 1 × PCIe x4, 1 × mPCIe, 1 × M.2 Key-E 2230, 1 × M.2 Key-B 3052

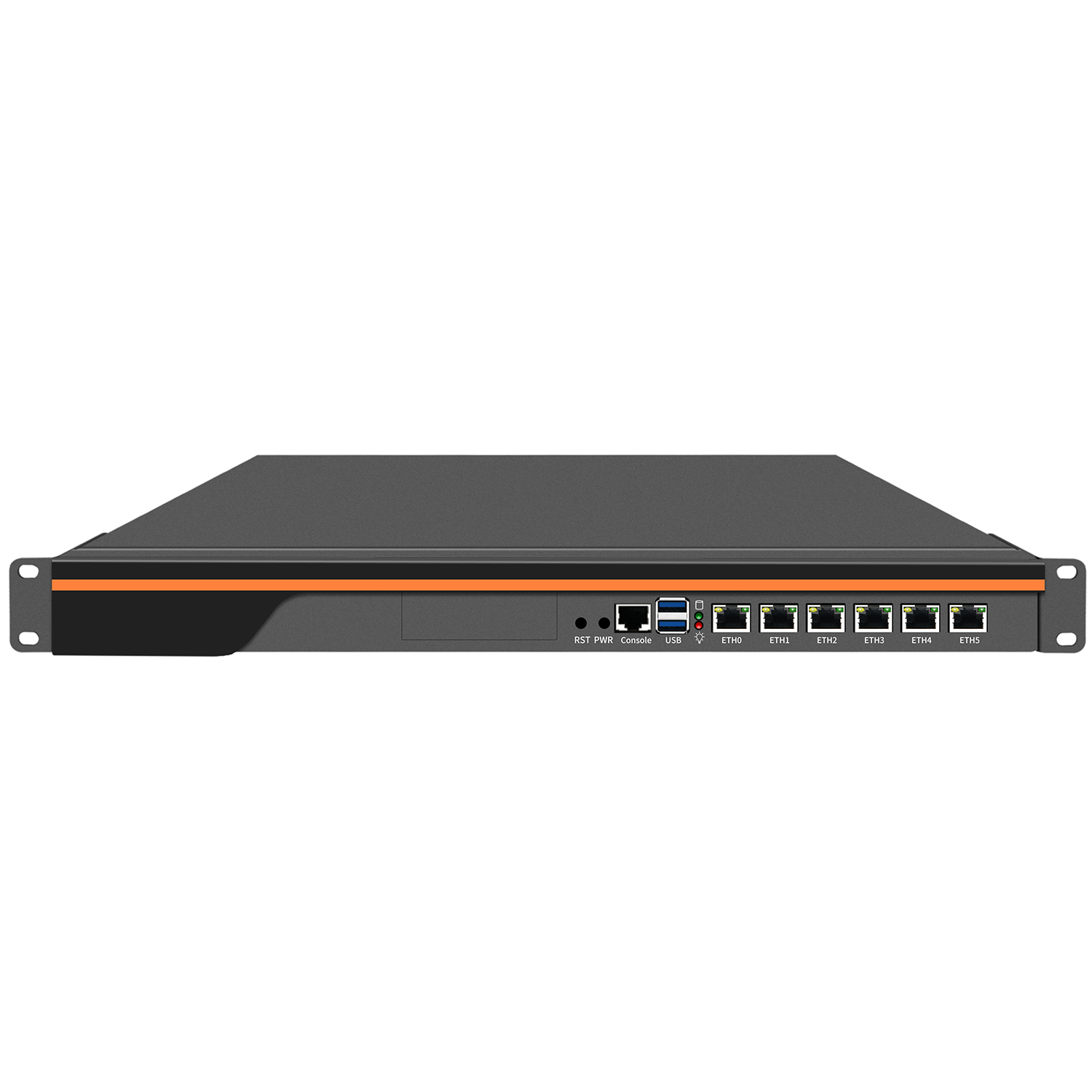

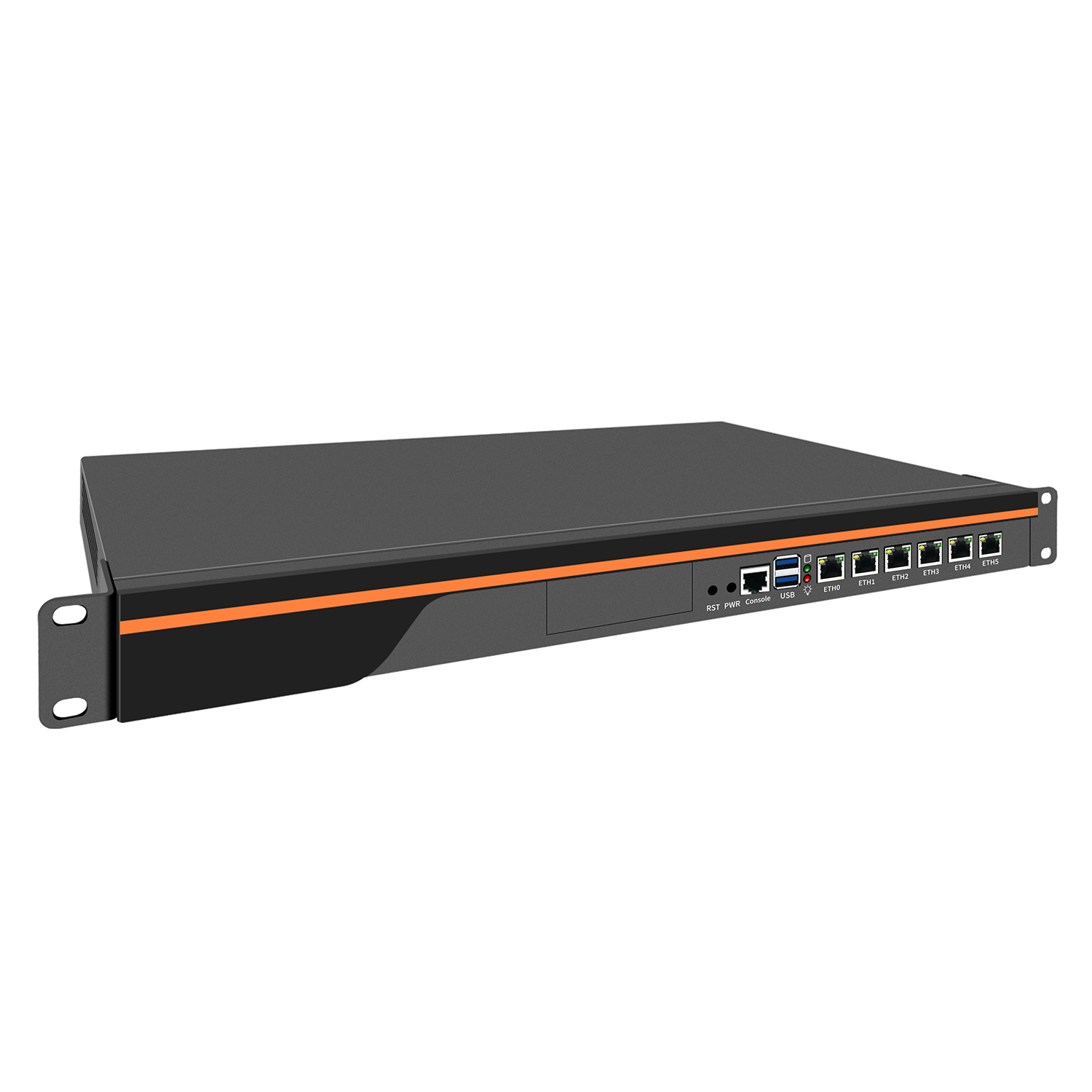

Front Panel: 6 × RJ45 LAN, 2 × USB-A 3.2, 1 × RJ45 COM, 1 × reserved baffle

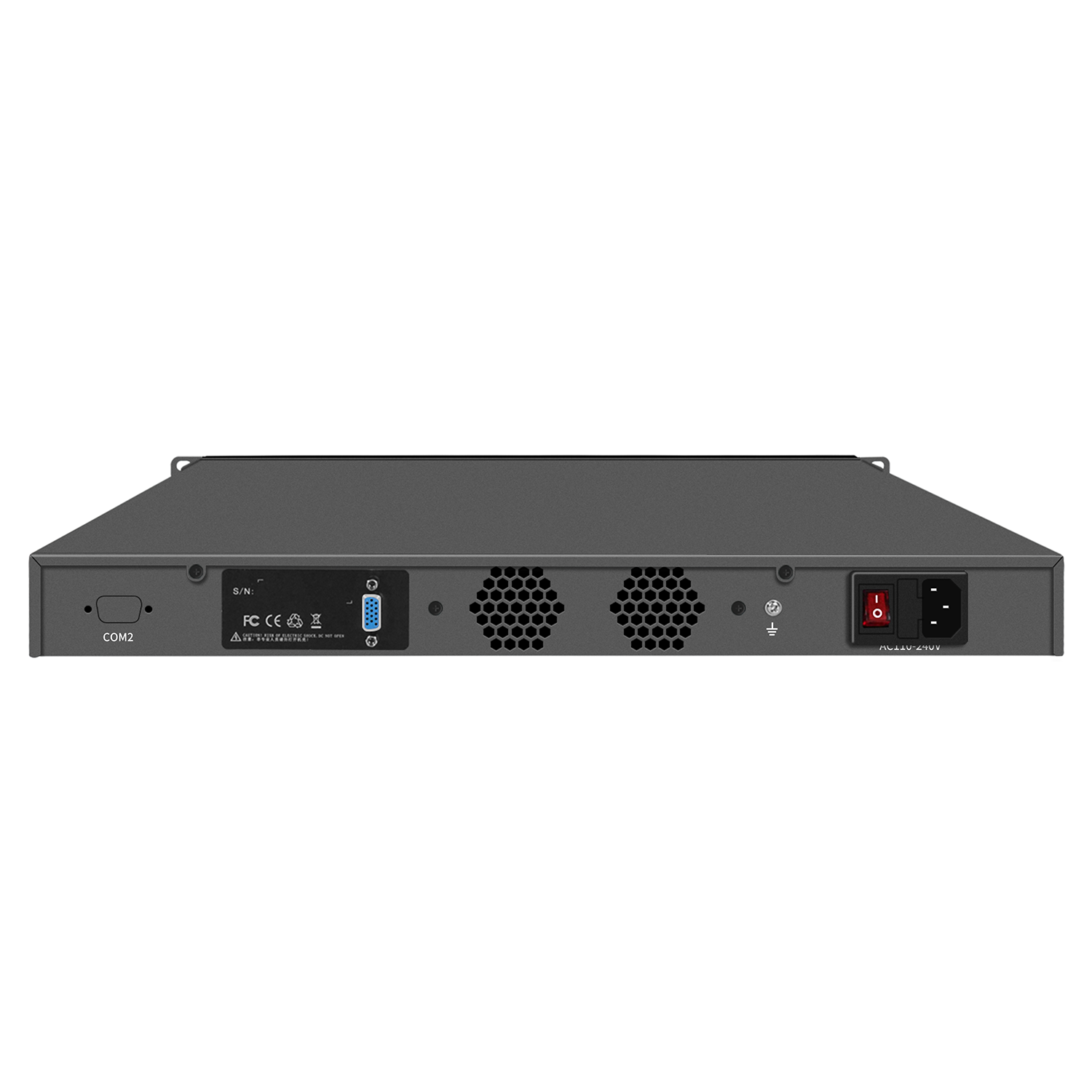

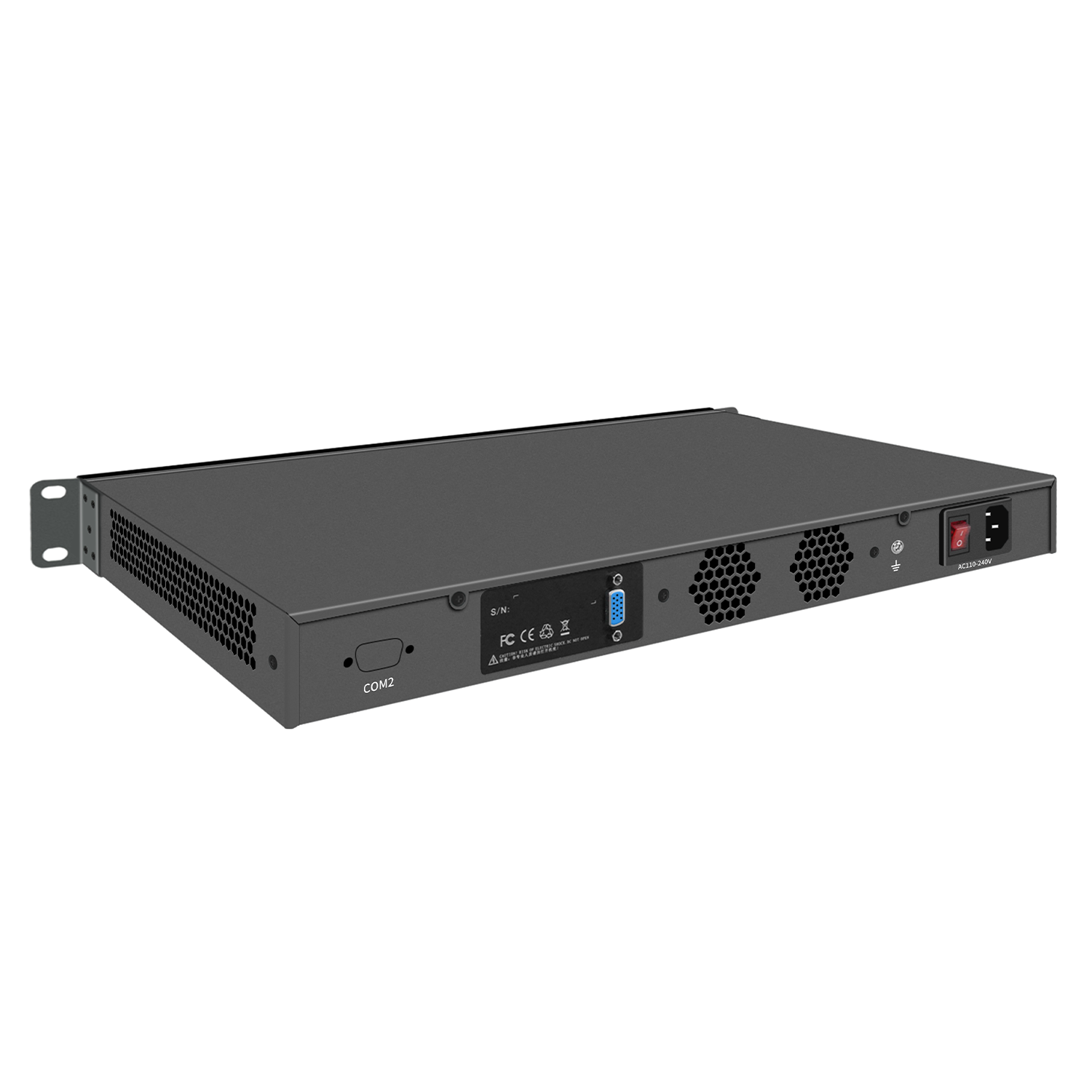

Rear Panel: 1 × VGA, 1 × HD reserved, 2 antenna groups reserved, 1 × AC power socket, 1 × power button
Cooling Method: Active cooling, 1 × CPU fan, 2 × chassis fans
Chassis Size: 440 × 255 × 45 mm
Weight: Equipment weight 3.65KG; package weight 4.50KG including accessories
Power Mode: 80V~264V AC input with PFC, output: DC 24V
Operating Temperature: 0°C to 50°C
Operating Humidity: 5% to 90% relative humidity, non-condensing

Product Features

1U rackmount chassis for centralized installation in server racks, equipment rooms, and engineering projects.
Supports Intel 12th, 13th, and 14th Gen processors for high-performance network applications.
Integrated 6 × Intel I226V 2.5GbE LAN ports for medium-to-high-density multi-port network deployment.
Dual DDR4 SO-DIMM slots support up to 64GB memory for multitasking and demanding workloads.
PCIe, M.2, SATA, mPCIe, M.2 Key-E, and M.2 Key-B expansion options support project-specific customization.
Front-access LAN, USB, and COM interfaces simplify installation, debugging, and maintenance.
Active cooling and AC wide-voltage input support stable long-term operation.
Compared with 8-port platforms, it is suitable for medium-scale network deployments and cost-sensitive projects.
