The BKHD H14 12450H 4L is a compact, high-performance industrial computer powered by a 12th-generation Intel Core i5-12450H processor. Its rugged metal casing and fanless passive cooling design ensure quiet and reliable operation even in space-constrained environments. Equipped with 4x 2.5Gb Ethernet ports, multiple USB ports, and flexible expansion options, it is ideal for edge computing, industrial networking, digital signage, and small server applications.
Processor Platform: Intel 12th/13th Gen processors, FCBGA1744
Memory: DDR5 SO-DIMM, up to 2×32GB (64GB total), up to 4800 MT/s
Storage:
1× SATA 3.0 (6Gb/s)
1× M.2 Key-M 2280 slot
Networking: 4× RJ45 Ethernet ports for multi-zone LAN segmentation
Display Outputs: 1× HD + 1× DisplayPort
USB & I/O:

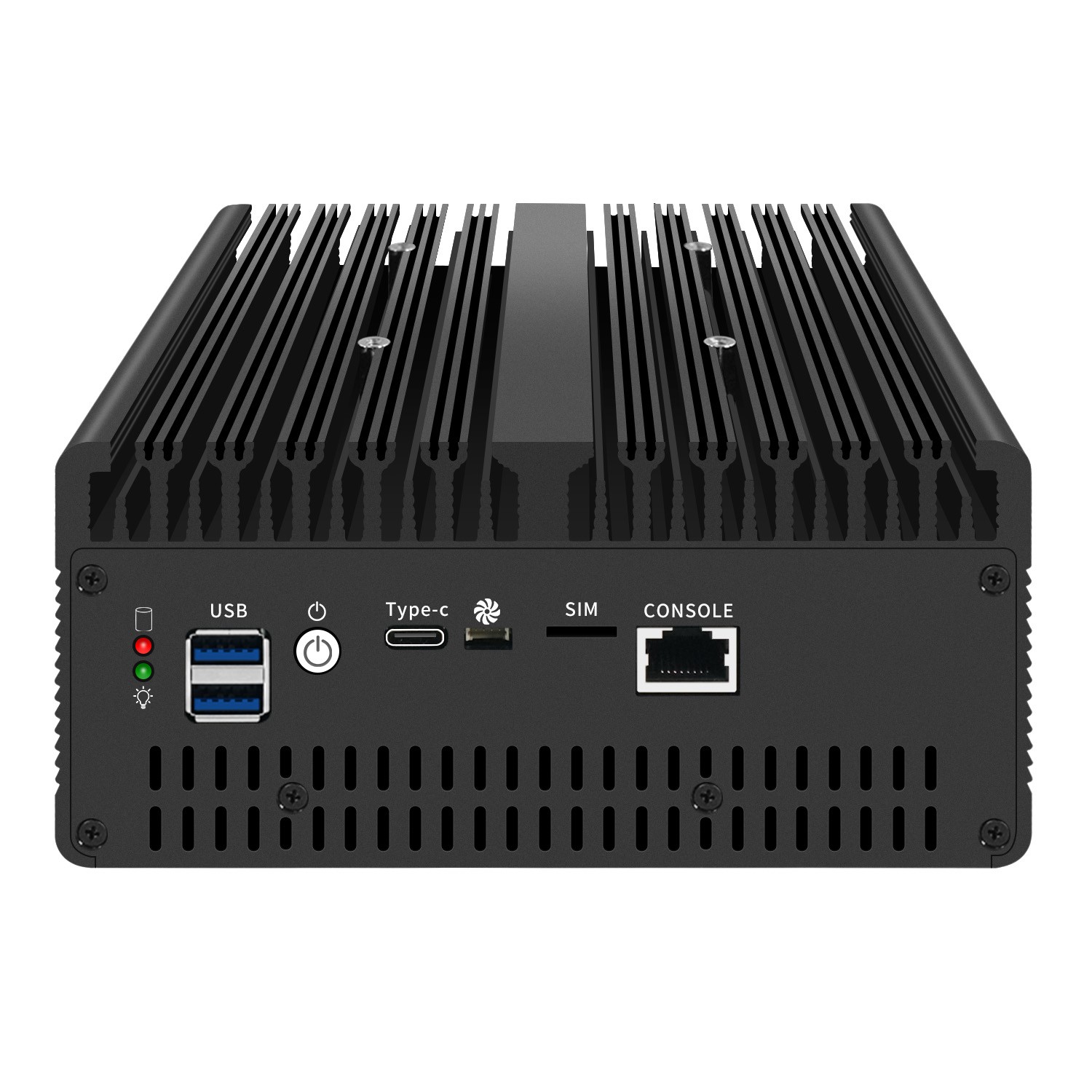

Front: 2× USB-A 2.0, DC-in, reserved antenna holes
Rear: 2× USB-A 3.0 + 1× USB-C, Start/Restart button, RJ45 console
Integrated SIM card slot for cellular connectivity
Expansion:
1× PCIe x8 slot for high-speed expansion cards
1× M.2 Key-B 3052 for 4G/5G modules
1× M.2 Key-E 2230 for Wi-Fi / BT modules
Cooling: Passive cooling, fanless design (airflow required)
Power Input: DC 12V, 7A or higher
Chassis Size: 150 × 143 × 84 mm
Weight: 1.90 kg (net), 2.60 kg (with accessories)
Operating Environment: 0–50°C, 5–90% RH (non-condensing)
Industrial Edge Computing: High CPU performance and DDR5 memory for AI inference, analytics, and on-site processing.
Network Security & Segmentation: 4× LAN ports support firewall, routing, and multi-zone network isolation.
Industrial IoT Gateway: Combine wired LAN with cellular connectivity via SIM and M.2 Key-B modules.
Digital Signage & Control Systems: Dual display outputs (HDMI + DP) for signage players and visualization terminals.
Embedded & Space-Constrained Deployments: Compact chassis with silent fanless operation for control cabinets and kiosks.
