H31F N100 3L2S

Model H31F N100 3L2S
Processor Intel N100
Motherboard BKHD-1264NP-SFP

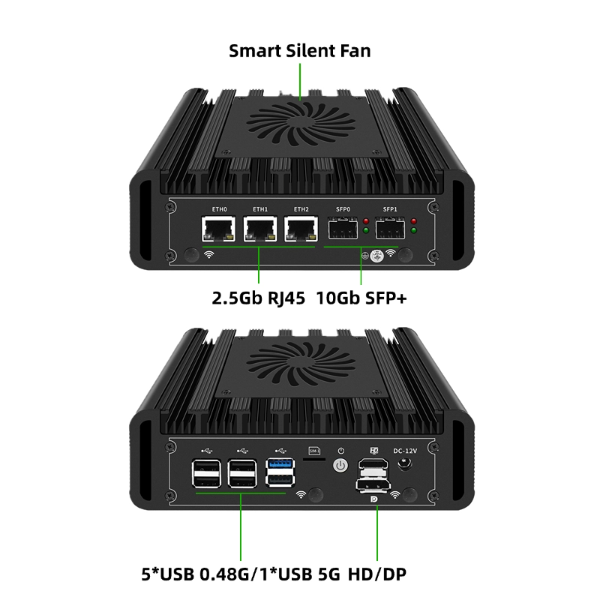

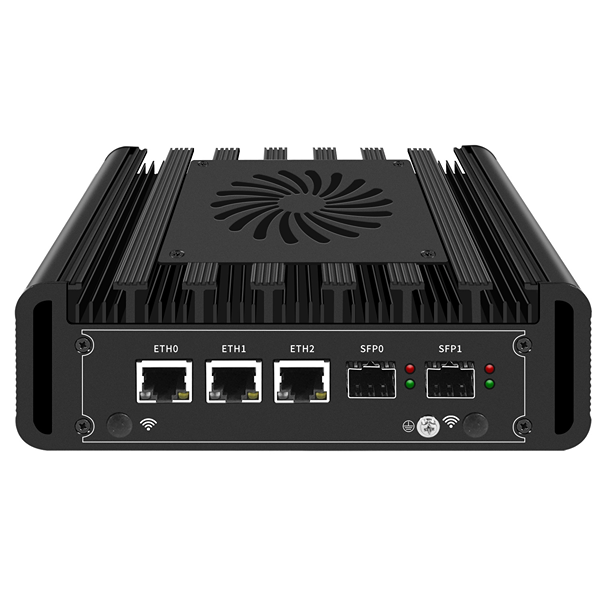

Network port 3*RJ45+2*SFP+
Network controller 3*Intel i226 2.5GbE+2*Intel 82599 10G SFP
Memory 1*DDR5 SO-DIMM 4800MT/s
Storage 1*M.2 Key-M 2280
Expandable slot
1*M.2 Key-B 3052, 1*M.2 Key-E 2230 CNVi protocol

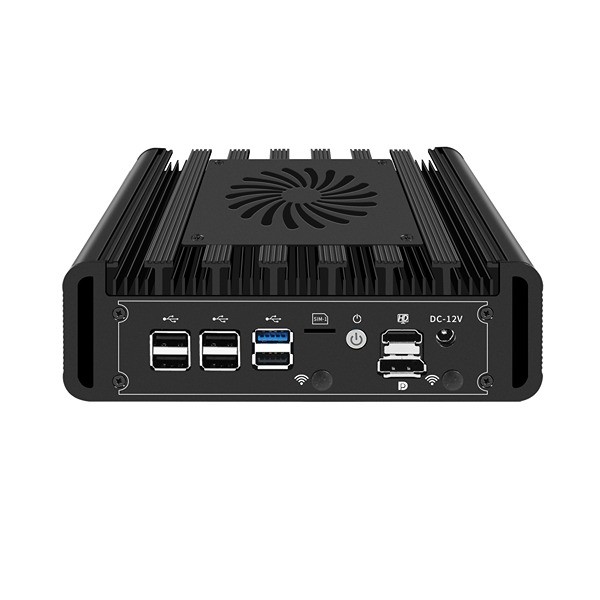

Video output 1*DP, 1*HD
Chassis size 177*125*54 mm
Power supply DC 12V-6A or higher

Get Sample

H31F N100 3L2S Product Features - Beikong Industrial

Core Product Advantages

Ultra-Low Power Architecture - Intel N100 processor with DDR5 memory balances performance and efficiency
Hybrid Network Architecture - 3×2.5GbE ports + 2×10G SFP+ ports enable multi-rate network convergence
Ultra-Compact Design -Mini chassis supports Desktop/Wall mounting for space-constrained deployment
Dual-Mode Expansion - Dual M.2 slots support 4G/5G/WiFi/BT multi-module hybrid access

Typical Application Scenarios

Industrial IoT Gateway - Protocol conversion and edge computing for PLC/sensor devices
Digital Signage Controller - Synchronous/Asynchronous dual-display outputs for commercial display systems
Mobile Maintenance Terminal - Wireless modules enable remote diagnostics and firmware OTA updates
5G Edge Computing Gateway - M.2 Key-B expansion enables 5G network hot-standby and local computing
