B760 8L 2S

Brand BKHD
Model 1U B760 8L 2S
Chipset B760
Network port 8*2.5G Intel i226
2*10G Intel SFP (Opt.)
2*40G Intel SFP (Opt.)
Memory 2*DDR5-SODIMM
Storage 2*NVMe /4*SATA
1*PCIe x4
1*M.2 For 5G
1*M.2 For WiFi
1*mPCIe For 4G
Video output 1*VGA/1*HDMI (Opt)
Power Adapter ATX 100~240V IN 24V Out


Related accessories (Click to download)


Product manual


Product specification


BIOS file




Product features:


BKHD 1U B760 6L 2S is a rackmount network appliance supporting LGA1700 processor. Equipped with dual-channel DDR5 memory, supports maximum memory capacity of 64GB.

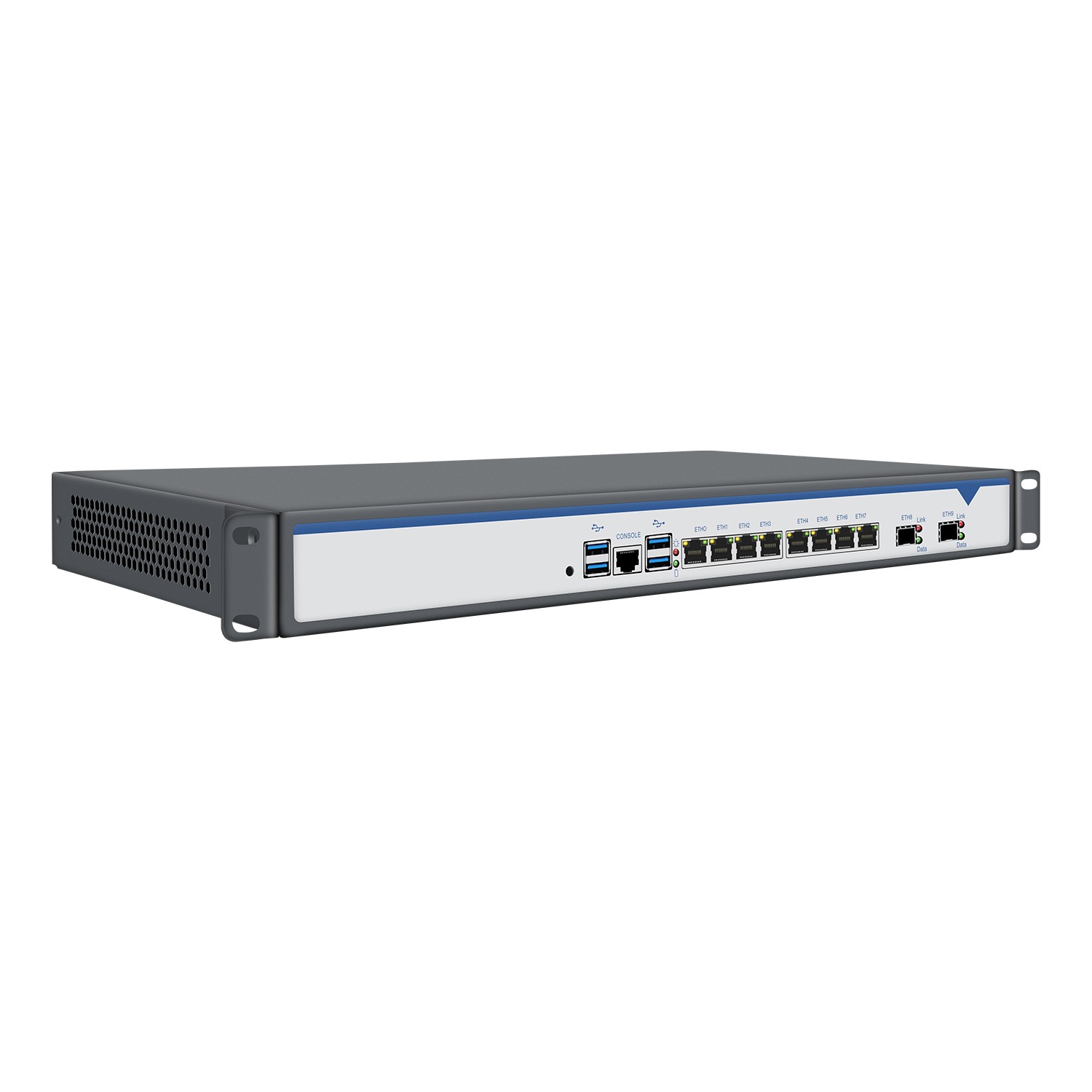

The device adopts a rack-mountable chassis design with a standard 19-inch 1U size, making it easy to install and manage in the cabinet. At the same time, it has the ability to adapt to a wide temperature environment and can operate stably in the temperature range of -20 degrees Celsius to 60 degrees Celsius, ensuring the reliability and stability of the equipment.


X86 architecture design and excellent compatibility can widely support various operating systems and software. Whether you use various routing systems such as OPNsense, Pfsense, MikrotikOS, VyOS, or the Windows desktop and server series, they can easily meet the requirements of your working environment.

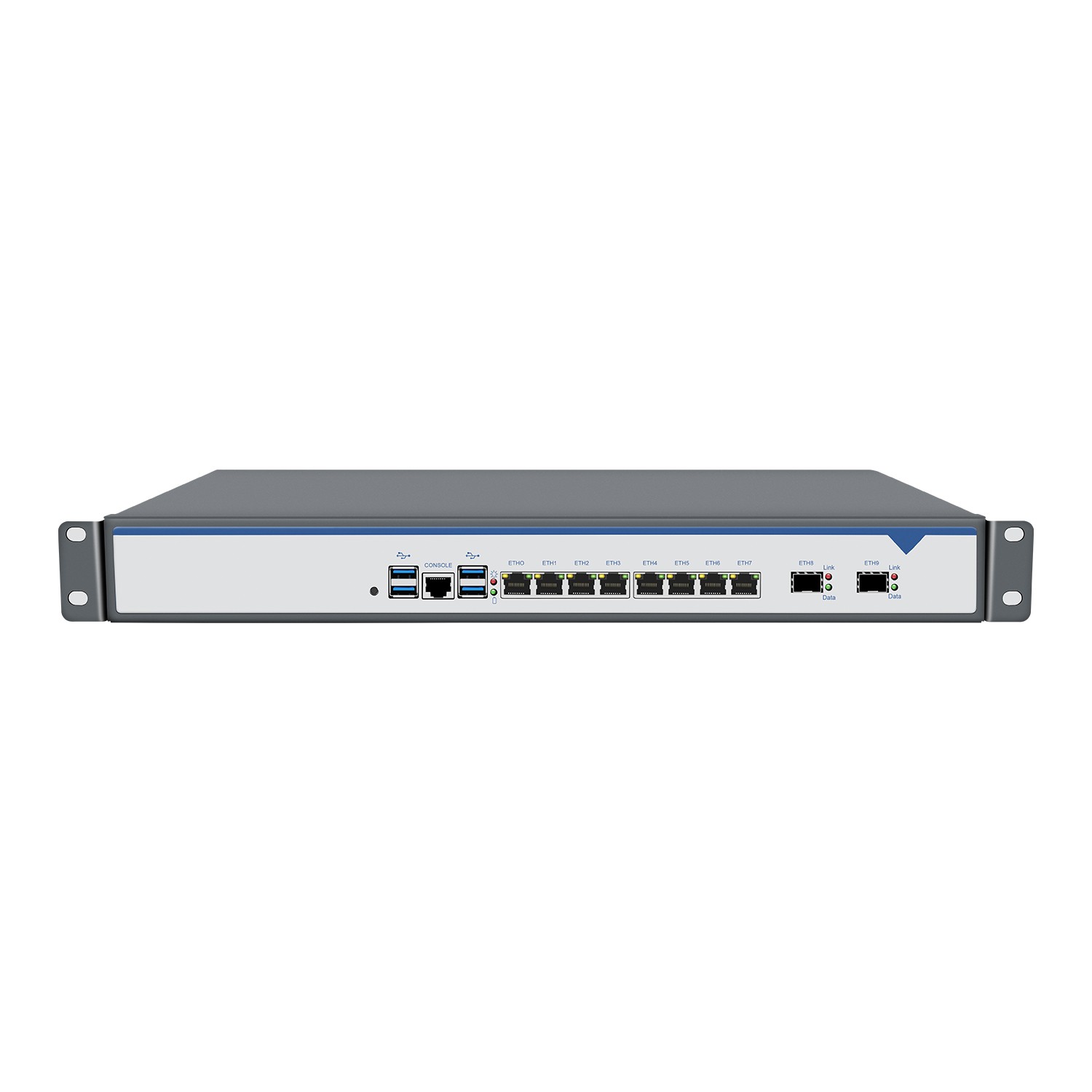

Equipped with 6x2.5G Ethernet ports. It can also be equipped with 2x 10G and 40G optical ports to provide higher-speed data transmission capabilities and greater bandwidth capacity to meet the needs of larger network environments. Using Intel adaptive network card technology, it provides excellent support for high-speed network data transmission. It can meet the needs of various scenarios such as high-speed home networking and enterprise-level networking, and can easily connect multiple devices to achieve fast and stable data transmission.

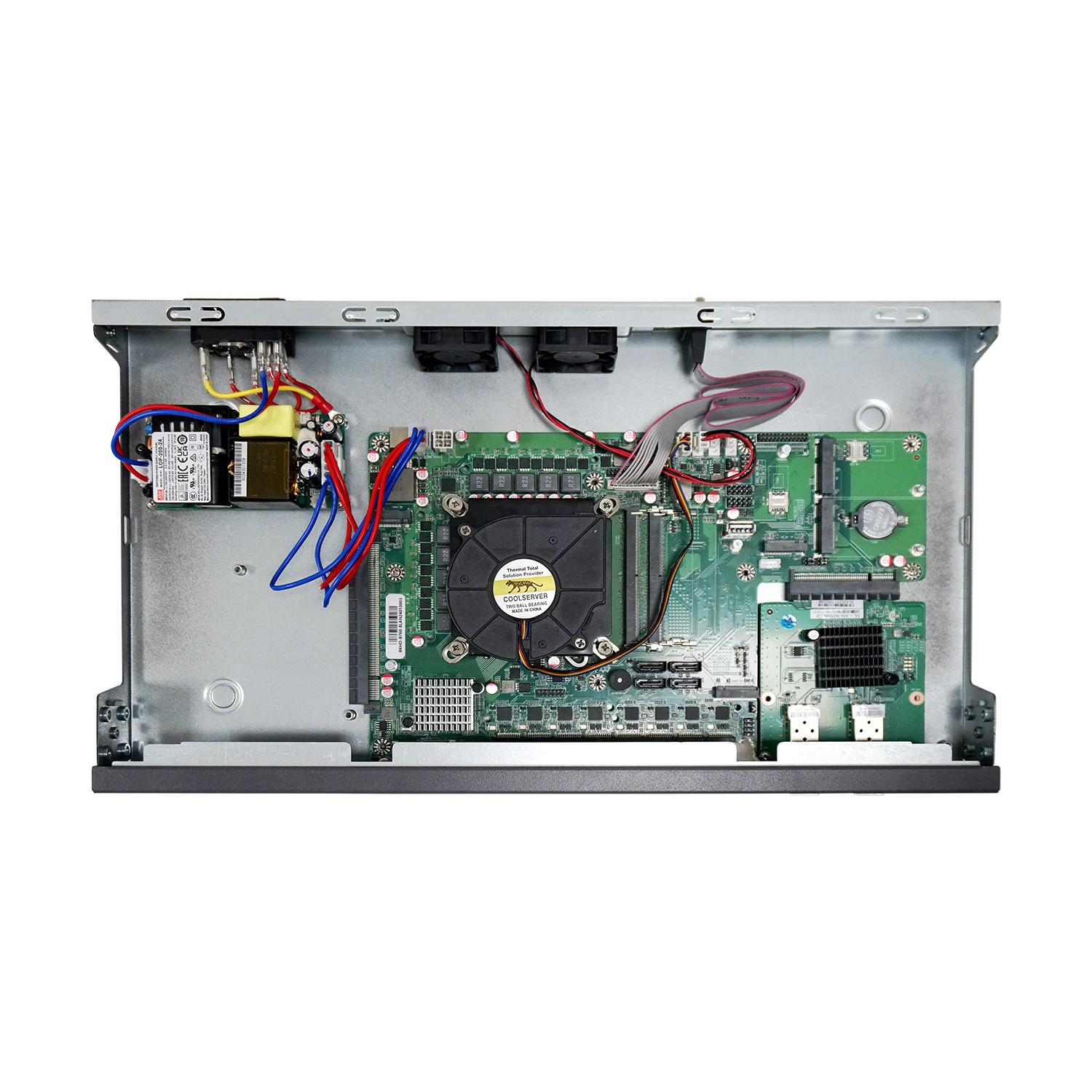

Excellent scalability, the motherboard features a Mini-PCIe; M.2 KeyB; PCIe expansion slot that supports additional expansion modules, so you can upgrade and expand as needed.
