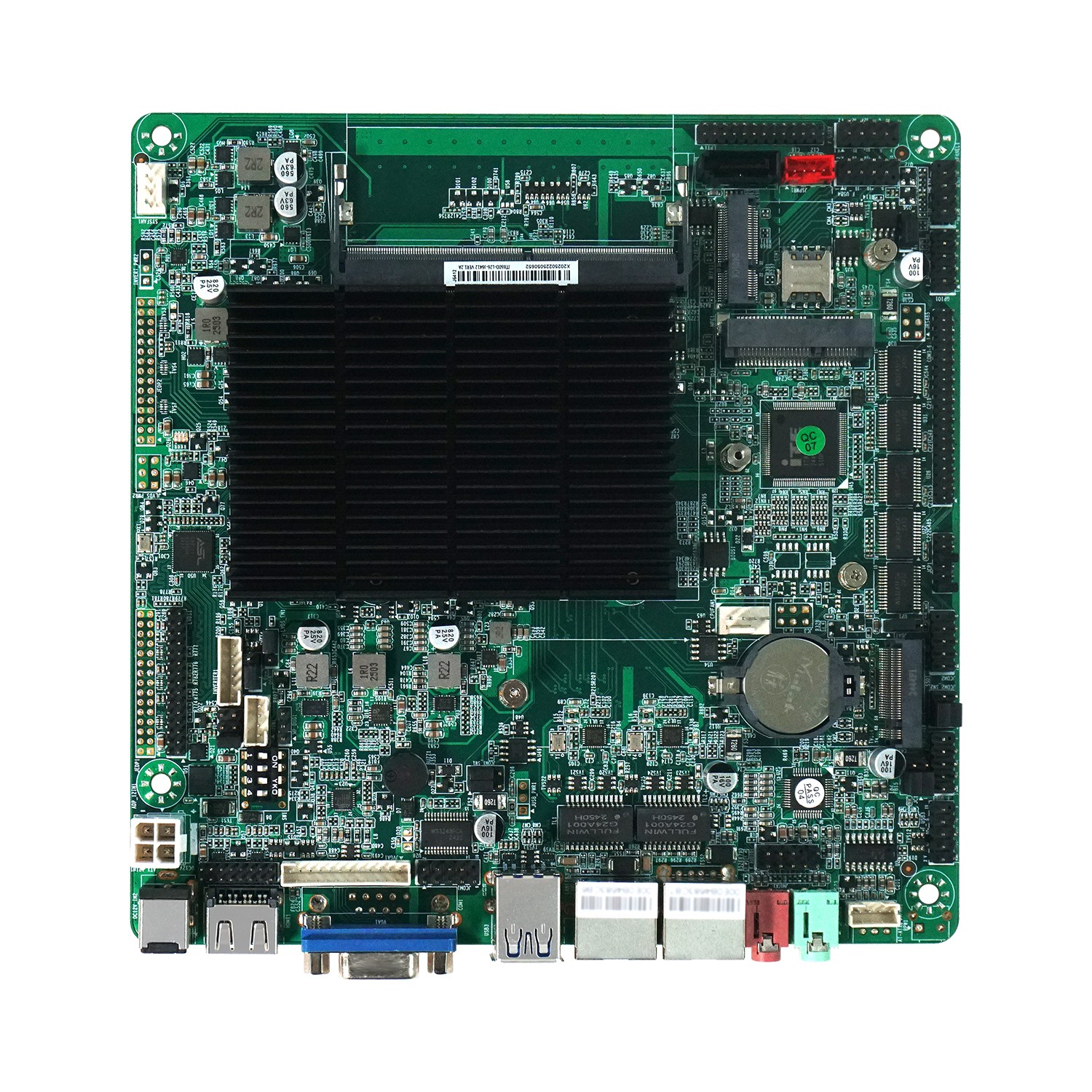

ITX-1493-TI4

Key Features

• Processor Platform: Intel Celeron Processor J Series (FCBGA1493)

• Memory: DDR4 SO-DIMM, up to 32GB, 3200 MHz

• Storage Interfaces:

• 1× SATA 3.0 (6Gb/s) with onboard data and power connector

• 1× M.2 Key-B+M SSD slot (SATA / PCIe x1)

• Networking:

• 2× Gigabit Ethernet (Realtek RTL8111H)

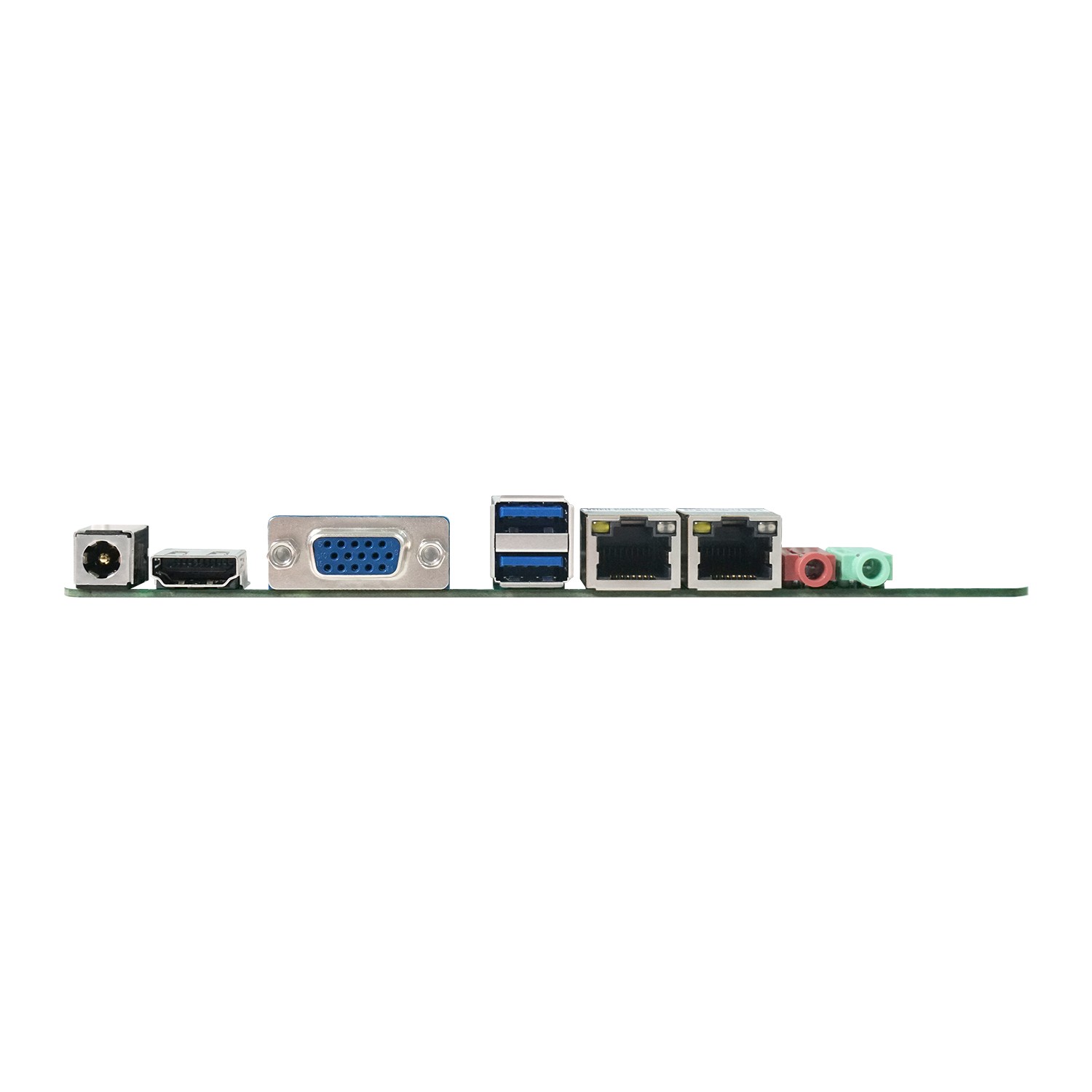

• Rear I/O supports 1× RJ45 + USB or optional 2× RJ45 configuration

• Display & Graphics:

• Intel® UHD Graphics

• Display options: VGA, HD, LVDS, eDP (configurable)

• Multiple onboard display headers for flexible panel integration

• Expansion:

• 1× M.2 Key-E 2230 (PCIe x1 + USB 2.0) for Wi-Fi or wireless modules

• 1× mPCIe (PCIe x1 + USB 2.0) for LTE, I/O, or expansion cards

• USB & I/O:

• 2× USB-A 3.0 (rear I/O)

• Up to 3× USB 2.0 headers (expandable)

• Audio: Line-out + Mic-in

• SIM card slot for cellular connectivity

• Industrial Interfaces:

• Multiple COM headers (RS232)

• LPT, GPIO, speaker, and front panel headers

• Cooling & Power:

• 1× CPU fan + 1× system fan header

• Power input: DC 12V jack or ATX 4-pin

• Form Factor: Mini-ITX (170 × 170 mm)

• Operating Environment: -10–60°C (working), -20–70°C (storage), 5–95% RH (non-condensing)

Typical Application Scenarios

• Industrial Embedded Systems: Suitable for factory automation, machine control, and embedded controllers.

• Edge Computing & Gateways: Ideal for edge data processing, protocol conversion, and device aggregation.

• Industrial Panel PC & HMI: Supports LVDS and eDP panels for custom HMI and touch display systems.

• Networking & Communication Devices: Dual LAN and wireless expansion enable use in routers, gateways, and communication appliances.

• Digital Signage & Multimedia: VGA/HDMI outputs support media playback, kiosks, and information display systems.
