Brand BKHD
Model G31F 1744 2L
Chipset BKHD-1744-12
Network port
1*Intel i219 Gigabit Ethernet;
1*Intel i226 2.5G Ethernet
Memory 2*DDR5 SO-DIMM
Storage 1*NVMe/1*SATA
Expandable 1*mPCIe for WiFi/BT/4G
Video output 1*DP/2*HD/1*Type-C
Power Adapter DC 12V-10A
Model: Core i5-13420H/i7-13620H
Cores: 8/10
Threads: 12/16
Product Specifications
BIOS file
The BKHD G31F 1744 2L uses an advanced chipset and is equipped with the 13th generation Raptor Lake series Core processor. Thanks to the improved Intel 7 process processor, it supports higher frequency speeds, richer I/O interfaces and more flexible expansion options, whether it is home, office, or industrial automation or IoT applications, it can be easily used.
Network pors:
1 Intel i219 Gigabit Ethernet port and 1 Intel i226 2.5G Ethernet port to meet the network transmission needs of Gigabit or higher bandwidth.
Memory support:
2 DDR5 SO-DIMM slots to meet the needs of higher bandwidth and performance and high-load applications.
Storage support:
1 M.2 NVMe SSD slot (PCIe Gen4 x4 rate) provides fast data access, and 1 SATA 6Gb/s interface is suitable for HDD or SSD, providing flexible large-capacity data storage options.
Expansion slot:
1 mPCIe slot, which can be used to expand WiFi, Bluetooth or 4G modules to provide wireless connectivity.

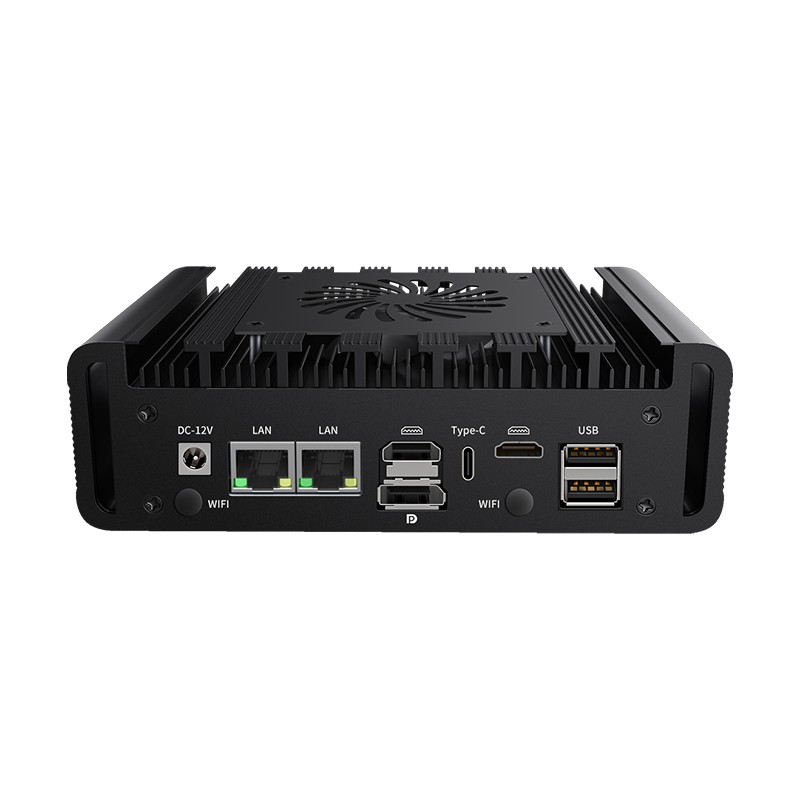

Video output:
1 DP and 2 HD ports, supporting high-resolution display output, suitable for multi-monitor connection. 1 Type-C ports, providing versatile connection options.
