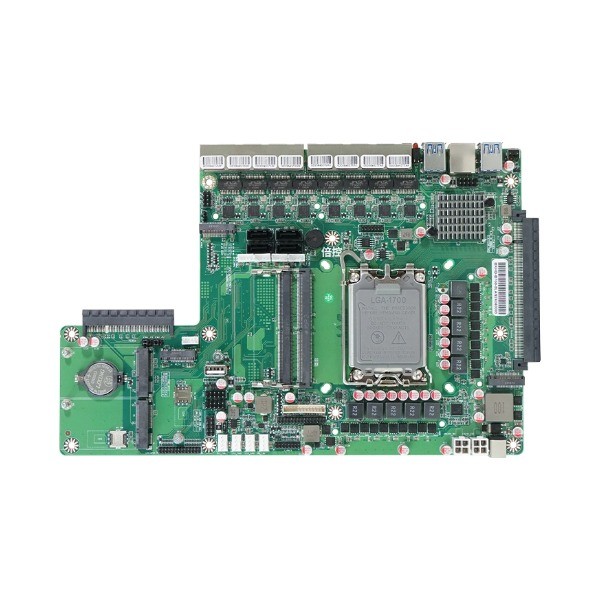

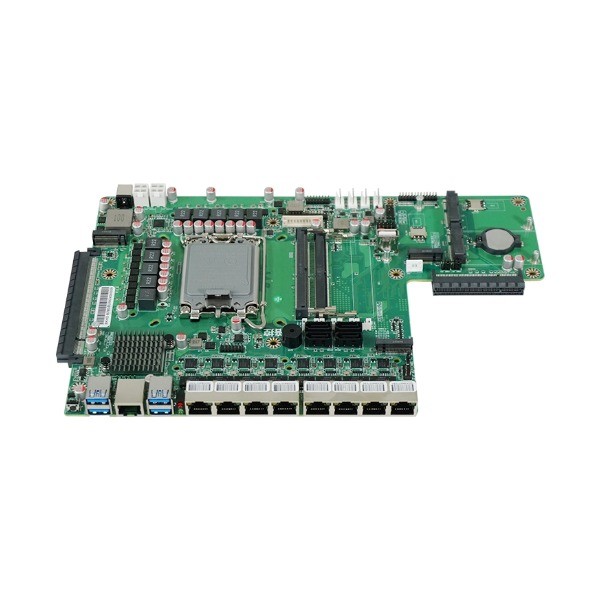

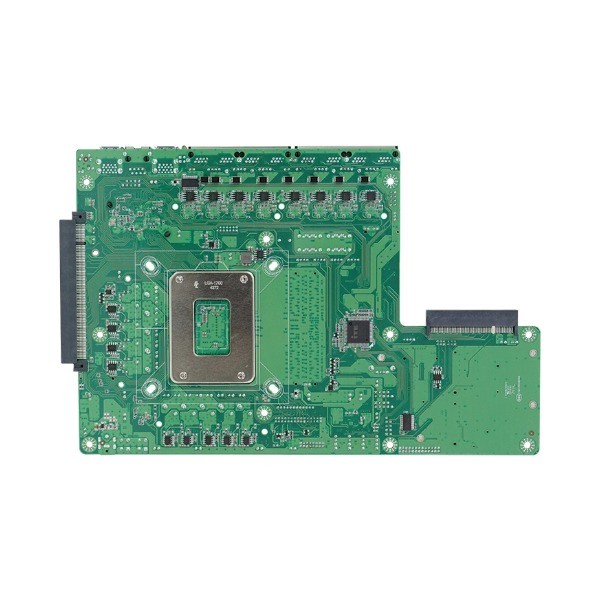

B760NP-20-8L MB

Brand BKHD
Model B760NP-20-8L MB
Chipset BKHD-B760NP-20-6L

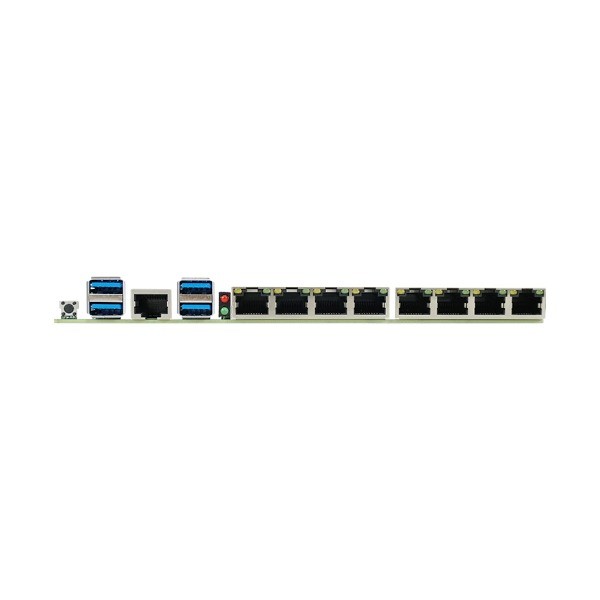

Network port 8*Intel i226 2.5G
Memory 2*DDR5 SO-DIMM
Storage 2*NVMe/4*SATA
Expansion slots
1*PCIe x16 Gen4
1*PCIe x4 Gen4
1*M.2 Key E for WiFi/4G/5G module
1*Mini PCIe for WiFi/BT/4G module
1*Mini PCIe for WiFi/BT module
Video output 1*VGA/1*HD (optional)
Power Adapter ATX 24V

Related Attachments (Click to download)

Motherboard Specifications

BIOS file

Product Features:

LGA1700 socket, supports 12-14th generation Intel processors, and the latest Intel 7 hybrid architecture design provides the system with more powerful computing performance and lower power consumption. It can meet the requirements of high-performance computing and is suitable for various complex applications.
Equipped with 8 Intel i226 chips, each network port supports up to 2.5Gbps network bandwidth, suitable for large network environments and high-bandwidth applications.
Supports dual-channel DDR5 SO-DIMM, supports up to 96GB of memory, provides higher bandwidth and lower latency, and improves overall system multitasking performance.
Supports up to 2 NVMe SSDs and 4 SATA devices, providing high-speed, high-capacity storage solutions to meet diverse storage needs.
Rich scalability: 1 PCIe x16 is suitable for high-performance graphics cards, network cards, or other expansion cards. 1 PCIe x4 can add more storage or network interfaces. 1 M.2 Key E can support WiFi, 4G, or 5G modules to expand network connectivity options. 2 Mini-PCIe: Supports WiFi, Bluetooth, or 4G modules to adapt to a variety of network environments and application scenarios.
Multiple video output options: Provides VGA; HD; eDP video pins to expand the display interface. Supports high-resolution display output suitable for multimedia applications and surveillance management.

Application scenarios:

Enterprise-class networking applications. As a router or firewall, it provides efficient network connectivity and flexible scalability options to deliver secure, efficient, and resilient network services. As a VPN server, its high-bandwidth network interface and powerful processing power deliver secure, high-performance, enterprise-class VPN services.
Data center and server. With powerful Intel processors, it serves as a high-performance computing node in the data center to handle complex computing tasks. For virtualization and cloud services. It supports virtualized environments, provides efficient operation of multiple virtual machines, and is ready to deliver cloud services.
Industrial control systems. High-performance processing and a variety of interfaces enable real-time data collection and analysis, and improve the stability of industrial control systems. Multiple network connectivity options and stable power support are suitable for remote monitoring and management of industrial automation systems.
IoT Gateway. With efficient processing power and multiple on-board interfaces, it is suitable as an IoT gateway device to provide local data processing and storage. It supports multiple expansion modules and is suitable for a variety of sensors and data acquisition devices to achieve efficient data transmission and processing.
Multimedia Server. Supports high-bandwidth memory and multi-disk storage, suitable as a multimedia server to provide streaming services and high-definition content playback. Multi-disk storage and high-performance integrated graphics processors are suitable for high-quality video editing and video file storage.
Embedded system. With rich expansion options and flexible configuration, it can be used as the core motherboard of various embedded systems to support custom application requirements. With powerful processing capabilities and multiple network connectivity options, it can be used as a smart home gateway to provide smart home connectivity.
