Brand BKHD
Model 1U B660 6L
Chipset B660
Network port 6*2.5GE Intel NIC
Memory 2*DDR4-SODIMM
Storage 1*NVMe 4x/4*SATA
Expandable
1*PCIe x16 Expansion slot
1*PCIe x4 FPC(Need FPC Cable)
1*M.2 For 5G
1*MiniPCIe For 4G
1*M.2 For WiFi
Video output 1*VGA/1*HDMI (Opt)
Power Adapter ATX 100~240V IN 24V Out
Processor (Optional) | |||
|
|
|
|
Model | Core | Thread | Frequency |
LGA1700 CPU | \ | \ | \ |
Core I3 12100 | 4 | 8 | 3.3 GHz |
Core I5 12400 | 6 | 12 | 2.5 GHz |
Core I7 12700 | 12 | 20 | 2.1 GHz |
Core I9 12900K | 16 | 24 | 3.2 GHz |
Core I3 13100 | 4 | 8 | 3.4 GHz |
Core I5 13400 | 10 | 16 | 2.5 GHz |
Core I7 13700 | 16 | 24 | 2.1 GHz |
Core I9 13900K | 24 | 32 | 3.0 GHz |
Memory(RAM) | |
|
|
Config | Capacity |
NO RAM | 0 |
DDR4 SO-DIMM | 2GB/4GB/8GB/16GB/32GB/32+32GB |
Storage(SSD) | |
|
|
Config | Space |
NO SSD | 0 |
NVMe SSD | 128GB/256GB/512GB/1TB |
Extension module(M.2) | |
|
|
Config | Net |
WiFi | WiFi |
4G/5G | 4G/5G |
Extension module(mPCIe) | |
|
|
Config | Net |
4G | 4G |
Related accessories (Click to download) |
|
|
|
Product features:

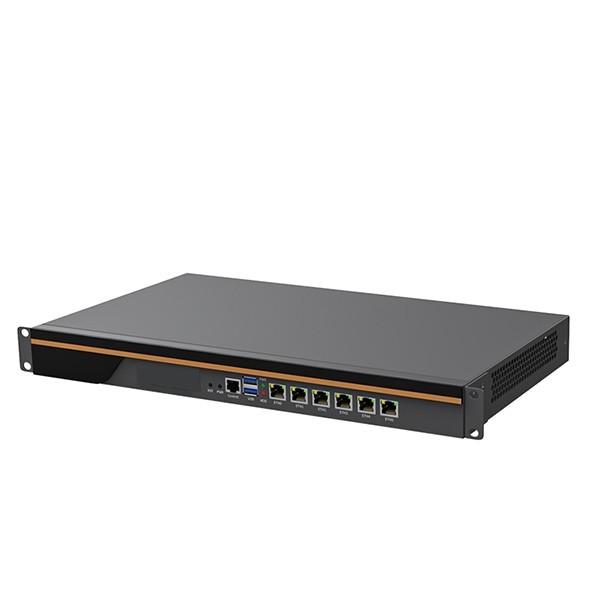

BKHD 1U B660 6L is a rack-mounted network device that supports LGA1700 processor. Equipped with dual-channel DDR4 memory, supporting a maximum memory capacity of 64GB.
The equipment adopts a rack-mounted chassis design with a standard 19-inch 1U size, making it easy to install and manage in the cabinet. At the same time, it has the ability to adapt to a wide temperature environment and can operate stably in the temperature range of -20 degrees Celsius to 60 degrees Celsius, ensuring the reliability and stability of the equipment.
X86 architecture design and excellent compatibility can widely support various operating systems and software. Whether you use various routing systems such as OPNsense, Pfsense, MikrotikOS, VyOS, or the Windows desktop and server range, they can easily meet the requirements of your work environment.
Equipped with 6*2.5G Ethernet ports. Using Intel adaptive network card technology, it provides excellent support for high-speed network data transmission. It can meet the needs of various scenarios such as high-speed home networking and enterprise-level networking, and can easily connect multiple devices to achieve fast and stable data transmission.
Excellent expandability, the motherboard provides Mini PCIe; M.2 KeyB supports additional network module expansion slots, so you can upgrade and expand as needed.
Safe and reliable, it supports advanced security functions such as firewall and VPN. Protect your network from malicious attacks and unauthorized access. Powerful routing and switching capabilities support dynamic routing protocols and multiple VLAN settings to achieve efficient data transmission and traffic management.
