G48 1170 2L

Brand BKHD
Model G48 1170 2L
Chipset BKHD-1170-12
Network port 2*1GbE RJ45 RTL8111
Memory 1*DDR3L SO-DIMM
Storage 1*mSATA/1*SATA
Expandable 1*mPCIe for WiFi/Bluetooth
Video output 1*VGA/1*HDMI
Power Adapter DC 12V-4A

Optional Processor

Model: Celeron N2830/N2940/J1900

Cores: 2/4/4

Threads: 2/4/4

Related Attachments (Click to download)

Product Manual

Product Specifications

BIOS file

Product Features:

The G48 1170 2L is a fanless, low-power mini host with an efficient Bay Trail Series Celeron processor. Its excellent computing performance and ultra-low power consumption make it a leading choice for industrial control, data acquisition, Internet of Things, and machine vision Ideal.

With support for DDR3L memory, users can configure up to 8GB of memory as needed for smooth multitasking and fast system response. With 1*mSATA and 1*SATA slot, the device gives users flexibility in storage solutions, whether it is fast solid state storage or high-capacity hard drives.

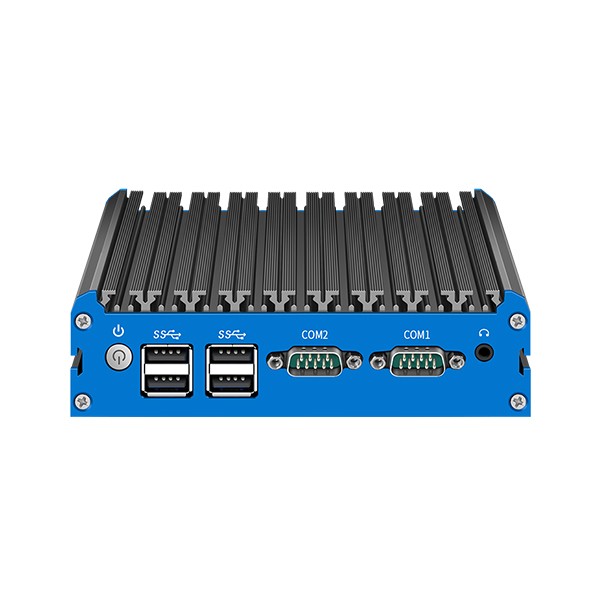

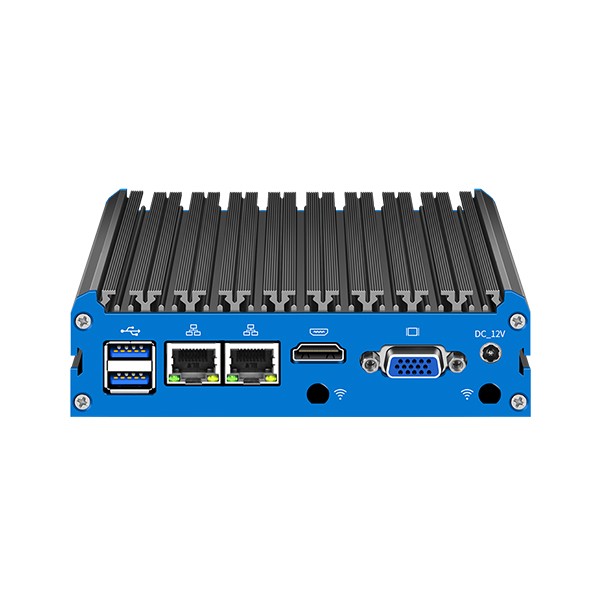

In terms of interfaces, the 2*COM ports support the RS232 protocol, ensuring compatibility with various traditional industrial equipment. 1*HDMI and 1*VGA interface provide the possibility of dual screen display, which is particularly important for application scenarios that require multi-view monitoring or data display.

The fanless design not only provides a quiet working environment, but also improves system reliability and stability and reduces maintenance problems caused by fan failure. It is ideal for application environments that require long-term operation and low maintenance costs select.

The hardware platform is compact, energy-efficient, rugged, and reliable for a wide range of demanding industrial and commercial applications. You'll find unparalleled value and potential in this versatile, high-performance small console.
