G26 1170TI3 1L

Brand BKHD
Model G26 1170TI3 1L
Chipset BKHD-1170-TI3
Network port 1*1GE Realtek NIC
Memory 1*DDR3L SO-DIMM
Storage 1*mSATA
Expandable 1*mPCIe for WiFi/Bluetooth/4G
Video output 1*VGA/1*HDMI
Power Adapter DC 12V-4A

Optional Processor

Model: Celeron J1900

Cores: 4

Threads: 4

Related Attachments (Click to download)

Product Manual

Product Specifications

BIOS file

Product Features:

This industrial computer is equipped with a 4-core J1900 Celeron processor, which not only provides powerful computing power, but also maintains a low thermal design power (TDP) of 15W, ensuring efficient operation while reducing energy consumption. Such a configuration is ideal for handling complex industrial applications and is also suitable for systems that require long periods of operation.

The device supports single-channel DDR3L memory, ensuring speed and efficiency of data processing. An internal mSATA slot allows users to expand storage space as needed. Another highlight is its multiple output capabilities. It supports VGA and HDMI dual display outputs that can achieve synchronous or asynchronous display, increasing display flexibility and making it suitable for environments that require simultaneous multitasking.

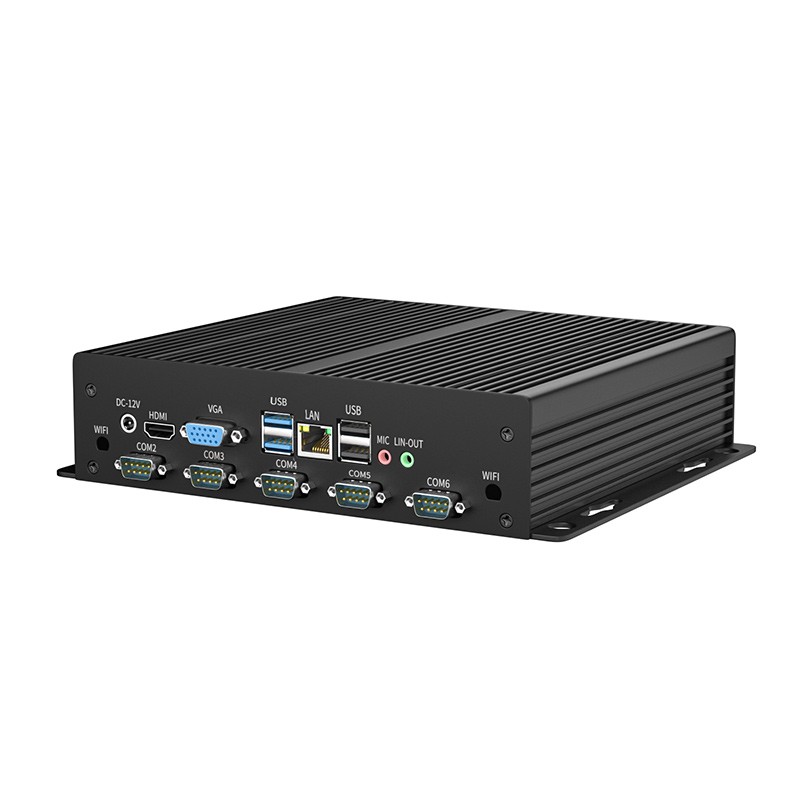

In terms of interface configuration, the device is equipped with 6 USB interfaces and 6 DB9 RS232 COM ports, which greatly enhances its connection capabilities with external devices such as sensors, controllers, etc. The dual Gigabit network port design ensures high-speed and stable network communication, especially in data-intensive industrial environments, and can provide continuous and stable network services.

The fanless design further enhances the stability and reliability of the machine, making it ideal for use in dusty, high-maintenance industrial environments. This design not only reduces noise, but also reduces the need for maintenance due to fan failure.

It is a device ideally suited for modern industrial applications. It takes into account performance and power consumption, provides a stable and reliable X86 platform, and is flexible enough to meet the needs of different application scenarios, making it an ideal choice for industrial and IoT fields.
