1U 1264 TI4

The 1U-1264-TI4 is a rackmount industrial computer designed for multi-serial device management and industrial communication applications. Powered by an efficient, low-power Intel N-series processor, it integrates up to 6 configurable RS232/RS485 serial ports within a standard 1U chassis, along with flexible network and I/O options. It is an ideal solution for industrial automation gateways, security communication management, financial terminal control, and serial server deployments in data centers.

Place an order

Key Features

Processor Platform: Intel® Processor N-series, FCBGA1264
Memory: DDR4 SO-DIMM, up to 16GB, 3200 MHz
Storage:

1× SATA 3.0 (6Gb/s)
1× M.2 Key-B+M SSD slot

Expansion:

1× mPCIe (PCIe / USB 3.0 signal)
1× M.2 Key-B 3052 (USB 3.0 signal) for 4G/5G or wireless modules

Networking (Optional):

1× RJ45 LAN or optional 2× RJ45 LAN

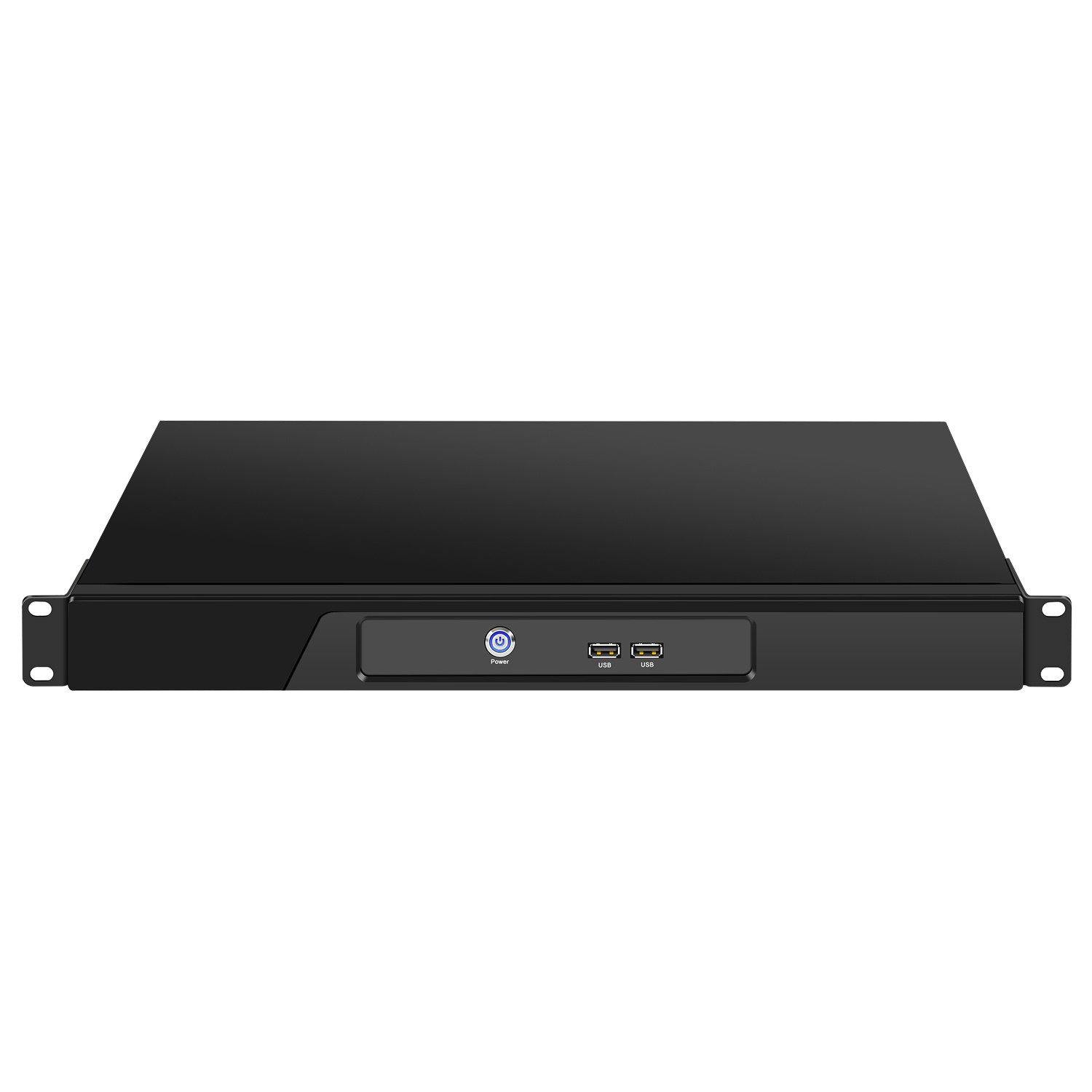

Front Panel I/O:

Start / Restart button
2× USB-A 2.0

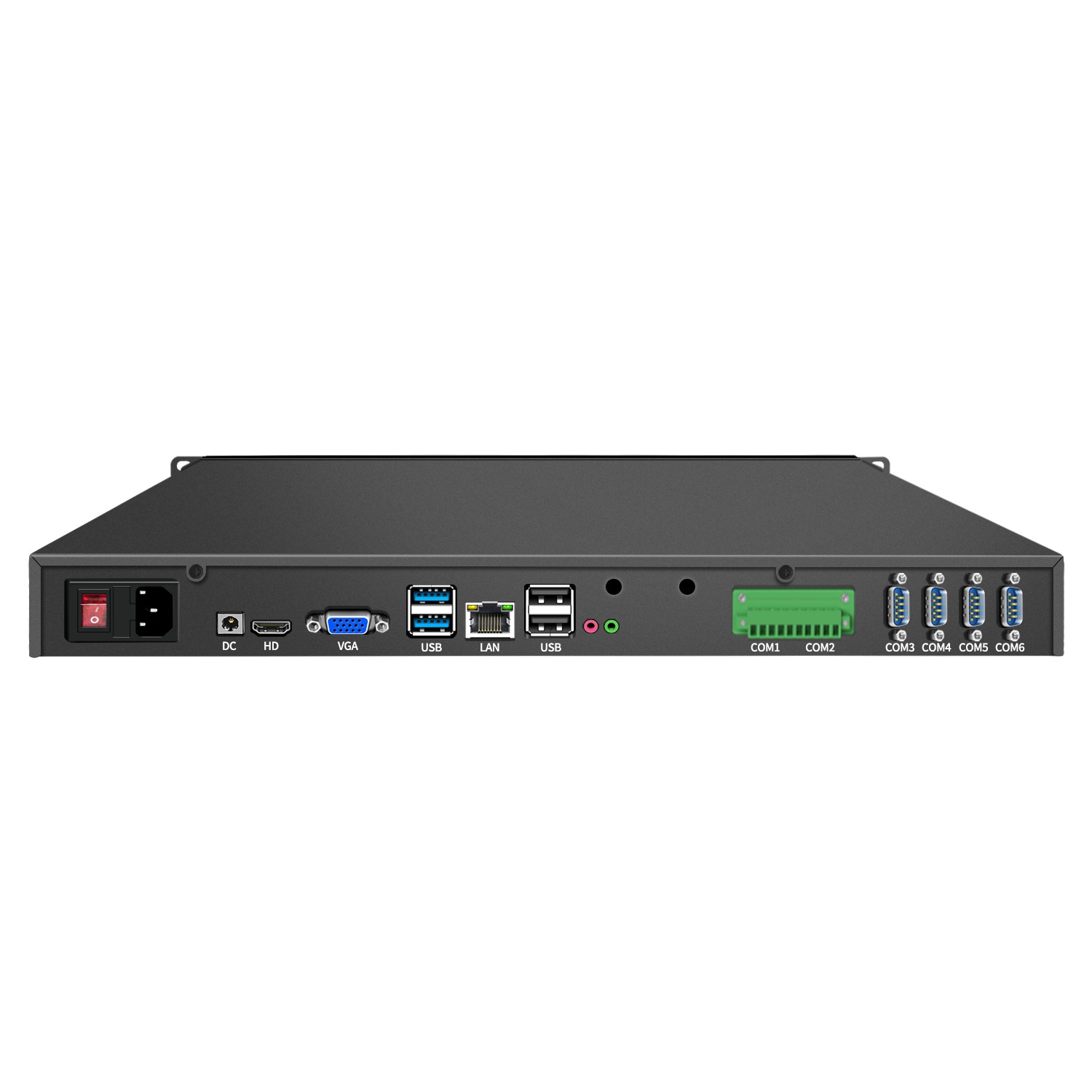

Rear Panel I/O:

Display: 1× VGA + 1× HD
USB: 2× USB-A 3.0 + 2× USB-A 2.0 (optional)
Audio: Line-out + Mic-in
Serial ports: up to 6× COM
Power: AC power socket and DC jack

Cooling: Active cooling with 1× CPU fan
Power Input: 85V–264V AC, 47–63 Hz, maximum 50W
Chassis Size: 440 × 255 × 40 mm (1U)
Weight: 3.80 kg (net), 4.55 kg (with accessories)
Operating Environment: 0–60°C, 5–90% RH (non-condensing)

Typical Application Scenarios

Industrial Control Systems: Suitable for factory automation, equipment control, and monitoring platforms.
Edge Computing & Gateways: Ideal for data aggregation, protocol conversion, and on-site processing.
Network & Communication Appliances: Optional dual LAN and wireless expansion support gateway and routing applications.
Rackmount IT & Embedded Systems: 1U form factor fits standard 19-inch racks for industrial or telecom installations.
Remote Connectivity Solutions: mPCIe and M.2 Key-B enable easy integration of 4G/5G or Wi-Fi modules.
